Parsec Great Pyrenees PRO12GP8L2WBG15B 12:1 5G Omni Antenna – Dual 4x4 MIMO Cellular, Wi-Fi, GPS, Bluetooth

5GMPN PRO12GP8L2WBG15B
  • 6x6 & up
  • GNSS
  • Wi-Fi
  • 9 dBi and up
  • 3–5 m
$691.15$881.57Save $190.42

In stock · only 5 leftShips from the US

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Parsec Great Pyrenees PRO12GP8L2WBG15B is a 12-in-1 omni-directional external antenna for vehicle and fixed wireless deployments. A single IP67-rated, low-profile black housing holds eight 4G/5G cellular elements arranged as two separate 4x4 MIMO sets, so one antenna can serve a dual-radio, dual-SIM router on two carriers. It also includes two Wi-Fi elements, a Bluetooth element and an L1 GPS element. Covering 617 MHz to 5925 MHz, it is built for public safety fleets, transportation and enterprise sites. It ships with 15 ft cables.

  • 12:1 configuration: 8 cellular, 2 Wi-Fi, 1 Bluetooth and 1 L1 GPS element in one housing
  • Double 4x4 MIMO 4G/5G cellular for dual-radio, dual-SIM operation on two separate carriers
  • One cellular set tuned for T-Mobile Band 71; supports CBRS and LAA
  • Cellular coverage of 617-894, 1710-2700, 3300-4000 and 5150-5925 MHz with up to 85% radiated efficiency
  • Wi-Fi 6 compatible Wi-Fi elements covering 2400-2483.5 and 4900-5900 MHz
  • IP67 low-profile radome, -40 °C to 85 °C operation, single 1.5 in hole mount
  • 15 ft cables: SMA(M) cellular and GPS, RP-SMA(M) Wi-Fi
  • Serve both modems of a dual-radio router from one roof penetration instead of mounting two antennas

The Great Pyrenees PRO Series is Parsec's multi-carrier 5G antenna for routers that run two cellular modems at once. This PRO12GP8L2WBG15B configuration packs 12 elements into one housing. Eight are 4G/5G cellular elements that form two independent 4x4 MIMO sets. One set is tuned for T-Mobile's Band 71 at 600 MHz. The other two elements serve Wi-Fi, one serves Bluetooth and one serves L1 GPS. Parsec designed the antenna to run dual radios and dual SIMs on two separate carriers without interference, with high port isolation and radiated efficiency of up to 85%.

Cellular coverage spans 617-894 MHz, 1710-2700 MHz, 3300-4000 MHz and 5150-5925 MHz. That covers the common North American LTE and 5G bands, including n41, n71 and n77, as well as CBRS (B48/n48) and LAA (B46). EMEA bands are also listed. The Wi-Fi elements cover 2400-2483.5 MHz and 4900-5900 MHz and are Wi-Fi 6 compatible. The GPS element is an active L1 antenna with 28 dBic combined antenna and preamp gain.

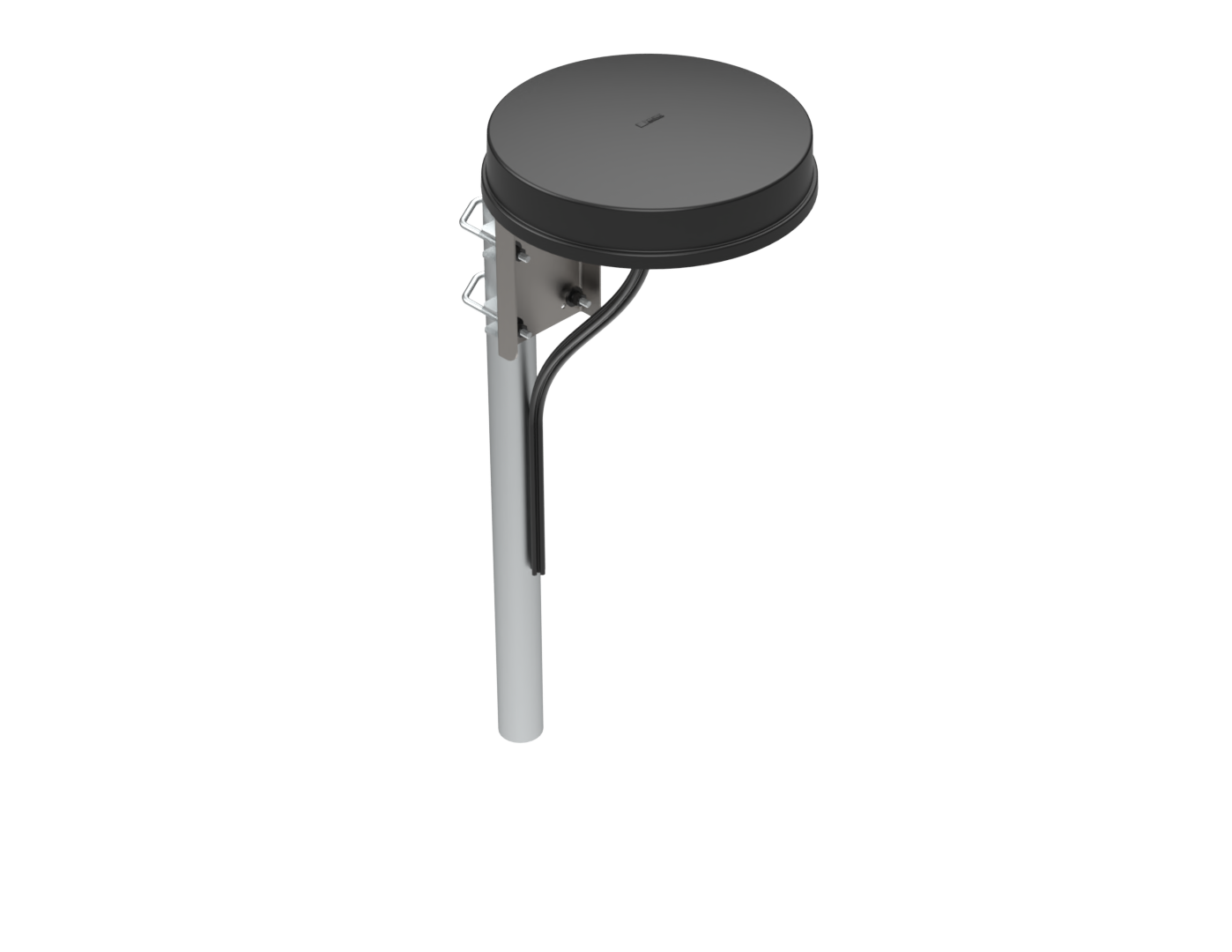

The radome measures 10.75 in across and stands 2.23 in tall. It is made of UV-stabilised plastic and sealed to IP67. It operates from -40 °C to 85 °C and installs through a single 1.5 in hole on a roof. Parsec also offers pole mount brackets and a magnetic mount as accessories. Cellular leads are LSR200 with SMA(M) connectors, Wi-Fi leads are LSR200 with RP-SMA(M) connectors, and the GPS lead is LSR100 with an SMA(M) connector. All cables are 15 ft long.

Parsec publishes a datasheet, an installation guide and a part number legend for the Great Pyrenees family. Those documents make it straightforward to plan cabling and mounting for ambulances, police and fire vehicles, command centers, remote video and fixed wireless rooftops.

Ideal for

  • Ambulances, police and fire vehicles running dual-modem routers on two carriers
  • Transportation and fleet vehicles that need cellular, in-vehicle Wi-Fi and GPS tracking from one antenna
  • Fixed wireless access on enterprise rooftops in rural and urban areas
  • Mobile command centers and remote video monitoring
  • RVs and mobile broadband setups

Specifications

GPS

GPS Type
GPS Element: L1 GPS
Cable Type
GPS Cable: LSR100
L1 Frequency
L1 GPS: 1575.42 MHz
Polarization
RHCP
RF Connector
GPS Connector: SMA(M)
Preamp Current
< 45 mA
Preamp Voltage
3 to 5 V
Antenna Preamp Gain L1
Antenna + Preamp Gain (L1, 1563-1587 MHz): 28 dBic

Wi-Fi

Wi-Fi Elements
2
Frequency 5ghz
Wi-Fi: 4900-5900 MHz
Frequency 2 4ghz
Wi-Fi: 2400-2483.5 MHz
Wi-Fi 6 Compatible
Yes

General

MPN
PRO12GP8L2WBG15B
Brand
Parsec
Color
Black
Series
Great Pyrenees PRO Series
Categories
Enterprise, Public Safety, 5G, RV
Applications
Best For: Remote Network, Urban and Rural Areas
Manufacturer
Parsec Technologies, Inc.
Configuration
12:1 – 8 Cellular, 2 Wi-Fi, 1 Bluetooth, L1 GPS
Antenna Pattern
Omni-Directional
Antennas Included
Cellular, Wi-Fi, Bluetooth and GPS

Package

Shipping Weight
7.50 lbs

Hardware

Height
2.23 in
Diameter
10.75 in
Mounting
Single 1.5 in hole
Mount Type
Roof Mount
Radome Material
Plastic with UV Additive
Ingress Protection
IP67 Waterproof
Operating Temperature
-40 °C to 85 °C
Height With Magnetic Mount
Height with Optional Magnetic Mount: 5.34 in
Mounting Accessories Available
Pole Mount, Mag Mount

Isolation

Wi-Fi 2400 2483 MHz
Wi-Fi, 2400-2483.5 MHz: 23 dB
Wi-Fi 4900 5900 MHz
22 dB
Cell MIMO 1 617 746 MHz
16 dB
Cell MIMO 5 746 894 MHz
10 dB
Cell Adjacent 617 746 MHz
6 dB
Cell Adjacent 746 894 MHz
8 dB
Cell MIMO 1 1710 2200 MHz
18 dB
Cell MIMO 1 2200 2700 MHz
21 dB
Cell MIMO 1 3300 4000 MHz
25 dB
Cell MIMO 1 5150 5925 MHz
30 dB
Cell MIMO 5 1710 2700 MHz
14 dB
Cell MIMO 5 3300 4000 MHz
16 dB
Cell MIMO 5 5150 5925 MHz
30 dB
Cell Adjacent 1710 2000 MHz
14 dB
Cell Adjacent 2000 2700 MHz
20 dB
Cell Adjacent 3300 4000 MHz
18 dB
Cell Adjacent 5150 5925 MHz
25 dB

Peak Gain

Wi-Fi 2400 2483 MHz
Wi-Fi 1-2, 2400-2483.5 MHz: 7 dBi
Wi-Fi 4900 5900 MHz
Wi-Fi 1-2, 4900-5900 MHz: 9 dBi
Cell 1 4 617 663 MHz
2.5 dBi
Cell 1 4 663 746 MHz
5 dBi
Cell 5 8 746 798 MHz
3 dBi
Cell 5 8 798 894 MHz
3 dBi
Cell 1 4 1710 2200 MHz
6 dBi
Cell 1 4 2200 2700 MHz
7 dBi
Cell 1 4 3300 4000 MHz
8 dBi
Cell 1 4 5150 5925 MHz
8 dBi
Cell 5 8 1710 2000 MHz
6 dBi
Cell 5 8 2000 2700 MHz
7 dBi
Cell 5 8 3300 4000 MHz
8 dBi
Cell 5 8 5150 5925 MHz
8 dBi

Electrical

Polarization
Linear
Max Input Power
5 W
Measurement Notes
Isolation, return loss and peak gain exclude cable loss; measured on a 2 ft x 2 ft external ground plane
Max Radiated Efficiency
Up to 85%

Return Loss

GPS 1575 MHz
GPS, 1575.42 MHz: 10 dB
Wi-Fi 2400 2483 MHz
Wi-Fi 1-2, 2400-2483.5 MHz: 11 dB
Wi-Fi 4900 5900 MHz
Wi-Fi 1-2, 4900-5900 MHz: 6 dB
Cell 1 4 617 663 MHz
6 dB
Cell 1 4 663 746 MHz
8 dB
Cell 5 8 746 798 MHz
10 dB
Cell 5 8 798 894 MHz
5 dB
Cell 1 4 1710 2200 MHz
11 dB
Cell 1 4 2200 2700 MHz
8 dB
Cell 1 4 3300 4000 MHz
6 dB
Cell 1 4 5150 5925 MHz
6 dB
Cell 5 8 1710 2000 MHz
9 dB
Cell 5 8 2000 2700 MHz
5 dB
Cell 5 8 3300 4000 MHz
6 dB
Cell 5 8 5150 5925 MHz
3 dB

Cellular Bands

Emea 5G
n1, n3, n28, n77, n78
Emea LTE
B1, B3, B7, B20, B28, B42, B43, B46
North America 5G
n2, n5, n12, n25, n26, n41, n48, n66, n71, n77
North America LTE
B2, B4, B5, B7, B12, B13, B14, B17, B25, B26, B29, B30, B41, B46, B48, B66, B71

Connectors Cables

Cable Length
15 ft
GPS Connector
SMA(M)
GPS Cable Type
LSR100
Wi-Fi Connector
RP-SMA(M)
Wi-Fi Cable Type
LSR200
Cellular Connector
SMA(M)
Cellular Cable Type
LSR200

Radiated Efficiency

Wi-Fi 2400 2483 MHz
Wi-Fi 1-2, 2400-2483.5 MHz: 60%
Wi-Fi 4900 5900 MHz
Wi-Fi 1-2, 4900-5900 MHz: 60%
Cell 1 4 617 663 MHz
40%
Cell 1 4 663 746 MHz
50%
Cell 5 8 746 798 MHz
40%
Cell 5 8 798 894 MHz
40%
Cell 1 4 1710 2200 MHz
70%
Cell 1 4 2200 2700 MHz
80%
Cell 1 4 3300 4000 MHz
85%
Cell 1 4 5150 5925 MHz
80%
Cell 5 8 1710 2000 MHz
60%
Cell 5 8 2000 2700 MHz
70%
Cell 5 8 3300 4000 MHz
80%
Cell 5 8 5150 5925 MHz
65%

Cellular Frequencies

CBRS Laa
CBRS and LAA: Supported
Cellular MIMO
Double 4x4 MIMO
Band 71 Tuning
One 4x4 set tuned for T-Mobile Band 71
Frequency Range 1
4G/5G Cellular: 617-894 MHz
Frequency Range 2
4G/5G Cellular: 1710-2700 MHz
Frequency Range 3
4G/5G Cellular: 3300-4000 MHz
Frequency Range 4
4G/5G Cellular: 5150-5925 MHz

Optional Accessories

Ground Plane
Ground Plane, 20 in x 20 in, Adhesive Back: PTA0587
Roof Mount Kit
PTA0610
Pole Mount Bracket
PTA0149H
Pole Mount Heavy Duty
Pole Mount Bracket, Heavy Duty, High Vibration: PTA0721
Lightning Arrestor Sma
PTA0476

Questions buyers ask

Can this antenna support a router with two cellular modems?

Yes. The eight cellular elements form two separate 4x4 MIMO sets. Parsec designed them to run dual radios and dual SIMs on two different carriers without interference.

Which connectors and cables does the PRO12GP8L2WBG15B use?

Cellular leads are LSR200 with SMA(M) connectors, Wi-Fi leads are LSR200 with RP-SMA(M) connectors, and the GPS lead is LSR100 with an SMA(M) connector. All cables are 15 ft long.

Does it cover T-Mobile Band 71 and CBRS?

Yes. One cellular set is tuned for T-Mobile's Band 71 (600 MHz). The antenna also supports CBRS (B48/n48) and LAA (B46), along with n41, n71 and n77 in North America.

How is it mounted?

It is a roof-mount antenna that installs through a single 1.5 in hole. Parsec also offers pole mount brackets and a magnetic mount as separate accessories. Parsec publishes an installation guide for the Great Pyrenees.

Is it suitable for outdoor and vehicle use?

Yes. The UV-stabilised plastic radome is rated IP67 and the antenna operates from -40 °C to 85 °C. It is designed for public safety vehicles, fleets, rooftops and RVs.
