Parsec Bulldog PRO4BD4L15-NM 4-in-1 5G 4x4 MIMO Ceiling Tile Antenna, 15 ft N-Male Cables

5GMPN PRO4BD4L15-NM
  • 4x4 MIMO
  • 3–5 m
$578.52$737.92Save $159.40

In stockShips from the US

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Parsec Bulldog PRO4BD4L15-NM is an in-building 4-in-1 omni-directional antenna with four 4G/5G cellular elements for 4x4 MIMO routers. It fits suspended ceilings as a 23.7 x 23.7 x 2.2 in tile, covering 617-5925 MHz while staying out of sight. This configuration has 15 ft LSR200 cables with N-type male connectors. It is designed for indoor use in retail and office spaces, for primary internet or cellular failover.

  • Four 4G/5G cellular elements for 4x4 MIMO on one modem
  • 617-5925 MHz coverage including 600 MHz and 3.3-4.0 GHz
  • Replaces a suspended ceiling tile: 23.7 x 23.7 x 2.2 in
  • Omni-directional, linear polarization, up to 60 W input
  • High efficiency up to 85% and isolation up to 30 dB
  • 15 ft LSR200 cables with N-type male connectors
  • Gets antennas out of the metal-filled network closet and into open ceiling space for better reception
  • Drops into a standard suspended ceiling grid and blends in with the room

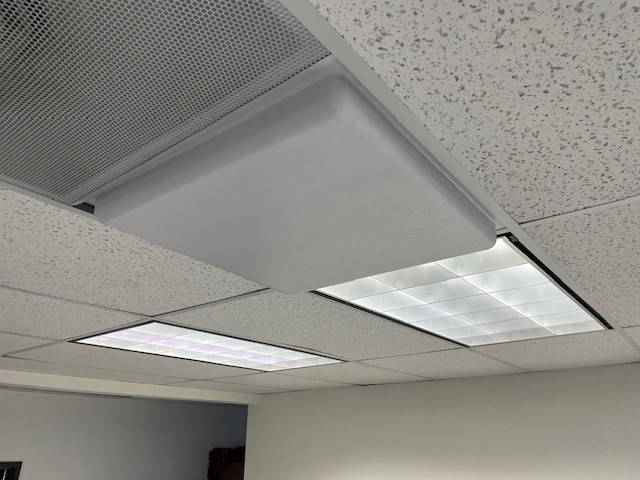

The Parsec Bulldog PRO4BD4L15-NM moves your cellular antennas out of the network closet and into the ceiling. It is a PRO Series 4:1 antenna, four 4G/5G elements in a flat 23.7 x 23.7 x 2.2 in panel that drops into a suspended ceiling grid in place of a standard tile. Mounting overhead avoids the metal racks and obstructions that weaken signal in a hardware closet, and the discreet design blends into most ceilings.

Cellular coverage spans 617-698, 698-894, 1710-2700, 3300-4000 and 5150-5925 MHz, including North American LTE bands B2, B4, B5, B7, B12, B14, B17, B25, B26, B29, B30, B41, B46, B48, B66 and B71 and 5G NR bands n2, n5, n12, n25, n26, n41, n48, n66, n71 and n77, along with international bands B1, B3, B7, B20, B28, B42, B43, B46 and n1, n3, n28, n77, n78. Parsec rates radiated efficiency up to 85%, peak gain up to 8 dBi, MIMO isolation up to 30 dB and maximum input power of 60 W.

The Bulldog is rated for indoor use only, with an operating range of -30 °C to 85 °C. It suits retail stores, offices and other ceiling-tile environments that need wireless internet access or failover to a wireless backup.

This part number is fitted with 15 ft LSR200 cables terminated in N-type male connectors, giving enough length to reach a router in a nearby closet and a robust connector for N-type cable runs, adapters or surge arrestors. Parsec's Bulldog datasheet, installation guide and fixed wireless application notes are available.

Ideal for

  • Wireless internet access for retail stores
  • Cellular failover to a wireless internet backup for offices
  • In-building fixed wireless access with 4x4 MIMO 5G routers
  • Replacing closet-mounted antennas blocked by metal racks

Specifications

RF

Cable Type
LSR200
Connectors
4x N-type male

Bands

International LTE
B1, B3, B7, B20, B28, B42, B43, B46
North America LTE
B2, B4, B5, B7, B12, B14, B17, B25, B26, B29, B30, B41, B46, B48, B66, B71
International 5G NR
n1, n3, n28, n77, n78
North America 5G NR
n2, n5, n12, n25, n26, n41, n48, n66, n71, n77

General

MPN
PRO4BD4L15-NM
MIMO
4x4 MIMO cellular
Brand
Parsec
Configuration
4:1 (4 cellular elements)
Product Family
Bulldog PRO Series In-building
Antenna Pattern
Omni-directional

Electrical

Polarization
Linear
Max Input Power
60 W
Measurement Note
Measured on a 2 x 2 ft ground plane; excludes cable loss
Isolation 617 698 MHz
13 dB (617-698 MHz)
Isolation 698 894 MHz
13 dB (698-894 MHz)
Peak Gain 617 698 MHz
2 dBi (617-698 MHz)
Peak Gain 698 894 MHz
5 dBi (698-894 MHz)
Isolation 1710 2700 MHz
20 dB (1710-2700 MHz)
Isolation 3300 4000 MHz
25 dB (3300-4000 MHz)
Isolation 5150 5925 MHz
30 dB (5150-5925 MHz)
Peak Gain 1710 2700 MHz
7 dBi (1710-2700 MHz)
Peak Gain 3300 4000 MHz
8 dBi (3300-4000 MHz)
Peak Gain 5150 5925 MHz
6 dBi (5150-5925 MHz)
Return Loss 617 698 MHz
7.5 dB (617-698 MHz)
Return Loss 698 894 MHz
11 dB (698-894 MHz)
Return Loss 1710 2700 MHz
11 dB (1710-2700 MHz)
Return Loss 3300 4000 MHz
9.5 dB (3300-4000 MHz)
Return Loss 5150 5925 MHz
6.5 dB (5150-5925 MHz)
Radiated Efficiency 617 698 MHz
75% (617-698 MHz)
Radiated Efficiency 698 894 MHz
85% (698-894 MHz)
Radiated Efficiency 1710 2700 MHz
85% (1710-2700 MHz)
Radiated Efficiency 3300 4000 MHz
75% (3300-4000 MHz)
Radiated Efficiency 5150 5925 MHz
60% (5150-5925 MHz)

Mechanical

Mounting
Fits suspended ceilings (replaces ceiling tile)
Dimensions
23.7 x 23.7 x 2.2 in
RF Cable Length
15 ft

Frequencies

Cellular Range 1
617-698 MHz
Cellular Range 2
698-894 MHz
Cellular Range 3
1710-2700 MHz
Cellular Range 4
3300-4000 MHz
Cellular Range 5
5150-5925 MHz

Environmental

Ingress Protection
Indoor use only
Operating Temperature
-30 °C to 85 °C (-22 °F to 180 °F)

Questions buyers ask

How is the Bulldog installed?

It measures 23.7 x 23.7 x 2.2 in and fits into a suspended ceiling grid in place of a ceiling tile.

Can the Bulldog be used outdoors?

No. Parsec rates the Bulldog for indoor use only.

What connectors does PRO4BD4L15-NM use?

Four 15 ft LSR200 cables terminated in N-type male connectors.

Why mount the antenna on the ceiling instead of in the network closet?

Ceiling mounting avoids interference from metal racks and obstructions in a hardware closet and places the elements in more open space for better reception.
