Parsec Husky PRO4H4L01B-NF 4-in-1 5G 4x4 MIMO IP67 Antenna, Black, 1 ft N-Female Cables

5GMPN PRO4H4L01B-NF
  • 4x4 MIMO
  • 6–8 dBi
  • Up to 1 m
$464.12$591.98Save $127.86

In stock · only 1 leftShips from the US

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

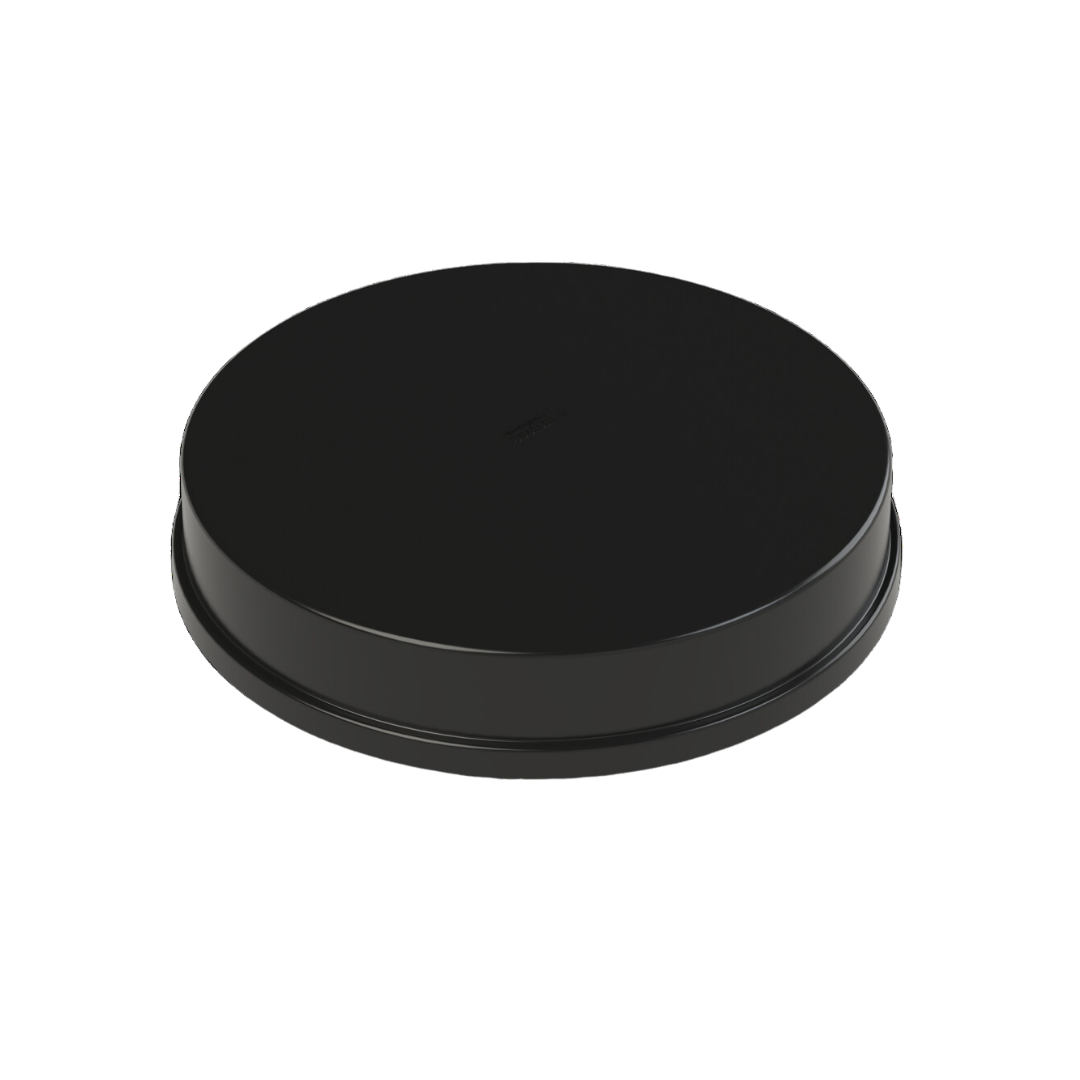

The Parsec Husky PRO4H4L01B-NF is a rugged, low-profile 4-in-1 omni-directional antenna with four 4G/5G cellular elements for 4x4 MIMO routers on vehicles and fixed sites. It covers 617-5925 MHz with peak gain up to 9 dBi and carries an IP67 rating. This black version has 1 ft LSR200 cables terminated in N-type female connectors, ready for N-type extension cables and surge arrestors.

  • Four 4G/5G cellular elements for 4x4 MIMO
  • 617-5925 MHz coverage including 600 MHz and 3.3-4.0 GHz
  • Peak gain up to 9 dBi; efficiency up to 80%
  • IP67 waterproof, UV-stabilized radome, -40 °C to 85 °C
  • Low profile: 10.75 in diameter x 2.23 in height, single 1.5 in hole mount
  • 1 ft LSR200 cables with four N-type female connectors, black radome
  • N-type female connectors integrate directly with N-type extension cables and surge arrestors
  • Suited to longer cable runs between a rooftop or mast and the router

The Parsec Husky PRO4H4L01B-NF is the N-type female version of the Husky PRO Series 4:1 antenna. It puts four 4G/5G cellular elements in one patented, low-profile housing for 4x4 MIMO routers used by first responders, transportation fleets, fixed wireless deployments and enterprise sites. The N-type female termination suits longer, heavier cable runs and outdoor RF paths built around N-type hardware.

Cellular coverage spans 617-894, 1710-2700, 3300-4000 and 5150-5925 MHz, including North American LTE bands B2, B4, B5, B7, B12, B13, B14, B17, B25, B26, B29, B30, B41, B46, B48, B66 and B71 and 5G NR bands n2, n5, n12, n25, n26, n41, n48, n66, n71 and n77, plus EMEA bands B1, B3, B7, B20, B28, B42, B43, B46 and n1, n3, n28, n77, n78. Peak gain runs from 4 dBi in low band up to 9 dBi at 5150-5925 MHz, with radiated efficiency up to 80% and isolation up to 20 dB.

The IP67 waterproof radome is UV-stabilized plastic, rated from -40 °C to 85 °C, and measures 10.75 in in diameter by 2.23 in tall. It installs through a single 1.5 in hole, and Parsec offers pole mount brackets, a magnetic mount and an N(F) to N(M) lightning arrestor (PTA0736) as accessories.

The four 1 ft LSR200 cables end in N-type female connectors, so the antenna connects to N-male extension cables or arrestors that then run to the router. The Husky datasheet, installation guide and fixed wireless application notes are available from Parsec.

Ideal for

  • Rooftop or mast fixed wireless access with N-type cable runs
  • Public safety and fleet vehicle installations
  • Enterprise primary and failover cellular links
  • Remote video monitoring and command center connectivity

Specifications

RF

Cable Type
LSR200
Connectors
4x N-type female

Bands

Emea LTE
B1, B3, B7, B20, B28, B42, B43, B46
Emea 5G NR
n1, n3, n28, n77, n78
North America LTE
B2, B4, B5, B7, B12, B13, B14, B17, B25, B26, B29, B30, B41, B46, B48, B66, B71
North America 5G NR
n2, n5, n12, n25, n26, n41, n48, n66, n71, n77

General

MPN
PRO4H4L01B-NF
MIMO
4x4 MIMO cellular
Brand
Parsec
Categories
Enterprise, Mobile, Industrial
Mount Type
Roof mount
Radome Color
Black
Configuration
4:1 (4 cellular elements)
Product Family
Husky PRO Series
Antenna Pattern
Omni-directional
Country OF Origin
United States
Mounting Accessories Available
Pole mount, magnetic mount (sold separately)

Package

Shipping Weight
3.40 lb

Electrical

Polarization
Linear
Max Input Power
10 W
Measurement Note
Measured on a 2 x 2 ft ground plane; excludes cable loss
Isolation 617 894 MHz
10 dB (617-894 MHz)
Peak Gain 617 849 MHz
5 dBi (617-849 MHz)
Peak Gain 849 894 MHz
4 dBi (849-894 MHz)
Isolation 1710 2200 MHz
16 dB (1710-2200 MHz)
Isolation 2200 2700 MHz
17 dB (2200-2700 MHz)
Isolation 3300 4000 MHz
20 dB (3300-4000 MHz)
Isolation 5150 5925 MHz
20 dB (5150-5925 MHz)
Peak Gain 1710 2200 MHz
5.5 dBi (1710-2200 MHz)
Peak Gain 2200 2700 MHz
8 dBi (2200-2700 MHz)
Peak Gain 3300 4000 MHz
7 dBi (3300-4000 MHz)
Peak Gain 5150 5925 MHz
9 dBi (5150-5925 MHz)
Return Loss 617 698 MHz
7 dB (617-698 MHz)
Return Loss 698 894 MHz
8 dB (698-894 MHz)
Return Loss 1710 2700 MHz
12 dB (1710-2700 MHz)
Return Loss 3300 4000 MHz
8 dB (3300-4000 MHz)
Return Loss 5150 5925 MHz
4 dB (5150-5925 MHz)
Radiated Efficiency 617 849 MHz
70% (617-849 MHz)
Radiated Efficiency 849 894 MHz
60% (849-894 MHz)
Radiated Efficiency 1710 2200 MHz
80% (1710-2200 MHz)
Radiated Efficiency 2200 2700 MHz
75% (2200-2700 MHz)
Radiated Efficiency 3300 3700 MHz
80% (3300-3700 MHz)
Radiated Efficiency 3700 4000 MHz
70% (3700-4000 MHz)
Radiated Efficiency 5150 5925 MHz
70% (5150-5925 MHz)

Mechanical

Mounting
Single 1.5 in hole mount
Dimensions
10.75 in diameter x 2.23 in height (5.34 in with optional magnetic mount)
Radome Material
Plastic with UV additive
RF Cable Length
1 ft

Frequencies

Cellular Range 1
617-894 MHz
Cellular Range 2
1710-2700 MHz
Cellular Range 3
3300-4000 MHz
Cellular Range 4
5150-5925 MHz

Environmental

Ingress Protection
IP67 Waterproof
Operating Temperature
-40 °C to 85 °C

Questions buyers ask

How does PRO4H4L01B-NF differ from PRO4H4L01B?

The antenna and RF performance are the same Husky PRO 4:1 design; the -NF version terminates its four 1 ft cables in N-type female connectors instead of SMA male.

What do I connect to the N-type female connectors?

N-type male extension cables, adapters or surge arrestors, such as Parsec's N(F) to N(M) lightning arrestor PTA0736, which then run to the router.

Is it waterproof?

Yes. The Husky is IP67 rated with a UV-stabilized plastic radome and operates from -40 °C to 85 °C.

Which 5G bands does it cover?

In North America it covers 5G NR bands n2, n5, n12, n25, n26, n41, n48, n66, n71 and n77 across 617-5925 MHz.
