Parsec Husky PRO4H4L15B 5G 4x4 MIMO Cellular Antenna, IP67, 15 ft Cables

5GMPN PRO4H4L15B
  • 4x4 MIMO
  • 6–8 dBi
  • 3–5 m
$425.35$542.54Save $117.19

In stockShips from the US

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

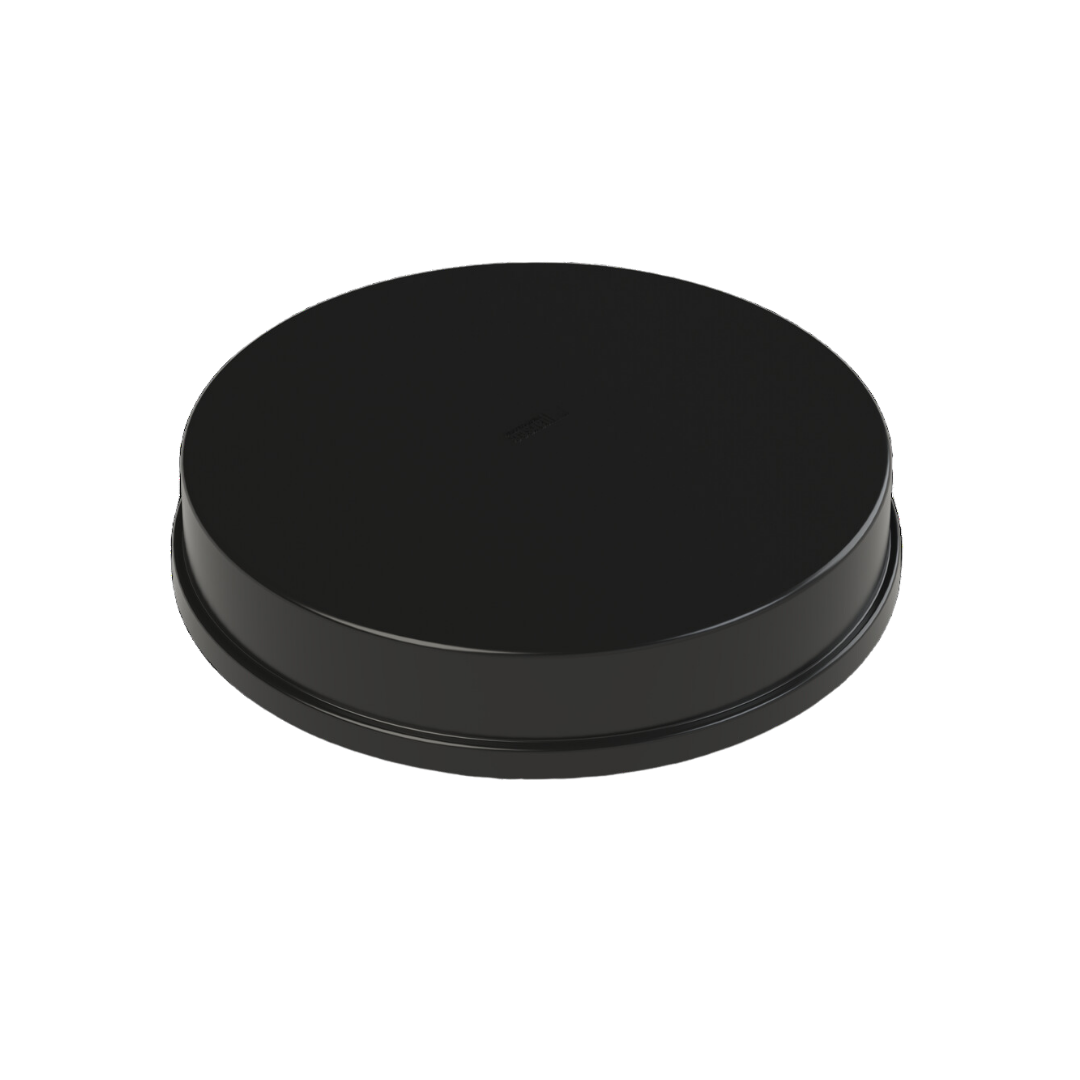

The Parsec Husky PRO4H4L15B is a low-profile, omnidirectional 4G/5G antenna with four cellular elements in one IP67-rated housing, built to feed 4x4 MIMO routers and gateways. It covers 617-894, 1710-2700, 3300-4000 and 5150-5925 MHz with up to 9 dBi peak gain. It ships in black with 15 ft LSR200 cables terminated in SMA male connectors, and it mounts through a single 1.5 in hole on vehicles, rooftops and fixed installations.

  • Four 4G/5G cellular elements in one housing for 4x4 MIMO
  • Covers 617-894, 1710-2700, 3300-4000 and 5150-5925 MHz
  • Peak gain up to 9 dBi, with 60-80% radiated efficiency across cellular bands
  • Omnidirectional, low-profile radome: 10.75 in diameter x 2.23 in height
  • IP67 rating, UV-stabilized plastic radome, -40 °C to 85 °C operating range
  • 15 ft LSR200 cables with SMA male connectors
  • One-hole direct mount through a single 1.5 in opening
  • Feeds all four antenna ports of a 4x4 MIMO 5G router from a single roof-mounted unit

The Parsec Husky PRO4H4L15B is a 4:1 configuration of Parsec's Husky PRO Series: four 4G/5G cellular elements in a single omnidirectional, low-profile housing. It is designed for 4x4 MIMO cellular routers and gateways in public safety vehicles, ambulances, construction fleets, enterprise rooftops, RVs and fixed wireless deployments. This part number carries cellular elements only, with no Wi-Fi or GPS elements, making it a focused choice when the goal is maximum cellular performance.

The antenna covers 617-894, 1710-2700, 3300-4000 and 5150-5925 MHz. The published North American bands include 600 MHz B71/n71, B14, B41/n41, B48/n48 and n77, and an EMEA band set is also listed. Peak gain reaches 9 dBi at 5150-5925 MHz, 8 dBi at 2200-2700 MHz and 7 dBi at 3300-4000 MHz. Radiated efficiency runs from 60 to 80 percent depending on band, and port-to-port isolation of 10 to 20 dB helps limit interference between MIMO paths.

The radome measures 10.75 in in diameter and 2.23 in high. It is made of plastic with a UV additive and sealed to IP67 against dust and water, with an operating range of -40 °C to 85 °C. A one-hole direct mount through a single 1.5 in opening keeps installation fast and clean. Four 15 ft LSR200 cables terminate in SMA male connectors for direct connection to router ports.

Parsec offers pole mount brackets, a magnetic mount option, a cut-to-size ground plane and lightning arrestors for the Husky PRO family. Parsec also publishes a datasheet and a Husky installation guide for this antenna.

Ideal for

  • 4x4 MIMO 5G routers in police cruisers, ambulances and fire apparatus
  • Fleet and construction vehicle connectivity
  • Enterprise rooftop and fixed wireless access installations
  • Mobile command centers and remote video monitoring
  • RVs, school buses and shipping containers

Specifications

General

MPN
PRO4H4L15B
Brand
Parsec
Color
Black
GPS Element
None
Product Line
Husky PRO Series
Configuration
4:1, four 4G/5G cellular elements
Wi-Fi Elements
None
Country OF Origin
United States

Package

Shipping Weight
4.70 lb

Isolation

Cell 617 894
10 dB
Cell 1710 2200
16 dB
Cell 2200 2700
17 dB
Cell 3300 4000
20 dB
Cell 5150 5925
20 dB

Peak Gain

Cell 617 849
CELL 1-4, 617-849 MHz: 5 dBi
Cell 849 894
CELL 1-4, 849-894 MHz: 4 dBi
Cell 1710 2200
CELL 1-4, 1710-2200 MHz: 5.5 dBi
Cell 2200 2700
CELL 1-4, 2200-2700 MHz: 8 dBi
Cell 3300 4000
CELL 1-4, 3300-4000 MHz: 7 dBi
Cell 5150 5925
CELL 1-4, 5150-5925 MHz: 9 dBi

Electrical

Impedance
50 Ω
Polarization
Linear
Max Input Power
10 W
Test Conditions
Measured on a 2 ft x 2 ft ground plane; figures exclude cable loss

Mechanical

Mounting
single 1.5 in hole
Cable Type
LSR200
Connectors
SMA male
Dimensions
10.75 in diameter x 2.23 in height
RF Cable Length
15 ft
Height With Magnetic Mount
5.34 in height with optional magnetic mount

Bands 4G 5G

Emea 5G
n1, n3, n28, n77, n78
Emea LTE
B1, B3, B7, B20, B28, B42, B43, B46
North America 5G
n2, n5, n12, n25, n26, n41, n48, n66, n71, n77
North America LTE
B2, B4, B5, B7, B12, B13, B14, B17, B25, B26, B29, B30, B41, B46, B48, B66, B71

Frequencies

Cellular Low
4G/5G Cellular: 617-894 MHz
Cellular Mid
4G/5G Cellular: 1710-2700 MHz
Cellular High
4G/5G Cellular: 3300-4000 MHz
Cellular Upper
4G/5G Cellular: 5150-5925 MHz

Return Loss

Cell 617 698
CELL 1-4, 617-698 MHz: 7 dB
Cell 698 894
CELL 1-4, 698-894 MHz: 8 dB
Cell 1710 2700
CELL 1-4, 1710-2700 MHz: 12 dB
Cell 3300 4000
CELL 1-4, 3300-4000 MHz: 8 dB
Cell 5150 5925
CELL 1-4, 5150-5925 MHz: 4 dB

Environmental

Radome Material
Plastic with UV Additive
Ingress Protection
IP67 Waterproof
Operating Temperature
-40 °C to 85 °C

Radiated Efficiency

Cell 617 849
CELL 1-4, 617-849 MHz: 70%
Cell 849 894
CELL 1-4, 849-894 MHz: 60%
Cell 1710 2200
CELL 1-4, 1710-2200 MHz: 80%
Cell 2200 2700
CELL 1-4, 2200-2700 MHz: 75%
Cell 3300 3700
CELL 1-4, 3300-3700 MHz: 80%
Cell 3700 4000
CELL 1-4, 3700-4000 MHz: 70%
Cell 5150 5925
CELL 1-4, 5150-5925 MHz: 70%

Specification Overview

Categories
Enterprise, Mobile, Industrial
Mount Type
Roof Mount
Applications
Ambulances, Command Centers, School Buses, Shipping Containers, Trucks, RVs
Antenna Pattern
Omni-Directional
Available Colors
Family Colors: Black and White
Mounting Accessories Available
Pole Mount, Mag Mount

Questions buyers ask

How many cellular connections does the Husky PRO4H4L15B provide?

Four. The 4:1 configuration houses four 4G/5G cellular elements, each on its own 15 ft LSR200 cable with an SMA male connector, for use with 4x4 MIMO routers and gateways.

Does this antenna include Wi-Fi or GPS?

No. The PRO4H4L15B carries cellular elements only. Other Husky PRO configurations add Wi-Fi, Bluetooth and GPS elements.

What frequencies and bands does it cover?

It covers 617-894, 1710-2700, 3300-4000 and 5150-5925 MHz. Published North American bands include B2, B4, B5, B7, B12, B13, B14, B17, B25, B26, B29, B30, B41, B46, B48, B66 and B71, plus 5G n2, n5, n12, n25, n26, n41, n48, n66, n71 and n77.

How is it mounted?

It is a roof-mount antenna that installs through a single 1.5 in hole. Parsec also offers pole mount brackets and a magnetic mount option for the Husky PRO family.

Is it suitable for permanent outdoor use?

Yes. The housing is rated IP67, the radome is plastic with a UV additive, and the operating range is -40 °C to 85 °C.
