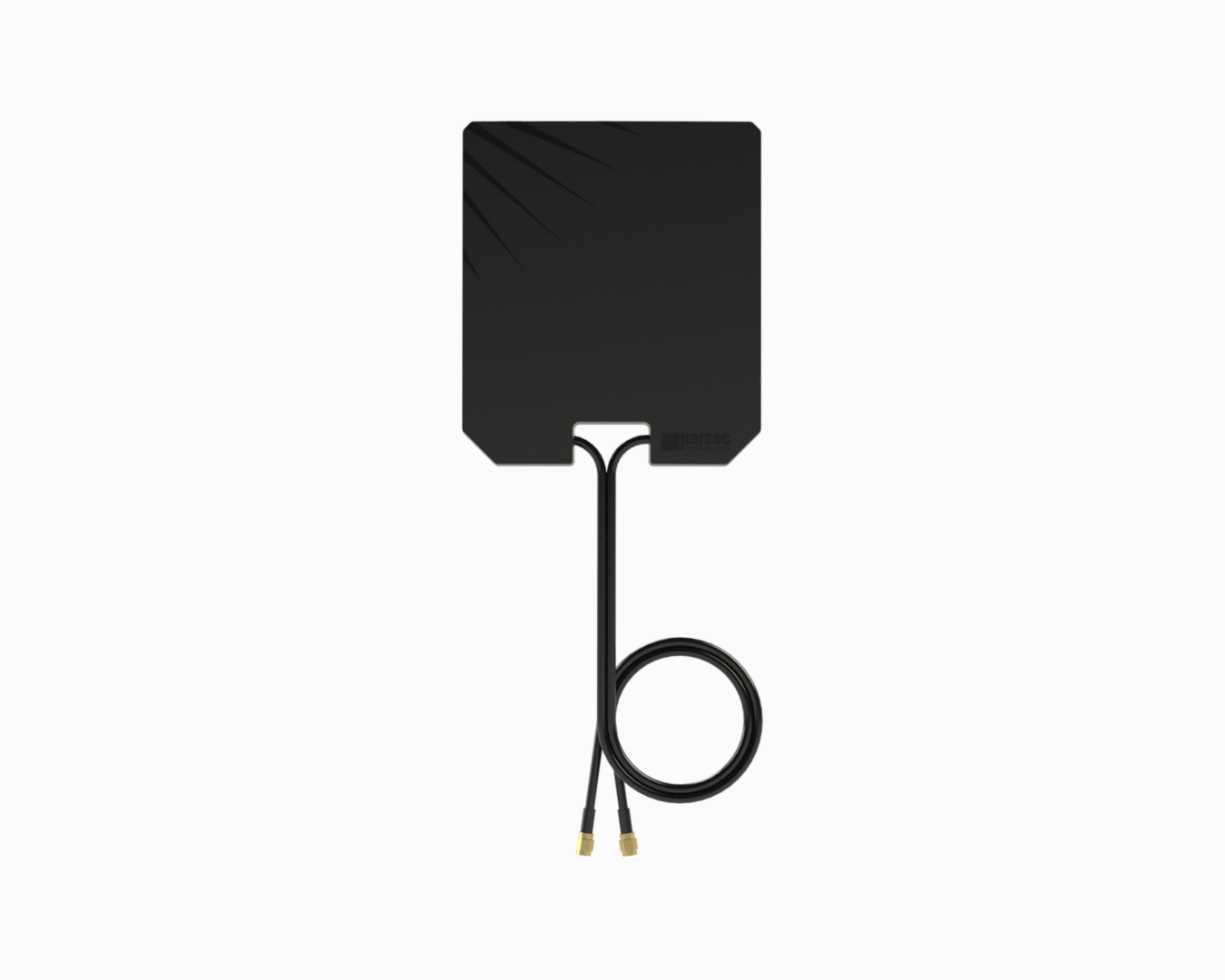

Parsec Falcon PTA2F2L06B 4G/5G 2x2 MIMO Indoor Cellular Antenna, 6 ft Cables, Black

5GMPN PTA2F2L06B
  • 2x2 MIMO
  • 1–3 m
$66.85$85.27Save $18.42

In stockShips from the US

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Parsec Falcon PTA2F2L06B is a compact indoor 4G/5G antenna for routers and hotspots used in homes, small offices and remote classrooms. Two cellular elements in one black housing give 2x2 MIMO across 617-894, 1710-2700, 3400-4000 and 5150-5925 MHz. Two 6 ft cables end in SMA male connectors. It mounts on a window with the included suction cups, on a wall with the included screw and anchor, or on a desk using its built-in legs.

  • 2x2 MIMO cellular with two elements in one housing (2:1 configuration)
  • 4G/5G coverage across 617-894, 1710-2700, 3400-4000 and 5150-5925 MHz
  • Omni-directional pattern with up to 4 dBi typical peak gain
  • Two 6 ft LSR200-UF cables with SMA male connectors

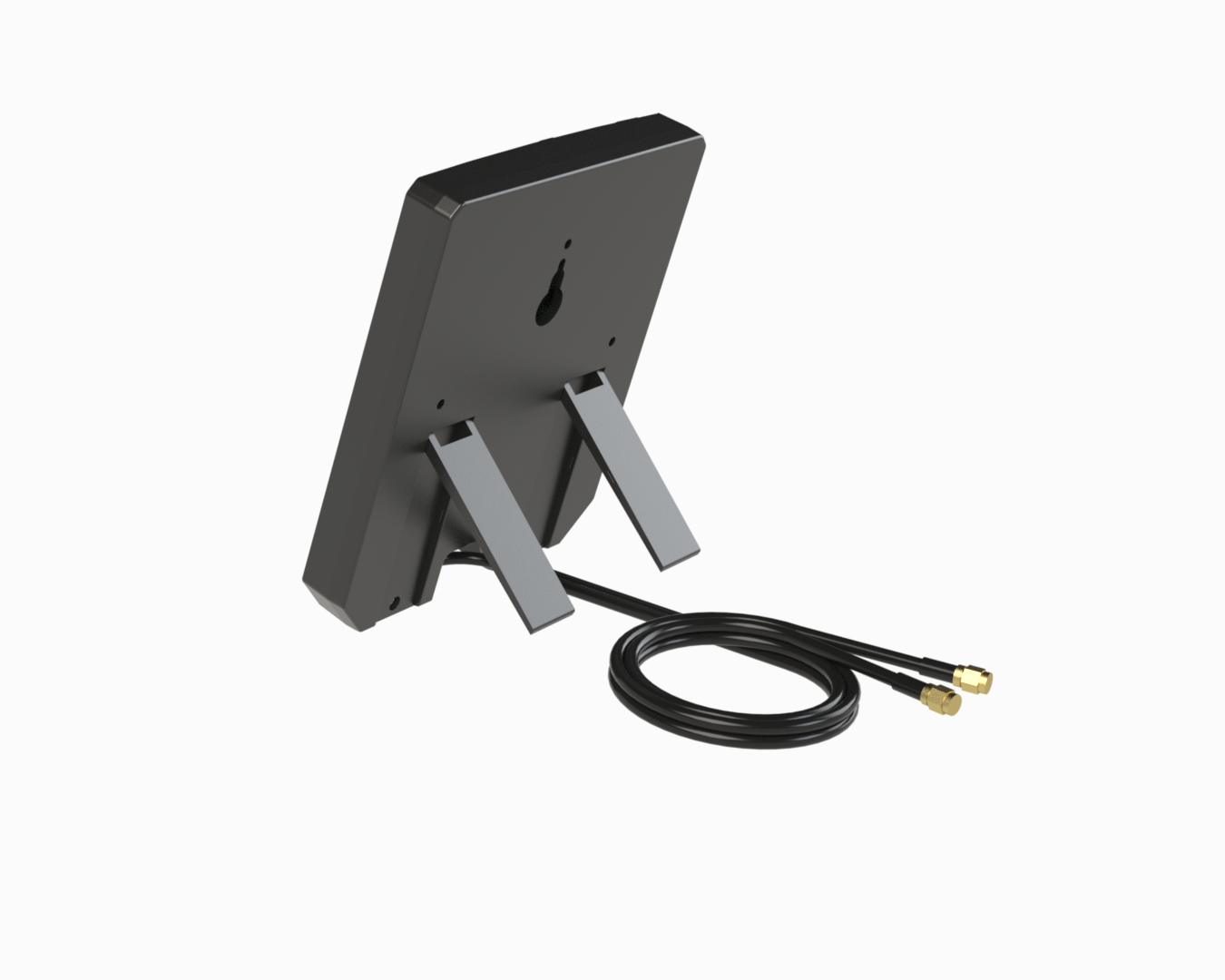

  • Window, wall or tabletop mounting with suction cups, screw and anchor, and built-in legs
  • Compact 6.10 x 7 x 0.91 in indoor housing in black
  • Improves indoor 4G LTE and 5G reception for routers and hotspots where the built-in antennas struggle
  • 2x2 MIMO feeds both modem antenna ports, which supports higher throughput for streaming and video calls

The Parsec Falcon PTA2F2L06B is an omni-directional indoor antenna that brings stronger 4G LTE and 5G reception to a cellular router or hotspot. Parsec designed it for work-from-home setups, fixed wireless access, home networks, K-12 remote learning and remote monitoring. It is a practical upgrade when the device's internal antennas cannot hold a good signal in the room where the equipment sits.

This 2:1 configuration puts two cellular elements in a single housing to provide 2x2 MIMO. Coverage spans 617-894 MHz, 1710-2700 MHz, 3400-4000 MHz and 5150-5925 MHz. That range includes North American LTE bands such as B2, B4, B5, B12, B14, B41, B48 and B66, and 5G NR bands n2, n5, n12, n25, n26, n41, n48, n66 and n77. Typical peak gain runs from 2.5 dBi in the low band to 4 dBi at 3400-4000 MHz and 5150-5925 MHz. Isolation between ports reaches 20 dB in the upper bands.

The housing measures 6.10 x 7 x 0.91 in, so it sits unobtrusively on a windowsill, wall or desk. Placing it by a window, away from the router, often gives a clearer path to the tower. Each element connects through a 6 ft LSR200-UF cable with an SMA male connector. The antenna is rated for operation from -30 °C to 85 °C and handles up to 5 W input.

Suction cups for window mounting and a screw and anchor for wall mounting come in the box, and the tabletop legs are built in. The Falcon datasheet, installation guide and Parsec part number legend document the full specifications and setup.

Ideal for

  • Work-from-home 4G/5G router or hotspot reception boost
  • Fixed wireless access for home and small office networks
  • K-12 remote learning connectivity at home
  • Remote monitoring equipment on cellular links

Specifications

General

MPN
PTA2F2L06B
Brand
Parsec
Radome Color
Black
Configuration
2:1 (2 elements in one housing)
Product Family
Falcon (PTA Series)
Cellular Elements
2 (2x2 MIMO)
Radiation Pattern
Omni-directional

Package

Shipping Weight
0.85 lb
Included Hardware
Suction cups (window mount), screw and anchor (wall mount)

Electrical

Polarization
Linear
RF Cable Type
LSR200-UF
RF Connectors
SMA male
Sma Max Torque
SMA Connector Max Torque: 3-5 inch lbs
Max Input Power
5 W
Measurement Note
Isolation, return loss and peak gain do not include cable loss
Isolation 617 894
10 dB typ.
Peak Gain 617 894
2.5 dBi typ.
Isolation 1710 2700
10 dB typ.
Isolation 3400 4000
20 dB typ.
Isolation 5150 5925
20 dB typ.
Peak Gain 1710 2700
2 dBi typ.
Peak Gain 3400 4000
4 dBi typ.
Peak Gain 5150 5925
4 dBi typ.
Return Loss 617 894
Return Loss (50Ω), 617-894 MHz: 6 dB typ.
Return Loss 1710 2700
Return Loss (50Ω), 1710-2700 MHz: 6 dB typ.
Return Loss 3400 4000
Return Loss (50Ω), 3400-4000 MHz: 5 dB typ.
Return Loss 5150 5925
Return Loss (50Ω), 5150-5925 MHz: 9 dB typ.
Radiated Efficiency 617 894
Radiated Efficiency, CELL 1/2, 617-894 MHz: 70% typ.
Radiated Efficiency 1710 2700
Radiated Efficiency, CELL 1/2, 1710-2700 MHz: 60% typ.
Radiated Efficiency 3400 4000
Radiated Efficiency, CELL 1/2, 3400-4000 MHz: 50% typ.
Radiated Efficiency 5150 5925
Radiated Efficiency, CELL 1/2, 5150-5925 MHz: 50% typ.

Mechanical

Mounting
Built-in legs, screw mount, or suction cups (window)
Dimensions
6.10 x 7 x 0.91 in
RF Cable Length
6 ft

Frequencies

NR Bands International
n1, n3, n8, n28, n77, n78
NR Bands North America
n2, n5, n12, n25, n26, n41, n48, n66, n77
LTE Bands International
B1, B3, B7, B8, B20, B28, B42, B43, B46
LTE Bands North America
B2, B4, B5, B7, B12, B14, B17, B25, B26, B29, B30, B41, B46, B48, B66
Cellular Frequency Ranges
4G/5G Cellular: 617-894 / 1710-2700 / 3400-4000 / 5150-5925 MHz

Environmental

Ingress Protection
Indoor use
Operating Temperature
-30 °C to 85 °C (-22 °F to 180 °F)

Optional Accessories

Sma Wrench
PTA0194 (sold separately)
Lightning Arrestor N
PTA0736 (sold separately)
Lightning Arrestor Sma
PTA0476 (sold separately)

Questions buyers ask

What connectors does the Parsec Falcon PTA2F2L06B use?

Both cellular cables end in SMA male connectors. Each cable is 6 ft of LSR200-UF.

Does the Falcon support 5G?

Yes. It covers 4G/5G frequencies across 617-894, 1710-2700, 3400-4000 and 5150-5925 MHz. That includes North American 5G NR bands n2, n5, n12, n25, n26, n41, n48, n66 and n77.

Can the Falcon be mounted outdoors?

No. The Falcon is an indoor antenna. It mounts on a window with suction cups, on a wall with a screw and anchor, or on a tabletop with its built-in legs.

What mounting hardware comes in the box?

Suction cups for window mounting and a screw and anchor for wall mounting are included. The tabletop legs are built into the antenna.

What does the part number PTA2F2L06B mean?

PTA Series, 2:1 configuration, Falcon (F), 2 cellular elements (2L), 6 ft cables (06) and a black radome (B). Standard SMA connectors are indicated by the blank connector code.
