Parsec Border Collie PTA3BC2LG20B-TM2 5G 3-in-1 Antenna, 2x2 MIMO Cellular + GPS, 20 ft Cables

5GMPN PTA3BC2LG20B-TM2
  • 2x2 MIMO
  • GNSS
  • Over 5 m
$223.44$285.00Save $61.56

In stockShips from the US

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

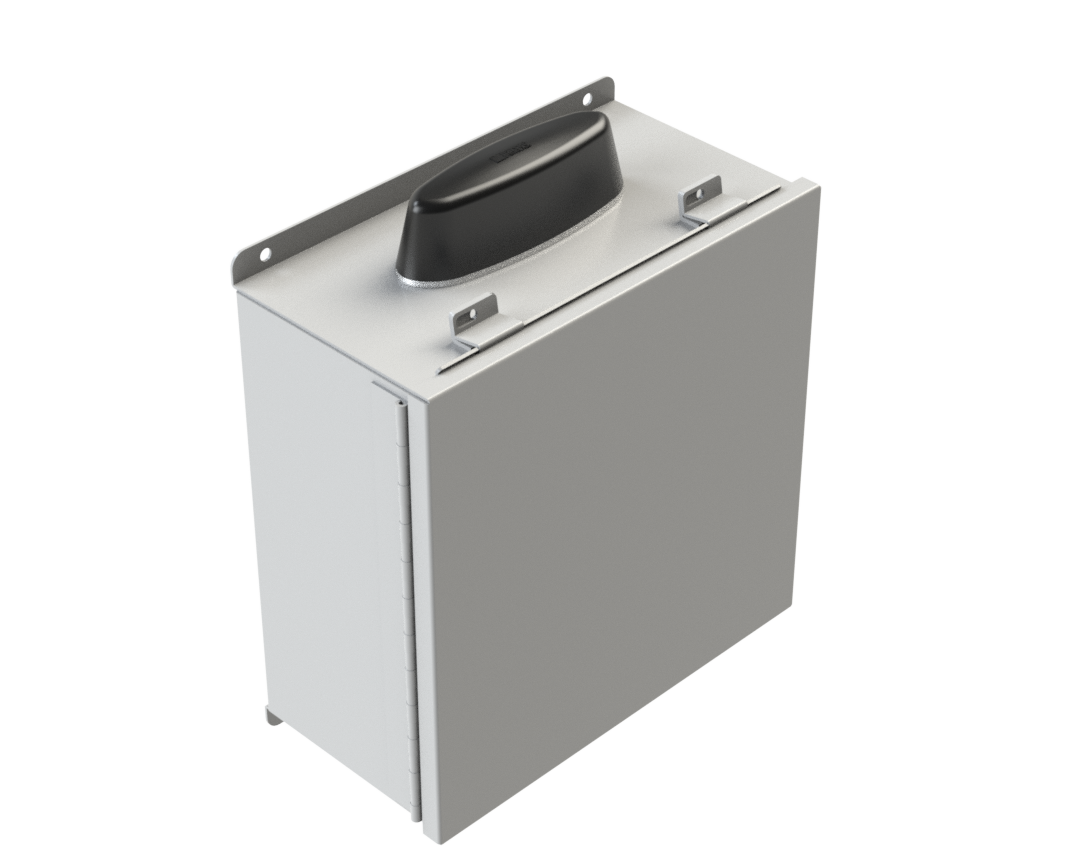

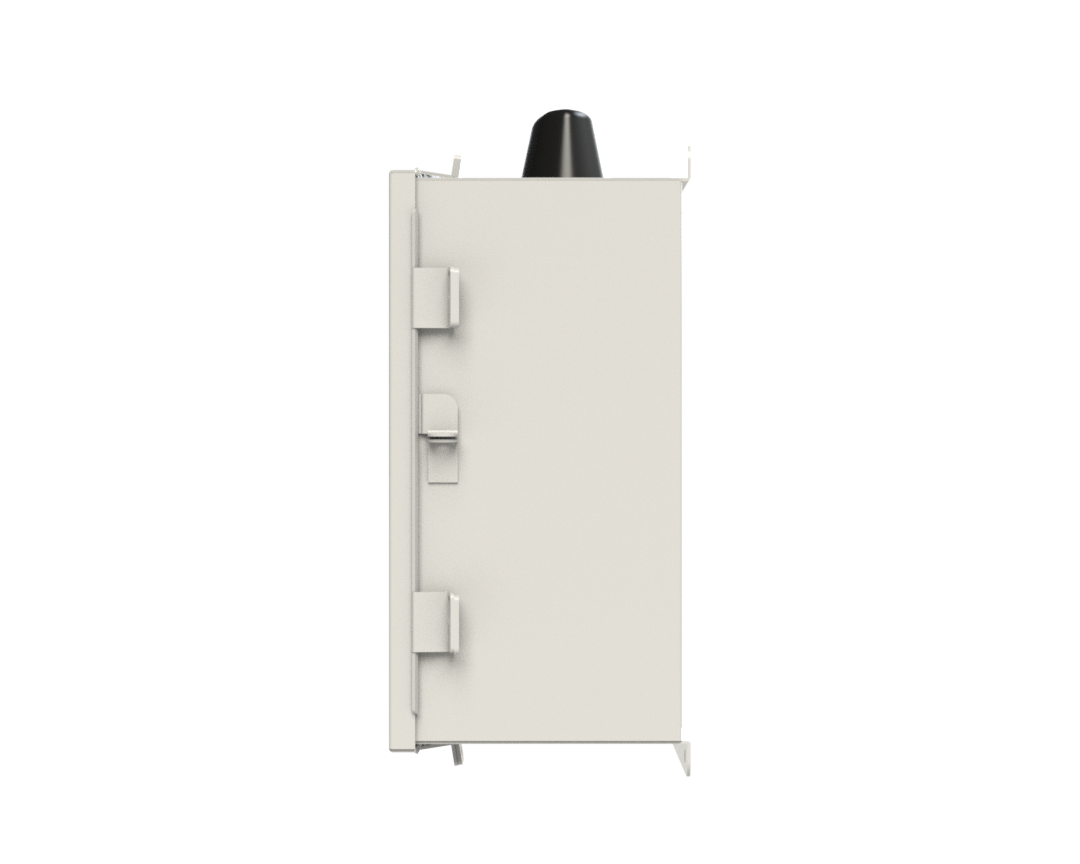

The Parsec Border Collie PTA3BC2LG20B-TM2 is a compact 3-in-1 omni-directional antenna that combines two 4G/5G cellular elements for 2x2 MIMO with an active L1 GPS element. It covers 617 MHz to 5925 MHz on the cellular ports and uses an IP67-rated black radome that installs through a single 1-inch hole. It is built for kiosks, NEMA enclosures, IoT gateways, remote video monitoring and first-responder vehicles. This SKU has 20 ft cable runs.

  • 3:1 housing with two 4G/5G cellular elements (2x2 MIMO) and one L1 GPS element
  • Cellular coverage from 617 MHz to 5925 MHz, including 600 MHz, C-band and CBRS
  • Typical cellular peak gain of 3 to 8 dBi depending on band
  • Active GPS with 33 dBic antenna plus preamp gain and RHCP polarization

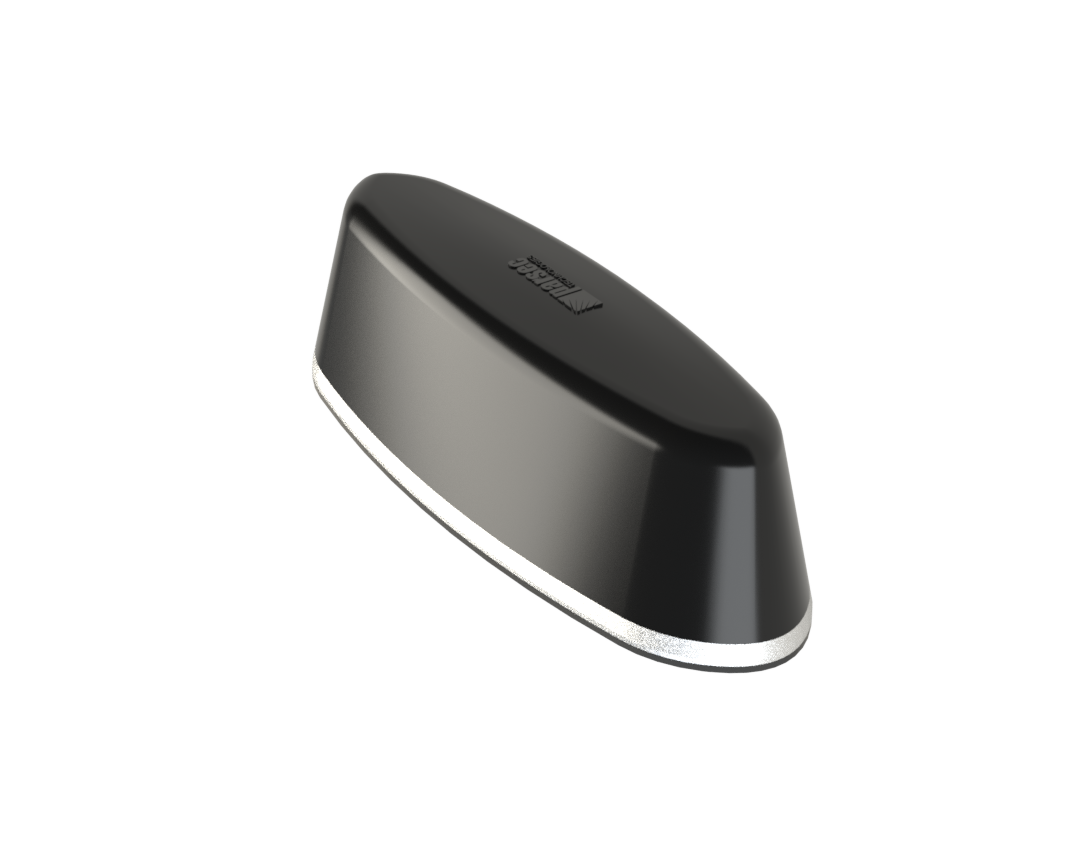

  • IP67-rated, power-wash-safe black radome, 6.6 x 2.3 x 1.96 in

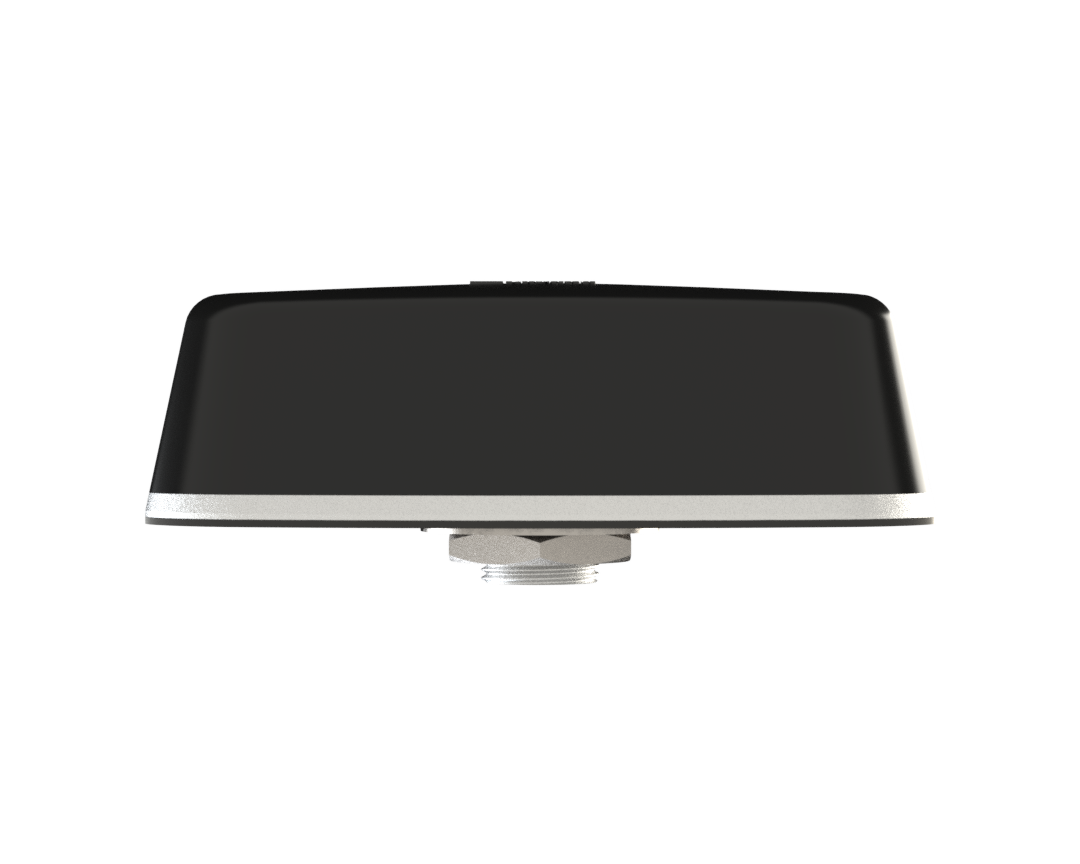

  • Single 1-inch hole mounting, omni-directional pattern
  • 20 ft cable runs
  • One compact antenna handles both 2x2 MIMO cellular and GPS, so the enclosure or vehicle needs fewer roof and panel penetrations.

The Parsec Border Collie PTA3BC2LG20B-TM2 gives a cellular router or gateway a single external antenna for both its 2x2 MIMO 4G/5G connection and its GPS receiver. Parsec designed the Border Collie PTA Series for first responders, remote video monitoring, self-service kiosks, NEMA enclosures, IoT and industrial networks. This 3:1 configuration places two cellular elements and one L1 GPS element in a 6.6 x 2.3 x 1.96 in housing, and each element has its own 20 ft cable.

The cellular elements cover 617-698 MHz, 698-960 MHz, 1710-2700 MHz, 3300-4000 MHz and 5150-5925 MHz. That span includes 600 MHz low band, C-band (n77) and CBRS (B48/n48). Parsec rates typical peak gain from 3 dBi at 600 MHz up to 8 dBi at 5150-5925 MHz. Isolation between the two cellular elements reaches 24 dB in the upper bands, which supports MIMO performance. The GPS element is right-hand circularly polarized and delivers 33 dBic combined antenna and preamp gain, with 12 dB filter rejection at 1625 MHz.

The radome is IP67-rated and power-wash safe. Operating temperature is -30 °C to 85 °C. Installation requires only a single 1-inch mounting hole. For pole, L-bracket or magnetic mounting, Parsec offers optional brackets and mounts sold separately. Parsec publishes a datasheet, an installation guide and a part number legend for the Border Collie family.

Ideal for

  • External 2x2 MIMO cellular and GPS antenna for self-service kiosks and NEMA enclosures
  • Vehicle-mounted connectivity for first responders and field fleets
  • Remote video monitoring sites on poles and trailers
  • IoT and industrial gateways that need 5G coverage plus location

Specifications

GNSS

Polarization
RHCP
RF Cable Type
LSR100
Preamp Current
5 - 15 mA
Preamp Voltage
2.2 - 5 V
Filter Rejection
12 dB at 1625 MHz
Antenna Preamp Gain
33 dBic (1570-1581 MHz)

Bands

Additional 4G
B1, B3, B7, B8, B20, B28, B42, B43, B46
Additional 5G
n1, n3, n8, n28, n77, n78
North America 4G
B2, B4, B5, B7, B12, B14, B17, B25, B26, B29, B30, B41, B46, B48, B66
North America 5G
n2, n5, n12, n25, n26, n41, n48, n66, n71, n77

General

MPN
PTA3BC2LG20B-TM2
Brand
Parsec
Family
Border Collie PTA Series
GPS Element
1 x L1 GPS
Radome Color
Black
Configuration
3:1 (3 elements in one housing)
Cellular Elements
2 x 4G/5G cellular (2x2 MIMO)
Radiation Pattern
Omni-directional

Package

UPC
810149739873
Shipping Weight
2.00 lb

Mechanical

Mounting
Single 1-inch hole
Dimensions
6.6 x 2.3 x 1.96 in
RF Cable Length
20 ft

Frequencies

GPS
1570-1581 MHz
Cellular 4G 5G
617-698 / 698-960 / 1710-2700 / 3300-4000 / 5150-5925 MHz
Frequency Range
600 MHz - 6 GHz

Environmental

Ingress Protection
IP67, power wash safe
Operating Temperature
-30 °C to 85 °C (-22 °F to 180 °F)

Electrical Cellular

Polarization
Linear
RF Cable Type
LSR200
Max Input Power
10 W
Test Conditions
Measured on 2 ft x 2 ft ground plane, excluding cable loss
Isolation 617 698 MHz
8 dB (617-698 MHz)
Isolation 698 960 MHz
7 dB (698-960 MHz)
Peak Gain 617 698 MHz
3 dBi (617-698 MHz)
Peak Gain 698 960 MHz
5 dBi (698-960 MHz)
Isolation 1710 2700 MHz
15 dB (1710-2700 MHz)
Isolation 3300 4000 MHz
24 dB (3300-4000 MHz)
Isolation 5150 5925 MHz
24 dB (5150-5925 MHz)
Peak Gain 1710 2700 MHz
6 dBi (1710-2700 MHz)
Peak Gain 3300 4000 MHz
7 dBi (3300-4000 MHz)
Peak Gain 5150 5925 MHz
8 dBi (5150-5925 MHz)
Return Loss 617 698 MHz
4 dB (617-698 MHz)
Return Loss 698 960 MHz
7 dB (698-960 MHz)
Return Loss 1710 2700 MHz
7 dB (1710-2700 MHz)
Return Loss 3300 4000 MHz
12 dB (3300-4000 MHz)
Return Loss 5150 5925 MHz
7 dB (5150-5925 MHz)
Radiated Efficiency 617 698 MHz
50% (617-698 MHz)
Radiated Efficiency 698 960 MHz
80% (698-960 MHz)
Radiated Efficiency 1710 2700 MHz
70% (1710-2700 MHz)
Radiated Efficiency 3300 4000 MHz
75% (3300-4000 MHz)
Radiated Efficiency 5150 5925 MHz
55% (5150-5925 MHz)

Questions buyers ask

Does the PTA3BC2LG20B-TM2 support 2x2 MIMO?

Yes. It has two 4G/5G cellular elements, so it can feed both main and diversity/MIMO ports on a 2x2 cellular router or gateway, plus a separate GPS element.

Which 5G bands does it cover?

The cellular elements cover 617-5925 MHz. Parsec lists North American 5G bands n2, n5, n12, n25, n26, n41, n48, n66, n71 and n77, plus n1, n3, n8, n28, n77 and n78.

Does this model include Wi-Fi elements?

No. This 3:1 configuration contains two cellular elements and one GPS element. Border Collie 4:1 and 5:1 part numbers add Wi-Fi.

How is it mounted?

It installs through a single 1-inch hole. Parsec also offers optional pole mount brackets, an L bracket and a magnetic mount, sold separately.

Is it suitable for outdoor use?

Yes. The housing is IP67-rated and power-wash safe, with an operating range of -30 °C to 85 °C.
