Parsec Border Collie PTA3BCLWG20B-TM2 4G/5G Cellular, Wi-Fi and GPS 3-in-1 Antenna, 20 ft Cables

5GMPN PTA3BCLWG20B-TM2
  • Single (SISO)
  • GNSS
  • Wi-Fi
  • Over 5 m
$203.84$260.00Save $56.16

In stockShips from the US

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

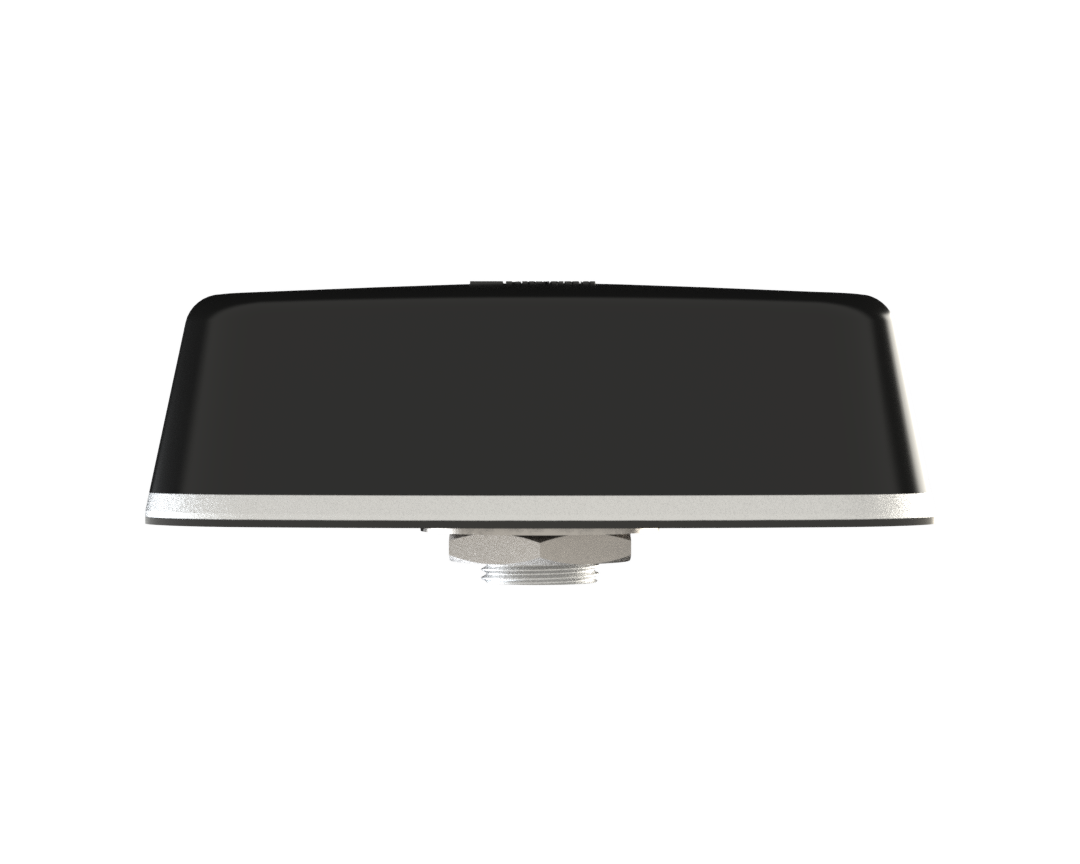

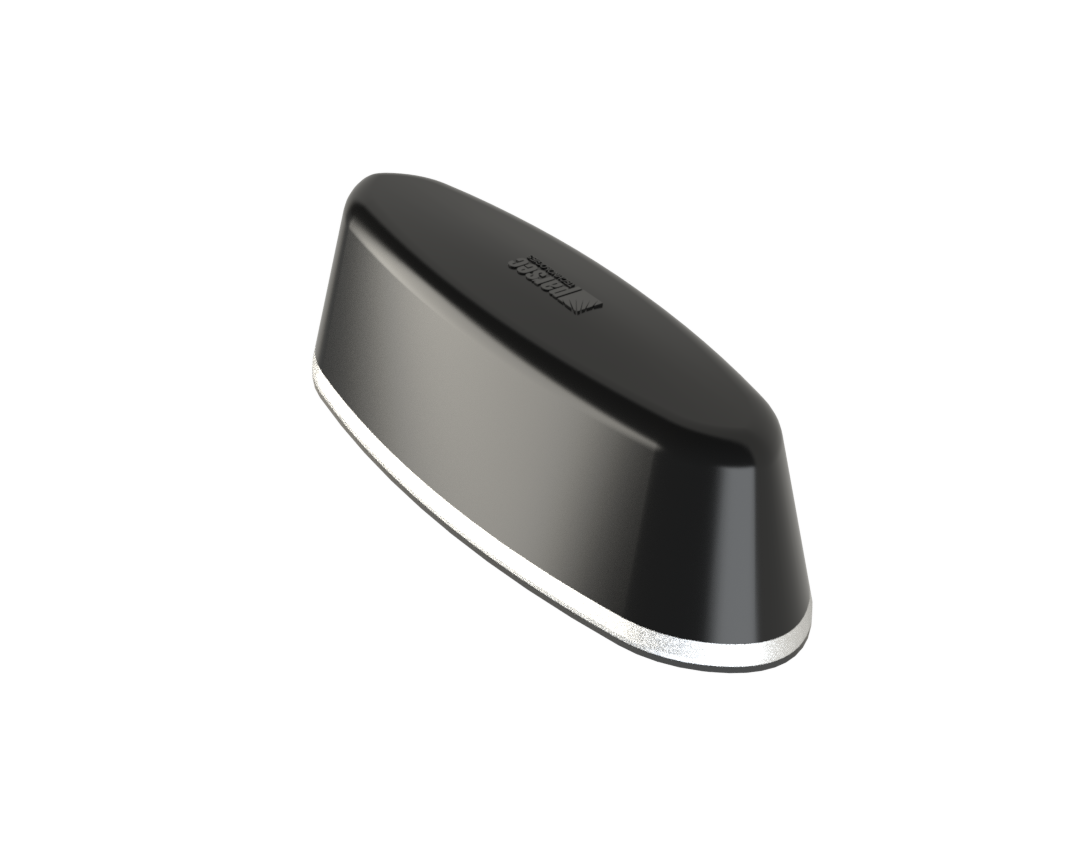

The Parsec Border Collie PTA3BCLWG20B-TM2 is a compact 3-in-1 omni-directional antenna that combines one 4G/5G cellular element, one dual-band Wi-Fi element and an active L1 GPS element in a single IP67-rated black radome. It covers 617-5925 MHz for cellular and 2.4 GHz and 5 GHz for Wi-Fi, and mounts through one 1-inch hole. It suits kiosks, NEMA enclosures, IoT gateways and vehicles. This SKU has 20 ft cable runs.

  • 3:1 housing with one 4G/5G cellular element, one Wi-Fi element and one L1 GPS element
  • Cellular coverage from 617 MHz to 5925 MHz, including 600 MHz, C-band and CBRS
  • Dual-band Wi-Fi element (2.4 GHz and 4.9-5.9 GHz), 6 dBi peak gain, Wi-Fi 6 compatible
  • Active GPS with 33 dBic antenna plus preamp gain, RHCP
  • IP67-rated, power-wash-safe black radome, 6.6 x 2.3 x 1.96 in
  • Single 1-inch hole mounting, omni-directional pattern, 20 ft cables
  • Cellular, Wi-Fi and GPS share one housing and one mounting hole, keeping kiosks, cabinets and vehicles clean.
  • Coverage from 600 MHz to 6 GHz on the cellular element includes the low-band and C-band spectrum used for 5G.

The Parsec Border Collie PTA3BCLWG20B-TM2 brings cellular, Wi-Fi and GPS antennas together in one 6.6 x 2.3 x 1.96 in housing. It suits devices that need a single external cellular antenna alongside a Wi-Fi antenna and a location signal. Parsec designed the Border Collie PTA Series for first responders, remote video monitoring, self-service kiosks, NEMA enclosures, IoT and industrial networks. This 3:1 configuration has one element each for cellular, Wi-Fi and GPS, and each element has its own 20 ft cable.

The cellular element spans 617-698, 698-960, 1710-2700, 3300-4000 and 5150-5925 MHz. That range covers 600 MHz low band, C-band and CBRS, with typical peak gain of 3 to 8 dBi depending on band. The Wi-Fi element covers 2400-2483.5 MHz and 4900-5900 MHz at 6 dBi peak gain, and Parsec lists the family as Wi-Fi 6 compatible. The active GPS element is RHCP and delivers 33 dBic combined antenna and preamp gain.

The IP67-rated, power-wash-safe radome operates from -30 °C to 85 °C and needs only a single 1-inch mounting hole. Parsec offers optional pole brackets, an L bracket and a magnetic mount separately. It also publishes a datasheet, an installation guide and a part number legend for the Border Collie family.

Ideal for

  • Kiosks and digital signage that need cellular backhaul, local Wi-Fi and location

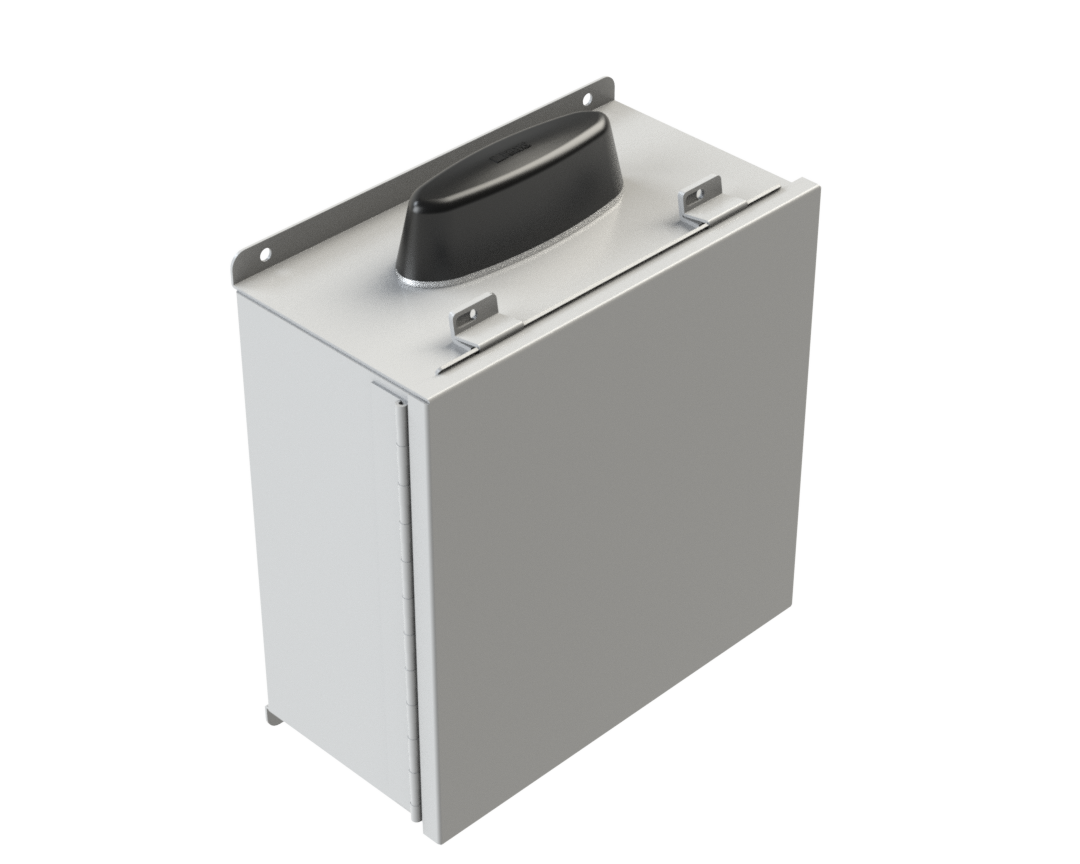

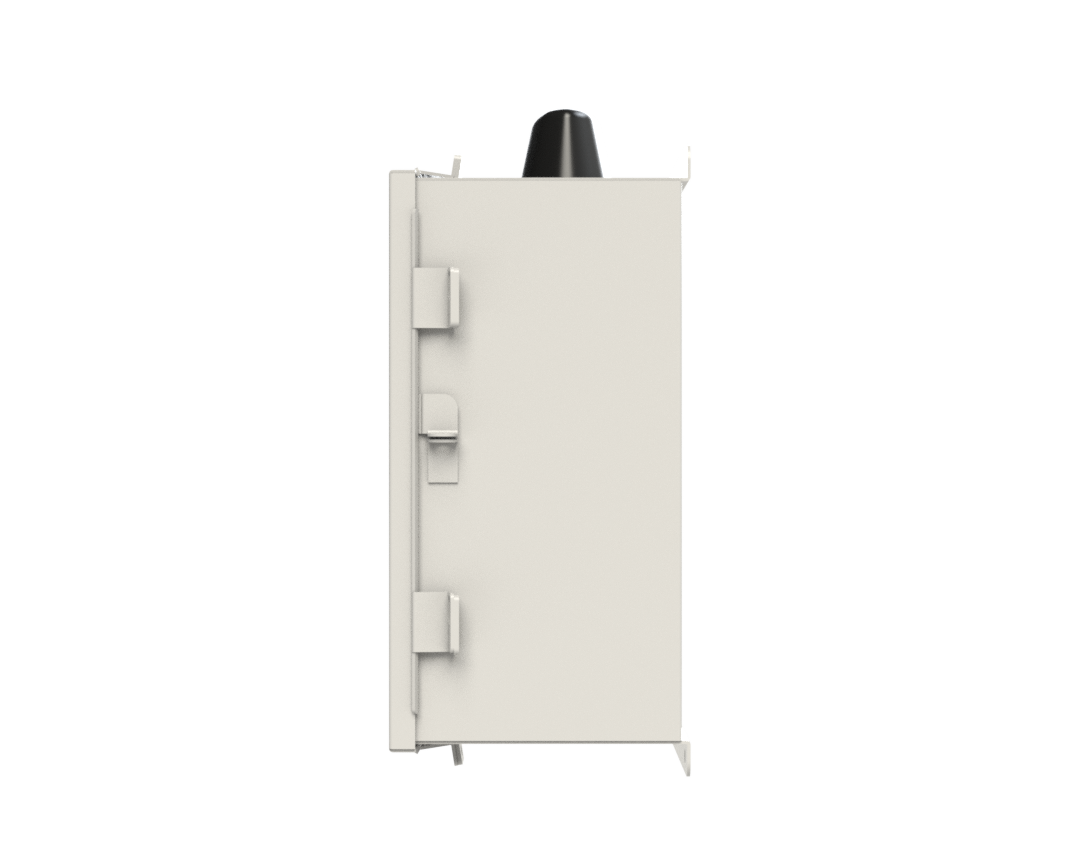

  • NEMA-enclosed IoT and industrial gateways
  • Vehicles that need an external cellular, Wi-Fi hotspot and GPS antenna
  • Remote video monitoring sites

Specifications

GNSS

Polarization
RHCP
RF Cable Type
LSR100
Preamp Current
5 - 15 mA
Preamp Voltage
2.2 - 5 V
Filter Rejection
12 dB at 1625 MHz
Antenna Preamp Gain
33 dBic (1570-1581 MHz)

Bands

Additional 4G
B1, B3, B7, B8, B20, B28, B42, B43, B46
Additional 5G
n1, n3, n8, n28, n77, n78
North America 4G
B2, B4, B5, B7, B12, B14, B17, B25, B26, B29, B30, B41, B46, B48, B66
North America 5G
n2, n5, n12, n25, n26, n41, n48, n66, n71, n77

General

MPN
PTA3BCLWG20B-TM2
Brand
Parsec
Family
Border Collie PTA Series
GPS Element
1 x L1 GPS
Radome Color
Black
Configuration
3:1 (3 elements in one housing)
Wi-Fi Elements
1 x Wi-Fi
Cellular Elements
1 x 4G/5G cellular
Radiation Pattern
Omni-directional

Package

UPC
810149739415
Shipping Weight
1.90 lb

Electrical

Polarization
Linear (cellular, Wi-Fi)
RF Cable Type
LSR200 (cellular, Wi-Fi)
Max Input Power
10 W
Test Conditions
Measured on 2 ft x 2 ft ground plane, excluding cable loss
Cell Peak Gain 617 698 MHz
3 dBi (617-698 MHz)
Cell Peak Gain 698 960 MHz
5 dBi (698-960 MHz)
Cell Peak Gain 1710 2700 MHz
6 dBi (1710-2700 MHz)
Cell Peak Gain 3300 4000 MHz
7 dBi (3300-4000 MHz)
Cell Peak Gain 5150 5925 MHz
8 dBi (5150-5925 MHz)
Cell Return Loss 617 698 MHz
4 dB (617-698 MHz)
Cell Return Loss 698 960 MHz
7 dB (698-960 MHz)
Wi-Fi Peak Gain 2400 2483 MHz
6 dBi (2400-2483.5 MHz)
Wi-Fi Peak Gain 4900 5900 MHz
6 dBi (4900-5900 MHz)
Cell Return Loss 1710 2700 MHz
7 dB (1710-2700 MHz)
Cell Return Loss 3300 4000 MHz
12 dB (3300-4000 MHz)
Cell Return Loss 5150 5925 MHz
7 dB (5150-5925 MHz)
Wi-Fi Return Loss 2400 2483 MHz
9 dB (2400-2483.5 MHz)
Wi-Fi Return Loss 4900 5900 MHz
10 dB (4900-5900 MHz)
Cell Radiated Efficiency 617 698 MHz
50% (617-698 MHz)
Cell Radiated Efficiency 698 960 MHz
80% (698-960 MHz)
Cell Radiated Efficiency 1710 2700 MHz
70% (1710-2700 MHz)
Cell Radiated Efficiency 3300 4000 MHz
75% (3300-4000 MHz)
Cell Radiated Efficiency 5150 5925 MHz
55% (5150-5925 MHz)
Wi-Fi Radiated Efficiency 2400 2483 MHz
60% (2400-2483.5 MHz)
Wi-Fi Radiated Efficiency 4900 5900 MHz
80% (4900-5900 MHz)

Mechanical

Mounting
Single 1-inch hole
Dimensions
6.6 x 2.3 x 1.96 in
RF Cable Length
20 ft

Frequencies

GPS
1570-1581 MHz
Wi-Fi
2400-2483.5 / 4900-5900 MHz
Wi-Fi Standard
Wi-Fi 6 compatible
Cellular 4G 5G
617-698 / 698-960 / 1710-2700 / 3300-4000 / 5150-5925 MHz
Frequency Range
600 MHz - 6 GHz

Environmental

Ingress Protection
IP67, power wash safe
Operating Temperature
-30 °C to 85 °C (-22 °F to 180 °F)

Questions buyers ask

What elements does the PTA3BCLWG20B-TM2 contain?

One 4G/5G cellular element, one Wi-Fi element and one L1 GPS element, each on its own 20 ft cable.

Is this a 2x2 MIMO cellular antenna?

No. This configuration has a single cellular element. For 2x2 MIMO cellular, the Border Collie PTA3BC2LG, PTA4BC2LWG and PTA5BC2L2WG configurations include two cellular elements.

Which Wi-Fi bands does it support?

The Wi-Fi element covers 2400-2483.5 MHz and 4900-5900 MHz with 6 dBi peak gain, and Parsec lists the family as Wi-Fi 6 compatible.

How is it installed?

It mounts through a single 1-inch hole. Optional pole brackets, an L bracket and a magnetic mount are available separately from Parsec.
