Parsec Australian Shepherd PTA4AS4L15B 4:1 Low-Profile 5G 4x4 MIMO Vehicle Antenna, Black

5GMPN PTA4AS4L15B
  • 4x4 MIMO
  • 6–8 dBi
  • 3–5 m
$357.53$456.03Save $98.50

In stock · only 3 leftShips from the US

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

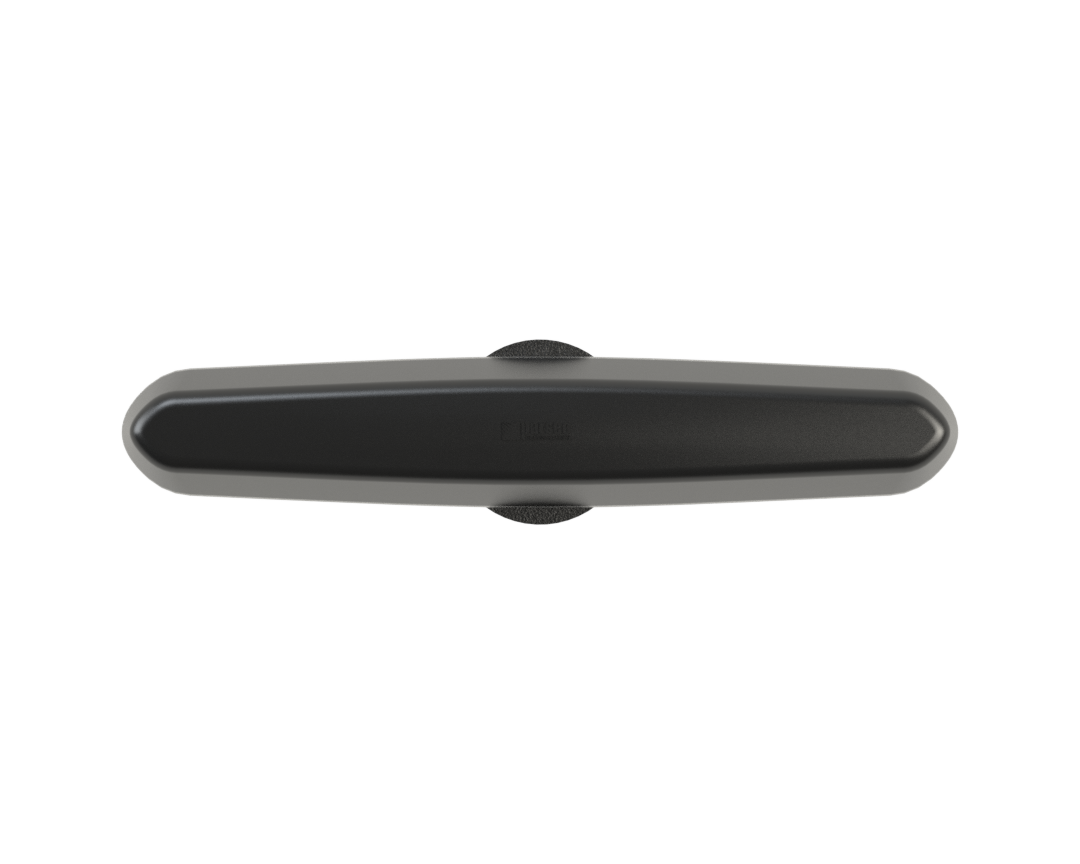

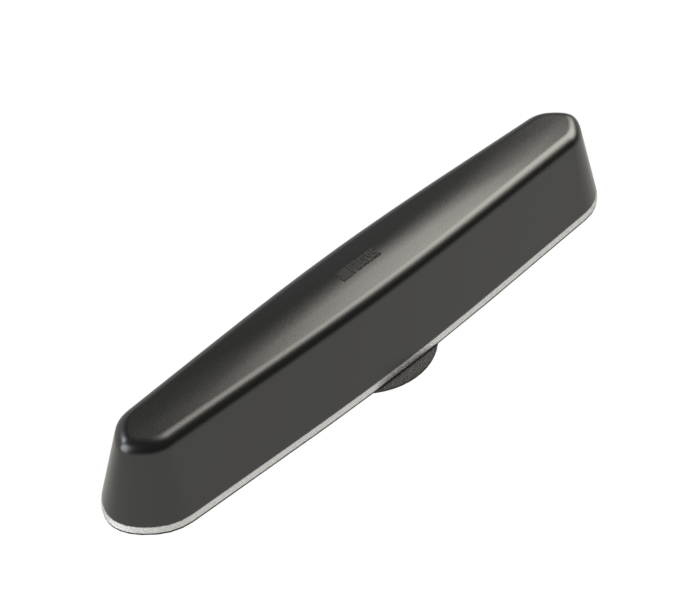

The Parsec Australian Shepherd PTA4AS4L15B is a low-profile, omni-directional 4G/5G vehicle antenna with four cellular elements in one IP67 housing. It covers 617-894, 1710-2700, 3400-4000 and 5150-5925 MHz for 4x4 MIMO cellular or two modems running at once. It installs through a single 1.5-inch hole, and its narrow radome fits between rooftop ridges beside modern LED light bars. The black radome comes with 15 ft LSR200 cables terminated in SMA male connectors.

  • 4:1 configuration with four 4G/5G cellular elements in one housing
  • Cellular coverage of 617-894, 1710-2700, 3400-4000 and 5150-5925 MHz, including CBRS and LAA
  • Up to 7 dBi peak gain (3400-4000 MHz), omni-directional pattern
  • Supports full 4x4 MIMO or dual cellular modems running simultaneously
  • Low-profile 13.5 x 2.45 x 2.01 in radome, IP67, -40 °C to 85 °C
  • Single 1.5-inch hole roof mount with 15 ft LSR200 cables and SMA(M) connectors
  • Brings full 4x4 MIMO 5G performance to a vehicle router without a tall roof mast
  • Covers low-band, mid-band, C-band/3.5 GHz, CBRS and LAA spectrum from one antenna

The Australian Shepherd PTA Series is Parsec's low-profile, high-performance 5G antenna for vehicles that cannot carry a tall roof mast. The PTA4AS4L15B is the 4:1 configuration. It has four cellular elements in one housing, 15 ft cables and a black radome. It suits police, fire and EMS vehicles, ambulances, city buses, transportation fleets and mobile broadband installs where a clean roofline matters.

All four cellular ports cover 617-894 MHz, 1710-2700 MHz, 3400-4000 MHz and 5150-5925 MHz. That spans the common North American LTE and 5G bands, including B14, B71, n41, n71 and n77, plus CBRS (B48/n48) and LAA (B46). Listed EMEA bands include n78. Peak gain reaches 7 dBi at 3400-4000 MHz and 6.5 dBi across 1710-2700 MHz. The four elements can drive full 4x4 MIMO on one router or two cellular modems running simultaneously.

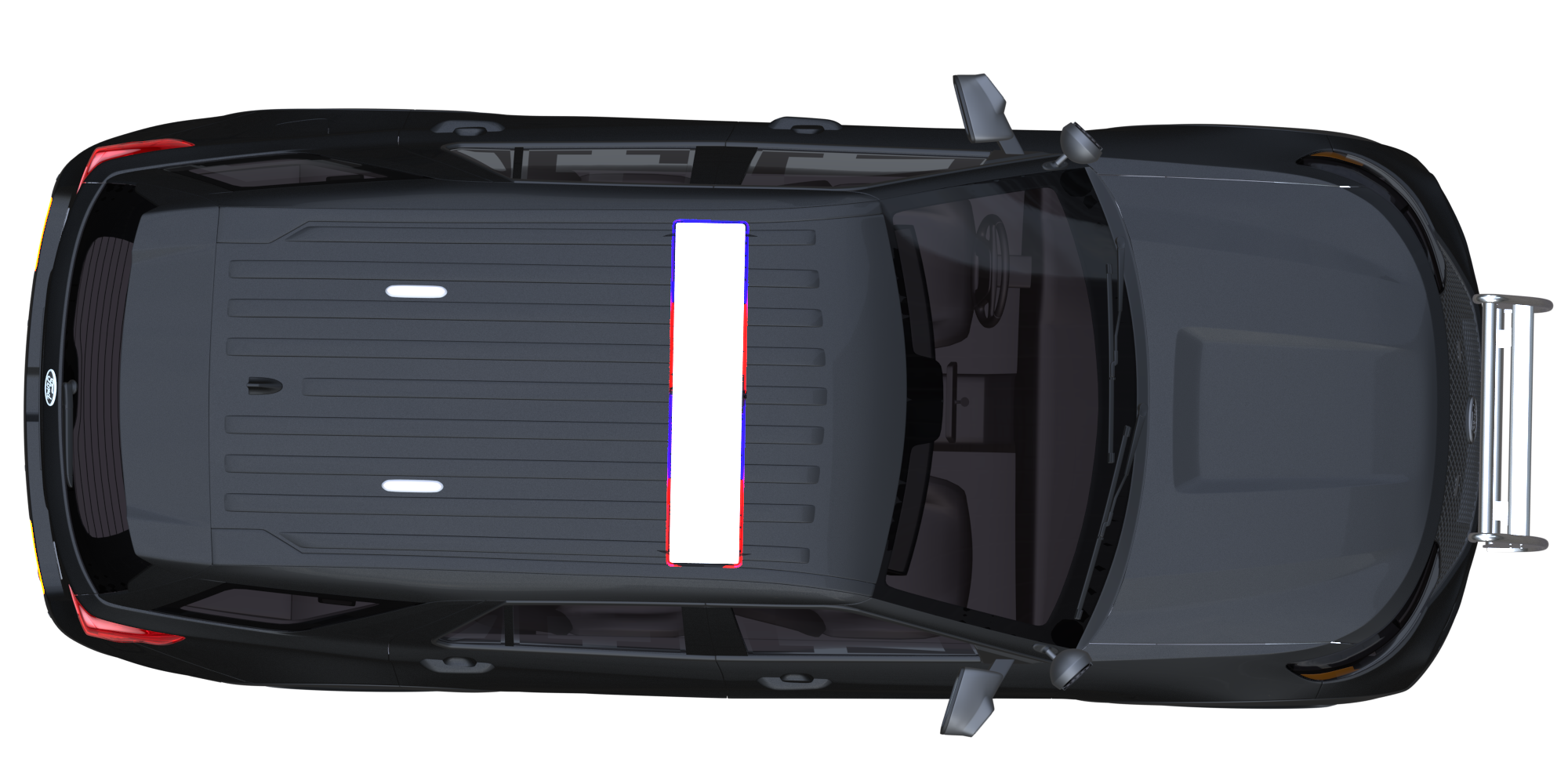

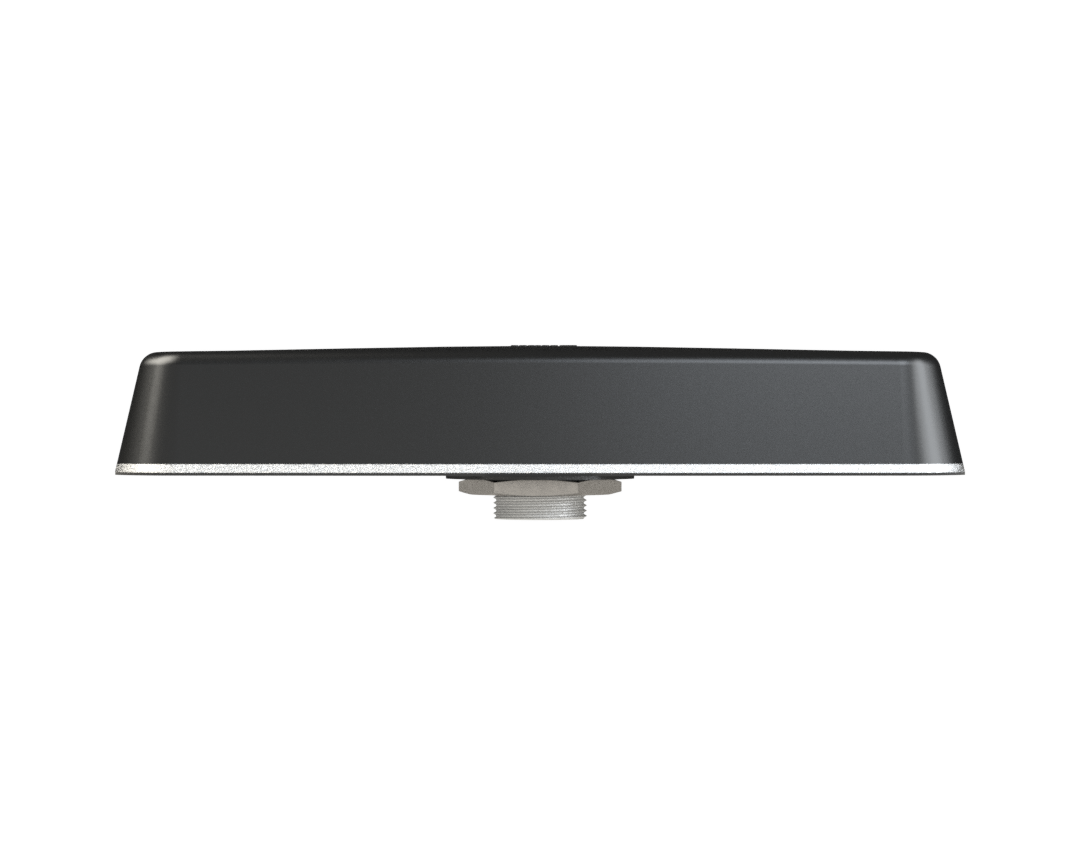

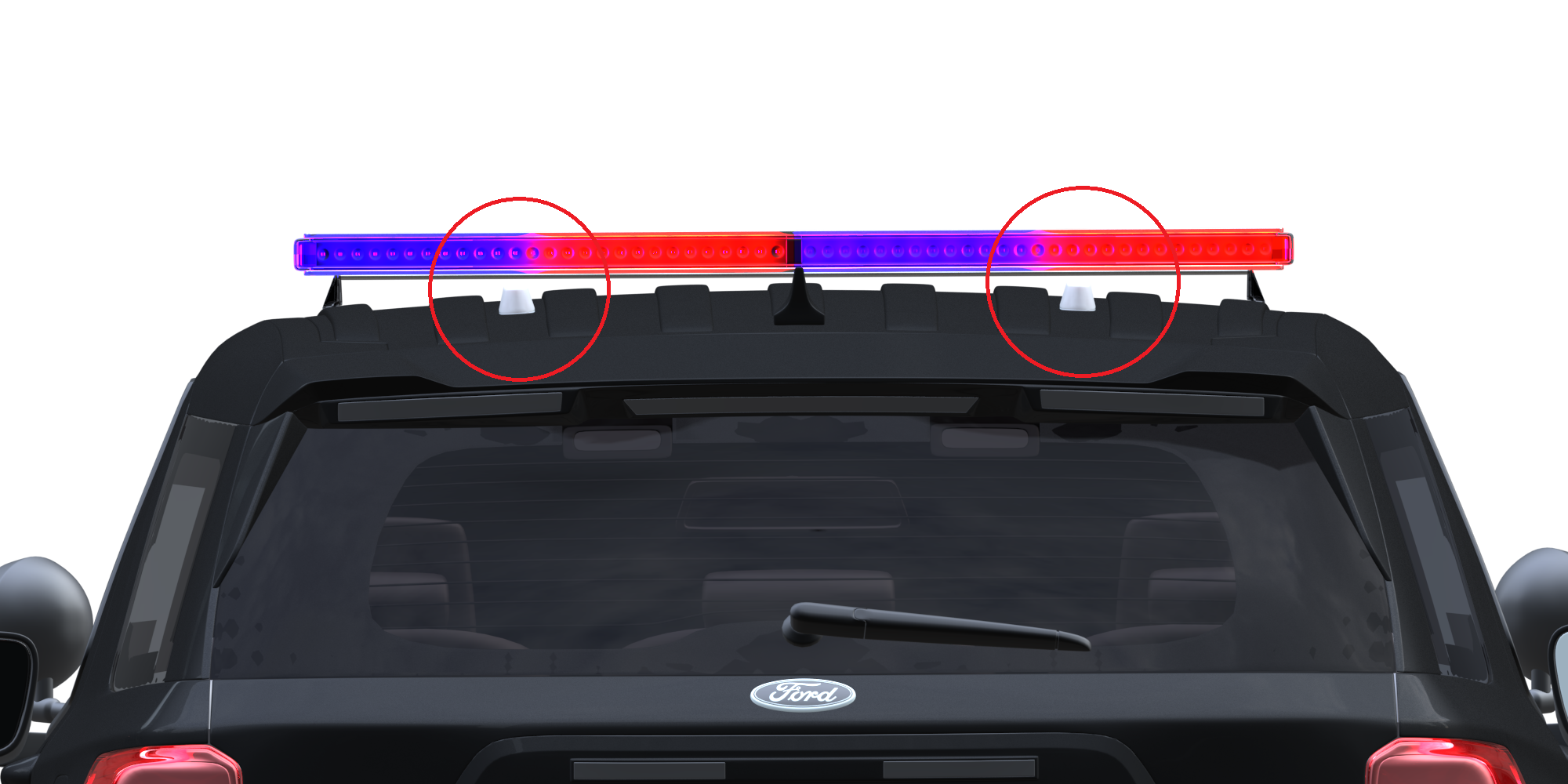

The housing measures 13.5 x 2.45 x 2.01 inches. It is narrow enough to sit between roof ridges and aerodynamic to limit wind noise around and inside the vehicle. It mounts directly to the roof through a single 1.5-inch hole and seals with an adhesive gasket. The radome is UV-stabilized plastic rated IP67 and operates from -40 °C to 85 °C. Every unit is 100% tested.

Pole, magnetic and suction mounting accessories are available separately for non-roof installs. The Australian Shepherd datasheet, installation guide and Parsec part number legend are available for this model.

Ideal for

  • Police, fire and EMS vehicles with low-profile LED light bars
  • Ambulance and first-responder mobile routers running 4x4 MIMO 5G
  • City buses and transportation fleets needing a low-drag roof antenna
  • Dual-modem vehicle routers for carrier diversity
  • Remote surveillance and mobile broadband vehicles

Specifications

General

MPN
PTA4AS4L15B
Brand
Parsec
Color
Black radome
Categories
Mobile, Public Safety, 5G
Configuration
4:1 (4 cellular elements)
Product Family
Australian Shepherd PTA Series
Antenna Pattern
Omni-directional

Package

Documents
Datasheet, installation guide, part number legend
Shipping Weight
2.70 lb

Cellular

MIMO
4x4 MIMO cellular or dual simultaneous modems
Emea 5G Bands
5G n1, n3, n28, n77, n78
Emea LTE Bands
LTE B1, B3, B7, B20, B28, B42, B43, B46
Frequency Range 1
617-894 MHz
Frequency Range 2
1710-2700 MHz
Frequency Range 3
3400-4000 MHz
Frequency Range 4
5150-5925 MHz
North America 5G Bands
5G n2, n5, n12, n25, n26, n41, n48, n66, n71, n77
North America LTE Bands
LTE B2, B4, B5, B7, B12, B13, B14, B17, B25, B26, B29, B30, B41, B46, B48, B66, B71

Hardware

Width
2.45 in
Height
2.01 in
Length
13.5 in
Cable Type
LSR200 (cellular)
Connectors
SMA male (cellular)
Mount Type
Mobile roof/direct mount
Mounting Hole
Single 1.5 in hole
Radome Material
Plastic with UV additive
RF Cable Length
15 ft
Mounting Accessories Available
Pole, magnetic and suction mounts (sold separately)

Environmental

Ingress Protection
IP67 waterproof
Operating Temperature
-40 °C to 85 °C

Electrical General

Impedance
50 Ω
Polarization
Linear
Max Input Power
5 W
Test Conditions
Measured on 2 x 2 ft ground plane; excludes cable loss

Electrical Isolation

Cell 617 663 MHz
6 dB (617-663 MHz)
Cell 663 798 MHz
6 dB (663-798 MHz)
Cell 798 894 MHz
7 dB (798-894 MHz)
Cell 1710 2700 MHz
10 dB (1710-2700 MHz)
Cell 3400 4000 MHz
18 dB (3400-4000 MHz)
Cell 5150 5925 MHz
23 dB (5150-5925 MHz)

Electrical Peak Gain

Cell 617 663 MHz
3.5 dBi (617-663 MHz)
Cell 663 798 MHz
5.5 dBi (663-798 MHz)
Cell 798 894 MHz
4 dBi (798-894 MHz)
Cell 1710 2700 MHz
6.5 dBi (1710-2700 MHz)
Cell 3400 4000 MHz
7 dBi (3400-4000 MHz)
Cell 5150 5925 MHz
6 dBi (5150-5925 MHz)

Electrical Return Loss

Cell 617 663 MHz
6 dB (617-663 MHz)
Cell 663 798 MHz
10 dB (663-798 MHz)
Cell 798 894 MHz
6 dB (798-894 MHz)
Cell 1710 2700 MHz
7 dB (1710-2700 MHz)
Cell 3400 4000 MHz
10 dB (3400-4000 MHz)
Cell 5150 5925 MHz
6 dB (5150-5925 MHz)

Electrical Radiated Efficiency

Cell 617 663 MHz
40% (617-663 MHz)
Cell 663 798 MHz
60% (663-798 MHz)
Cell 798 894 MHz
50% (798-894 MHz)
Cell 1710 2700 MHz
70% (1710-2700 MHz)
Cell 3400 4000 MHz
65% (3400-4000 MHz)
Cell 5150 5925 MHz
45% (5150-5925 MHz)

Questions buyers ask

Does the PTA4AS4L15B include Wi-Fi or GPS elements?

No. This is the 4:1 configuration with four cellular elements only. Parsec's 5:1, 7:1, 8:1 and 9:1 Australian Shepherd versions add GPS, Wi-Fi and, on the 8:1, Bluetooth.

Can it be used with two cellular modems?

Yes. The four cellular elements can serve one modem in full 4x4 MIMO or two cellular modems running simultaneously.

Which frequencies does it cover?

All four cellular ports cover 617-894 MHz, 1710-2700 MHz, 3400-4000 MHz and 5150-5925 MHz. That includes Band 14, Band 71, n41, n77, CBRS (B48/n48) and LAA (B46).

How is it installed?

It is a roof or direct mount through a single 1.5-inch hole, sealed with an adhesive gasket. Pole, magnetic and suction mounts are available separately. An installation guide is available for this model.

What connectors and cables does it use?

It uses 15 ft LSR200 cables terminated in SMA male connectors.
