Parsec Australian Shepherd PTA7AS4L2WG01B 7-in-1 Low-Profile 5G Vehicle Antenna with 4x4 Cellular, Wi-Fi and GPS

5GMPN PTA7AS4L2WG01B
  • 4x4 MIMO
  • GNSS
  • Wi-Fi
  • 9 dBi and up
  • Up to 1 m
$425.35$542.54Save $117.19

In stockShips from the US

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

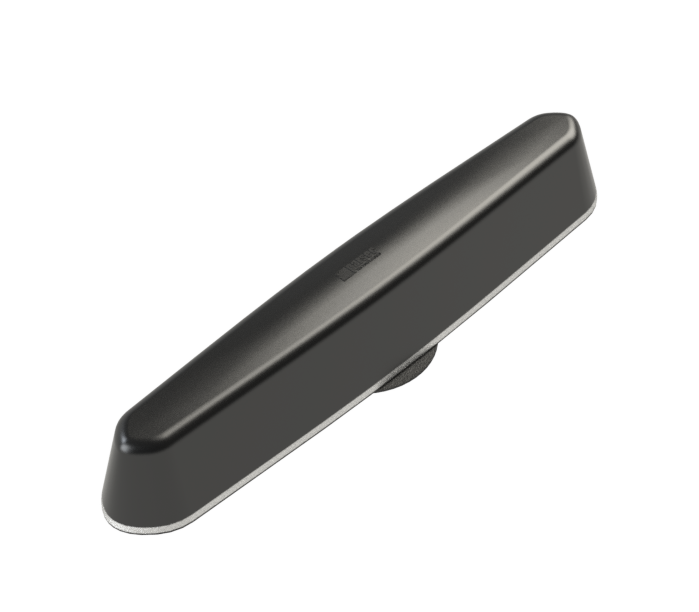

The Parsec Australian Shepherd PTA7AS4L2WG01B is a low-profile 7-in-1 roof antenna for police, fire, EMS and fleet vehicles. One IP67 housing carries four 4G/5G cellular elements covering 617-894, 1710-2700, 3400-4000 and 5150-5925 MHz, two Wi-Fi elements and an L1 GPS element. It installs through a single 1.5 in hole and ships with 1 ft leads in a black radome.

  • 7:1 configuration: four 4G/5G cellular elements, two Wi-Fi elements and one L1 GPS element in one housing
  • Cellular coverage of 617-894, 1710-2700, 3400-4000 and 5150-5925 MHz, including CBRS and LAA
  • Four cellular ports support full 4x4 MIMO or two simultaneous cellular modems
  • Wi-Fi coverage of 2400-2483.5 and 4900-5900 MHz with 10 dBi peak gain
  • IP67 rated with a UV-stabilised radome and a -40 °C to 85 °C operating range

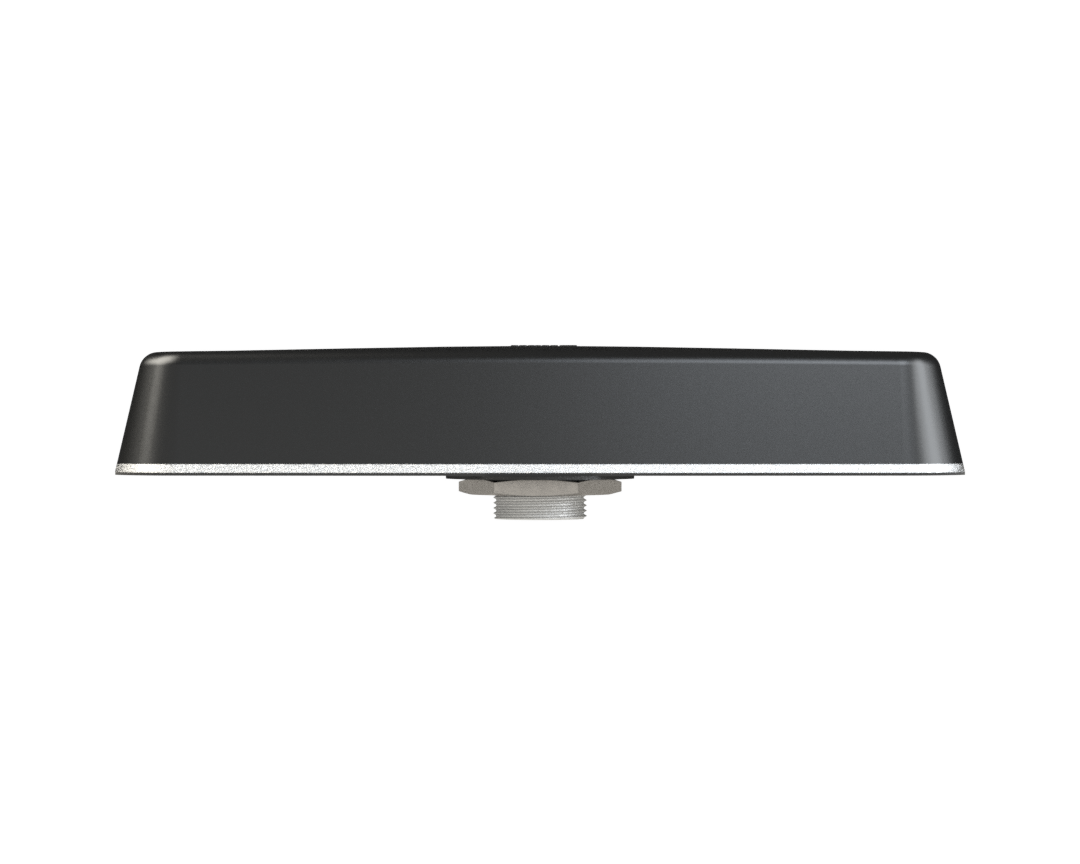

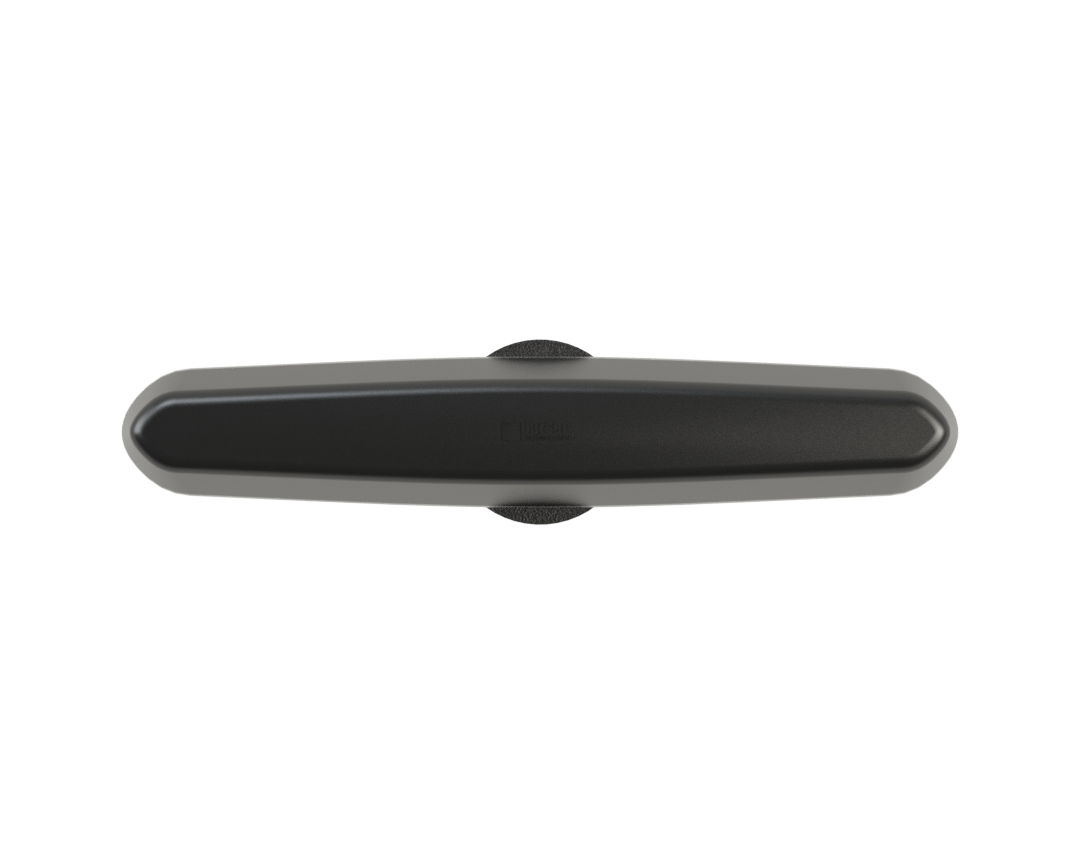

  • Low-profile 13.5 x 2.45 x 2.01 in housing that mounts through a single 1.5 in hole
  • 1 ft LSR200/LSR100 leads with SMA(M) cellular/GPS and RP-SMA(M) Wi-Fi connectors
  • One roof penetration replaces separate cellular, Wi-Fi and GPS antennas on the vehicle

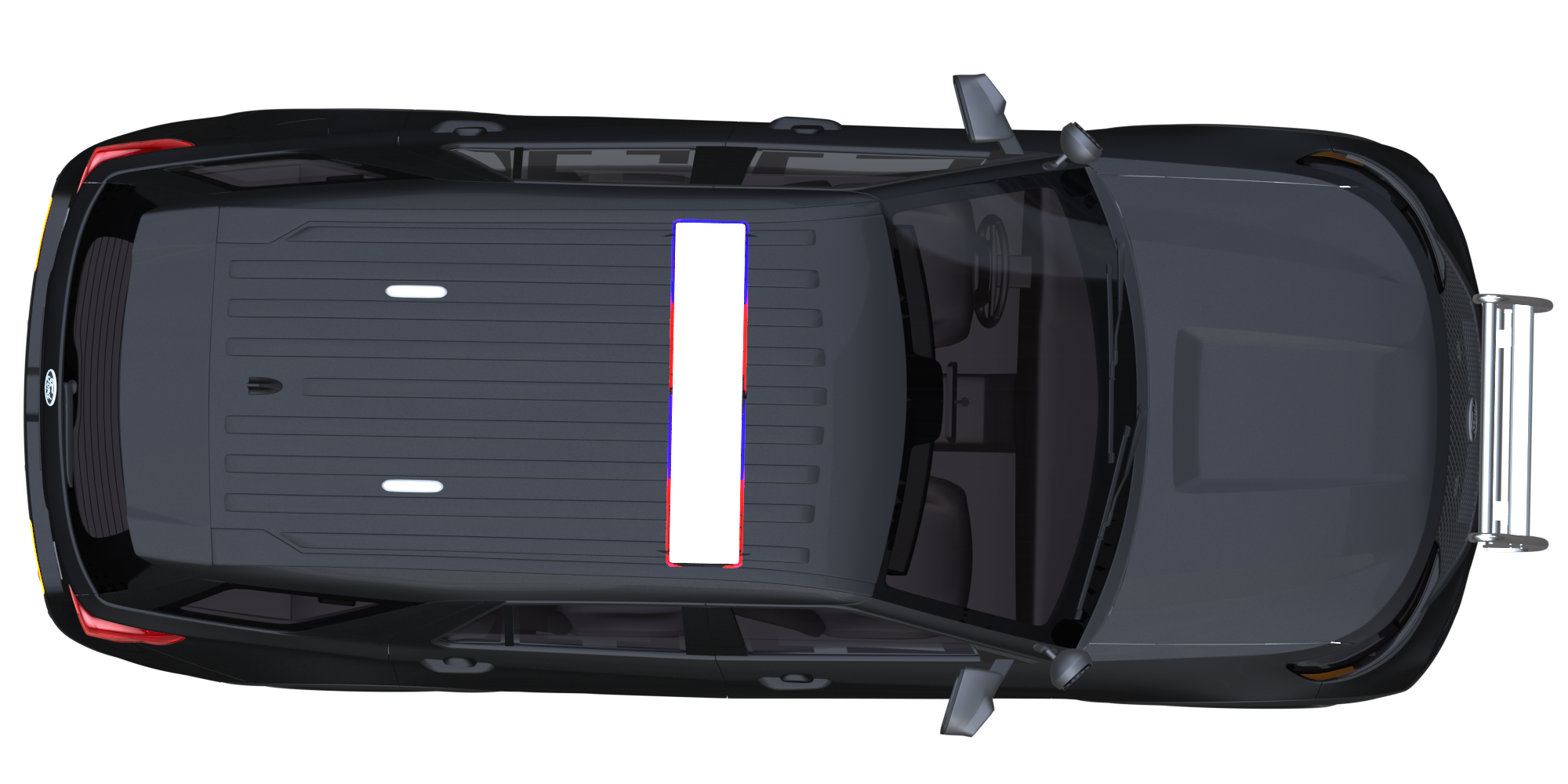

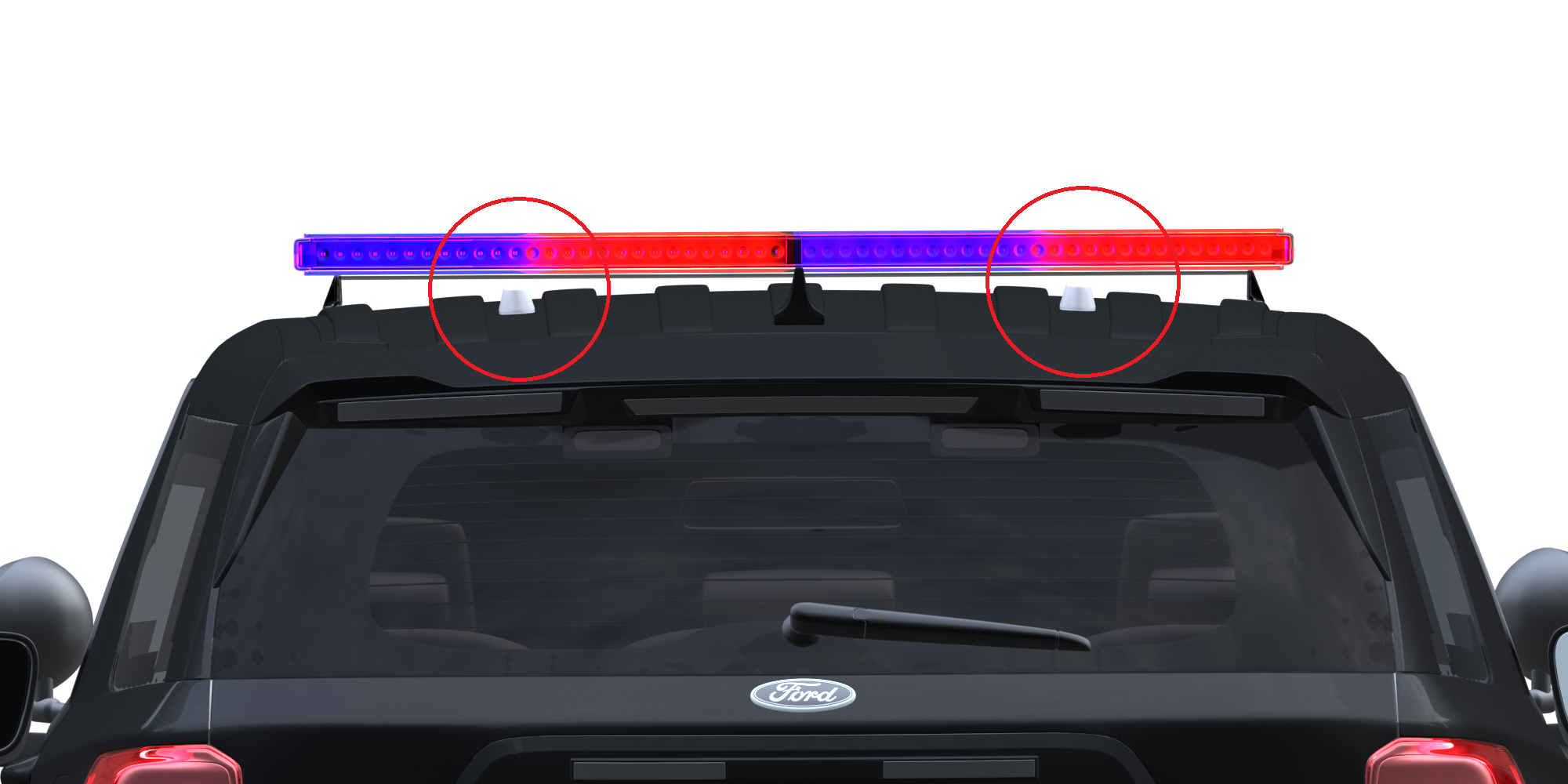

The Australian Shepherd PTA Series is Parsec's covert, low-profile 5G antenna. It was designed to sit alongside the low-profile LED light bars on modern police vehicles, with a narrow housing that fits between roof ridges and an aerodynamic shape that keeps wind noise down. This PTA7AS4L2WG01B is the 7:1 configuration. It has four cellular elements, two Wi-Fi elements and one L1 GPS element, uses 1 ft cables and has a black radome.

The four cellular ports cover 617-894 MHz, 1710-2700 MHz, 3400-4000 MHz and 5150-5925 MHz. That range includes the common North American LTE and 5G NR bands, among them B14, B71, n41, n71 and n77, plus CBRS (B48/n48) and LAA (B46). The ports can feed one modem in full 4x4 MIMO or two cellular modems running at the same time. Peak cellular gain reaches 7 dBi in the 3400-4000 MHz range. The Wi-Fi elements cover 2400-2483.5 MHz and 4900-5900 MHz with 10 dBi peak gain. The GPS element is an active RHCP L1 antenna with 28 dBic combined antenna and preamp gain.

The antenna is built for vehicle duty. It has an IP67 rating, a UV-stabilised plastic radome, an adhesive sealing gasket and a -40 °C to 85 °C operating range. Parsec states every unit is 100% tested. Cellular and GPS leads terminate in SMA(M) and the Wi-Fi leads in RP-SMA(M). The 1 ft leads suit installs where the router sits close to the mount point.

Pole, magnetic and suction mounting accessories are available for the family. Parsec's datasheet and installation guide cover dimensions and mounting.

Ideal for

  • Police, fire and ambulance vehicles on FirstNet or commercial 5G networks
  • Transportation and fleet vehicles running in-vehicle routers with GPS tracking
  • City buses providing passenger Wi-Fi and cellular backhaul
  • Remote surveillance and mobile broadband units

Specifications

GNSS

Polarization
RHCP
Preamp Current
< 45 mA
Preamp Voltage
3 to 5 V
Antenna Preamp Gain L1
28 dBic

General

MPN
PTA7AS4L2WG01B
Brand
Parsec
Color
Black
Family
Australian Shepherd PTA Series
Categories
Mobile, Public Safety, 5G
Antenna Pattern
Omni-Directional

Package

Shipping Weight
1.40 lb

Isolation

Cell 617 663 MHz
Cellular 617-663 MHz: 6 dB
Cell 663 798 MHz
Cellular 663-798 MHz: 6 dB
Cell 798 894 MHz
Cellular 798-894 MHz: 7 dB
Cell 1710 2700 MHz
Cellular 1710-2700 MHz: 10 dB
Cell 3400 4000 MHz
Cellular 3400-4000 MHz: 18 dB
Cell 5150 5925 MHz
Cellular 5150-5925 MHz: 23 dB
Wi-Fi 2400 2483 MHz
Wi-Fi 2400-2483.5 MHz: 11 dB
Wi-Fi 4900 5900 MHz
17 dB

Peak Gain

Cell 617 663 MHz
Cellular 617-663 MHz: 3.5 dBi
Cell 663 798 MHz
Cellular 663-798 MHz: 5.5 dBi
Cell 798 894 MHz
Cellular 798-894 MHz: 4 dBi
Cell 1710 2700 MHz
Cellular 1710-2700 MHz: 6.5 dBi
Cell 3400 4000 MHz
Cellular 3400-4000 MHz: 7 dBi
Cell 5150 5925 MHz
Cellular 5150-5925 MHz: 6 dBi
Wi-Fi 2400 2483 MHz
Wi-Fi 2400-2483.5 MHz: 10 dBi
Wi-Fi 4900 5900 MHz
10 dBi

Mechanical

Width
2.45 in
Height
2.01 in
Length
13.5 in
Mounting
Single 1.5 in hole
Mount Type
Mobile Roof/Direct Mount
Radome Material
Plastic with UV Additive
Mounting Accessories Available
Pole Mount, Mag Mount, Suction Mount

Frequencies

Wi-Fi
2400-2483.5, 4900-5900 MHz
L1 GPS
1575.42 MHz
Cellular 4G 5G
4G/5G Cellular: 617-894, 1710-2700, 3400-4000, 5150-5925 MHz

LTE 5G Bands

Emea LTE
B1, B3, B7, B20, B28, B42, B43, B46
Emea 5G NR
n1, n3, n28, n77, n78
North America LTE
B2, B4, B5, B7, B12, B13, B14, B17, B25, B26, B29, B30, B41, B46, B48, B66, B71
North America 5G NR
n2, n5, n12, n25, n26, n41, n48, n66, n71, n77

Configuration

GPS Element
L1 GPS
Configuration
7:1
Wi-Fi Elements
2
Antennas Included
Cellular, Wi-Fi, GPS
Cellular Elements
Cellular (4G/5G) Elements: 4

Environmental

Ingress Protection
IP67 Waterproof
Operating Temperature
-40 °C to 85 °C

Connectors Cables

GPS Cable
LSR100
Wi-Fi Cable
LSR200
Cable Length
1 ft
GPS Connector
SMA(M)
Cellular Cable
LSR200
Wi-Fi Connector
RP-SMA(M)
Cellular Connector
SMA(M)

Electrical General

Polarization
Linear
Max Input Power
5 W
Test Conditions
2 ft x 2 ft external ground plane; isolation and return loss exclude cable loss

Return Loss 50 Ohm

Cell 617 663 MHz
Cellular 617-663 MHz: 6 dB
Cell 663 798 MHz
Cellular 663-798 MHz: 10 dB
Cell 798 894 MHz
Cellular 798-894 MHz: 6 dB
Cell 1710 2700 MHz
Cellular 1710-2700 MHz: 7 dB
Cell 3400 4000 MHz
Cellular 3400-4000 MHz: 10 dB
Cell 5150 5925 MHz
Cellular 5150-5925 MHz: 6 dB
Wi-Fi 2400 2483 MHz
Wi-Fi 2400-2483.5 MHz: 8 dB
Wi-Fi 4900 5900 MHz
10 dB

Radiated Efficiency

Cell 617 663 MHz
Cellular 617-663 MHz: 40%
Cell 663 798 MHz
Cellular 663-798 MHz: 60%
Cell 798 894 MHz
Cellular 798-894 MHz: 50%
Cell 1710 2700 MHz
Cellular 1710-2700 MHz: 70%
Cell 3400 4000 MHz
Cellular 3400-4000 MHz: 65%
Cell 5150 5925 MHz
Cellular 5150-5925 MHz: 45%
Wi-Fi 2400 2483 MHz
Wi-Fi 2400-2483.5 MHz: 60%
Wi-Fi 4900 5900 MHz
60%

Questions buyers ask

What elements are in the PTA7AS4L2WG01B?

It has four 4G/5G cellular elements, two Wi-Fi elements and one L1 GPS element in a single black housing. It does not include a Bluetooth element.

Does it support FirstNet Band 14 and CBRS?

Yes. Its North American band list includes B14, CBRS on B48/n48 and LAA on B46, along with n41, n71 and n77.

Can I connect two cellular modems?

Yes. The four cellular ports can run one modem in 4x4 MIMO or two cellular modems at the same time.

How is it installed?

It mounts on the roof through a single 1.5 in hole and seals with an adhesive gasket. Pole, magnetic and suction mounting accessories are available, and Parsec provides an installation guide.

What connectors does it use?

The cellular and GPS leads end in SMA(M) connectors. The Wi-Fi leads end in RP-SMA(M) connectors. All leads are 1 ft long.
