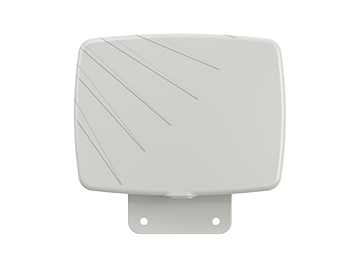

Parsec Labrador PTAWM2L01W-NF 5G 2x2 MIMO Omni Wall/Pole Mount Antenna, N-Female, White

5GMPN PTAWM2L01W-NF
  • 2x2 MIMO
  • 9 dBi and up
  • Up to 1 m
$124.98$159.42Save $34.44

In stock · only 3 leftShips from the US

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Parsec Labrador PTAWM2L01W-NF is a compact white 2x2 MIMO 4G/5G omni-directional antenna for retail, office and IoT deployments. It covers 617 MHz to 5925 MHz and is rated IP54 for indoor or outdoor use. It mounts to a wall or to a 1.5–2.5 inch pole. This version uses N-type female connectors on 1 ft LSR200 leads, which suits outdoor installs and longer cable runs.

  • 2x2 MIMO 4G/5G cellular, omni-directional
  • Coverage from 617 MHz to 5925 MHz, with peak gain up to 10 dBi
  • IP54 rated for indoor or outdoor installation
  • Wall bracket or pole mount for 1.5–2.5 in masts
  • N-type female connectors on 1 ft LSR200 cables
  • Compact 8.13 x 7.78 x 1.72 in white housing
  • Adds 2x2 MIMO signal to a branch or failover router to improve cellular throughput
  • The low-profile white housing blends into retail and office interiors

The Labrador PTA Series is a low-footprint 5G antenna for enterprise sites. It suits routers used as a primary connection or for failover, plus IoT gateways that need better cellular signal than their stock antennas deliver. The white housing measures 8.13 x 7.78 x 1.72 inches excluding the bracket and is designed to look unobtrusive in stores and offices.

Two cellular elements feed a router's two cellular antenna ports in 2x2 MIMO. They cover 617–698 MHz, 698–894 MHz, 1710–2700 MHz, 3400–4000 MHz and 5150–5925 MHz. That span includes North American LTE bands such as B12, B13, B14, B48 (CBRS) and B71, and 5G NR bands including n41, n71 and n77. Peak gain reaches 10 dBi in the 5150–5925 MHz range, and isolation between elements reaches 27 dB.

The -NF suffix gives this SKU N-type female connectors in place of the standard SMA. Parsec recommends N-type for outdoor use because the connector is waterproof, and for cable runs longer than 25 ft because it forms a stronger connection. Optional 25 ft LSR240 and 50 ft LSR400 cable kits are available. The antenna itself ships with 1 ft LSR200 leads.

The antenna is IP54 rated and operates from -30 °C to 85 °C. It attaches to non-metallic surfaces with a screw-mounted bracket, or to a 1.5–2.5 inch mast with the V-bolt and saddle clamp pole mount. Performance drops if the antenna sits close to wiring or metal wall studs, so pick a clear location. A datasheet and installation guide are published for the Labrador series.

Ideal for

  • Primary 5G connectivity for retail stores and branch offices
  • LTE/5G failover antenna for business routers
  • IoT gateways that need stronger cellular signal
  • Exterior wall or mast installs with longer N-type cable runs
  • Fixed wireless access at small sites

Specifications

Bands

Additional Bands
B1, B3, B7, B20, B28, B42, B43, B46, n1, n3, n8, n77, n78
North America LTE
LTE B2, B4, B5, B7, B12, B13, B14, B17, B25, B26, B29, B30, B41, B46, B48, B66, B71
North America 5G NR
5G NR n2, n5, n12, n25, n26, n41, n48, n66, n71, n77

General

MPN
PTAWM2L01W-NF
MIMO
2x2 MIMO cellular
Brand
Parsec
Color
White radome
Configuration
2:1 (2 Cellular)
Product Family
Labrador PTA Series
Antenna Pattern
Omni-directional

Package

Contents
Antenna with wall/pole mount hardware

Electrical

Test Note
Excludes cable loss
Polarization
Linear
Max Input Power
5 W
Isolation 617 698
12 dB (617–698 MHz)
Isolation 698 894
10 dB (698–894 MHz)
Peak Gain 617 698
2.5 dBi (617–698 MHz)
Peak Gain 698 894
3 dBi (698–894 MHz)
Efficiency 617 698
50% (617–698 MHz)
Efficiency 698 894
80% (698–894 MHz)
Isolation 1710 2700
16 dB (1710–2700 MHz)
Isolation 3400 4000
20 dB (3400–4000 MHz)
Isolation 5150 5925
27 dB (5150–5925 MHz)
Peak Gain 1710 2700
4 dBi (1710–2700 MHz)
Peak Gain 3400 4000
6 dBi (3400–4000 MHz)
Peak Gain 5150 5925
10 dBi (5150–5925 MHz)
Return Loss 617 698
2 dB (617–698 MHz)
Return Loss 698 894
7 dB (698–894 MHz)
Efficiency 1710 2700
75% (1710–2700 MHz)
Efficiency 3400 4000
55% (3400–4000 MHz)
Efficiency 5150 5925
80% (5150–5925 MHz)
Return Loss 1710 2700
7 dB (1710–2700 MHz)
Return Loss 3400 4000
6 dB (3400–4000 MHz)
Return Loss 5150 5925
5 dB (5150–5925 MHz)

Mechanical

Dimensions
8.13 x 7.78 x 1.72 in (excluding bracket)
Pole Mounting
Pole mount for 1.5–2.5 in mast (V-bolt, saddle clamp)
Wall Mounting
Screw-mounted bracket, non-metallic surface
Shipping Weight
1.45 lb shipping weight

Frequencies

Cellular 4G 5G
617–698 / 698–894 / 1710–2700 / 3400–4000 / 5150–5925 MHz

Environmental

Usage
Indoor or outdoor
Ingress Protection
IP54
Operating Temperature
-30 °C to 85 °C (-22 °F to 180 °F)

Connectors Cables

Connector
N-type female (-NF)
Cable Type
LSR200
Cable Length
1 ft
NF Max Torque
6.2–9.7 inch-lbs max torque
Optional Cable Kits
Optional 25 ft LSR240 / 50 ft LSR400 kits

Questions buyers ask

What does the -NF suffix mean?

It means the antenna has N-type female connectors in place of the standard SMA. Parsec recommends N-type for outdoor use and for cable runs longer than 25 ft.

How many router ports does it connect to?

Two. It has two cellular elements for 2x2 MIMO on the router's two cellular antenna ports.

Can it be mounted outdoors?

Yes. It is IP54 rated for indoor or outdoor use and operates from -30 °C to 85 °C. It mounts to a non-metallic wall with the bracket or to a 1.5–2.5 inch pole.

What cable length comes on this model?

The antenna has 1 ft LSR200 leads. Optional 25 ft LSR240 and 50 ft LSR400 cable kits are available for longer runs.

Where should I avoid mounting it?

Keep it away from electrical wiring and metal wall studs. Parsec notes that performance degrades when the antenna is mounted close to them.
