Panorama PWB-6-60-RFDJ Wideband 4G/5G Terminal Paddle Antenna, Right-Angle FAKRA D Jack

5GMPN PWB-6-60-RFDJ
  • Single (SISO)
  • No cable
$14.90$20.62Save $5.72

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

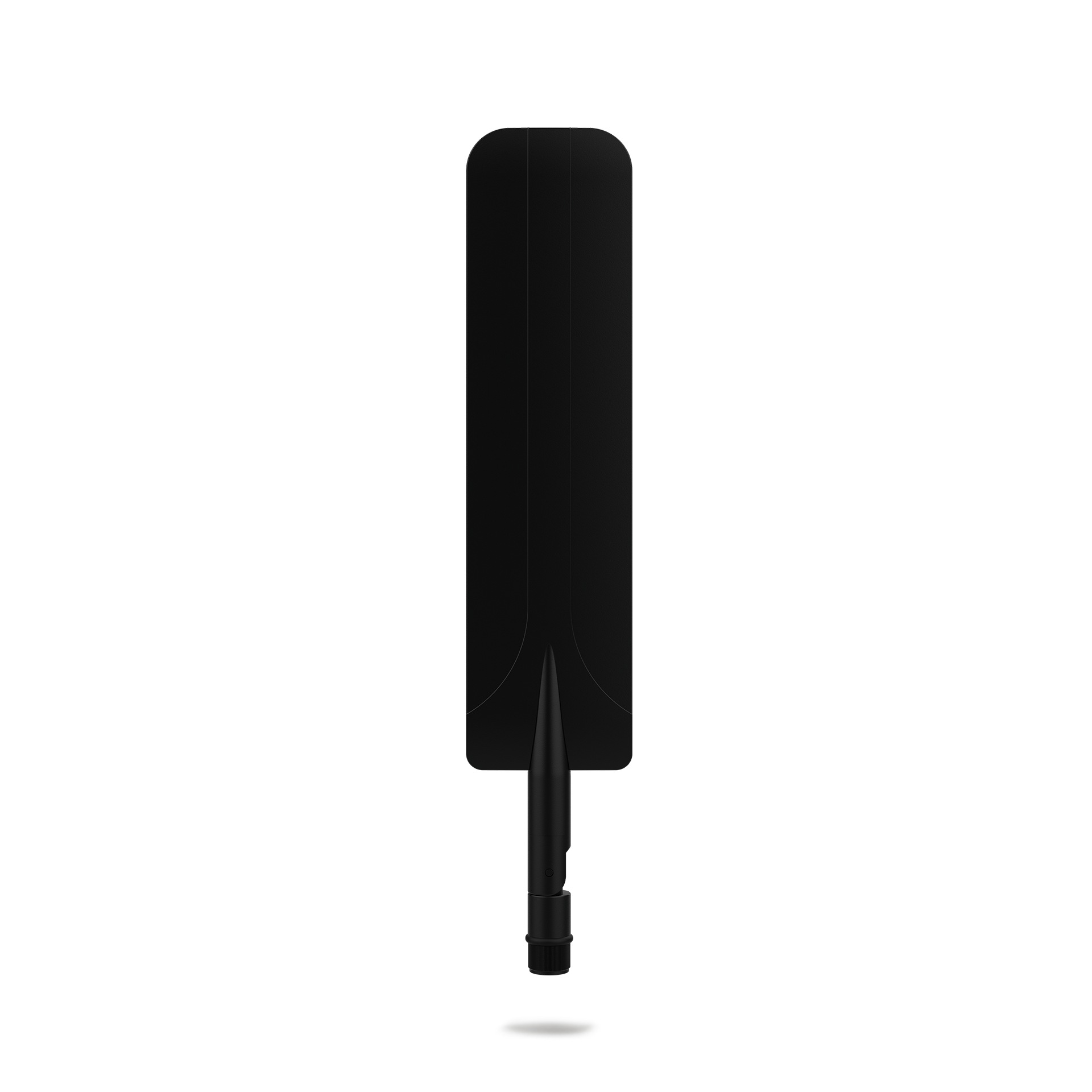

The Panorama PWB-6-60-RFDJ is a wideband paddle antenna for cellular routers and terminals. It covers 2G/3G/4G and 5G bands across 698-960, 1710-3800 and 4400-6000 MHz with up to 6 dBi gain. It is ground plane independent and omnidirectional, and connects directly to the device through an articulated right-angle FAKRA D jack, so it can be angled for the best position.

  • Wideband coverage: 698-960, 1710-3800 and 4400-6000 MHz
  • Supports 2G/3G/4G and 5G bands
  • Gain: 2 dBi (698-960 MHz), 4 dBi (1710-3800 MHz), 6 dBi (4400-6000 MHz)
  • Articulated right-angle FAKRA D jack connector
  • Ground plane independent, omnidirectional pattern
  • Black paddle, 230 x 50 x 13 mm
  • One antenna covers legacy and 5G bands, so a single part number fits mixed router fleets
  • Articulated connector lets you set the blade at the best angle on the device

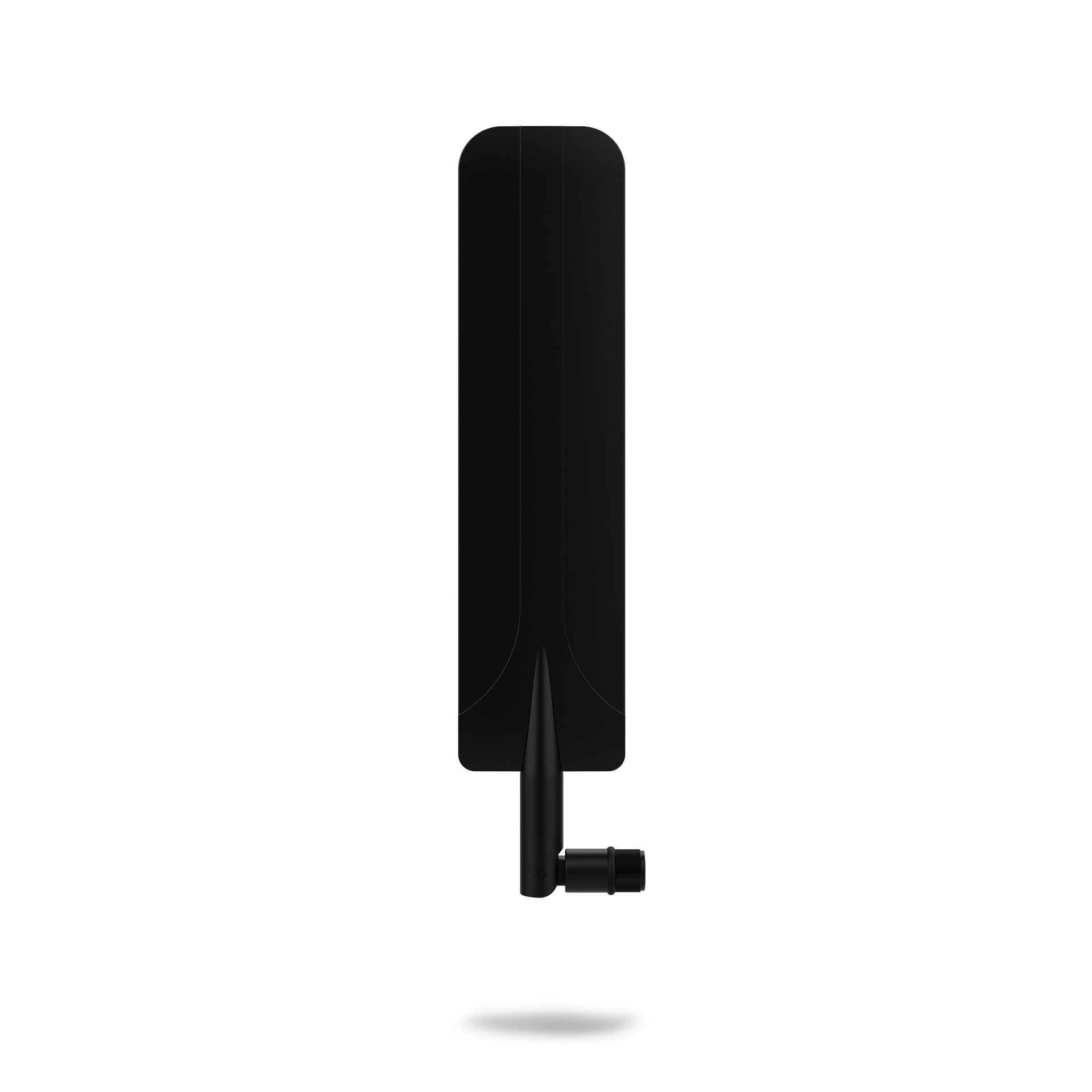

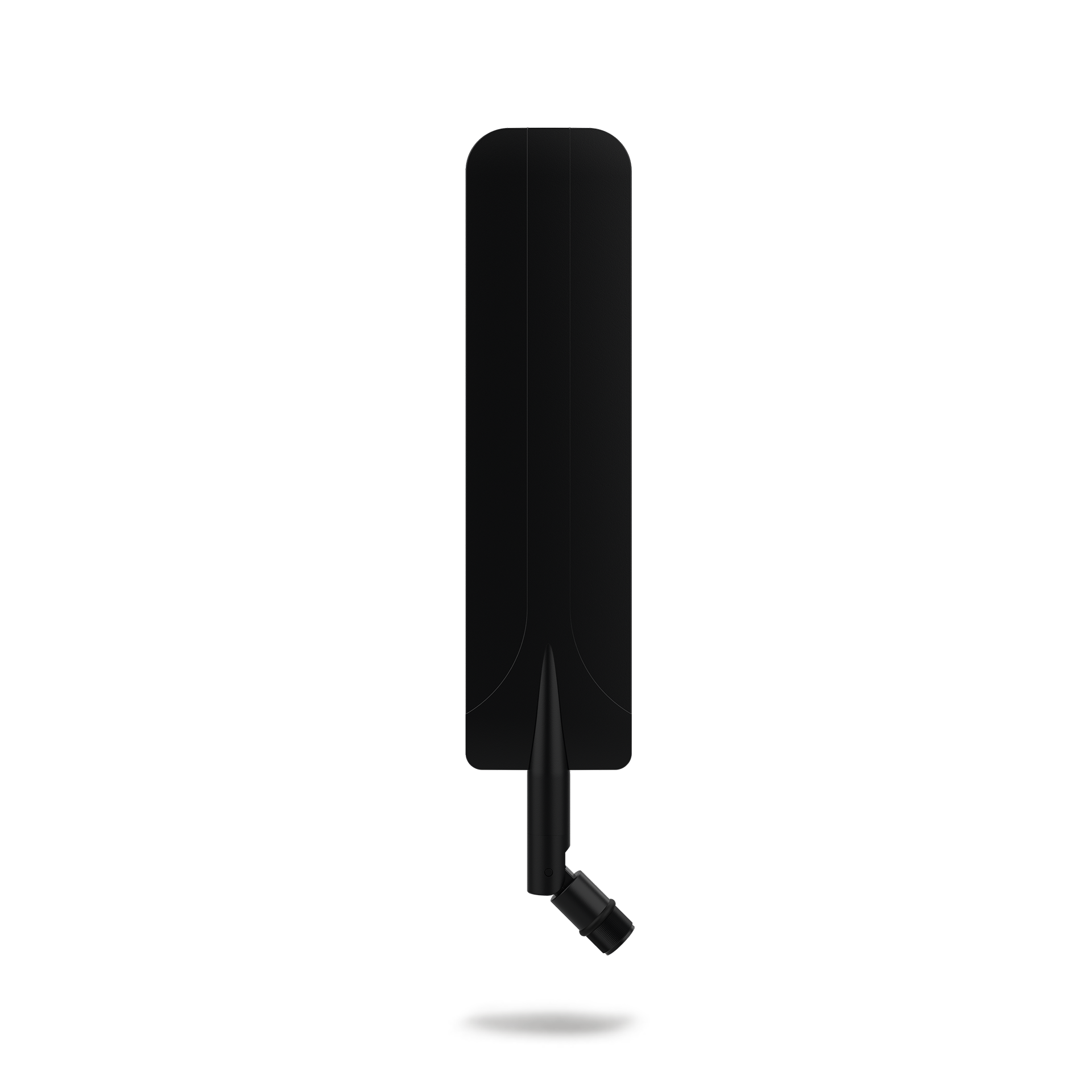

The Panorama PWB-6-60-RFDJ is the FAKRA D jack version of Panorama's PWB-6-60 wideband terminal paddle antenna. It is a single blade that covers 2G/3G/4G and 5G bands, for next-generation routers, modems and terminals that use a FAKRA D connection. An articulated right-angle connector lets the blade stand upright or be positioned to suit the device and installation.

The antenna is ground plane independent with an omnidirectional pattern. Gain is 2 dBi at 698-960 MHz, 4 dBi at 1710-3800 MHz and 6 dBi at 4400-6000 MHz, and maximum input power is 10 W. It is a plug-and-play upgrade or replacement for device-mounted cellular antennas: attach it directly to the device, with no cable run to plan.

The PWB-6-60 paddle is black and measures 230 x 50 x 13 mm (9.06 x 1.97 x 0.51 in). It operates from -30 to +70°C. The same blade is also offered with a right-angle SMA plug (PWB-6-60-RSMAP) for devices with SMA ports. Choose this RFDJ version for equipment that uses FAKRA D.

Ideal for

  • Direct-attach antenna for cellular routers with FAKRA D ports
  • Replacement or upgrade antenna for 4G/5G modems and terminals
  • Industrial and vehicle terminals using FAKRA connections
  • Mixed 4G and 5G equipment fleets standardising on one antenna

Specifications

General

MPN
PWB-6-60-RFDJ
UPC
5055416039781
Brand
Panorama Antennas
Form Factor
Paddle (blade)
Product Family
PWB-6-60 Wide Band 4G/5G Terminal Paddle

Package

Shipping Weight
0.15 lb

Electrical

Pattern
Omnidirectional
Ground Plane
Ground plane independent
Max Input Power
10 W
Gain 698 960 MHz
2 dBi
Gain 1710 3800 MHz
4 dBi
Gain 4400 6000 MHz
6 dBi

Mechanical

Width
50 mm (1.97 in)
Colour
Black
Height
13 mm (0.51 in)
Length
230 mm (9.06 in)
Operating Temperature
-30° to +70°C (-22° to +158°F)

Technology

Technology
2G/3G/4G, 5G

Termination

Connector
Articulated right-angle FAKRA D jack

Questions buyers ask

What connector does the PWB-6-60-RFDJ use?

It uses an articulated right-angle FAKRA D jack. For devices with SMA ports, Panorama offers the PWB-6-60-RSMAP.

Which cellular technologies does it support?

It covers 2G/3G/4G and 5G bands across 698-960, 1710-3800 and 4400-6000 MHz.

What gain does it provide?

Gain is 2 dBi at 698-960 MHz, 4 dBi at 1710-3800 MHz and 6 dBi at 4400-6000 MHz, with an omnidirectional pattern.

How big is the antenna?

The PWB-6-60 paddle measures 230 x 50 x 13 mm (9.06 x 1.97 x 0.51 in).
