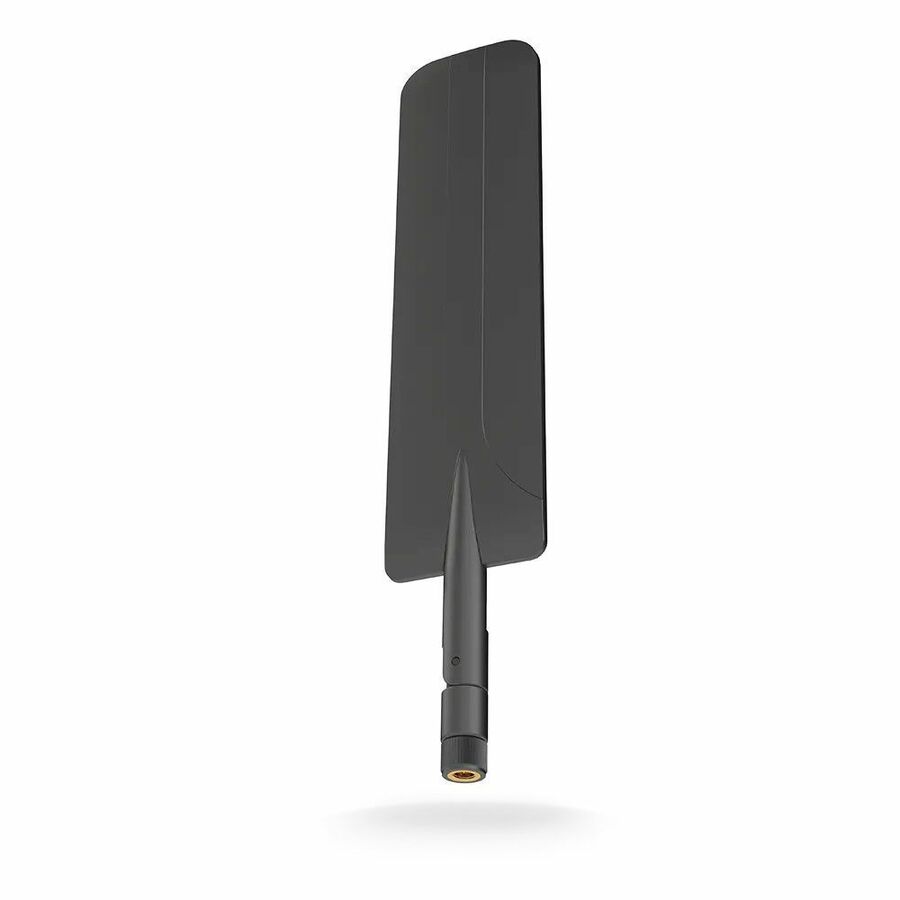

Panorama PWB-6-60-RSMAP Wideband 4G/5G Terminal Paddle Antenna with Articulated SMA Male

The Panorama PWB-6-60-RSMAP is a blade-style terminal antenna for next-generation cellular routers and modems. It screws directly onto the device's SMA port. Because it is ground plane independent, it performs consistently whether the router sits on a desk, on a shelf or inside a cabinet. Panorama describes it as a one-size-fits-all antenna for devices that support 2G, 3G, 4G and the newer 5G bands.

The antenna covers three frequency ranges: 698-960 MHz at 2 dBi, 1710-3800 MHz at 4 dBi, and 4400-6000 MHz at 6 dBi. The omnidirectional pattern needs no aiming. The 1710-3800 MHz span takes in the mid-band spectrum used for LTE and 3.5 GHz 5G, and the upper range extends coverage to 6000 MHz. Maximum input power is 10 W.

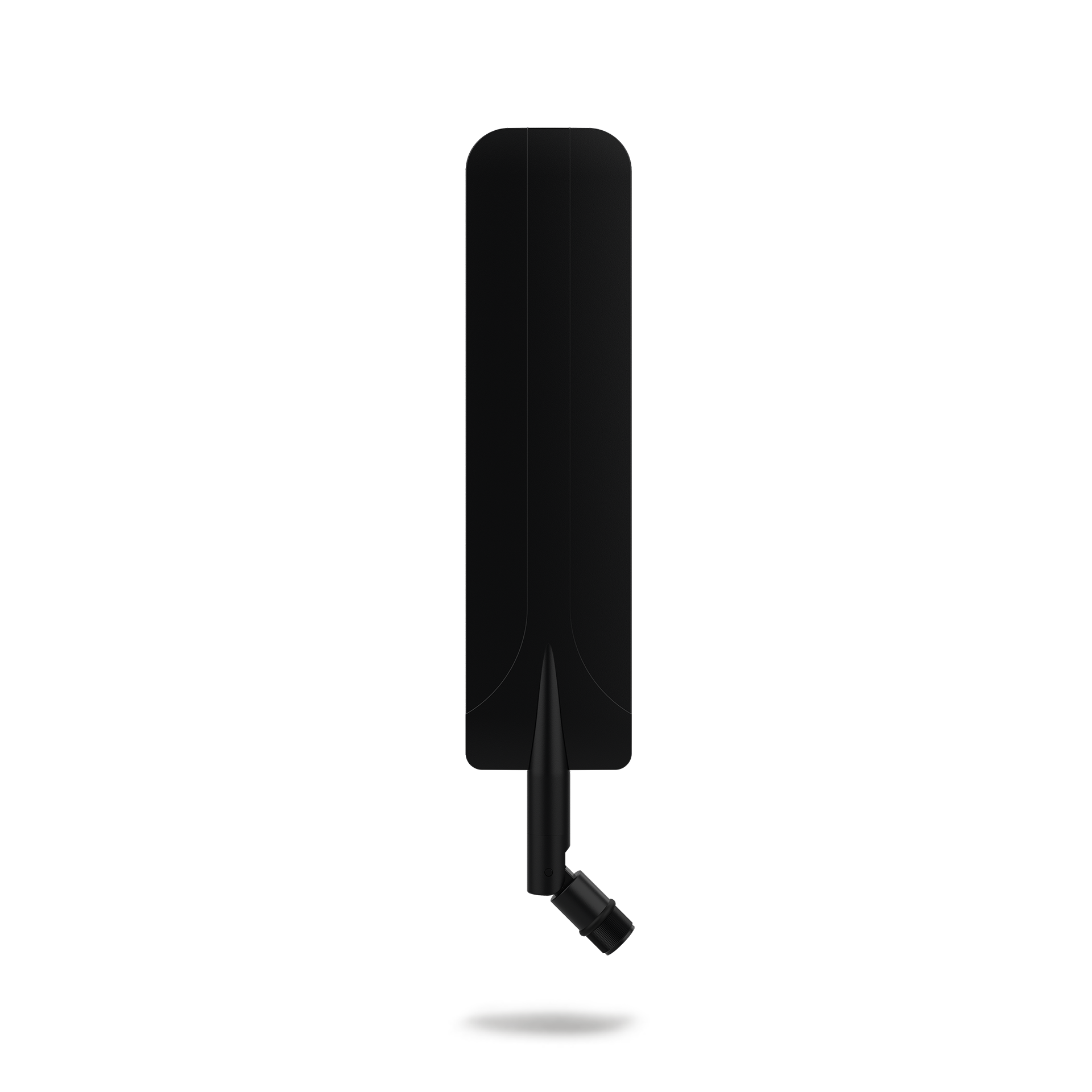

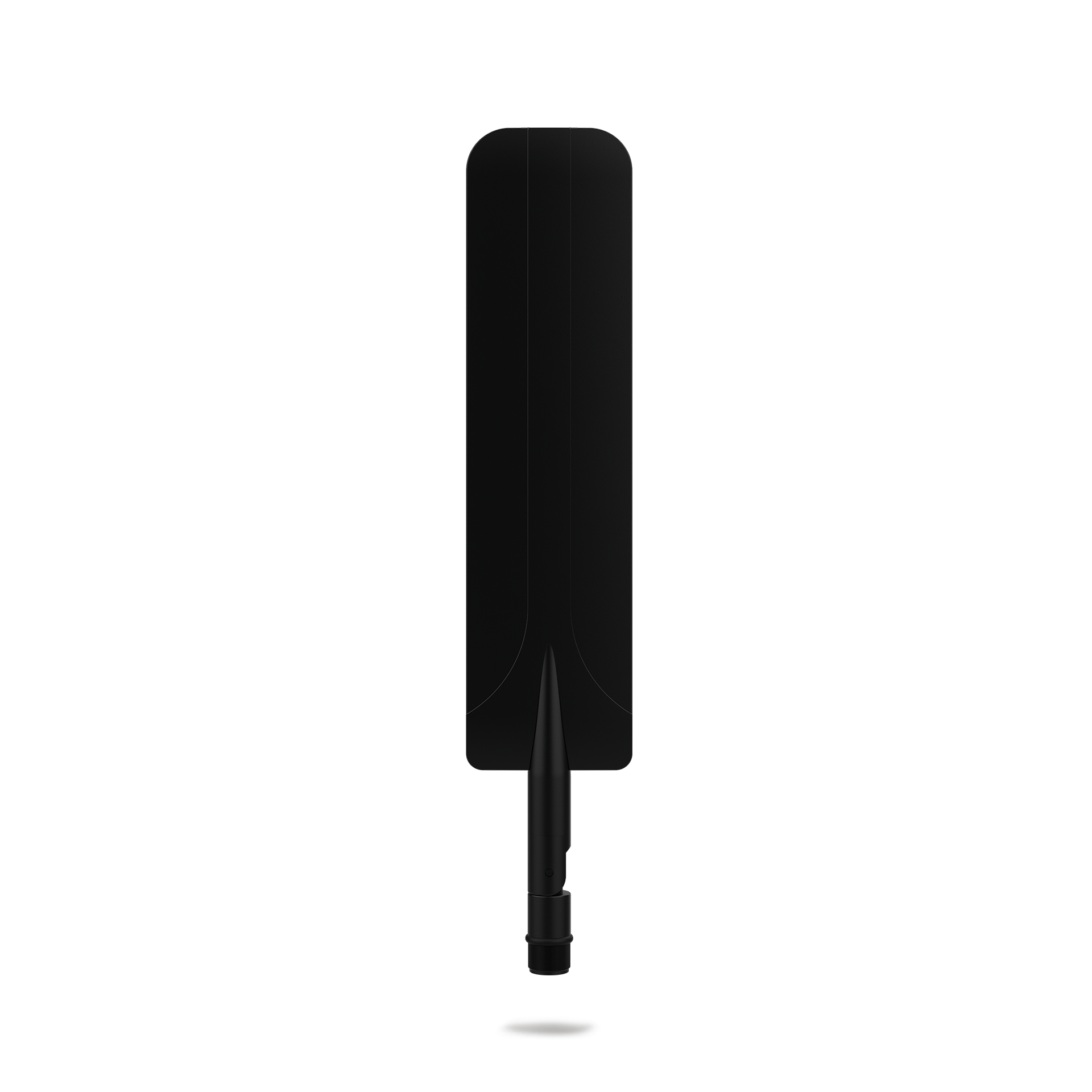

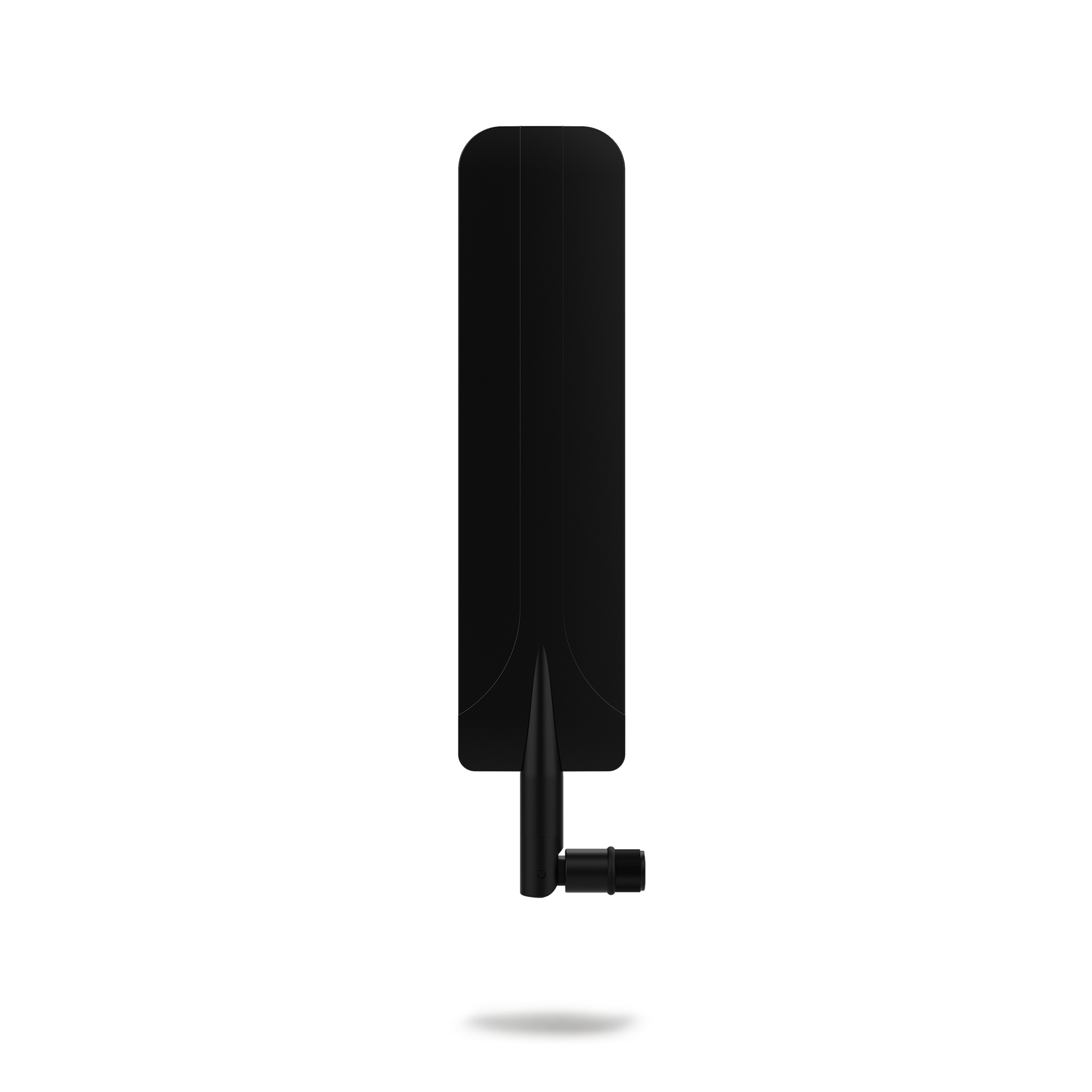

The paddle measures 230 x 50 x 13 mm (9.06 x 1.97 x 0.51 in) and is finished in black. It is supplied with a right-angle hinge joint: the articulated SMA male connector has 3-step locking, so the antenna can stand vertical, sit at an angle or fold flat, whichever gives the best signal. It is rated to operate from -30 °C to +70 °C (-22 °F to +158 °F).

This is a plug-and-play, cost-effective upgrade or replacement for the stock antennas on a router, and a Panorama datasheet is available for the model. For multi-port routers, order one antenna per cellular port.
