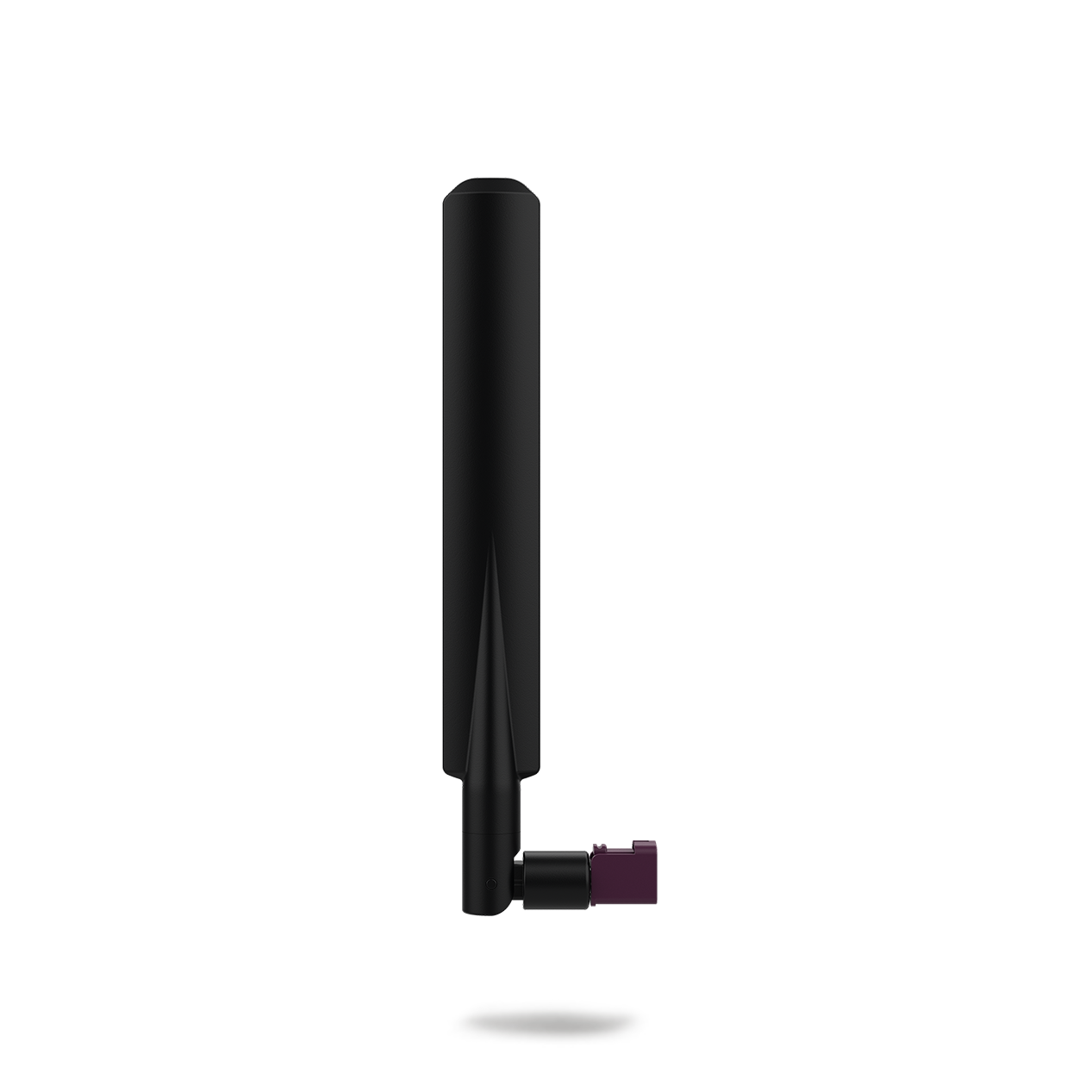

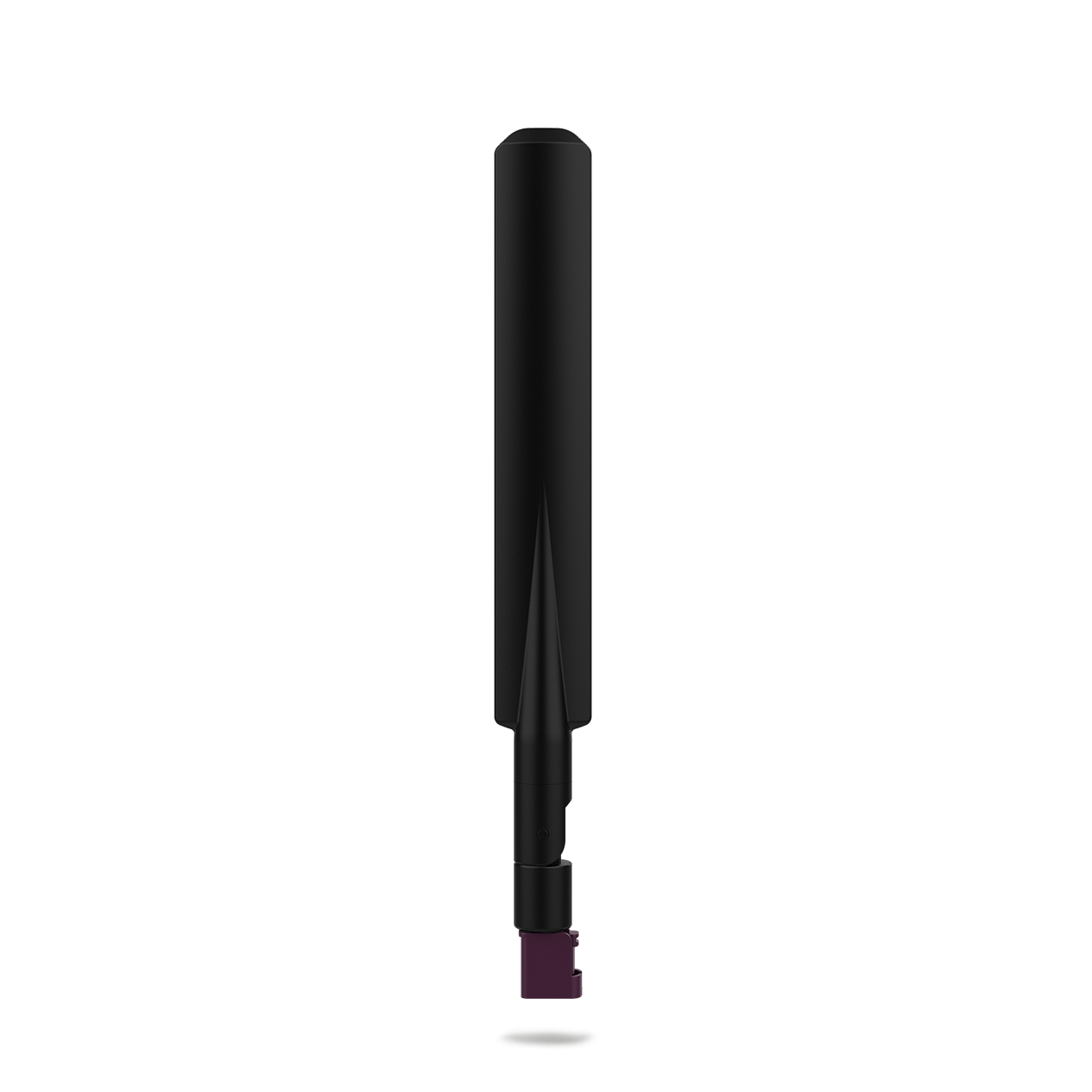

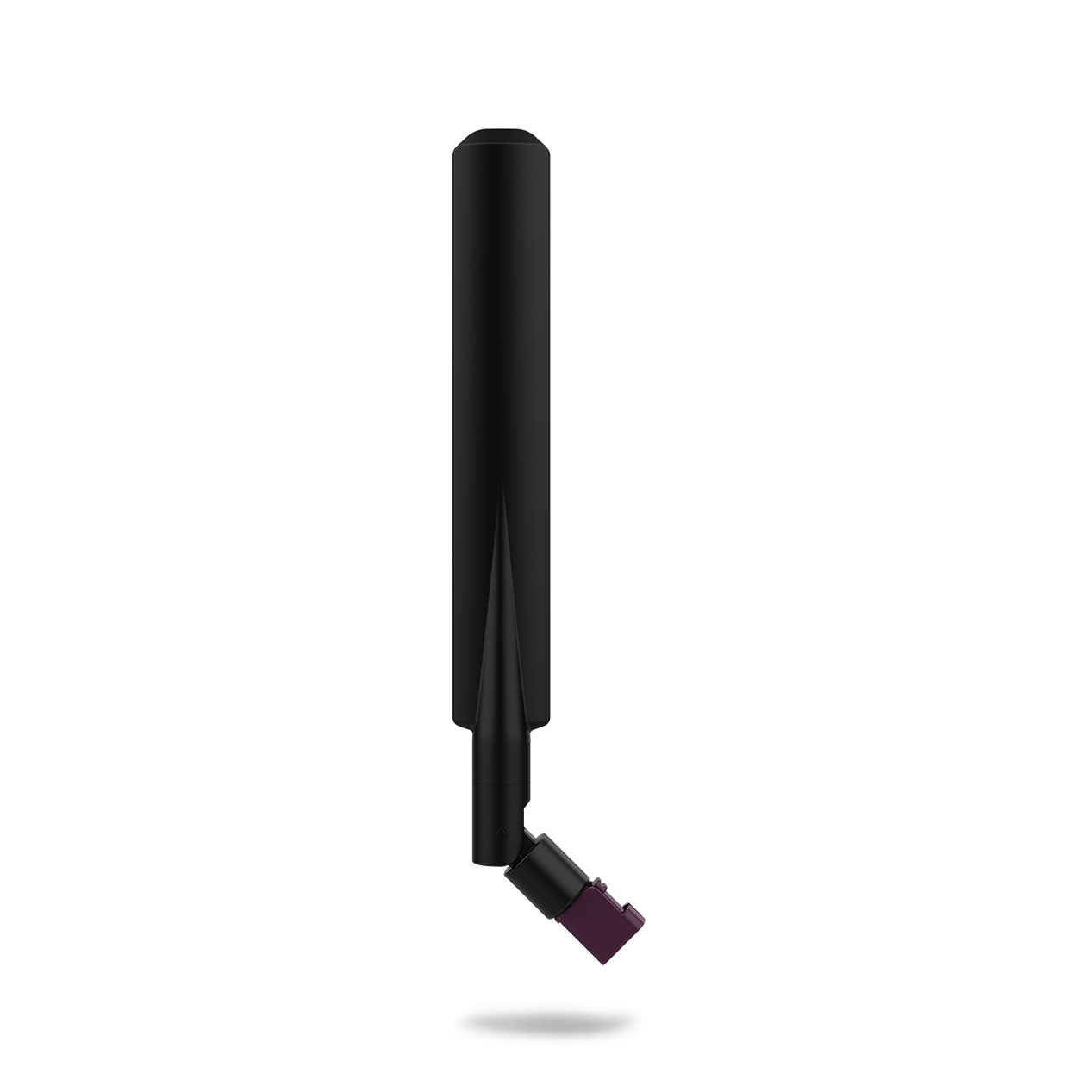

Panorama PWB-BC3G-38-RFDJ 2G/3G/4G/5G Paddle Antenna with Articulated FAKRA D Jack

5GMPN PWB-BC3G-38-RFDJ
  • Single (SISO)
  • No cable
$12.53

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Panorama PWB-BC3G-38-RFDJ is a slim 2G/3G/4G/5G paddle antenna for modems and routers with FAKRA connectors. It covers global cellular bands from 698 to 3800 MHz, including the 3400-3800 MHz 5G range, with up to 5 dBi gain. The articulated FAKRA D jack allows flexible positioning, the antenna needs no ground plane, and its low 7 mm profile keeps visual impact to a minimum.

  • Ground plane independent blade antenna for FAKRA-equipped modems and routers
  • Covers 698-960, 1710-2170, 2396-2700 and 3400-3800 MHz 2G/3G/4G/5G bands
  • Gain: 3 dBi (698-960 MHz), 4 dBi (1710-2170 MHz), 5 dBi (3400-3800 MHz)
  • Articulated FAKRA D jack with right-angle hinge joint
  • Omnidirectional pattern, 10 W maximum input power
  • Slim 163 x 22 x 7 mm black housing, -40 °C to +80 °C operating range
  • Connects directly to cellular routers with an external FAKRA D connection, with no adapters in the signal path
  • One antenna handles legacy, LTE and 3.4-3.8 GHz 5G bands

The Panorama PWB-BC3G-38-RFDJ is a terminal-mount paddle antenna for cellular modems and routers that use FAKRA antenna connectors. It terminates in an articulated FAKRA D jack and is supplied with a right-angle hinge joint, so it can be positioned vertically or angled to suit the installation. It is ground plane independent and plug-and-play.

Panorama specifies coverage of global 2G/3G/4G/5G bands across 698-960, 1710-2170, 2396-2700 and 3400-3800 MHz. Rated gain is 3 dBi at 698-960 MHz, 4 dBi at 1710-2170 MHz and 5 dBi at 3400-3800 MHz. The pattern is omnidirectional and maximum input power is 10 W. The 3400-3800 MHz range adds support for 3.5 GHz 5G.

The black blade is 163 mm long, 22 mm wide and only 7 mm deep (6.42 x 0.87 x 0.28 in), giving it a sleek profile. It is rated for -40 °C to +80 °C (-40 °F to +176 °F), which suits equipment rooms, kiosks and industrial enclosures that see temperature extremes.

This is a cost-effective, direct-fit antenna for routers with an external FAKRA D connection. Panorama publishes a datasheet for the model.

Ideal for

  • Direct-fit antennas for cellular routers and modems with FAKRA D connectors
  • Replacing damaged or low-performing stock antennas on FAKRA-equipped gateways
  • Equipment in kiosks, cabinets and industrial enclosures exposed to wide temperature swings
  • Adding 3.4-3.8 GHz 5G band coverage to compatible FAKRA routers

Specifications

General

MPN
PWB-BC3G-38-RFDJ
UPC
5055416039798
Brand
Panorama Antennas
Category
Terminal Mount Antennas
Product Type
2G/3G/4G/5G Paddle Antenna

Package

Documentation
Panorama PWB-BC3G-38-RFDJ Datasheet
Shipping Weight
0.05 lb

Electrical

Pattern
Omnidirectional
Ground Plane
Ground plane independent
Band Coverage
698-960 / 1710-2170 / 2396-2700 / 3400-3800 MHz
Max Input Power
10 W
Gain 698 960 MHz
3 dBi
Gain 1710 2170 MHz
4 dBi
Gain 3400 3800 MHz
5 dBi

Mechanical

Width
22 mm (0.87 in)
Colour
Black
Height
7 mm (0.28 in)
Length
163 mm (6.42 in)
Operating Temperature
-40 °C to +80 °C (-40 °F to +176 °F)

Technology

Technology
2G / 3G / 4G / 5G

Termination

Connector LTE
FAKRA D jack
Connector Articulation
Articulated, right-angle hinge joint

Questions buyers ask

Which devices is this antenna for?

It is designed for cellular modems and routers with FAKRA connectors, specifically routers with an external FAKRA D connection.

Does it support 5G?

Yes. It covers the 3400-3800 MHz 5G range at 5 dBi, plus 2G/3G/4G bands from 698 MHz.

How thin is it?

The paddle measures 163 x 22 x 7 mm (6.42 x 0.87 x 0.28 in).

What temperatures can it handle?

It is rated to operate from -40 °C to +80 °C (-40 °F to +176 °F).
