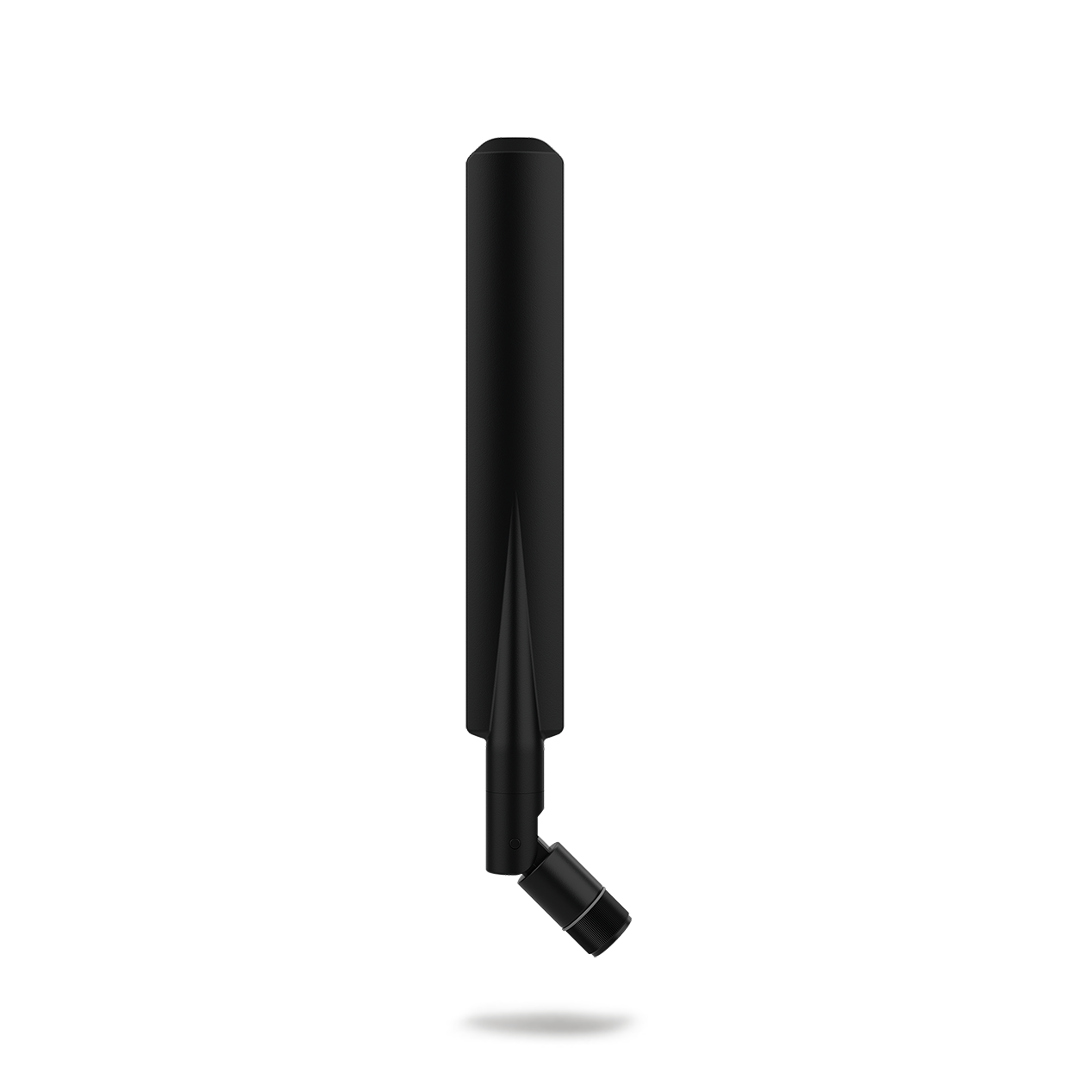

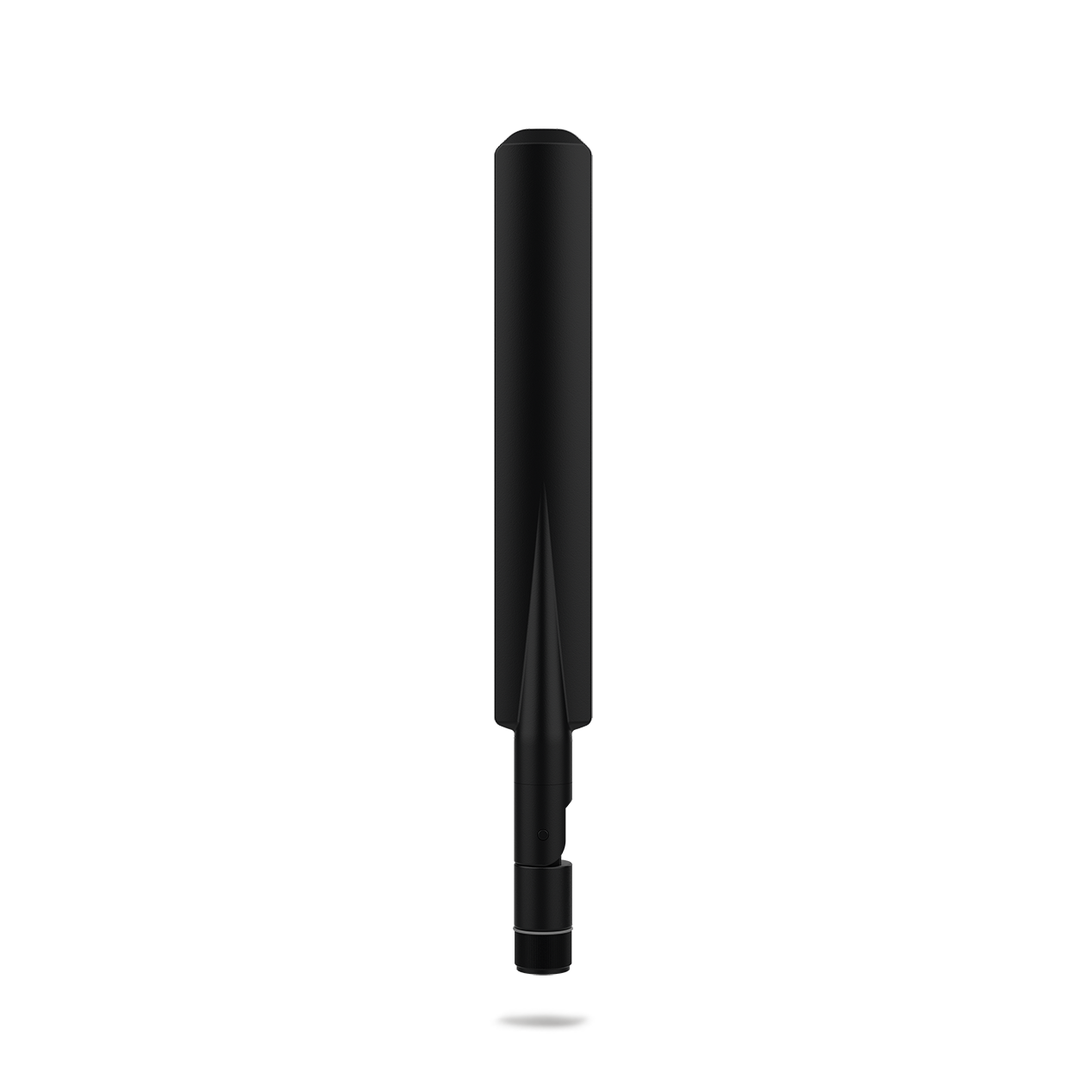

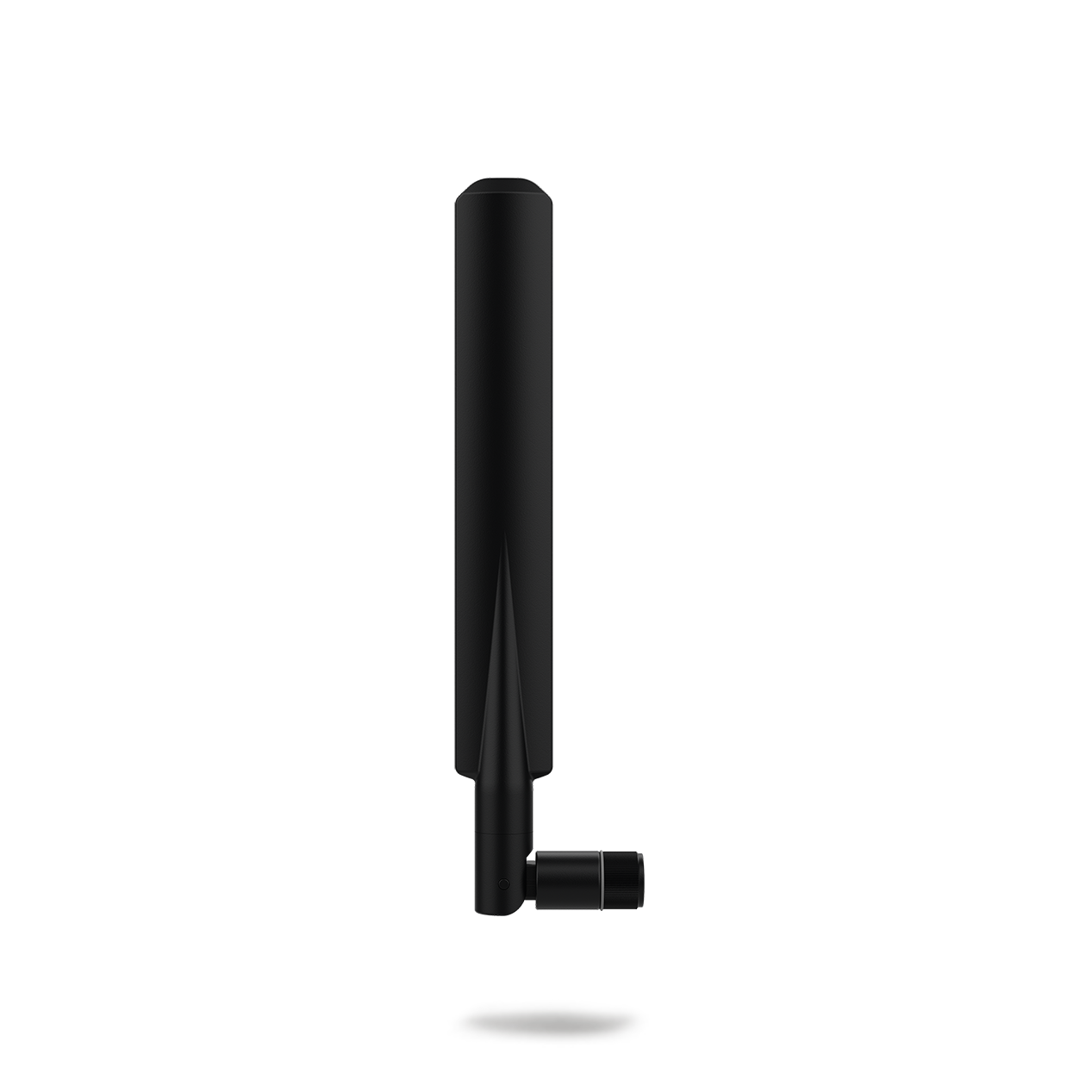

Panorama PWB-BC3G-38-RSMAP 2G/3G/4G/5G Terminal Paddle Antenna with Articulated SMA

5GMPN PWB-BC3G-38-RSMAP
  • Single (SISO)
  • 3–5 dBi
  • No cable
$9.92

In stockShips from the US

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Panorama PWB-BC3G-38-RSMAP is a slim 2G/3G/4G/5G terminal paddle antenna for cellular routers with an external SMA connector. It covers 698-960, 1710-2700 and 3400-3800 MHz with up to 5 dBi gain in an omnidirectional pattern. It needs no ground plane, has an articulated SMA connector on a right-angle hinge, and is rated from -40 °C to +80 °C.

  • Ground plane independent wideband blade antenna
  • Gain: 3 dBi (698-960 MHz), 4 dBi (1710-2700 MHz), 5 dBi (3400-3800 MHz)
  • Supports 2G/3G/4G and 3.4-3.8 GHz 5G; technology listing includes FirstNet
  • Single cellular LTE element (SISO); no Wi-Fi, UHF or GPS elements
  • Articulated SMA connector supplied with right-angle hinge joint
  • Omnidirectional pattern, 10 W maximum input power, -40 °C to +80 °C rating
  • Fits any cellular router with an external SMA connector, with nothing extra to buy
  • One antenna covers low-band LTE through the 3.4-3.8 GHz 5G range

The Panorama PWB-BC3G-38-RSMAP is a ground plane independent blade antenna for terminals and cellular routers. It attaches directly to a router's external SMA port. The articulated connector and supplied right-angle hinge joint allow flexible positioning, and the slim profile keeps visual impact low. It is plug-and-play, with no tools or cabling required.

Panorama specifies coverage of global 2G/3G/4G bands and 3.4-3.8 GHz 5G. Rated gain is 3 dBi at 698-960 MHz, 4 dBi at 1710-2700 MHz and 5 dBi at 3400-3800 MHz, with an omnidirectional pattern and 10 W maximum input power. It is a single-element (SISO) cellular LTE antenna with no Wi-Fi, UHF or GPS elements. Panorama's technology listing for the model includes 2G/3G/4G, 5G and FirstNet.

The black blade is 163 mm long, 27 mm and 6 mm in its other two dimensions (6.42 x 1.06 x 0.24 in). It is rated for -40 °C to +80 °C (-40 °F to +176 °F).

This is a cost-effective, easy-to-install replacement or upgrade for router antennas. Because each antenna is a single element, fit one per cellular port on MIMO routers. Panorama publishes a datasheet for the model.

Ideal for

  • Replacement or upgrade antennas for cellular routers with SMA ports
  • Terminals and gateways needing 3.4-3.8 GHz 5G band coverage
  • Router installs in cold or hot unconditioned locations
  • Discreet antenna fit-outs in retail, kiosk and office environments

Specifications

GPS

Number OF GPS Elements
None

General

MPN
PWB-BC3G-38-RSMAP
UPC
5055416024626
Brand
Panorama Antennas
Category
4G LTE Antennas, 5G NR Antennas
Product Type
2G/3G/4G/5G Terminal Paddle Antenna

Package

Documentation
Panorama PWB-BC3G-38-RSMAP Datasheet
Shipping Weight
0.06 lb

Electrical

Pattern
Omnidirectional
Ground Plane
Ground plane independent
Uhf Elements
No
Wi-Fi Elements
No
Max Input Power
10 W
Gain 698 960 MHz
3 dBi
Gain 1710 2700 MHz
4 dBi
Gain 3400 3800 MHz
5 dBi
Cellular LTE Elements
SISO

Mechanical

Width
6 mm (0.24 in)
Colour
Black
Height
163 mm (6.42 in)
Length
27 mm (1.06 in)
Operating Temperature
-40 °C to +80 °C (-40 °F to +176 °F)

Technology

Technology
2G / 3G / 4G / 5G, FirstNet

Termination

Connector
Articulated SMA
Connector Articulation
Supplied with right-angle hinge joint

Questions buyers ask

Is the PWB-BC3G-38-RSMAP a 5G antenna?

It supports 2G/3G/4G bands and the 3.4-3.8 GHz 5G range, with 5 dBi gain from 3400 to 3800 MHz.

Which routers does it fit?

It suits any cellular router with an external SMA antenna connector.

Is it a MIMO antenna?

No. It is a single-element (SISO) cellular antenna. For MIMO routers, use one antenna per cellular port.

Does it include Wi-Fi or GPS?

No. It has no Wi-Fi, UHF or GPS elements.

What is the operating temperature range?

It is rated for -40 °C to +80 °C (-40 °F to +176 °F).
