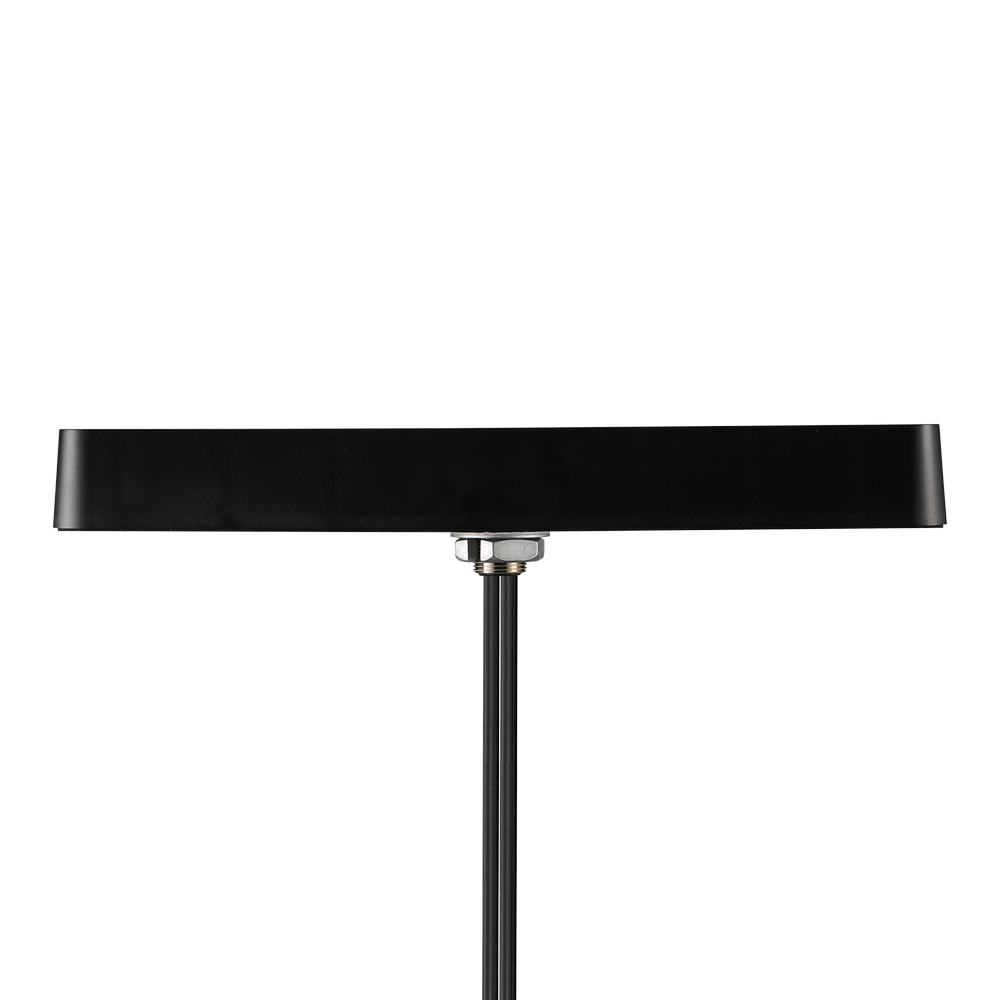

Taoglas Raptor X RAPX.10.1G4C5W.8M.F41.B 10-in-1 5G/4G, Wi-Fi and GNSS Screw-Mount Antenna, 8m FAKRA

5GMPN RAPX.10.1G4C5W.8M.F41.B
  • 4x4 MIMO
  • GNSS
  • Wi-Fi
  • Over 5 m
$434.86$517.69Save $82.83

In stockShips from the US

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Taoglas Raptor X RAPX.10.1G4C5W.8M.F41.B is a 10-in-1 permanent screw-mount combination antenna for next-generation routers and gateways. It combines four 5G/4G MIMO elements covering 600 to 6000MHz, five 2.4/5.8GHz Wi-Fi elements and a dual-band L1/L5 GNSS element in a 350 x 70 x 39mm IP69K and IK10 rated enclosure. This variant uses 8m TGC-200 cable, with a FAKRA Code D Gen 2 female connector on the GNSS lead and FAKRA connectors on the cellular leads.

  • 10-in-1 combination antenna: 1x GNSS L1/L5, 4x 5G/4G MIMO, 5x Wi-Fi MIMO
  • Cellular coverage from 617MHz to 5925MHz, including 5G NR Band 71 and n77/n78/n79
  • Wi-Fi elements covering 2400-2500MHz and 4900-5850MHz
  • Active dual-band GNSS with 32.3dB/26.3dB LNA gain and 16.8mA current draw
  • Compact 350 x 70 x 39mm polycarbonate housing, IP69K waterproof and IK10 impact rated
  • Permanent screw mount via M22 thread, -40°C to +85°C operation
  • 8m TGC-200 leads with a FAKRA Code D Gen 2 female GNSS connector and FAKRA cellular connectors
  • Serve GNSS, 4x4 cellular and multi-port Wi-Fi on a router from one roof penetration

The Raptor X MA8010 puts ten antenna connections into one housing, sized for emergency vehicles, EV chargers, industrial sites and private LTE deployments. It feeds a multi-radio router from a single mounting point: one dual-band GNSS input, four 5G/4G cellular MIMO inputs and five Wi-Fi inputs.

The four cellular elements cover 617MHz to 5925MHz, spanning 5G NR Band 71, LTE700, GSM 800/900, the 1500MHz band, 1710-2200MHz, LTE2600, 5G NR n77, n78 and n79, and LTE5200. Peak gain reaches up to 7.74dBi in the n77/n78 range. The five Wi-Fi elements cover 2400-2500MHz and 4900-5850MHz. The GNSS element covers GPS L1/L5, Galileo E1/E5a, BeiDou B1C/B1I/B2a, GLONASS G1, QZSS, IRNSS and SBAS. Its LNA provides 32.3dB gain on the high band and 26.3dB on the low band, from a +1.8 to 5.5V supply.

At 39mm tall, the MA8010 fits vehicle roofs where height is often capped at 80mm. At 70mm wide, it suits a range of NEMA cabinets. The polycarbonate enclosure is IP69K waterproof and IK10 impact rated, mounts through an M22 thread and operates from -40°C to +85°C.

This ordering variant of the standard MA8010.A.001 has 8m TGC-200 leads. The GNSS lead ends in a FAKRA Code D Gen 2 female connector, and the four 5G/4G leads are FAKRA terminated, which makes the long runs from roof to equipment bay practical. The Taoglas MA8010.A.001 datasheet documents the full electrical performance.

Ideal for

  • Emergency and first-responder vehicles with multi-radio routers
  • EV chargers needing cellular backhaul, Wi-Fi and GNSS
  • Smart industry and warehouse gateways
  • Private LTE networks
  • NEMA cabinet installs with limited width

Specifications

Cabling

Cable Type
TGC-200
Cable Length
8 m
GNSS Connector
FAKRA Code D Gen 2, female
Cellular Connectors
4x FAKRA (5G/4G leads)

General

MPN
RAPX.10.1G4C5W.8M.F41.B
Brand
Taoglas
Elements
1x GNSS + 4x 5G/4G + 5x Wi-Fi
Technology
External combination antenna
Product Name
Raptor X MA8010 10-in-1 Combination Antenna
Standard Model
Variant of standard model MA8010.A.001

Compliance

Environmental Compliance
RoHS and REACH compliant

GNSS Bands

GPS
GPS L1, L5 (L2 not covered)
Qzss
QZSS L1, L5 (regional)
Sbas
SBAS L1/E1/B1, L5/B2a/E5a, G1
Irnss
IRNSS L5 (regional)
Beidou
BeiDou B1C, B1I, B2a
L Band
not covered
Galileo
Galileo E1, E5a
Glonass
GLONASS G1

Mechanical

Weight
1.05 kg
Material
Polycarbonate
Dimensions
350 x 70 x 39 mm
Mounting Thread
M22 thread
Enclosure Impact Rating
IK10

Environmental

Humidity
Non-condensing, 65°C, 95% RH
Temperature Range
-40°C to +85°C
Waterproof Rating
IP69K

Lna And Filter

Lna Gain
32.3 dB high-band / 26.3 dB low-band
Noise Figure
2.4 dB high-band / 3.8 dB low-band
Input Voltage
+1.8 to 5.5 V
Supply Typical
3.3V (typ.)
Output Impedance
50 Ω
Current Consumption
16.8 mA
Out OF Band Attenuation
60 dB at 500-1000, 2000-2690 and 3300-6000 MHz

LTE Electrical

N77
59.7-63.8%, up to 7.74 dBi
N78
60.3-64.2%, up to 7.74 dBi
N79
45.4-52.9%, up to 6.77 dBi
Lte700
35.4-50.3%, up to 2.94 dBi
Band 71
36.4-49.8%, up to 2.25 dBi
Lte2600
45.2-56.8%, up to 6.97 dBi
Lte5200
40.1-48.9%, up to 6.48 dBi
Band 1500
5G NR 1500 (1427-1518 MHz): 24.5-27.9%, up to 1.21 dBi
Impedance
50 Ω
Gsm800 900
37.5-50.8%, up to 2.64 dBi
Polarization
Linear
N66 1710 2200
42.5-53.7%, up to 5.63 dBi
Radiation Pattern
Omnidirectional

GNSS Electrical

GPS L1
-1.77 dB avg, 66.5%, 3.93 dBi peak, AR 11.7
GPS L5
-2.95 dB avg, 50.7%, 2.49 dBi peak, AR 5
Beidou B1
-2.00 dB avg, 63.0%, 3.93 dBi peak, AR 4.8
Impedance
50 Ω
Glonass G1
-2.62 dB avg, 54.7%, 3.38 dBi peak, AR 13.1
Polarization
RHCP

Wi-Fi Electrical

Frequency
2400-2500 MHz and 4900-5850 MHz
Impedance
50 Ω
Polarization
Linear
Peak Gain 5ghz
4.48-6.82 dBi (5 GHz)
Test Condition
Tested with 0.3 m cable on a 30 x 30 cm ground plane
Efficiency 5ghz
39.4-48.8% (5 GHz)
Peak Gain 2 4ghz
2.37-6.71 dBi (2.4 GHz)
Average Gain 5ghz
-4.05 to -3.12 dB (5 GHz)
Efficiency 2 4ghz
31.2-53.7% (2.4 GHz)
Radiation Pattern
Omnidirectional
Average Gain 2 4ghz
-5.05 to -2.70 dB (2.4 GHz)

Product Attributes

Rohs
Yes
Vswr
<2
Width
70 mm
Height
40 mm
Length
350 mm
Weight
1050 g
Gain Max
3.93 dBi
Impedance
50 Ω
IP Rating
IP69K
Polarization
Linear (cellular/Wi-Fi), RHCP (GNSS)
Mounting Style
Screw
Frequency Range
600 - 6000 MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C

Questions buyers ask

What is included in the 10 connections?

One dual-band L1/L5 GNSS element, four 5G/4G cellular MIMO elements and five Wi-Fi MIMO elements.

What cables and connectors does this variant use?

All leads are 8m of TGC-200 cable. The GNSS lead has a FAKRA Code D Gen 2 female connector, and the 5G/4G leads are FAKRA terminated.

What cellular frequencies does it cover?

617MHz to 5925MHz. That includes 5G NR Band 71, LTE700, GSM 800/900, 1427-1518MHz, 1710-2200MHz, 2300-2690MHz, 5G NR n77/n78/n79 and LTE5200.

How is it mounted?

It is a permanent screw mount using an M22 thread. At 39mm tall and 70mm wide, it suits vehicle roofs and NEMA cabinets.

What environments is it rated for?

The polycarbonate enclosure is IP69K waterproof and IK10 impact rated. It operates from -40°C to +85°C.
