Mount a GPSD4 or SHKG4 Dual Sharkee antenna through ribbed, curved, or uneven vehicle roof panels. The Panorama SAB-312 kit combines a slotted bush extender with sealing pads that conform to roof contours, accommodate larger FAKRA connectors, and support panel-plus-rib mounting depths up to 20 mm.
- 25 mm panel mounting hole requirement
- 20 mm maximum panel-and-rib mounting depth
- 10 mm maximum panel variation or rib height
- 3 mm inner foam compression for sealing
- Slotted extender accommodates larger connector bodies
- Closed-cell silicone inner pad and semi-closed-cell EPDM outer pad
- Mounts GPSD4 and SHKG4 Dual Sharkee antennas on ribbed, curved, or uneven vehicle roof panels.
- Seals a 25 mm mounting hole with closed-cell silicone and semi-closed-cell EPDM foam pads.

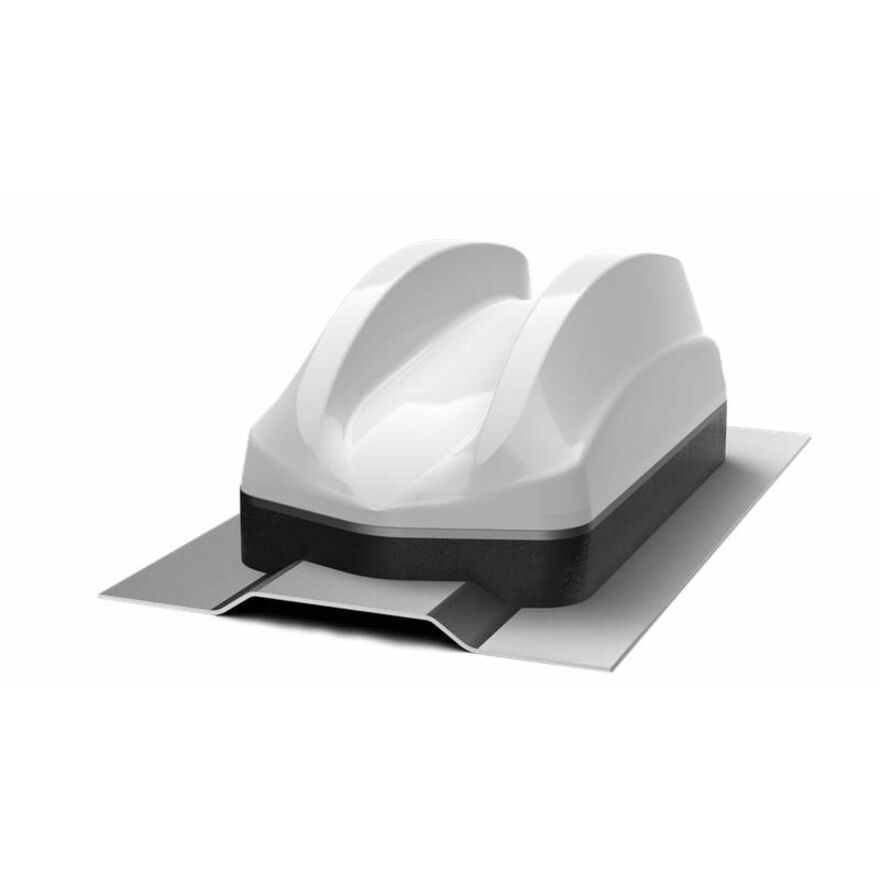

Mount GPSD4 and SHKG4 Dual Sharkee antennas cleanly on ribbed vehicle roofs, curved panels, and other uneven mounting surfaces. The Panorama SAB-312 is a fixed panel-mount kit for SUV, light commercial vehicle, RV, and motorhome installations where a standard flat-panel antenna fitting would not seal consistently across roof ribs or contours.
A slotted mounting bush extender, nut, and washer assembly provides the mechanical attachment path through a 25 mm mounting hole. The extender accommodates larger connectors, including FAKRA, through its tube. It supports a maximum 20 mm mounting depth measured across the panel and rib height, while the panel material variation or rib height must not exceed 10 mm.
Sealing is handled by a semi-closed-cell EPDM outer foam pad and a closed-cell silicone inner foam pad. Compress the inner foam pad by 3 mm, or to the mechanical hard stop, to seal the mounting hole and allow the pads to mould to the roof surface. The outer pad is black, the inner sealing pad is white, and the finished kit has a black exterior appearance. This configuration specifically addresses the roof-panel geometry encountered when fitting Dual Sharkee antennas on ribbed or non-flat vehicle roofs.
Ideal for
- Installing a Dual Sharkee antenna on an SUV roof with raised structural ribs.
- Fitting an antenna through the uneven roof panel of a light commercial van.
- Mounting a compatible antenna on an RV or motorhome roof with curved panel geometry.
- Routing FAKRA-equipped antenna connections through a roof-panel mounting point.
Specifications
Mounting
- Mounting Type
- Fixed
- Mounting Method
- Panel mount
- Mounting Hole Size
- 25 mm (1.0 in)
- Maximum Mounting Depth
- 20 mm (0.8 in) maximum, including panel and rib height
- Supported Panel Surfaces
- Ribbed, curved, or uneven mounting panels
- Required Inner Foam Compression
- 3 mm (0.12 in) of inner foam pad, or until hard stop
- Maximum Panel Variation OR Rib Height
- 10 mm (0.4 in) maximum
Materials
- Kit Color
- Black
- Outer Pad Color
- Black
- Outer Pad Material
- Semi-closed-cell EPDM foam
- Inner Sealing Pad Color
- White
- Inner Sealing Pad Material
- Closed-cell silicone foam
Compatibility
- Compatible Antenna Series
- For GPSD4/SHKG4 Dual Sharkee antenna series
Identification
- UPC
- 5055416098276
- Shipping Weight
- 0.41 lb
Included Components
- Kit Contents
- Slotted bush extender, nut, washer, EPDM outer pad, and silicone inner pad
- Connector Clearance
- Slotted extender permits passage of larger connectors such as FAKRA
Questions buyers ask
What is included with SAB-312?
SAB-312 includes a slotted mounting bush extender, nut, washer, semi-closed-cell EPDM outer foam pad, and closed-cell silicone inner foam pad. These components mount and seal a compatible Dual Sharkee antenna through a ribbed, curved, or uneven roof panel.
Which antennas work with the Panorama SAB-312 mounting kit?
The kit is for Panorama GPSD4 and SHKG4 Dual Sharkee antenna series. It provides the panel-mount hardware and sealing pads needed when those antennas are installed through ribbed, curved, or uneven vehicle roof surfaces.
What roof opening and panel depth does the kit require?
The mounting hole must be 25 mm. Maximum mounting depth, including the roof panel and rib height, is 20 mm. Panel variation or rib height must not exceed 10 mm for the sealing pads to compress and conform correctly.
Can the SAB-312 pass FAKRA connectors through the roof mount?
Yes. Its slotted mounting bush extender is made to allow larger connector bodies, including FAKRA connectors, to pass through the extender tube. This helps retain the connector path while mounting a compatible antenna through the roof panel.
