Panorama Sharkee SH-IN2618 6-in-1 4G/5G Sharkfin Antenna Kit (SHKG-6-60) with 3x3 Wi-Fi and GNSS, 5 m Cables, Black
5GMPN SH-IN2618
- 2x2 MIMO
- GNSS
- Wi-Fi
- 3–5 m
$343.37$475.53Save $132.16
In stockFree 2-day shipping
- Free shipping to the US
- 30-day returns on unopened devices
- Secure checkout · pay by card
Datasheets & documents
Overview

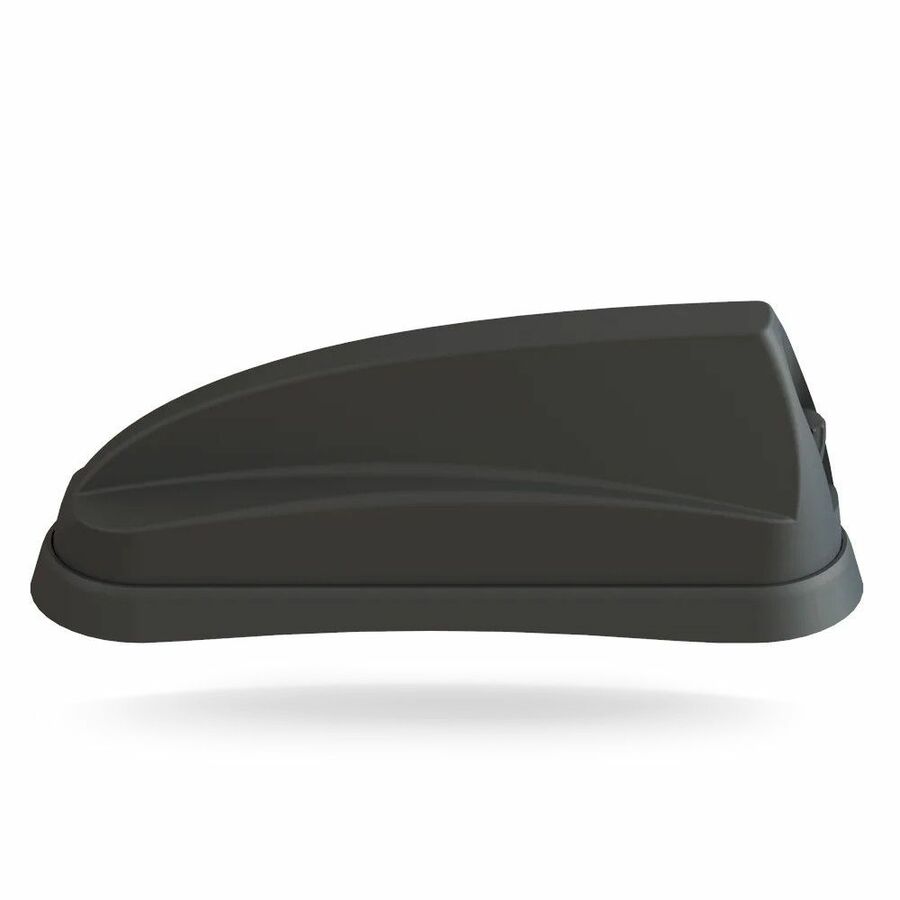

The Panorama SH-IN2618 is the black 6-in-1 version of the Sharkee SHKG-6-60 sharkfin antenna. It combines 2x2 MIMO 4G/5G cellular (617–960/1710–6000 MHz), 3x3 MIMO dual-band Wi-Fi that supports Wi-Fi 6, and an active GPS/GLONASS/Galileo/BeiDou module in one discreet IP69K housing. It ships with 5 m cables fitted, SMA (m) for cellular and GNSS and reverse-polarity SMA for Wi-Fi.
- 2x2 MIMO 4G/5G cellular covering 617–960 MHz and 1710–6000 MHz, up to 9 dBi
- 3x3 MIMO dual-band Wi-Fi (2.4 / 4.9–7.2 GHz) supporting Wi-Fi 6
- Active GPS/GLONASS/Galileo/BeiDou module, 26 dB LNA, LTE Band 13/14 filtering
- IP69K OEM-style sharkfin housing, -40 °C to +80 °C

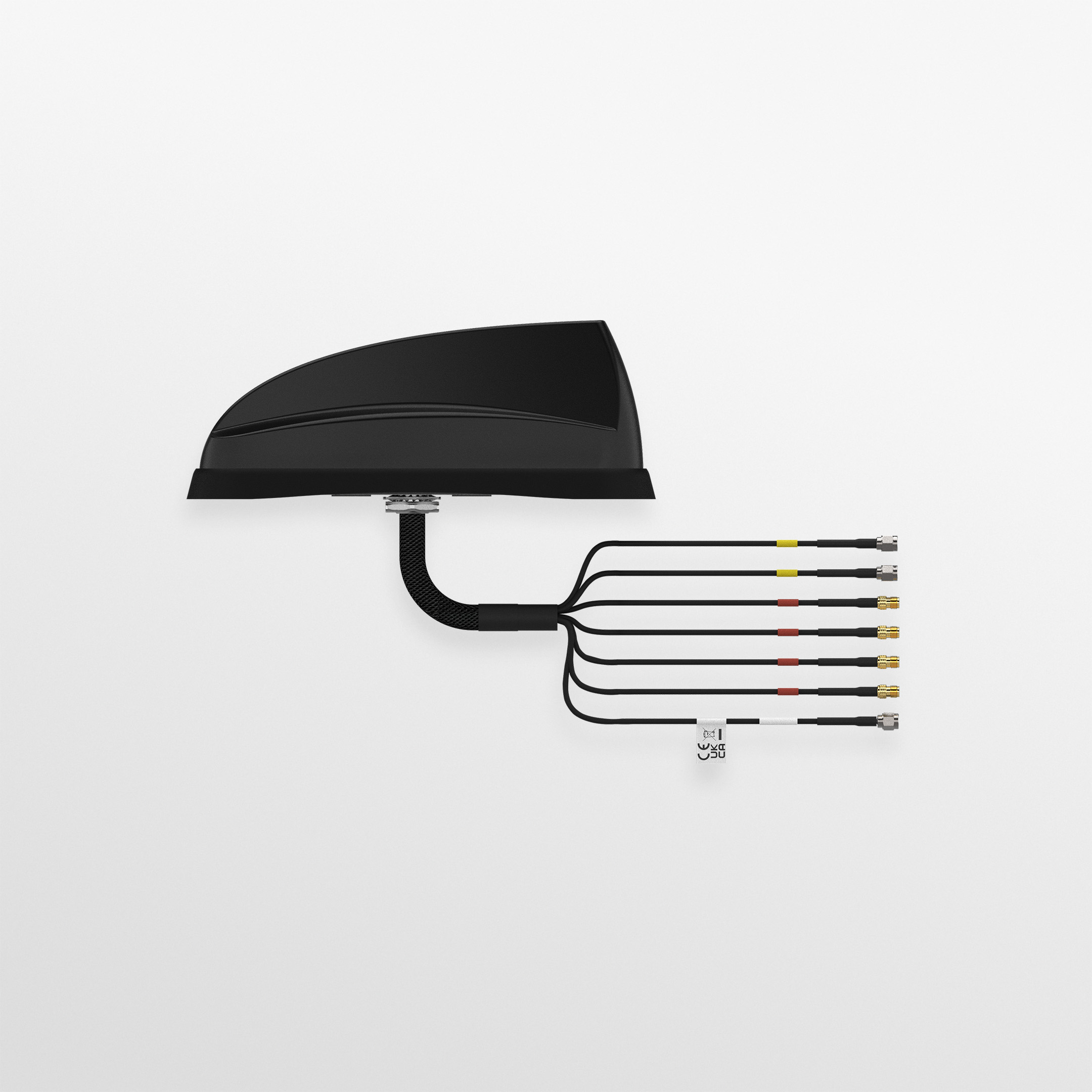

- 5 m FR RG174 cables fitted: SMA (m) cellular/GNSS, RP-SMA Wi-Fi

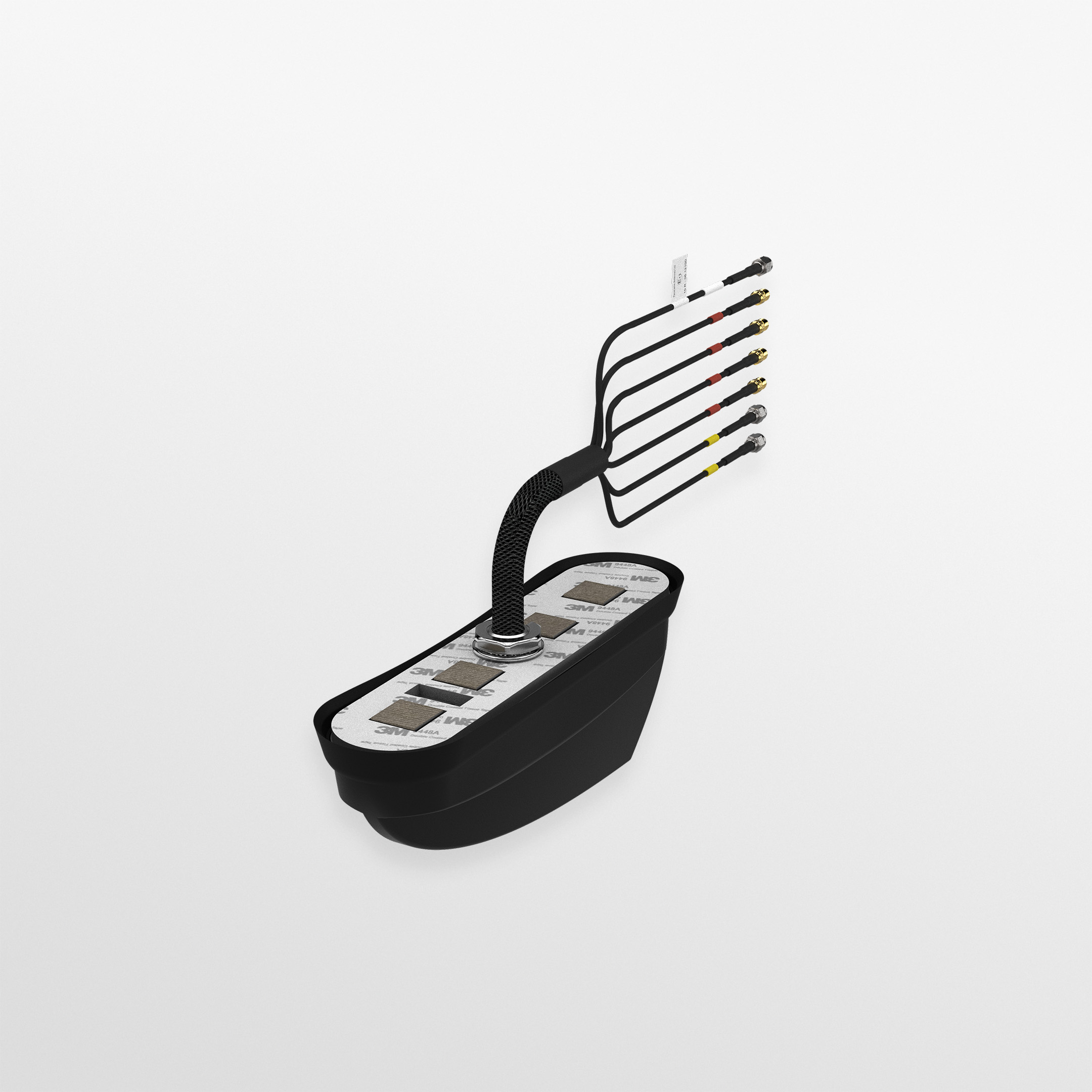

- Single-hole mounting on metallic or non-metallic panels
- Matches routers with three Wi-Fi antenna ports without adding a second roof antenna
- Cellular, Wi-Fi and GNSS in one sharkfin keep the vehicle discreet for overt or covert use
The Panorama Sharkee SH-IN2618 is a 6-in-1 OEM-style sharkfin antenna for vehicle routers with three Wi-Fi antenna ports alongside cellular and GNSS. It suits police, EMS, fire, transit and utility fleets that want every antenna function in a single, low-visibility roof unit. This is the black SHKG-6-60 configuration with two cellular elements, three Wi-Fi elements and one GNSS module, supplied with 5 m cables fitted.
The 2x2 MIMO cellular antenna covers 617–960 MHz and 1710–6000 MHz, including the 600 MHz Band 71 range, with gain of 5 dBi, 8 dBi (1710–3800 MHz) and 9 dBi (4900–6000 MHz) in an omnidirectional pattern. The 3x3 MIMO dual-band Wi-Fi elements cover 2.4 and 4.9–7.2 GHz and support Wi-Fi 6. The active GNSS module receives GPS, GLONASS, Galileo and BeiDou across 1562–1612 MHz through a 26 dB LNA, with advanced filtering for LTE Band 13/14. Cellular and GNSS cables terminate in SMA (m), Wi-Fi cables in reverse-polarity SMA, all on FR RG174.
The 243 x 63 x 90 mm housing is IP69K rated and operates from -40 °C to +80 °C. It mounts through a single hole on metallic or non-metallic panels, fits between roof ribs on all major vehicle manufacturers and can replace a factory-fitted antenna. Cable feeds comply with UN ECE R118, and cable flammability ratings also include EN45545-2 HL3 and EN6722.
Panorama publishes a datasheet, installation instructions and a product flyer for the SHKG-6-60 family.
Ideal for
- Vehicle routers with three Wi-Fi antenna ports plus cellular and GNSS
- Public-safety cruisers and command vehicles needing a discreet all-in-one antenna
- Transit coaches providing passenger Wi-Fi with fleet tracking
- Utility service vehicles used as mobile work sites
Specifications
GPS
- Lna Gain
- 26 dB
- Filtering
- Advanced filtering for LTE Band 13/14
- Constellations
- GPS / GLONASS / Galileo / BeiDou
- GPS Frequency Range
- 1562–1612 MHz
- Number OF GPS Elements
- 1 Module
Cable
- Wi-Fi Feeds
- 4)
- Cable Supply
- Cables fitted
- Cable Type GPS
- FR RG174
- Cable Type LTE
- FR RG174
- Cable Type Wi-Fi
- FR RG174
- Cable Length GPS
- 5 m (16.4 ft)
- Cable Length LTE
- 5 m (16.4 ft)
- Cable Length Wi-Fi
- 5 m (16.4 ft)
- Quantity OF Cell Cable
- 2
- Quantity OF GPS GNSS Extension
- 1
General
- MPN
- SH-IN2618
- Brand
- Panorama Antennas
- Colour
- Black
- Configuration
- 6-in-1: 2x2 MIMO cellular + 3x3 MIMO Wi-Fi + 1 GPS/GNSS module
- Product Family
- Sharkee SHKG-6-60
Package
- Documents
- Datasheet, installation instructions, flyer
- Shipping Weight
- 3.20 lb
Mounting
- Mounting Methods
- Magnetic; Panel
- Mounting Surface
- Metallic or non-metallic panel
- Mounting Type Temp
- Magnetic
- Mounting Type Fixed
- Panel
Approvals
- IP Rating
- IP69K
- Cable Flammability
- EN45545-2 HL3; UN ECE R118; EN6722
Electrical
- Pattern
- Omnidirectional
- Uhf Elements
- No
- Wi-Fi Elements
- 3 x 3 MIMO
- Wi-Fi Frequency
- 2.4 / 4.9–7.2 GHz (supports Wi-Fi 6)
- Max Input Power
- 10 W
- Frequency Range Gain
- 617–960 MHz: 5 dBi; 1710–3800 MHz: 8 dBi; 4900–6000 MHz: 9 dBi
- Cellular LTE Elements
- 2 x 2 MIMO
Mechanical
- Width
- 63 mm (2.48 in)
- Height
- 90 mm (3.54 in)
- Length
- 243 mm (9.57 in)
- Operating Temperature
- -40 °C to +80 °C (-40 °F to +176 °F)
Technology
- Technology
- GPS, 4G/5G, 5G, 2G/3G, 2G/3G/4G, Band 71 600 MHz ready, FirstNet, GNSS, Wi-Fi MIMO, Wi-Fi (family listing)
Termination
- Connector GPS
- SMA (m)
- Connector LTE
- SMA (m)
- Connector Wi-Fi
- Reverse Polarity SMA
Questions buyers ask
How many cables does the SH-IN2618 have?
Six: two cellular and one GNSS cable with SMA (m) connectors, and three Wi-Fi cables with reverse-polarity SMA connectors, all 5 m FR RG174 and fitted.
Which Wi-Fi bands are covered?
The 3x3 MIMO dual-band Wi-Fi elements cover 2.4 and 4.9–7.2 GHz and support Wi-Fi 6.
What is the operating temperature range?
-40 °C to +80 °C (-40 °F to +176 °F), and the housing is rated IP69K.
