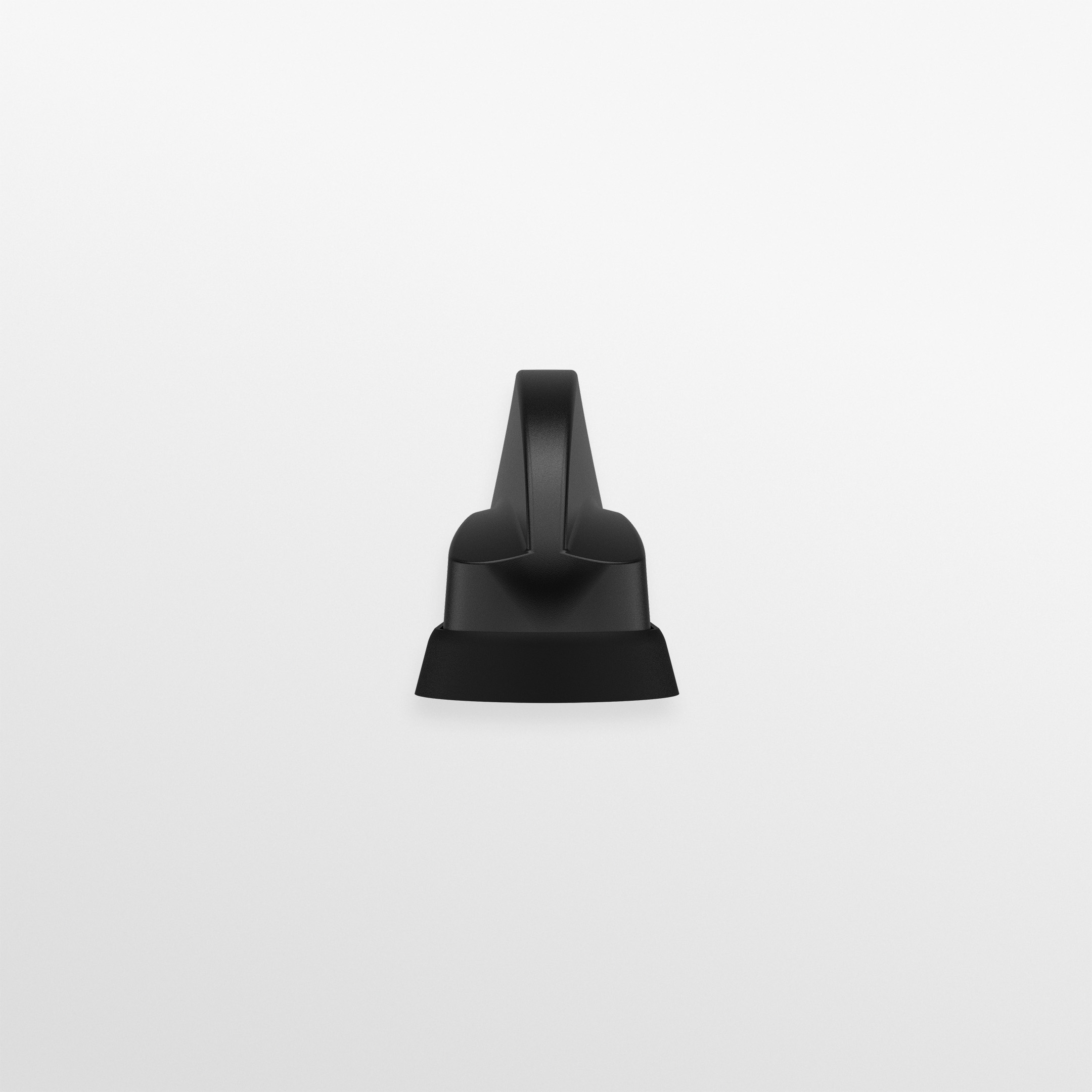

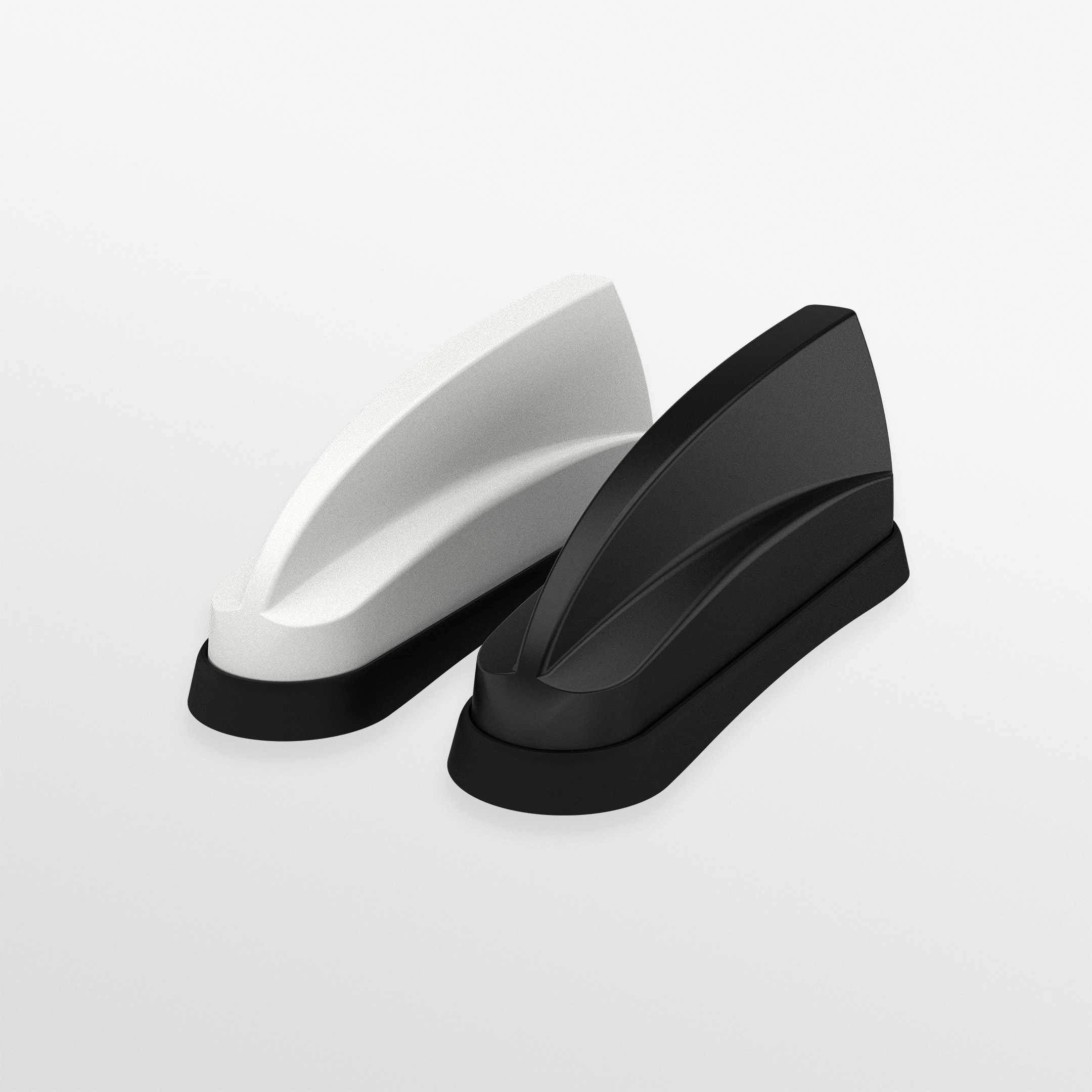

Panorama SHKG-6-60 Sharkee 4G/5G 2x2 MIMO Sharkfin Vehicle Antenna with GNSS, Black

5GMPN SHKG-6-60
  • 2x2 MIMO
  • GNSS
  • 9 dBi and up
$183.94$253.58Save $69.64

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Panorama SHKG-6-60 Sharkee is a discreet OEM-style sharkfin antenna for vehicles. It combines 2x2 MIMO 4G/5G cellular across 617-960 and 1710-6000 MHz with an active GPS/GLONASS/Galileo/BeiDou antenna. The GNSS antenna has a 26 dB LNA and filtering for LTE Band 13/14. The housing is IP69K rated and installs through a single hole. It suits public safety, transit and utility fleets.

  • 2x2 MIMO 4G/5G cellular: 617-960 MHz (5 dBi), 1710-3800 MHz (8 dBi), 4900-6000 MHz (9 dBi)
  • Active GPS/GLONASS/Galileo/BeiDou antenna with 26 dB LNA and LTE Band 13/14 filtering
  • Band 71 600 MHz ready; FirstNet listed among supported technologies
  • Discreet OEM-style sharkfin that fits between roof ribs on all major vehicle manufacturers
  • Single-hole mounting on metallic or non-metallic panels
  • IP69K rated, -40 °C to +80 °C operating temperature
  • 0.3 m pigtails: 2 x SMA (m) cellular, 1 x FME (f) GNSS
  • Covers 600 MHz low band through 6 GHz for current 4G and 5G carrier bands

The Panorama SHKG-6-60 is a Sharkee OEM-style sharkfin antenna. It combines 2x2 MIMO 4G/5G cellular and an active GPS/GNSS antenna in one discreet black housing. It suits police and law-enforcement, EMS and fire, mass-transit and utility vehicles. In each case, a vehicle router or gateway gets cellular and positioning without an obvious antenna array on the roof.

The cellular elements have three gain ratings: - 5 dBi across 617-960 MHz - 8 dBi across 1710-3800 MHz - 9 dBi across 4900-6000 MHz

Panorama lists Band 71 600 MHz readiness and FirstNet among the supported technologies. The GNSS module covers 1562-1612 MHz for GPS, GLONASS, Galileo and BeiDou. It has a 26 dB LNA and advanced filtering for LTE Band 13/14 operation. The pattern is omnidirectional, maximum input power is 10 W, and this version has no Wi-Fi elements.

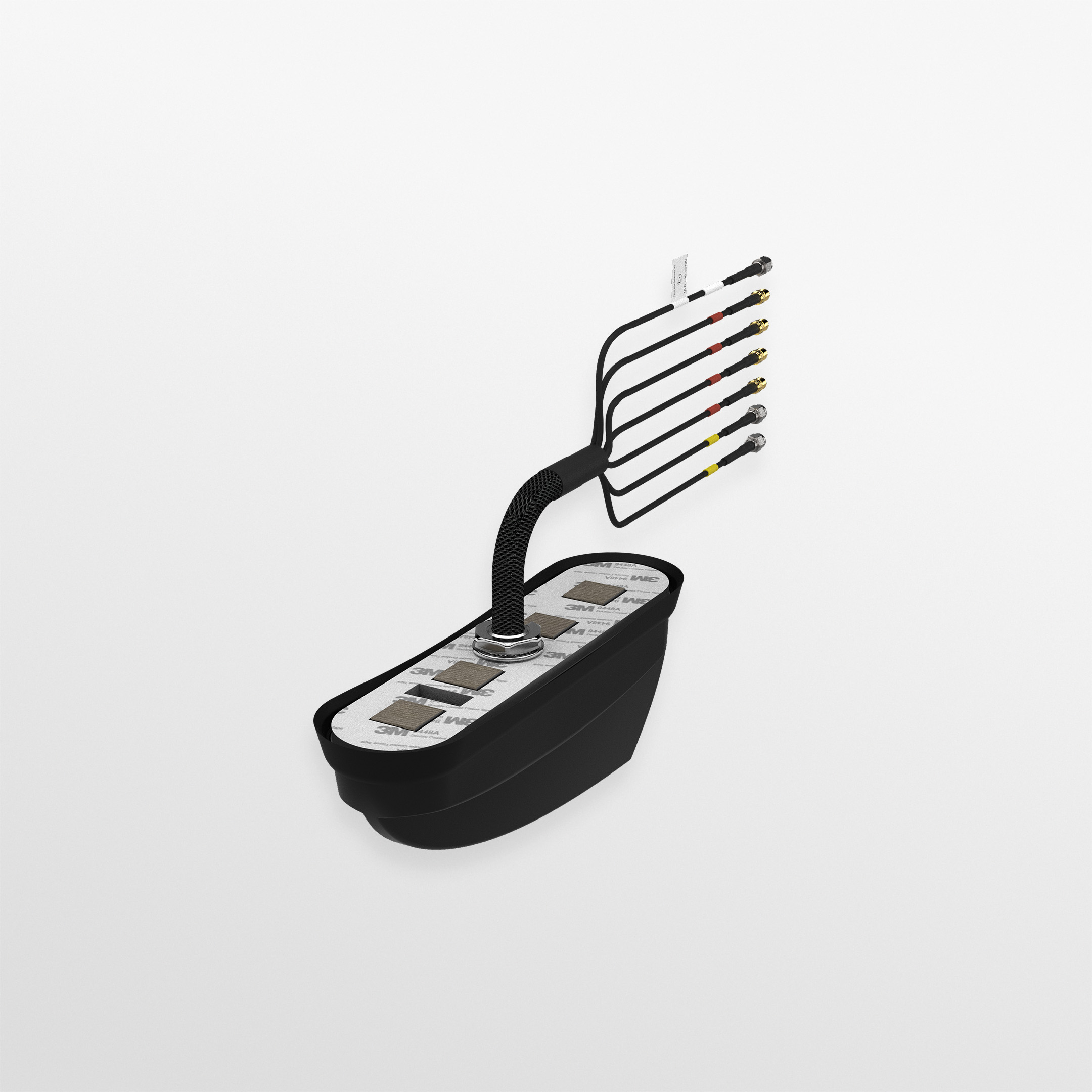

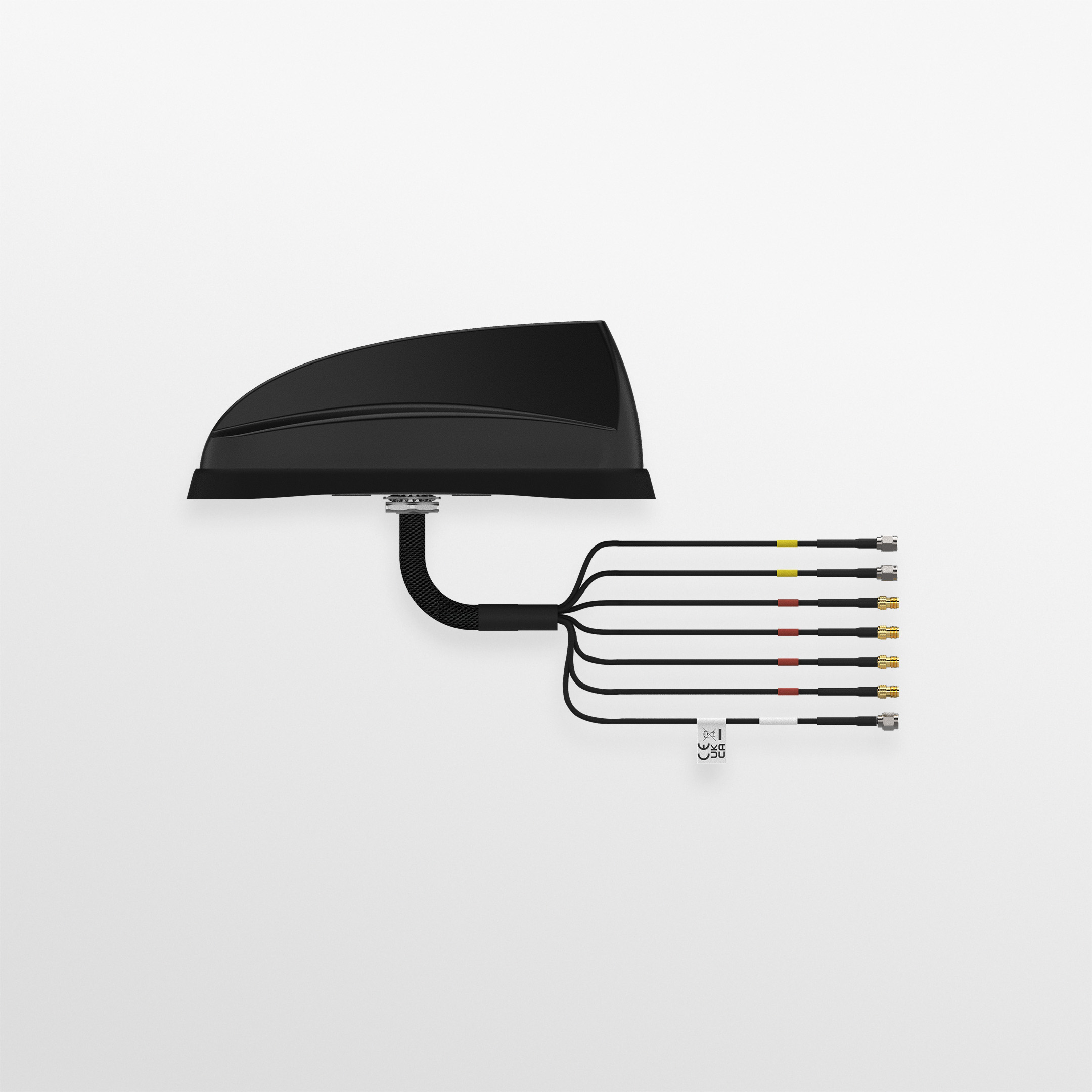

The housing measures 243 x 63 x 90 mm (9.57 x 2.48 x 3.54 in). It is IP69K rated and operates from -40 °C to +80 °C. It mounts through a single hole on metallic or non-metallic panels with similar performance on either. It fits between roof ribs on all major vehicle manufacturers and can replace a factory-fitted antenna. Two 0.3 m cellular pigtails end in SMA (m) connectors, and a 0.3 m GNSS pigtail ends in FME (f). All three use flame-retardant RG174, and the cable feeds are UN ECE R118 compliant.

Panorama publishes a datasheet, installation instructions and a flyer for the SHKG-6-60 family.

Ideal for

  • Police and law-enforcement vehicles, overt or covert
  • EMS and fire apparatus with in-vehicle 4G/5G routers
  • Mass-transit buses and coaches
  • Utility and service vehicle fleets needing cellular plus GNSS tracking

Specifications

GPS

Lna Gain
26 dB
Constellations
GPS, GLONASS, Galileo, BeiDou
GPS Frequency Range
1562-1612 MHz
Number OF GPS Elements
1 Module

Cable

Cable Type GPS
FR RG174
Cable Type LTE
FR RG174
Pigtail Length
0.3 m (0.98 ft)
Cable Type Wi-Fi
FR RG174
Quantity OF Cell Cable
2
Cable Length Family Range
LTE/GPS/Wi-Fi: min 0.3 m (0.98 ft); max 5 m (16.4 ft)
Quantity OF Wi-Fi Extension
Family max 4 (none on this model)
Quantity OF GPS GNSS Extension
1

General

MPN
SHKG-6-60
Brand
Panorama Antennas
Product Family
Sharkee (SHKG-6-60[-VAR])

Package

Shipping Weight
3.00 lb

Mounting

Mounting Methods
Magnetic; Panel
Mounting Type Temp
Magnetic
Mounting Type Fixed
Panel

Approvals

IP Rating
IP69K
Cable Flammability
EN45545-2 HL3; UN ECE R118; EN6722

Electrical

Pattern
Omnidirectional
Uhf Elements
No
Wi-Fi Elements
No (family options: 2x2, 3x3, 4x4 MIMO)
Max Input Power
10 W
Frequency Gain Low
617-960 MHz | 5 dBi
Frequency Gain Mid
1710-3800 MHz | 8 dBi
Frequency Gain High
4900-6000 MHz | 9 dBi
Cellular LTE Elements
2 x 2 MIMO

Mechanical

Width
63 mm (2.48 in)
Colour
Black
Height
90 mm (3.54 in)
Length
243 mm (9.57 in)
Operating Temperature
-40 °C to +80 °C (-40 °F to +176 °F)

Technology

Technology
2G/3G/4G, 5G, Band 71 600 MHz ready, FirstNet, GPS/GNSS

Termination

Connector GPS
FME (f) (family: SMA (m); FME (f))
Connector LTE
SMA (m)
Connector Wi-Fi Family
Reverse Polarity SMA; SMA (f)

Questions buyers ask

Does the SHKG-6-60 include Wi-Fi elements?

No. This version provides 2x2 MIMO 4G/5G cellular and GNSS. The -DW, -TW and -QW versions add 2x2, 3x3 or 4x4 MIMO Wi-Fi.

Does it support 600 MHz Band 71?

Yes. Coverage starts at 617 MHz, and Panorama lists the antenna as Band 71 600 MHz ready.

What connectors does it use?

The two cellular pigtails end in SMA (m) and the GNSS pigtail ends in FME (f). Each pigtail is 0.3 m long.

Can it be fitted to a fibreglass or composite roof?

Yes. It can be mounted on metallic or non-metallic panels with similar performance.
