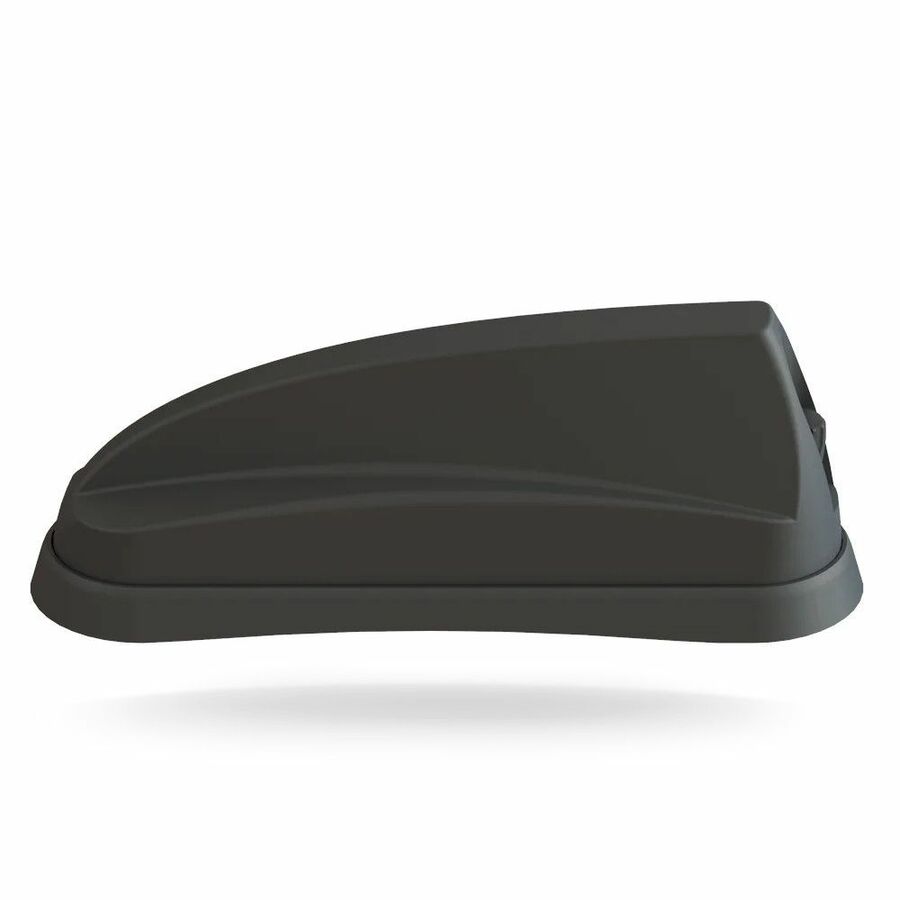

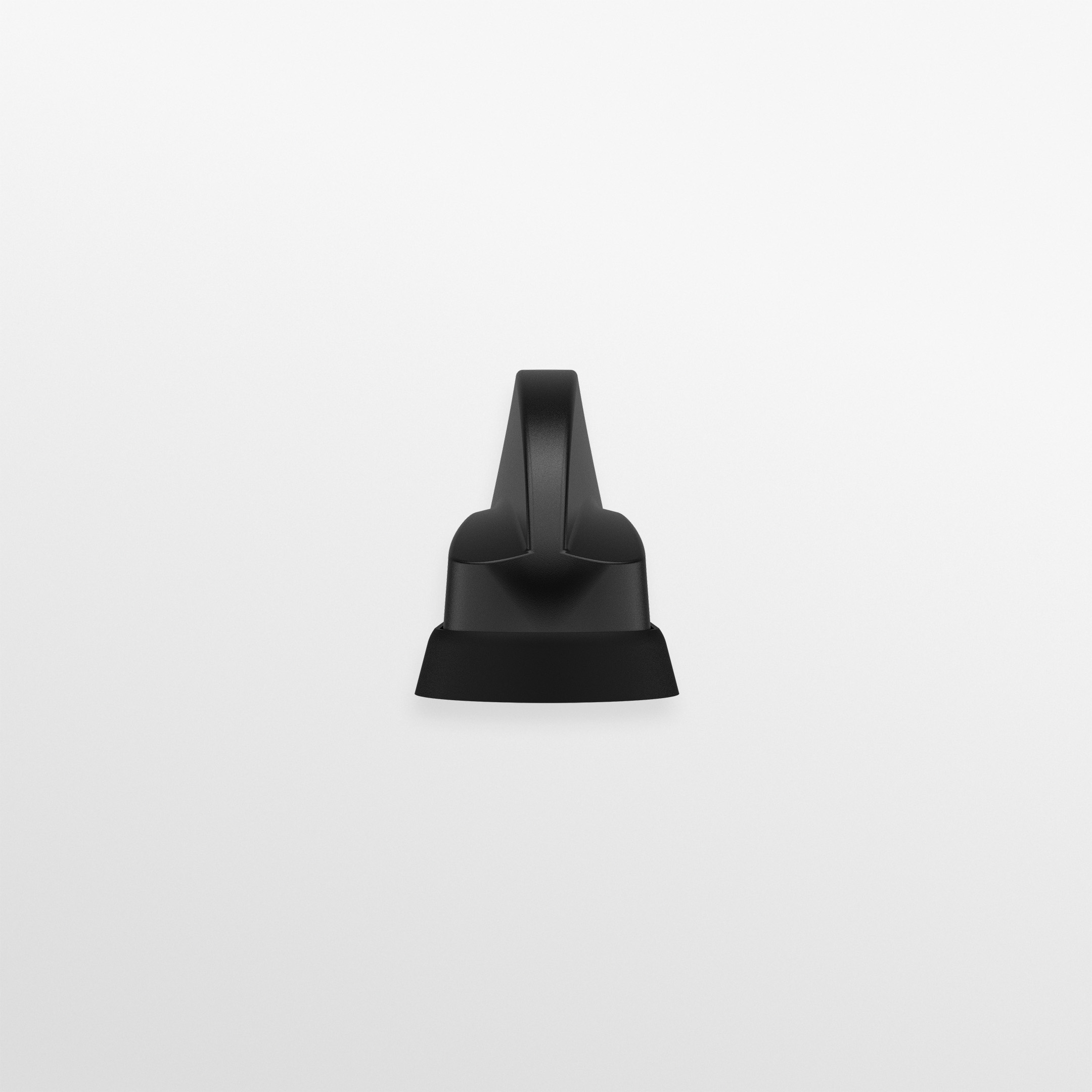

Panorama SHKG-6-60-DW Sharkee 4G/5G 2x2 MIMO Sharkfin Antenna with 2x2 Wi-Fi and GNSS, Black

5GMPN SHKG-6-60-DW
  • 2x2 MIMO
  • GNSS
  • Wi-Fi
  • 9 dBi and up
$198.51$275.63Save $77.12

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Panorama SHKG-6-60-DW Sharkee combines three antenna functions in one discreet OEM-style sharkfin. It provides 2x2 MIMO 4G/5G cellular across 617-960 and 1710-6000 MHz, 2x2 MIMO dual-band Wi-Fi supporting Wi-Fi 6, and an active GPS/GLONASS/Galileo/BeiDou antenna. The housing is IP69K rated and installs through a single hole. It suits vehicles running a 5G router with onboard Wi-Fi.

  • 2x2 MIMO 4G/5G cellular: 617-960 MHz (5 dBi), 1710-3800 MHz (8 dBi), 4900-6000 MHz (9 dBi)
  • 2x2 MIMO dual-band Wi-Fi (2.4/4.9-7.2 GHz) supporting Wi-Fi 6
  • Active GPS/GLONASS/Galileo/BeiDou antenna with 26 dB LNA and LTE Band 13/14 filtering
  • Band 71 600 MHz ready; FirstNet listed among supported technologies
  • Single-hole mounting on metallic or non-metallic panels
  • IP69K rated, -40 °C to +80 °C operating temperature

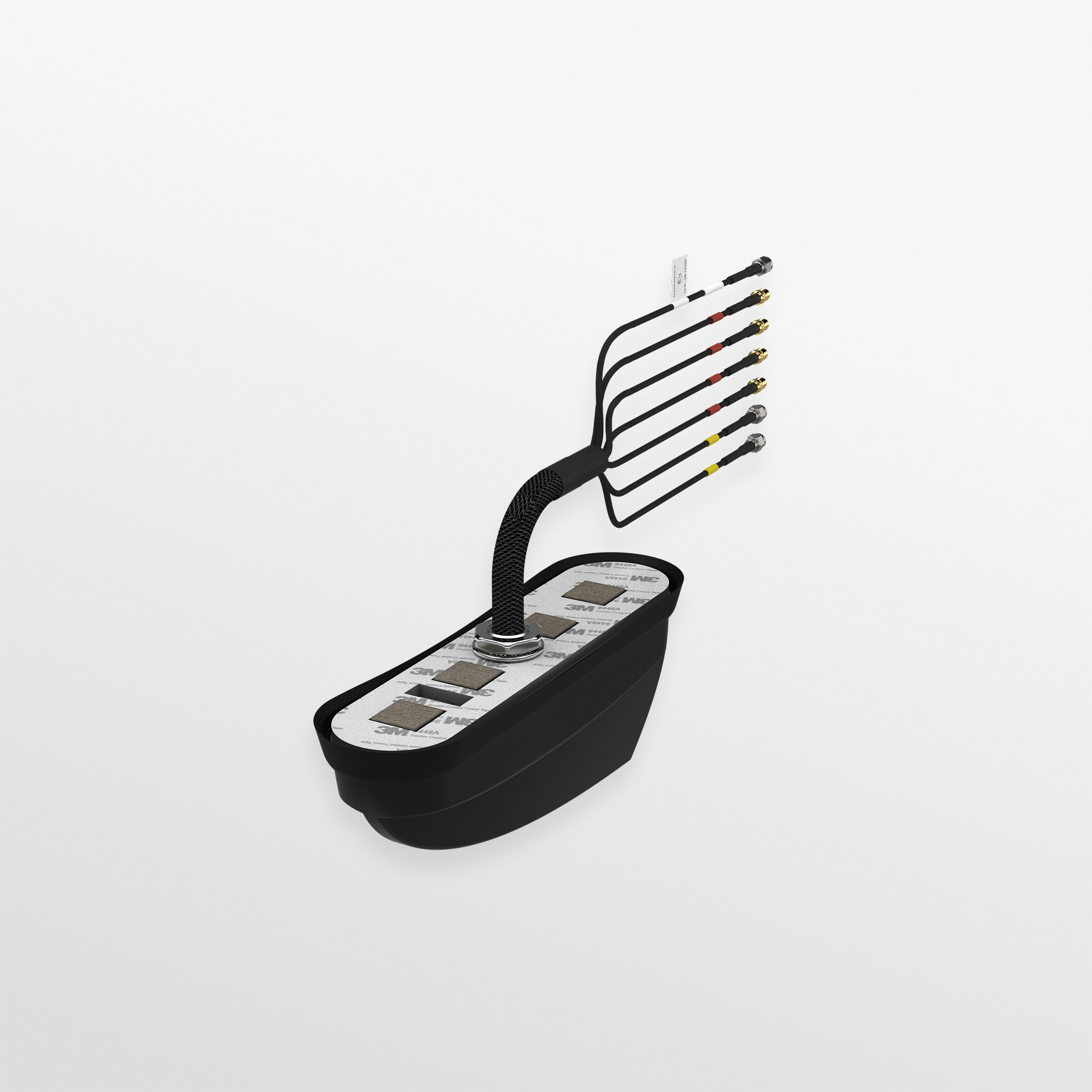

  • 0.3 m pigtails: SMA (m) cellular, FME (f) GNSS, SMA (f) Wi-Fi
  • One roof antenna serves a router's cellular, Wi-Fi and GPS ports

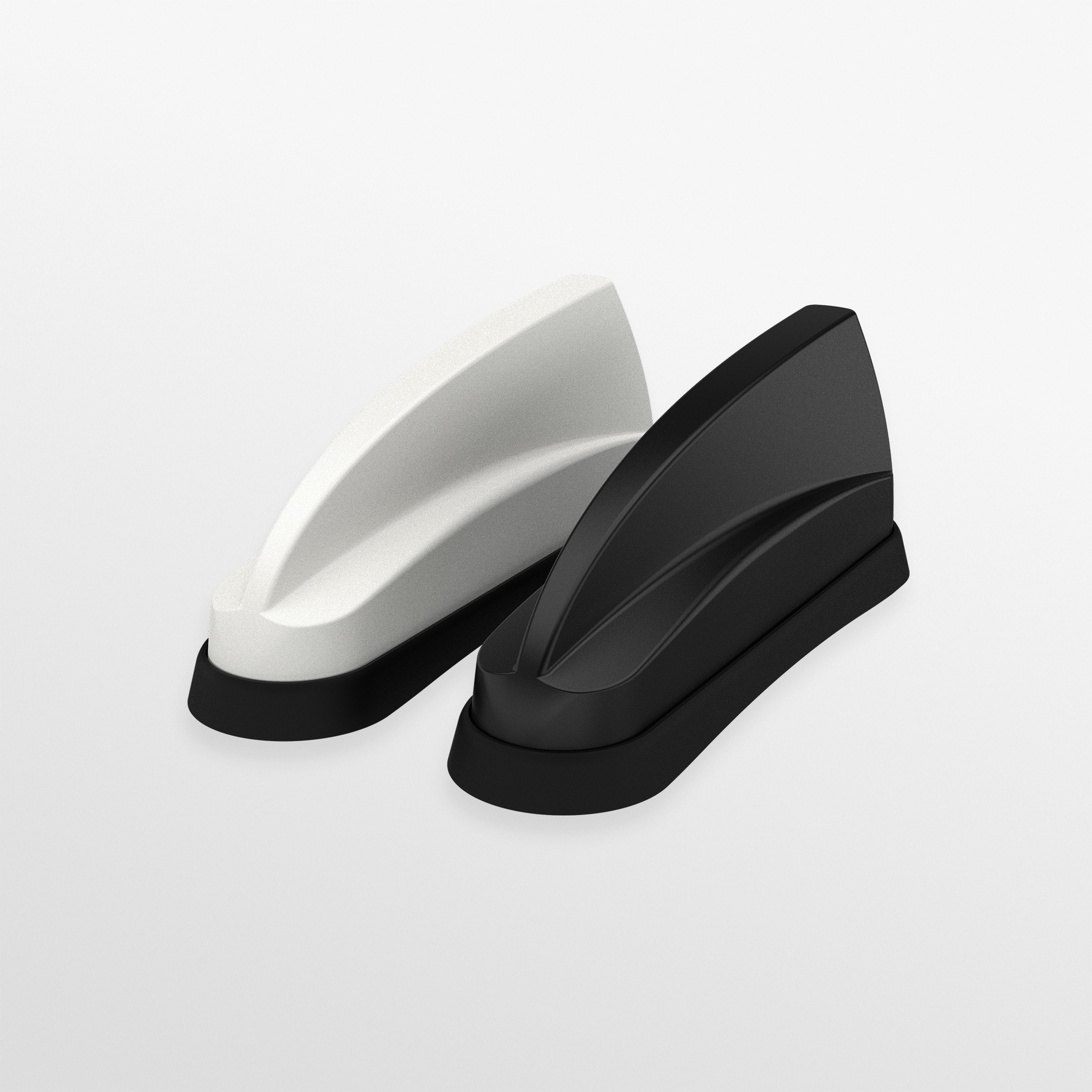

The Panorama SHKG-6-60-DW is a Sharkee OEM-style sharkfin antenna in black. It carries three antenna functions in one housing: 2x2 MIMO 4G/5G cellular, 2x2 MIMO dual-band Wi-Fi and an active GNSS antenna. It fits police and law-enforcement, EMS and fire, mass-transit and utility vehicles. In each case, a router uses one roof antenna for the WAN, in-vehicle or nearby Wi-Fi, and location.

The cellular elements have three gain ratings: - 5 dBi across 617-960 MHz - 8 dBi across 1710-3800 MHz - 9 dBi across 4900-6000 MHz

Band 71 600 MHz readiness and FirstNet are listed among supported technologies. The two Wi-Fi elements cover 2.4 and 4.9-7.2 GHz and support Wi-Fi 6. The GNSS module covers 1562-1612 MHz for GPS, GLONASS, Galileo and BeiDou. It has a 26 dB LNA and advanced filtering for LTE Band 13/14 operation. The pattern is omnidirectional and maximum input power is 10 W.

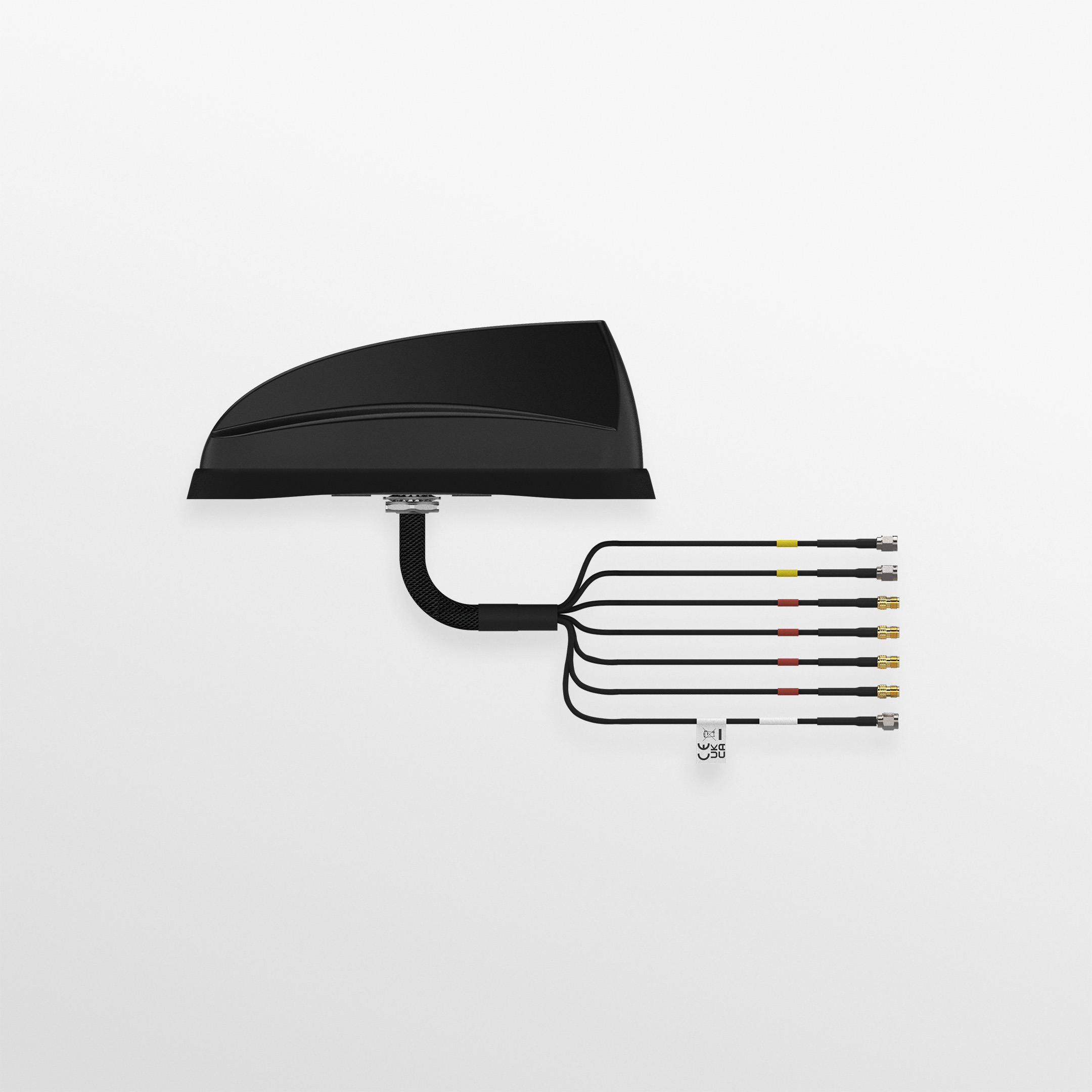

The housing measures 243 x 63 x 90 mm (9.57 x 2.48 x 3.54 in). It is IP69K rated for -40 °C to +80 °C operation. It installs through a single hole on metallic or non-metallic panels and fits between roof ribs on all major vehicle manufacturers. It can also replace a factory-fitted antenna. All pigtails are 0.3 m of flame-retardant RG174, and the cable feeds are UN ECE R118 compliant. They terminate as follows: - Cellular: SMA (m) - GNSS: FME (f) - Wi-Fi: SMA (f)

Panorama publishes a datasheet, installation instructions and a flyer for the SHKG-6-60 family.

Ideal for

  • Police and law-enforcement vehicles with 5G routers providing in-car Wi-Fi
  • EMS and fire vehicles needing cellular, Wi-Fi and GNSS from one antenna
  • Mass-transit buses offering onboard Wi-Fi
  • Utility fleets with vehicle-based Wi-Fi hotspots and tracking

Specifications

GPS

Lna Gain
26 dB
Constellations
GPS, GLONASS, Galileo, BeiDou
GPS Frequency Range
1562-1612 MHz
Number OF GPS Elements
1 Module

Cable

Cable Type GPS
FR RG174
Cable Type LTE
FR RG174
Pigtail Length
0.3 m (0.98 ft)
Cable Type Wi-Fi
FR RG174
Quantity OF Cell Cable
2
Cable Length Family Range
LTE/GPS/Wi-Fi: min 0.3 m (0.98 ft); max 5 m (16.4 ft)
Quantity OF Wi-Fi Extension
Family max 4
Quantity OF GPS GNSS Extension
1

General

MPN
SHKG-6-60-DW
Brand
Panorama Antennas
Product Family
Sharkee (SHKG-6-60[-VAR])

Package

Shipping Weight
1.05 lb

Mounting

Mounting Methods
Magnetic; Panel
Mounting Type Temp
Magnetic
Mounting Type Fixed
Panel

Approvals

IP Rating
IP69K
Cable Flammability
EN45545-2 HL3; UN ECE R118; EN6722

Electrical

Pattern
Omnidirectional
Uhf Elements
No
Wi-Fi Elements
2 x 2 MIMO
Wi-Fi Frequency
2.4 / 4.9-7.2 GHz (Wi-Fi 6)
Max Input Power
10 W
Frequency Gain Low
617-960 MHz | 5 dBi
Frequency Gain Mid
1710-3800 MHz | 8 dBi
Frequency Gain High
4900-6000 MHz | 9 dBi
Cellular LTE Elements
2 x 2 MIMO

Mechanical

Width
63 mm (2.48 in)
Colour
Black
Height
90 mm (3.54 in)
Length
243 mm (9.57 in)
Operating Temperature
-40 °C to +80 °C (-40 °F to +176 °F)

Technology

Technology
2G/3G/4G, 5G, Band 71 600 MHz ready, FirstNet, Wi-Fi MIMO, GPS/GNSS

Termination

Connector GPS
FME (f) (family: SMA (m); FME (f))
Connector LTE
SMA (m)
Connector Wi-Fi
SMA (f) (family: Reverse Polarity SMA; SMA (f))

Questions buyers ask

What does DW mean in SHKG-6-60-DW?

It is the dual Wi-Fi version of the SHKG-6-60, with 2x2 MIMO Wi-Fi elements alongside 2x2 MIMO cellular and GNSS.

Which Wi-Fi bands does it support?

The Wi-Fi elements cover 2.4 GHz and 4.9-7.2 GHz and support Wi-Fi 6.

What connectors are on the pigtails?

Cellular pigtails use SMA (m), the GNSS pigtail uses FME (f) and the Wi-Fi pigtails use SMA (f). All are 0.3 m long.

Is it suitable for FirstNet vehicles?

Panorama lists FirstNet and Band 71 600 MHz readiness among the supported technologies. The GNSS antenna also includes filtering for LTE Band 13/14.
