Panorama Sharkee SHKG-7-27-24-58 4G/5G MIMO Shark Fin Antenna with 2x2 Wi-Fi and GPS/GNSS, Black

5GMPN SHKG-7-27-24-58
  • 2x2 MIMO
  • GNSS
  • Wi-Fi
  • 3–5 dBi
$155.48$216.09Save $60.61

In stockShips from the US

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

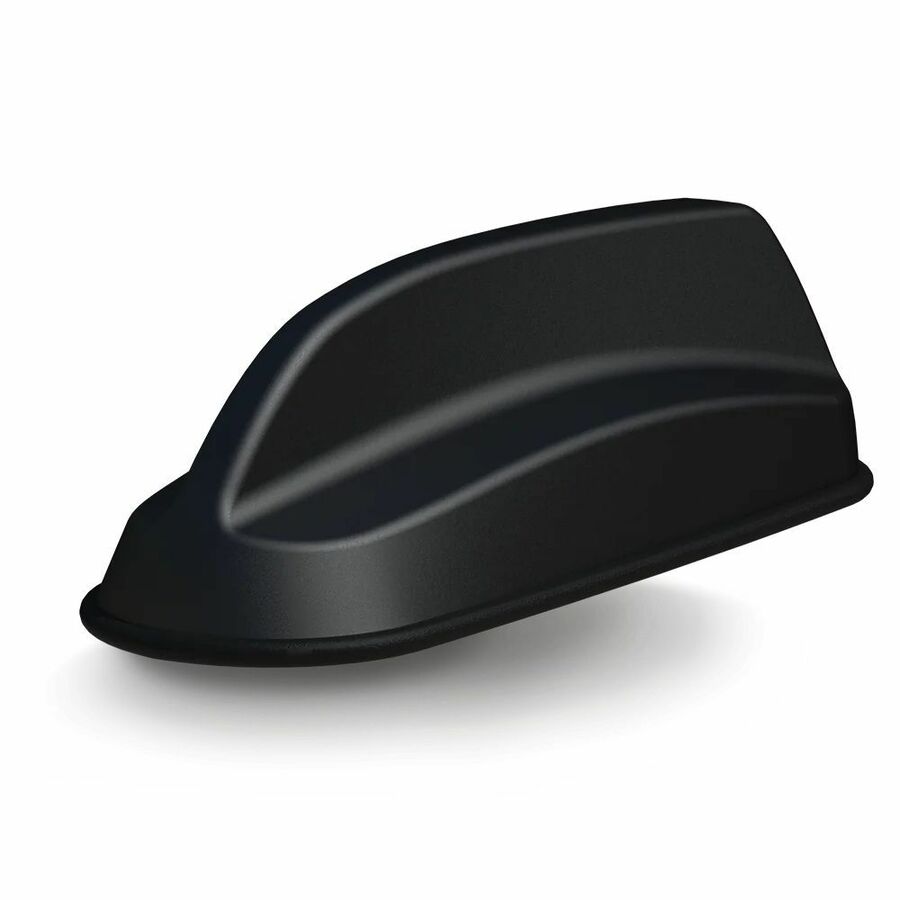

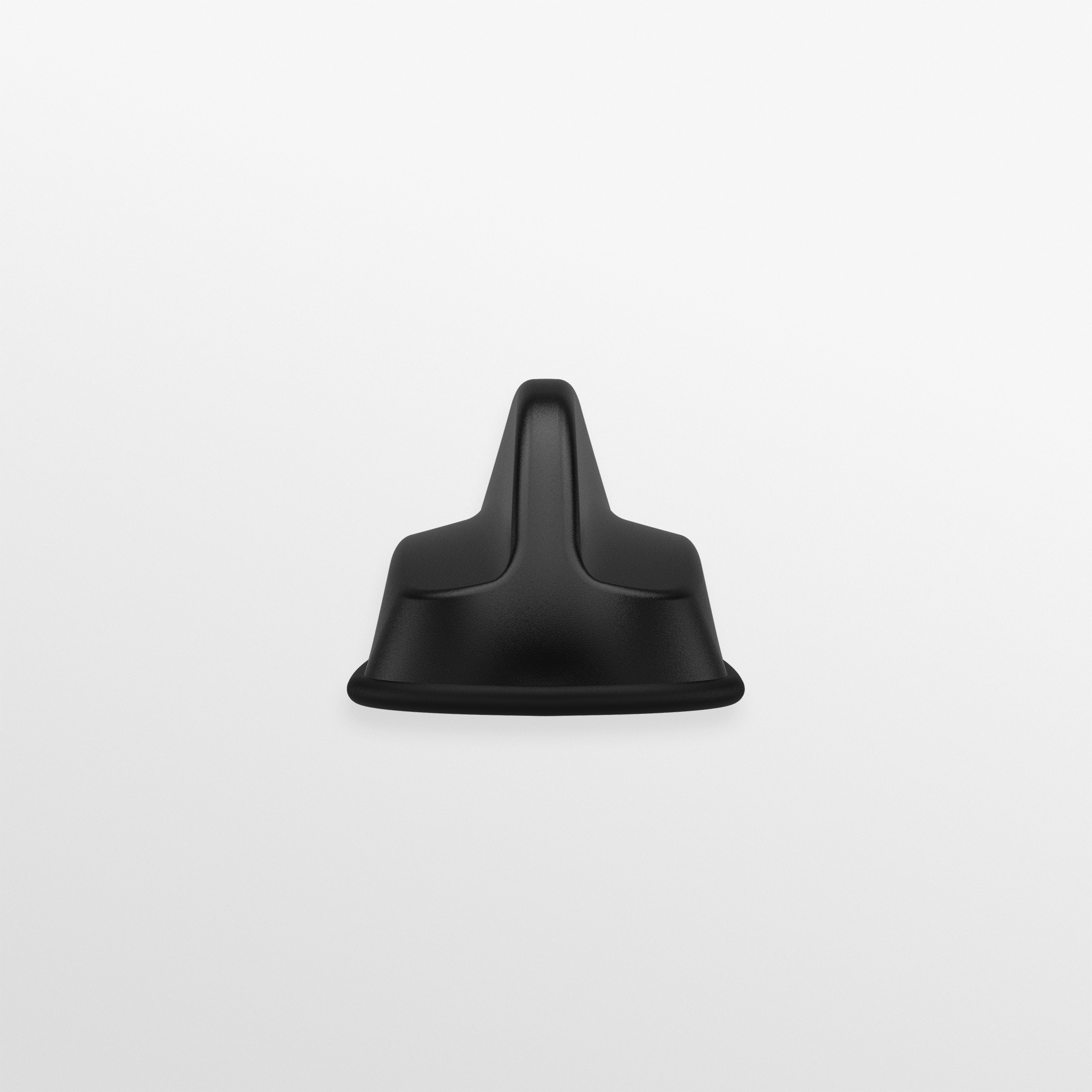

The Panorama SHKG-7-27-24-58 is a black Sharkee shark fin antenna that puts five antenna functions in one discreet OEM-style housing. It carries 2x2 MIMO cellular for 5G/4G/3G/2G across 698–3800 MHz, 2x2 MIMO dual-band 2.4/5.8 GHz Wi-Fi, and an active GPS/GLONASS/Galileo/BeiDou antenna. It is IP66 rated and installs through a single hole, which suits vehicle routers that deliver both WAN and onboard Wi-Fi.

  • 2x2 MIMO cellular for 5G/4G/3G/2G: 698–960 MHz (2 dBi) and 1710–3800 MHz (5 dBi)
  • 2x2 MIMO dual-band 2.4/5.8 GHz Wi-Fi in the same housing
  • Active GPS/GLONASS/Galileo/BeiDou antenna, 1562–1612 MHz, 26 dB LNA
  • 0.3 m FR RG174 leads: 2 x SMA (m) cellular, 2 x SMA (f) Wi-Fi, 1 x FME (f) GNSS
  • IP66 rated black Sharkee housing, 170 x 60 x 50 mm, -40°C to +80°C
  • Single-hole panel mounting; magnetic mounting listed for temporary use
  • Replace three separate roof antennas with one discreet shark fin
  • Feed a vehicle router's cellular, Wi-Fi and GNSS ports from a single installation

The Panorama SHKG-7-27-24-58 is the Wi-Fi-equipped member of the Sharkee SHK[G]-7-27 family. Its black OEM automotive-style shark fin holds 2x2 MIMO cellular, 2x2 MIMO dual-band Wi-Fi and an active GNSS antenna. It is intended for vehicle routers and gateways that need cellular backhaul, Wi-Fi and positioning, especially where roof space is at a premium.

The cellular function is omnidirectional. It covers 698–960 MHz at 2 dBi and 1710–3800 MHz at 5 dBi for 5G, 4G LTE and legacy 2G/3G services. The Wi-Fi elements cover the 2.4 and 5.8 GHz bands in a 2x2 MIMO configuration. The active GNSS element covers 1562–1612 MHz for GPS, GLONASS, Galileo and BeiDou, with a 26 dB LNA. Maximum input power is 25 W.

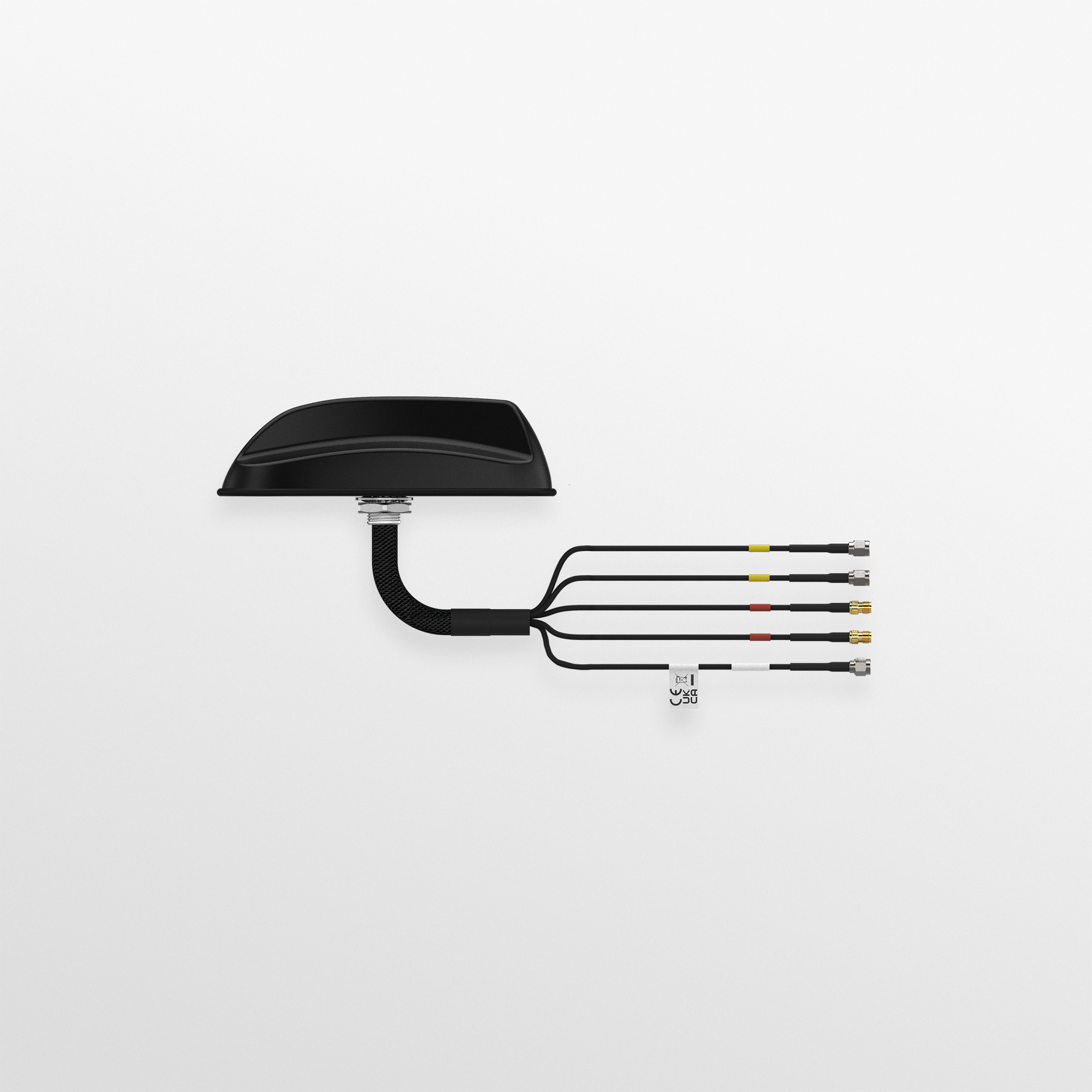

All feeds are 0.3 m FR RG174 leads. The two cellular leads are terminated SMA (m), the GNSS lead FME (f) and the two Wi-Fi leads SMA (f). This keeps the three services clearly separated at the router end.

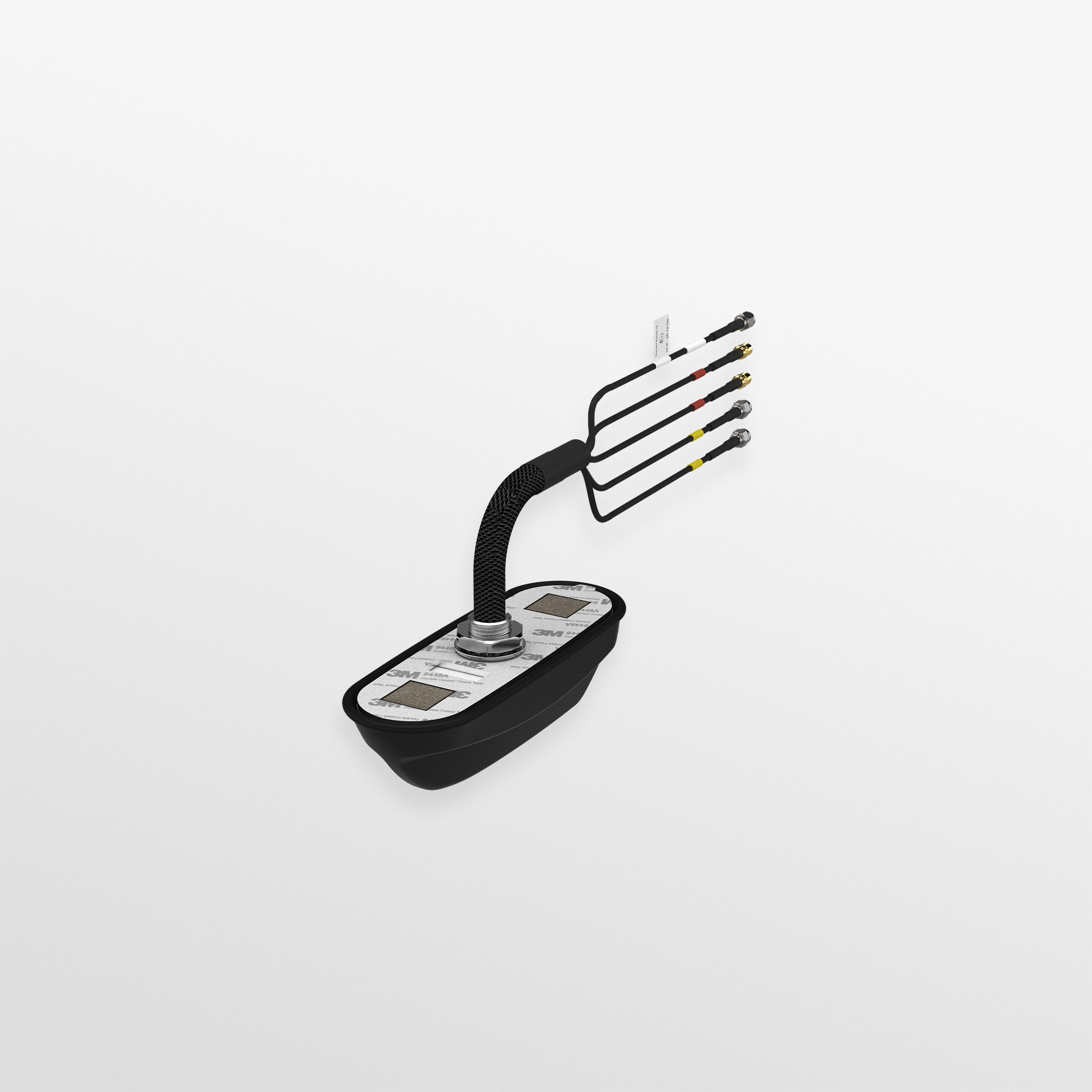

The housing measures 170 x 60 x 50 mm, is IP66 rated and operates from -40°C to +80°C. Cable flammability approvals are EN45545-2 HL3, UN ECE R118 and EN6722. Single-hole mounting reduces vehicle damage, installation time and visual impact while helping protect resale value. Panel mounting is listed for fixed installs and magnetic mounting for temporary use. Panorama's SHK[G]-7-27 datasheet and installation instructions document the family.

Ideal for

  • Police, EMS and public safety vehicles running a 5G/4G router with onboard Wi-Fi
  • Transit buses and coaches offering passenger Wi-Fi with cellular backhaul
  • Utility and field service trucks needing WAN, Wi-Fi and vehicle tracking
  • Fleet vehicles where roof space limits the number of antennas

Specifications

GPS

Lna Gain
26 dB
Constellations
GPS / GLONASS / Galileo / BeiDou
GPS Frequency Range
1562–1612 MHz
Number OF GPS Elements
1 Module

Cable

Cable Type GPS
FR RG174
Cable Type LTE
FR RG174
Cable Type Wi-Fi
FR RG174
Cable Length GPS
0.3 m (0.98 ft)
Cable Length LTE
0.3 m (0.98 ft)
Cable Length Wi-Fi
0.3 m (0.98 ft)
Quantity OF Cell Cable
2
Quantity OF Wi-Fi Extension
2 (2 x 2 MIMO)
Quantity OF GPS GNSS Extension
1

General

MPN
SHKG-7-27-24-58
Brand
Panorama Antennas
Series
Sharkee SHK[G]-7-27
Product Type
Shark fin MIMO cellular + Wi-Fi + GPS/GNSS vehicle antenna

Package

Shipping Weight
0.60 lb

Mounting

Mounting Methods
Magnetic, Panel
Mounting Type Temp
Magnetic
Mounting Type Fixed
Panel

Approvals

IP Rating
IP66
Cable Flammability
EN45545-2 HL3, UN ECE R118, EN6722

Electrical

Pattern
Omnidirectional
Wi-Fi Bands
2.4 / 5.8 GHz
Uhf Elements
No
Wi-Fi Elements
2 x 2 MIMO
Max Input Power
25 W
Frequency Range Gain
698–960 MHz: 2 dBi; 1710–3800 MHz: 5 dBi
Cellular LTE Elements
2 x 2 MIMO

Mechanical

Width
60 mm (2.36 in)
Colour
Black
Height
50 mm (1.97 in)
Length
170 mm (6.69 in)
Operating Temperature
-40°C to +80°C (-40°F to +176°F)

Technology

Technology
GPS, Wi-Fi MIMO, 4G/5G, 5G, 2G/3G/4G, FirstNet, GNSS

Termination

Connector GPS
FME (f)
Connector LTE
SMA (m)
Connector Wi-Fi
SMA (f)

Questions buyers ask

How many antenna functions are in this housing?

Five: two cellular MIMO elements, two Wi-Fi MIMO elements and one active GNSS module.

What Wi-Fi bands does it support?

The Wi-Fi elements are dual-band, covering 2.4 GHz and 5.8 GHz in a 2x2 MIMO configuration.

What are the connector types?

All leads are 0.3 m FR RG174. The cellular leads are SMA (m), the Wi-Fi leads are SMA (f) and the GNSS lead is FME (f).

Does it support 5G?

Yes. The cellular elements cover 698–960 MHz and 1710–3800 MHz, and Panorama lists 5G, 4G, 3G and 2G for this family.

What environmental protection does it have?

The housing is IP66 rated and operates from -40°C to +80°C.
