Panorama Sharkee SHKG-7-27-T24-58 4G/5G MIMO Shark Fin Antenna with 3x3 Wi-Fi and GPS/GNSS, Black

5GMPN SHKG-7-27-T24-58
  • 2x2 MIMO
  • GNSS
  • Wi-Fi
  • 3–5 dBi
$170.52$237.03Save $66.51

In stock · only 3 leftShips from the US

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

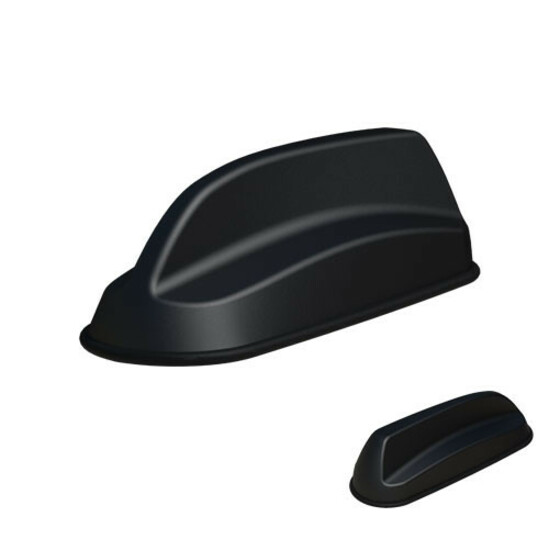

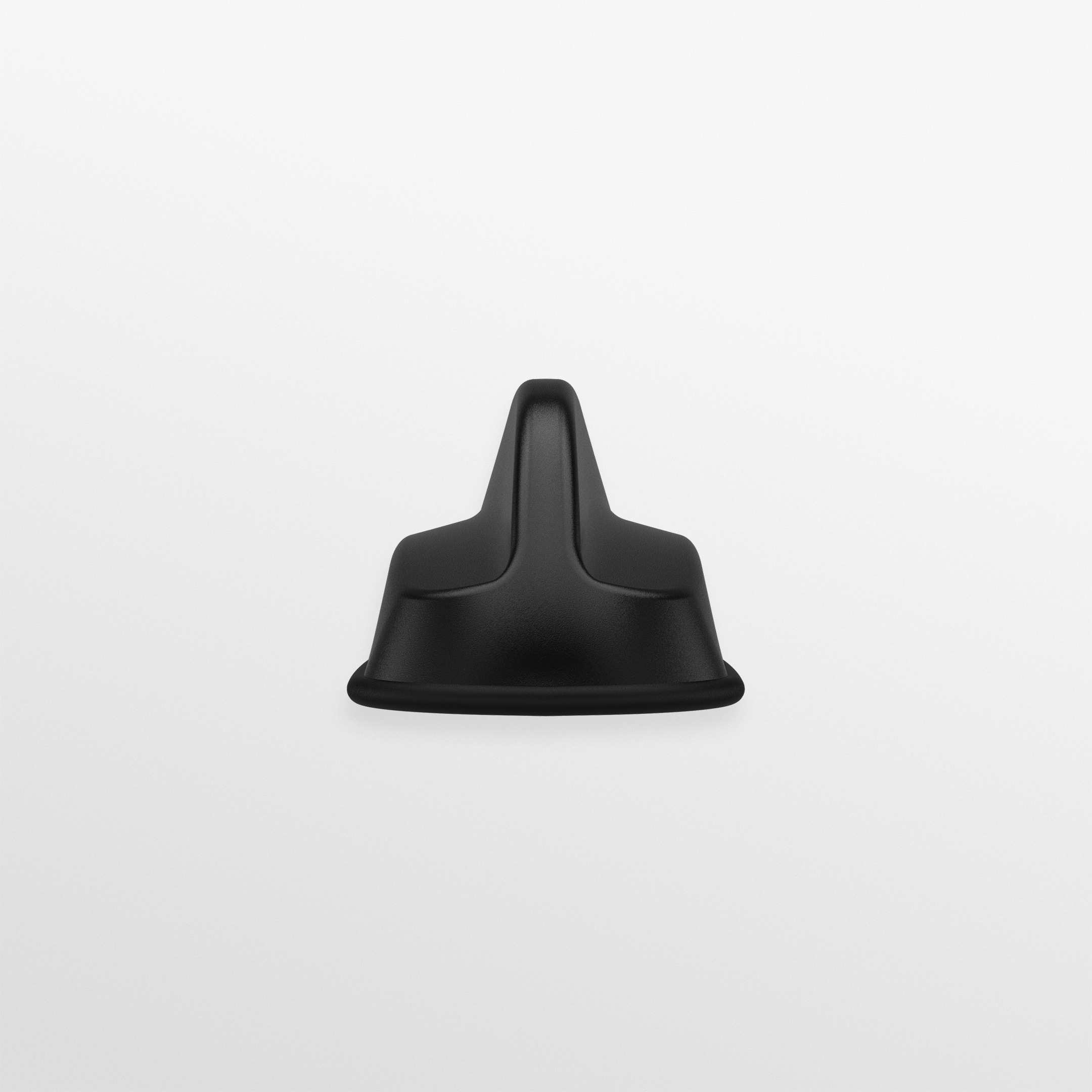

The Panorama SHKG-7-27-T24-58 is the fully equipped version of the Sharkee SHK[G]-7-27 shark fin, with six antenna functions in one black OEM-style housing. It combines 2x2 MIMO cellular for 5G/4G/3G/2G across 698–3800 MHz, 3x3 MIMO dual-band 2.4/5.8 GHz Wi-Fi, and an active GPS/GLONASS/Galileo/BeiDou antenna. It is IP66 rated and installs through a single hole, which suits vehicle routers with three-stream Wi-Fi radios.

  • Six antenna functions in one Sharkee shark fin housing
  • 2x2 MIMO cellular for 5G/4G/3G/2G: 698–960 MHz (2 dBi) and 1710–3800 MHz (5 dBi)
  • 3x3 MIMO dual-band 2.4/5.8 GHz Wi-Fi
  • Active GPS/GLONASS/Galileo/BeiDou antenna, 1562–1612 MHz, 26 dB LNA
  • 0.3 m FR RG174 leads: 2 x SMA (m) cellular, 3 x SMA (f) Wi-Fi, 1 x FME (f) GNSS
  • IP66 rated black housing, 170 x 60 x 50 mm, -40°C to +80°C
  • Serve a router's cellular, three-stream Wi-Fi and GNSS ports from one antenna
  • Keep roof space free on fleets where it is at a premium

The Panorama SHKG-7-27-T24-58 packs six separate antenna functions into a compact black Sharkee shark fin: two cellular MIMO elements, three Wi-Fi MIMO elements and one active GNSS module. It is designed for public safety, industrial and transport vehicles running routers with three-stream Wi-Fi. In these vehicles, a single discreet roof antenna is preferred to a cluster of separate ones.

The cellular function is omnidirectional. It covers 698–960 MHz at 2 dBi and 1710–3800 MHz at 5 dBi for 5G, 4G LTE and legacy 2G/3G services. The 3x3 MIMO Wi-Fi elements cover the 2.4 and 5.8 GHz bands. The GNSS element is active and covers 1562–1612 MHz for GPS, GLONASS, Galileo and BeiDou, with a 26 dB LNA. Maximum input power is 25 W.

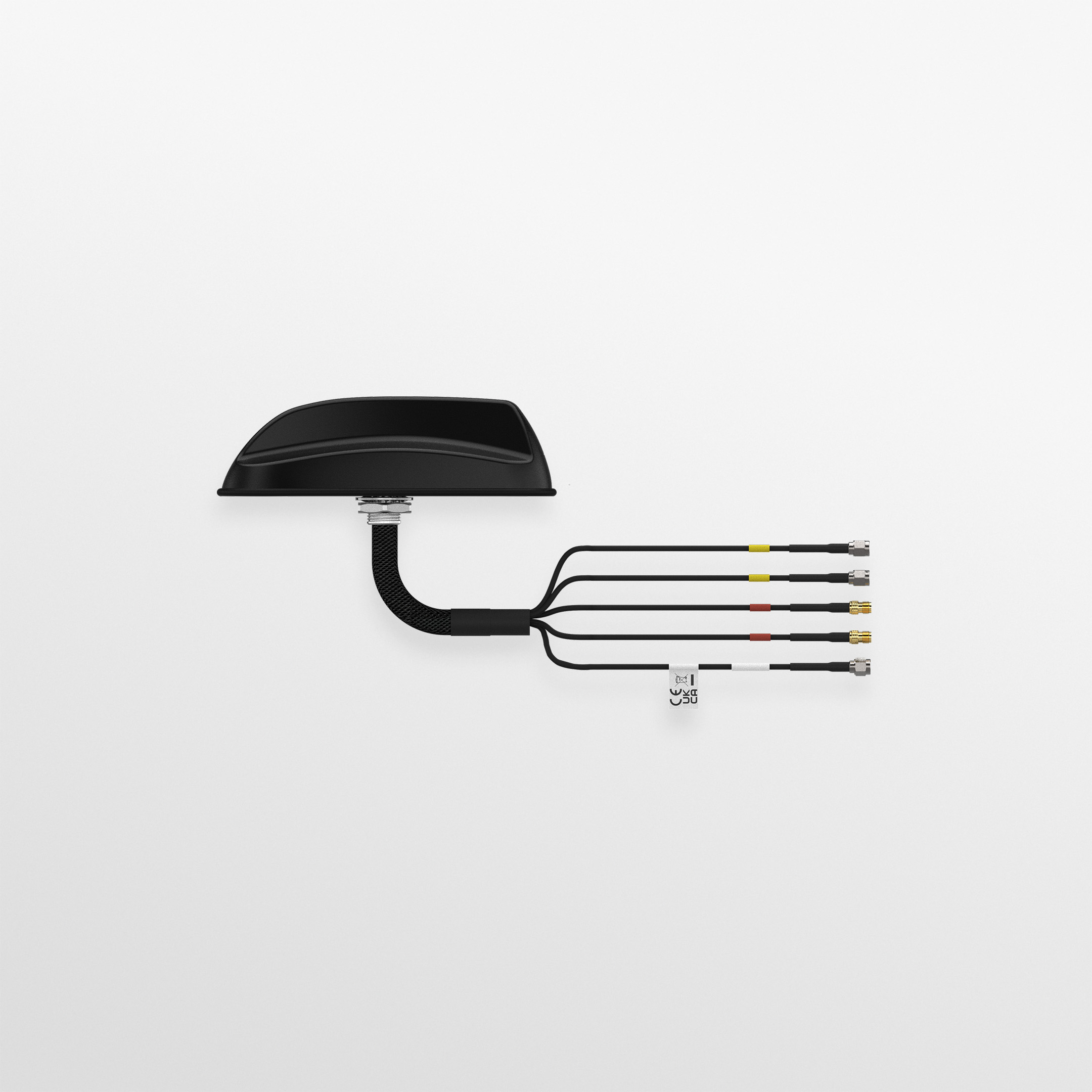

Every feed is a 0.3 m FR RG174 lead. The two cellular leads are terminated SMA (m), the three Wi-Fi leads SMA (f) and the GNSS lead FME (f).

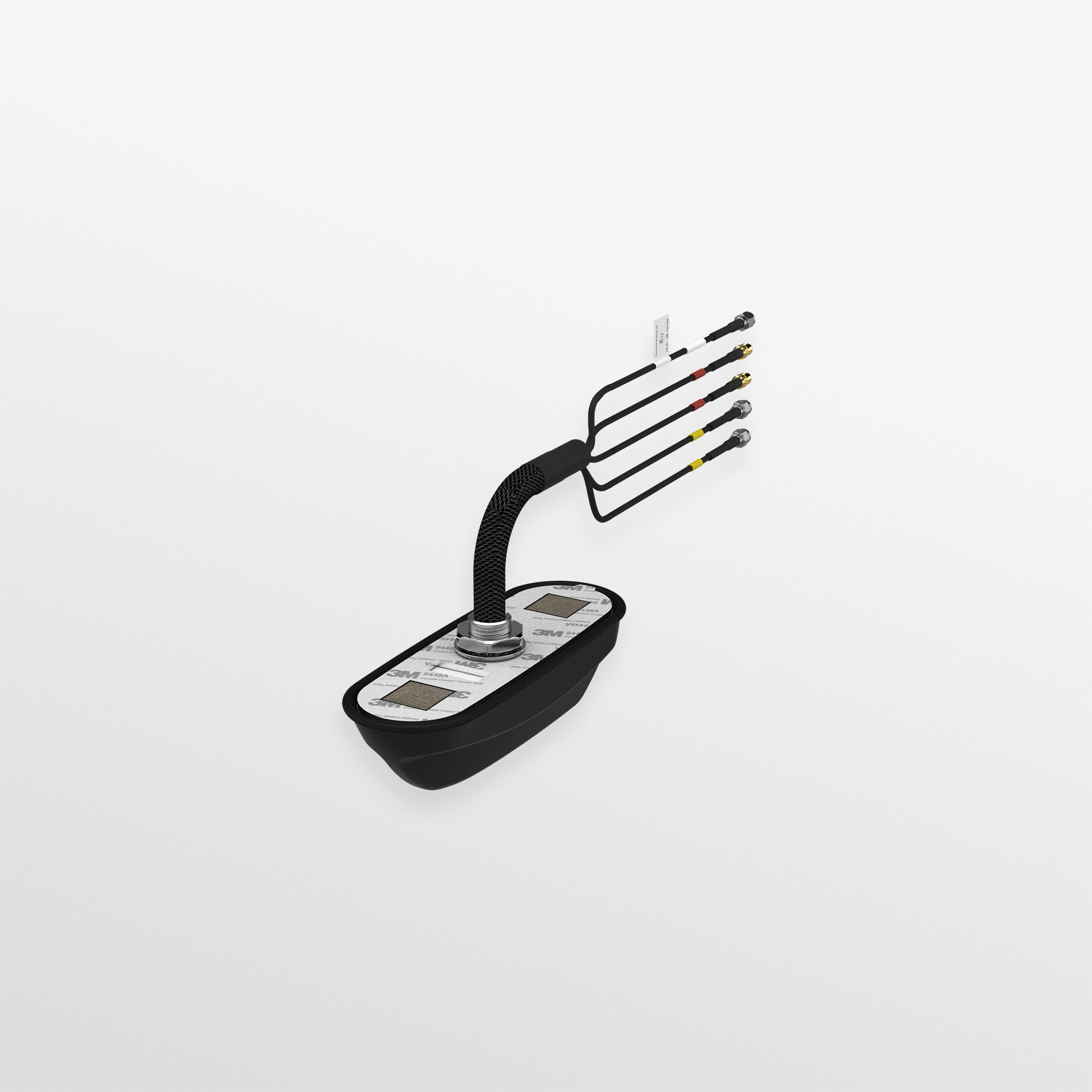

The housing measures 170 x 60 x 50 mm, is IP66 rated and operates from -40°C to +80°C. Cable flammability approvals are EN45545-2 HL3, UN ECE R118 and EN6722. The single-hole mounting reduces vehicle damage, installation time, cost and visual impact while helping protect a vehicle's resale value. Panel mounting is listed for fixed installations and magnetic mounting for temporary use. Panorama's SHK[G]-7-27 datasheet and installation instructions cover the family.

Ideal for

  • Public safety vehicles with routers running three-stream Wi-Fi
  • Transit buses and coaches providing passenger Wi-Fi over 5G/4G
  • Industrial and utility vehicles combining WAN, Wi-Fi and tracking
  • Covert or unmarked vehicles needing a discreet multi-function antenna

Specifications

GPS

Lna Gain
26 dB
Constellations
GPS / GLONASS / Galileo / BeiDou
GPS Frequency Range
1562–1612 MHz
Number OF GPS Elements
1 Module

Cable

Cable Type GPS
FR RG174
Cable Type LTE
FR RG174
Cable Type Wi-Fi
FR RG174
Cable Length GPS
0.3 m (0.98 ft)
Cable Length LTE
0.3 m (0.98 ft)
Cable Length Wi-Fi
0.3 m (0.98 ft)
Quantity OF Cell Cable
2
Quantity OF Wi-Fi Extension
3 (3 x 3 MIMO)
Quantity OF GPS GNSS Extension
1

General

MPN
SHKG-7-27-T24-58
Brand
Panorama Antennas
Series
Sharkee SHK[G]-7-27
Product Type
Shark fin MIMO cellular + 3x3 Wi-Fi + GPS/GNSS vehicle antenna

Package

Shipping Weight
0.60 lb

Mounting

Mounting Methods
Magnetic, Panel
Mounting Type Temp
Magnetic
Mounting Type Fixed
Panel

Approvals

IP Rating
IP66
Cable Flammability
EN45545-2 HL3, UN ECE R118, EN6722

Electrical

Pattern
Omnidirectional
Wi-Fi Bands
2.4 / 5.8 GHz
Uhf Elements
No
Wi-Fi Elements
3 x 3 MIMO
Max Input Power
25 W
Frequency Range Gain
698–960 MHz: 2 dBi; 1710–3800 MHz: 5 dBi
Cellular LTE Elements
2 x 2 MIMO

Mechanical

Width
60 mm (2.36 in)
Colour
Black
Height
50 mm (1.97 in)
Length
170 mm (6.69 in)
Operating Temperature
-40°C to +80°C (-40°F to +176°F)

Technology

Technology
GPS, Wi-Fi MIMO, 4G/5G, 5G, 2G/3G/4G, FirstNet, GNSS

Termination

Connector GPS
FME (f)
Connector LTE
SMA (m)
Connector Wi-Fi
SMA (f)

Questions buyers ask

What does T24-58 mean in the part number?

It identifies the version with 3x3 MIMO Wi-Fi for the 2.4 and 5.8 GHz bands, added to the 2x2 MIMO cellular and GNSS functions.

How many cables does the antenna have?

Six 0.3 m FR RG174 leads: two cellular (SMA m), three Wi-Fi (SMA f) and one GNSS (FME f).

What cellular coverage does it offer?

The cellular elements cover 698–960 MHz at 2 dBi and 1710–3800 MHz at 5 dBi for 5G, 4G, 3G and 2G.

What is the GNSS element?

It is an active antenna covering 1562–1612 MHz for GPS, GLONASS, Galileo and BeiDou, with a 26 dB LNA.

Is it weatherproof?

Yes. It is IP66 rated and operates from -40°C to +80°C.
