Taoglas Synergy X 9-in-1 Multi-Band GNSS, 5G/4G and Wi-Fi 6/7 Combination Antenna, White, 5 m SMA Cables

5GMPN SYNX.9.1G4C4W.5M.S3.W.QR
  • 4x4 MIMO
  • GNSS
  • Wi-Fi
  • 3–5 m
$650.56$774.48Save $123.92

In stockShips from the US

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

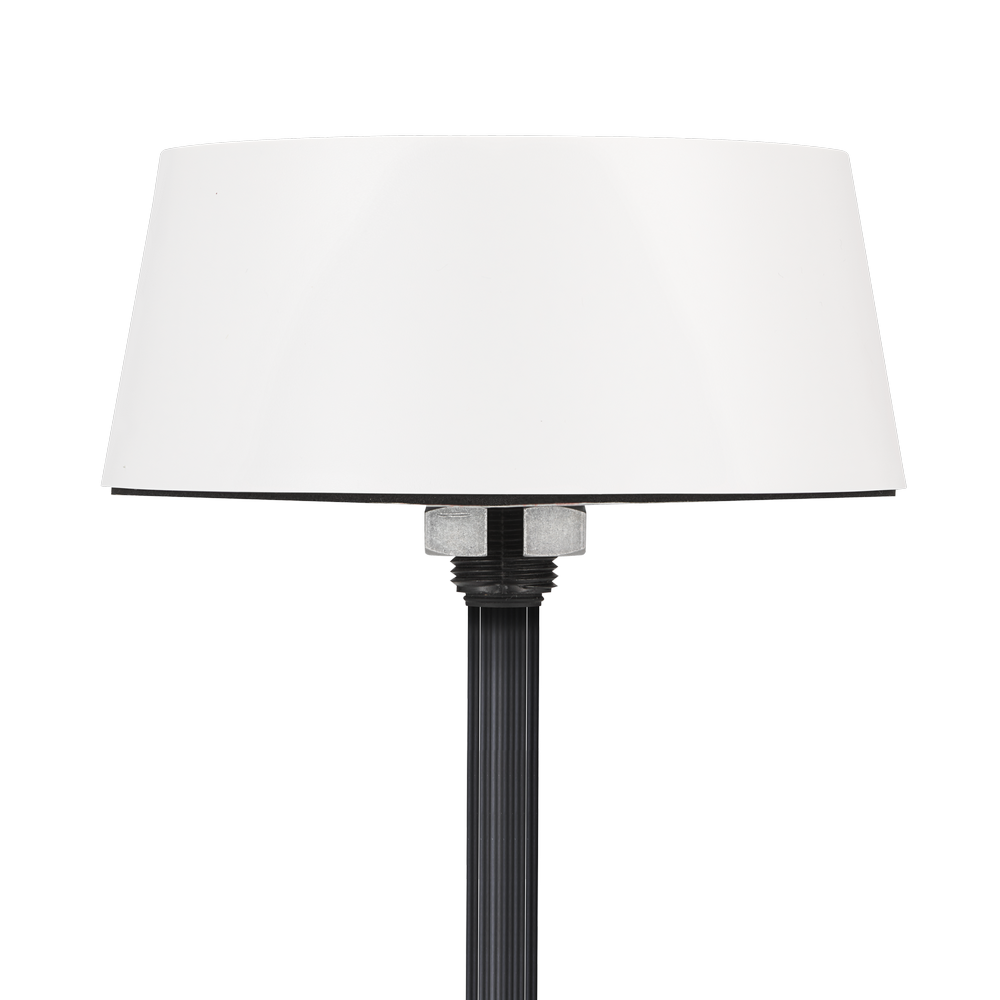

The Taoglas Synergy X 9-in-1 is a permanent-mount combination antenna for high-precision positioning and next-generation routers. It carries an active multi-band GNSS element for cm-level RTK accuracy, four wideband 5G/4G MIMO elements covering 600-6000 MHz, and four Wi-Fi MIMO elements for 2.4 GHz and 5-7.125 GHz, including Wi-Fi 6 and Wi-Fi 7 capability. This white SYNX.9.1G4C4W.5M.S3.W.QR version has a pigtail base with a detached 5 m RG-174/TGC-200 cable assembly and SMA male connectors.

  • 9-in-1 design: 1x active multi-band GNSS, 4x 5G/4G MIMO and 4x Wi-Fi MIMO
  • Full-spectrum GNSS with cm-level RTK accuracy: GPS/QZSS L1/L2/L5/L6, GLONASS G1/G2/G3, Galileo E1/E5a/E5b/E6, BeiDou B1/B2a/B2b/B3, NavIC L5, SBAS
  • Wideband 5G/4G from 600 to 6000 MHz covering worldwide bands
  • Wi-Fi at 2.4 GHz and 5-7.125 GHz, including Wi-Fi 6 and Wi-Fi 7 capability
  • IP67 polycarbonate enclosure, Ø161.3 x 67 mm, -40 °C to 85 °C
  • White housing with pigtail base and detached 5 m RG-174/TGC-200 cable assembly, SMA(M) connectors
  • Achieve cm-level RTK positioning for robotics, agriculture and autonomous systems from the same antenna that serves your router
  • Run 4x4 MIMO 5G alongside 4x4 Wi-Fi, including 6 GHz, through one roof or mast penetration

The Taoglas Synergy X (MA1559 family) is a 9-in-1 permanent-mount antenna for next-generation 5G routers where positioning accuracy matters as much as throughput. One Ø161.3 x 67 mm polycarbonate housing contains one active multi-band GNSS antenna, four 5G/4G MIMO antennas and four Wi-Fi MIMO antennas. This part number is the white version with a pigtail base and a detached 5 m RG-174/TGC-200 cable assembly. All nine leads terminate in SMA male connectors.

The GNSS element covers the full spectrum: GPS/QZSS L1/L2/L5/L6, GLONASS G1/G2/G3, Galileo E1/E5a/E5b/E6, BeiDou B1/B2a/B2b/B3, NavIC L5 and SBAS. Used on an RTK base or rover, it achieves genuine cm-level accuracy and keeps position tracking stable in urban environments. The LNA delivers up to 28 dB gain at L1 with a 2.6 dB noise figure and draws under 20 mA from +1.8 to +5.0 VDC.

The four cellular elements are wideband from 600 to 6000 MHz for worldwide 5G/4G bands. Coverage includes Band 71, Bands 12, 13, 14 and 17, mid-band Bands 2, 4, 25, 66, 30 and 41, and Bands 42, 48, 77, 78 and 79. Each element is linear, omnidirectional, 50 Ω and handles 2 W. The four Wi-Fi elements cover 2400-2500 MHz and 5-7.125 GHz, including Wi-Fi 6 and Wi-Fi 7 capability.

The enclosure is IP67 rated and operates from -40 °C to 85 °C. Typical applications include autonomous driving, precision positioning for robotics, precision agriculture, inventory and container tracking, telematics and asset tracking, and timing synchronization. Taoglas publishes a datasheet for this exact part number covering specifications, drawings and installation.

Ideal for

  • RTK base or rover positioning for robotics and autonomous vehicles
  • Precision agriculture machinery with 5G connectivity
  • Telematics, asset tracking and container tracking
  • Timing and synchronization applications using multi-band GNSS
  • Vehicles or sites running 5G routers with Wi-Fi 6 access points

Specifications

Wi-Fi

Coverage
2.4 / 5.8 / 7.125 GHz
Elements
4 x Wi-Fi MIMO
Standards
Wi-Fi 6 and Wi-Fi 7 capable
Wi-Fi 2ghz
2400-2500 MHz
Wi-Fi 6ghz
5925-7125 MHz

General

MPN
SYNX.9.1G4C4W.5M.S3.W.QR
Vswr
<2.5
Brand
Taoglas
Color
White
Series
Synergy X (MA1559 family)
Gain Max
28 dB (GNSS LNA, L1)
Impedance
50 Ω
Technology
External combination antenna
Description
Screw-mount 9-in-1, white, 5 m RG-174/TGC-200, SMA(M) on GNSS, 4 x 5G/4G and 4 x Wi-Fi, pigtail base, detached cable assembly
Polarization
Linear (cellular/Wi-Fi), RHCP (GNSS)
Frequency Range
600-7125 MHz
Antenna Configuration
9-in-1: 1 active multi-band GNSS, 4 x 5G/4G MIMO, 4 x Wi-Fi MIMO

GNSS Lna

Gain B1
B1 (1561 MHz): 27 dB gain, 3.1 dB NF
Gain L1
L1 (1575.42 MHz): 28 dB gain, 2.6 dB NF
Gain L5
L5 (1176.45 MHz): 25 dB gain, 4.0 dB NF
Gain L6 E6
L6/E6 (1278.75 MHz): 22 dB gain, 4.5 dB NF
Gain GPS L2
GPS L2 (1227 MHz): 25 dB gain, 3.8 dB NF
Current Draw
<20 mA typical
Gain Gal E5b
Galileo E5b (1207 MHz): 26 dB gain, 3.7 dB NF
Input Voltage
+1.8 to +5.0 VDC
Out OF Band Attenuation
>50 / >30 / >25 / >35 / >45 dB across 100-6000 MHz stopbands

GNSS Bands

GPS
GPS L1, L2, L5
Rtk
RTK capable, cm-level accuracy
Qzss
QZSS L1, L2C, L5, L6
Sbas
SBAS (WAAS/EGNOS/GAGAN/SDCM/SNAS)
Irnss
IRNSS/NavIC L5
Beidou
BeiDou B1C, B1I, B2a, B2b, B3
Galileo
Galileo E1, E5a, E5b, E6
Glonass
GLONASS G1, G2, G3

Mechanical

Base
Pigtail base
Cable
5 m RG-174/TGC-200, detached cable assembly
Material
Polycarbonate (PC)
Connector
SMA male (all 9 leads)
Dimensions
Ø161.3 x 67 mm
Mounting Style
Screw mount (permanent)

Environmental

Rohs
RoHS compliant
Reach
REACH compliant
Humidity
Non-condensing, 95% RH at 65 °C
Ingress Rating
IP67
Operating Temperature
-40 °C to 85 °C

Cellular 5G 4G

Elements
4 x 5G/4G MIMO
Impedance
50 Ω
Polarization
Linear
Technologies
5G NR FR1 / LTE / LTE-A / WCDMA / HSPA+ / TD-SCDMA
Frequency Range
600-6000 MHz
Max Input Power
2 W
Measurement Key
Efficiency / avg gain / peak gain, free space and ground plane
Supported Bands
Worldwide 5G/4G bands on all four MIMO ports (B31 450 MHz excluded)
Band 617 698 MHz
up to 48.7% efficiency (free space)
Band 698 806 MHz
up to 47.4% efficiency (free space)
Band 824 960 MHz
up to 53.7% efficiency, 3.98 dBi peak
Radiation Pattern
Omnidirectional
Band 1427 1518 MHz
up to 59.4% efficiency
Band 1710 2200 MHz
up to 51.3% efficiency, 4.54 dBi peak
Band 2300 2690 MHz
up to 68.0% efficiency, 5.65 dBi peak
Band 3300 5000 MHz
up to 62.6% efficiency, 8.32 dBi peak
Band 5150 5925 MHz
up to 64.8% efficiency, 9.35 dBi peak

GNSS Electrical

Cable
RG174
Connector
SMA male
Impedance
50 Ω
Polarization
RHCP
Freq 1561 MHz
44%, 3.45 dBi peak, AR 2.34 dB
Freq 1602 MHz
50%, 3.96 dBi peak, AR 2.48 dB
Test Condition
Passive, free space
Freq 1227 6 MHz
53%, 0.20 dBi peak, AR 0.89 dB
Freq 1176 45 MHz
48%, 2.65 dBi peak, AR 1.12 dB
Freq 1278 75 MHz
46%, 3.16 dBi peak, AR 1.18 dB
Freq 1575 42 MHz
48%, 4.03 dBi peak, AR 2.27 dB

Product Attributes

Width
160 mm
Height
67 mm
Length
160 mm
Weight
535 g (MA1559.W.001 product page)

Questions buyers ask

Can the Synergy X deliver RTK accuracy?

Yes. Used on the base and/or rover of an RTK system, the multi-band GNSS element achieves cm-level accuracy. It covers GPS/QZSS L1/L2/L5/L6, GLONASS G1/G2/G3, Galileo E1/E5a/E5b/E6, BeiDou B1/B2a/B2b/B3, NavIC L5 and SBAS.

What cable and connectors come on this part number?

A detached 5 m RG-174/TGC-200 cable assembly attached to a pigtail base. All connectors are SMA male: one GNSS, four 5G/4G and four Wi-Fi.

Does it support 6 GHz Wi-Fi?

Yes. The four Wi-Fi elements cover 2400-2500 MHz and 5-7.125 GHz, including 5925-7125 MHz. Taoglas specifies Wi-Fi 6 and Wi-Fi 7 capability.

What power does the GNSS element need?

The active GNSS LNA runs from +1.8 to +5.0 VDC and draws under 20 mA. It is typically supplied by the GNSS receiver or router port.

Is it weatherproof?

Yes. The polycarbonate enclosure is IP67 rated and operates from -40 °C to 85 °C.
