Cradlepoint RX30-MC TAA Managed Accessory for R1900 with Modular Modem Slot and 4-Port GbE Switch

MPN TAA-MB-RX30-MC

Made for Cradlepoint

$228.75$249.99Save $21.24

In stockShips from the US

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Cradlepoint TAA-MB-RX30-MC is the TAA-compliant version of the RX30-MC Managed Accessory for the Ericsson Cradlepoint R1900 5G ruggedized router. This compact, ruggedized unit adds one MC400 modular modem slot for a second modem and four switchable GbE RJ45 ports. It is IP64 rated, runs on 9–36 VDC and carries vehicle and rail certifications. The modem is sold separately.

  • Managed accessory designed for the Ericsson Cradlepoint R1900 5G ruggedized router
  • TAA-compliant version of the RX30-MC (MB-RX30-MC)
  • 1 x MC400 modular modem slot for a second modem (peak throughput 300 Mbps; modem sold separately)
  • 4 x GbE RJ45 ports, LAN/WAN switchable
  • IP64 ruggedized enclosure rated from -30 °C to 70 °C
  • 9–36 VDC input with reverse polarity and ISO 7637-2 transient protection
  • E-Mark, EN 50155 Class S1, EN 50121-3-2, MIL STD 810G and SAE J1455 certifications
  • Add carrier diversity to an R1900 by installing a second MC400 modem in the modular slot

The Cradlepoint RX30-MC Managed Accessory (part number TAA-MB-RX30-MC, the TAA-compliant version of MB-RX30-MC) expands the Ericsson Cradlepoint R1900 5G ruggedized router. It is built for fleets, public safety vehicles, transit and industrial sites that need carrier diversity and more wired connections than the R1900 provides on its own. The RX30-MC works only with the R1900, and activating it requires an R1900 licensed to an Ericsson NetCloud service plan.

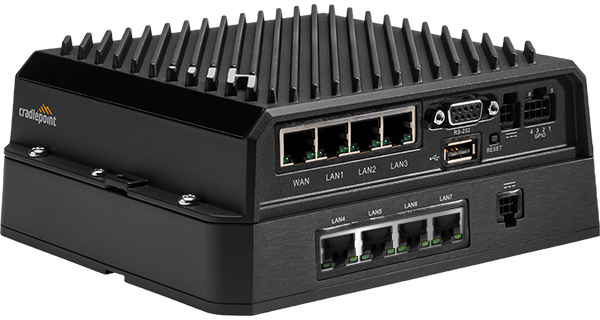

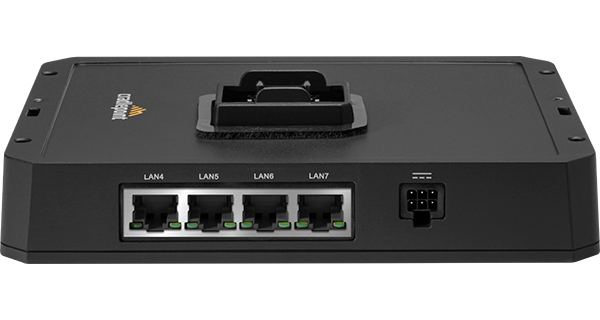

The accessory has two jobs. Its MC400 modular modem slot accepts a second Cradlepoint MC400 modem, with a peak throughput of 300 Mbps through the slot. The R1900 data sheet lists the MC400 5G Modem, which requires a 4FF SIM, as an upgrade for an R1900 with the RX30-MC. The accessory also adds four GbE RJ45 ports, each switchable between LAN and WAN, for cameras, terminals, sensors or a backup wired uplink. These ports do not supply PoE. A 6-pin GPIO connector (2x3 Molex Micro-fit, 3 mm locking type) handles I/O integration.

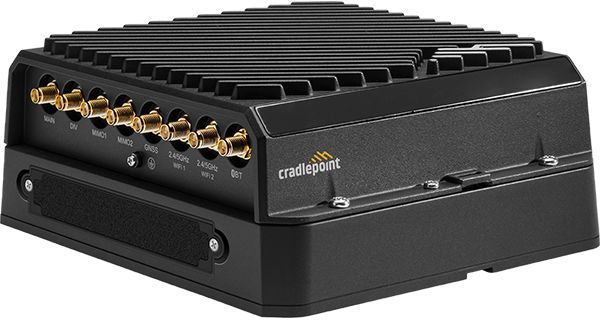

The RX30-MC matches the R1900's rugged design. It has an IP64 rating (dust tight and protected against splashing water) and operates from -30 °C to 70 °C (-22 °F to 158 °F). It accepts 9–36 VDC with reverse-polarity and transient-voltage protection per ISO 7637-2. It is certified to E-Mark, EN 50155 Class S1, EN 50121-3-2, MIL STD 810G and SAE J1455. The calculated MTBF is 2,697,409 hours (Telcordia SR332 at 25 °C).

In the box are the managed accessory, a 3-meter 18AWG GPIO and power cable (2x3), a small accessories kit and a mounting template. The RX30 quick start guide and data sheet cover installation, fusing and power details.

Ideal for

  • Adding a second cellular modem to an R1900 for carrier diversity in emergency and public safety vehicles
  • Connecting onboard cameras, terminals and sensors in transit buses and rail cars
  • Expanding wired connectivity for ruggedized R1900 deployments at industrial and field sites
  • Supporting TAA-compliant government and municipal fleet deployments

Specifications

Power

Protection
Reverse polarity and transient voltage protection per ISO 7637-2
Fuse 9 24 Vdc
10 A fuse for 9–24 VDC installations
Input Voltage
9–36 VDC steady state (requires in-line fuse for vehicle installations)
Connector Type
6-pin (2x3) Molex Micro-fit External Power Connector
Consumption Idle
21 W
Fuse Over 24 Vdc
5 A fuse for > 24 VDC installations
Consumption Heavy
31 W
Consumption Sleep
0.07 W
Consumption Typical
27 W
Consumption Test Condition
R1900-5GB + RX30, 12 V input, 25 °C (77 °F) ambient

General

MPN
TAA-MB-RX30-MC
UPC
840292700208
Brand
Cradlepoint (Ericsson)
Model
RX30-MC Managed Accessory — Modem & Switch
Regions
North America, Europe, Asia-Pacific
TAA Compliant
TAA-compliant version
Accessory Family
Modular
Manufacturer Part Numbers
Related part numbers: MA-RX30-MC, MB-RX30-MC

Network

PoE
N/A (no PoE)
Ethernet
4 x GbE RJ45 (LAN/WAN switchable)

Package

Included Kit
Small accessories kit
Included Cable
GPIO & power cable, 2x3, 3 m, 18AWG (170858-000)
Included Template
Mounting template
Included Accessory
RX30-MC Managed Accessory — Modem & Switch
Optional Rail Cable
Rail Safe GPIO Cable, Small 2x3, Black, 3 m, 18AWG (170872-000)
Optional Power Supply
Power Supply, 12V, Small, 2x3 (C13 line cord not included), -30 °C to 70 °C (170870-000)

Physical

Weight
0.84 kg (1 lb 13.5 oz)
Dimensions
173 x 152 x 30 mm (6.81 x 5.98 x 1.18 in)
Shipping Weight
3.07 lb (shipping)

Expansion

Gpio
1 x 6-pin GPIO connector
Modem Slot
1 x MC400 Modular Modem slot (modem sold separately)
Gpio Connector Type
2x3 Molex Micro-fit (3 mm locking type)
Modem Slot Peak Throughput
300 Mbps

Reliability

Calculated MTBF
2,697,409 hours (Telcordia SR332 at 25 °C)

Compatibility

Supported Routers
Ericsson Cradlepoint R1900
Activation Requirement
Requires an R1900 licensed to an Ericsson NetCloud service plan

Environmental

Storage Humidity
5% to 95%
Ingress Protection
IP64 (dust tight and splashing water)
Operating Humidity
10% to 90%
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)

Certifications

Rail
EN 50121-3-2 (Power Surge 0.5 & 1 kV Criteria A; 1.5 kV Criteria C), EN 50155 Class S1
Safety
UL/cUL, CB Scheme, EN 60950-1, EN 62368-1
Vehicle
E-Mark
Substance Compliance
WEEE, RoHS, REACH, California Prop 65
Shock Vibration Humidity
MIL STD 810G, SAE J1455

Questions buyers ask

Does the RX30-MC include a modem?

No. The RX30-MC provides an MC400 modular modem slot, and the modem is sold separately. The R1900 data sheet lists the MC400 5G Modem, which requires a 4FF SIM, as an upgrade for an R1900 with the RX30-MC.

Which routers does the RX30-MC work with?

It is designed only for the Ericsson Cradlepoint R1900. Activation requires an R1900 licensed to an Ericsson NetCloud service plan.

Do the Ethernet ports provide PoE?

No. The RX30-MC's four GbE RJ45 ports are standard, LAN/WAN-switchable ports without PoE. For powered ports, Cradlepoint offers the RX30-PoE.

Can the RX30-MC be installed in vehicles and rail cars?

Yes. It accepts 9–36 VDC with ISO 7637-2 transient protection and needs an in-line fuse in vehicle installations: 10 A for 9–24 VDC or 5 A above 24 VDC. It is certified to E-Mark, EN 50155 Class S1, EN 50121-3-2, MIL STD 810G and SAE J1455.

What comes in the box?

The RX30-MC managed accessory, a 3-meter 18AWG GPIO and power cable (2x3), a small accessories kit and a mounting template.
