StarTech.com UUSBOTGRA 5in Right Angle Micro USB to USB OTG Host Adapter Cable M/F

MPN UUSBOTGRA
  • Micro-USB
$3.55

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The StarTech.com UUSBOTGRA is a 5-inch Micro USB On-The-Go host adapter cable. It connects USB 2.0 thumb drives, keyboards and mice to an OTG-capable smartphone or tablet. The right-angle Micro USB-B male connector routes the cable along the device edge. That lets you hold the device comfortably while reducing strain on the port. The cable uses 28 AWG wire, aluminum-Mylar foil with braided shielding and a PVC jacket. It carries a lifetime warranty.

  • Converts a Micro USB OTG-capable phone or tablet into a USB host

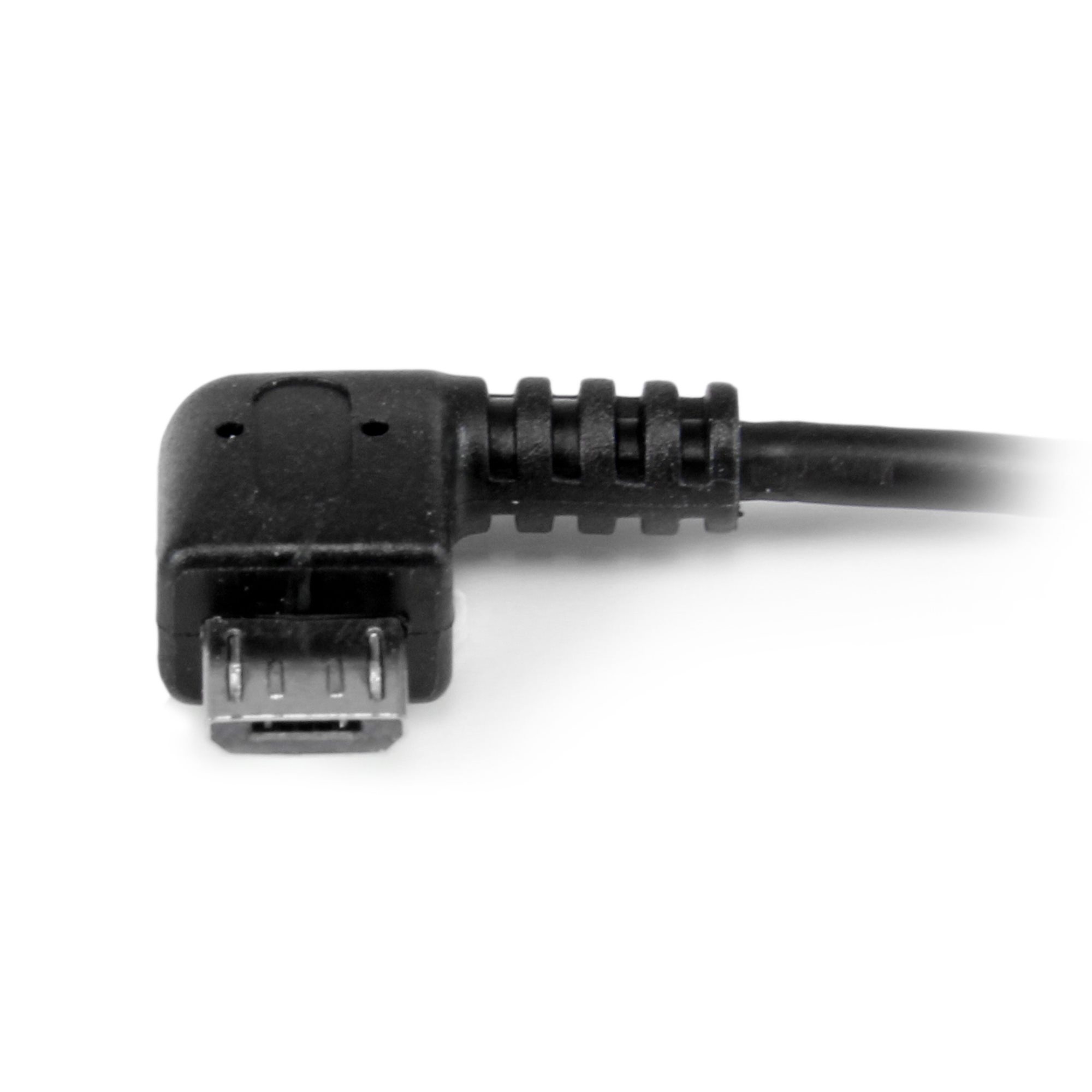

  • Right-angle Micro USB-B male connector (480Mbps, 2.5W)

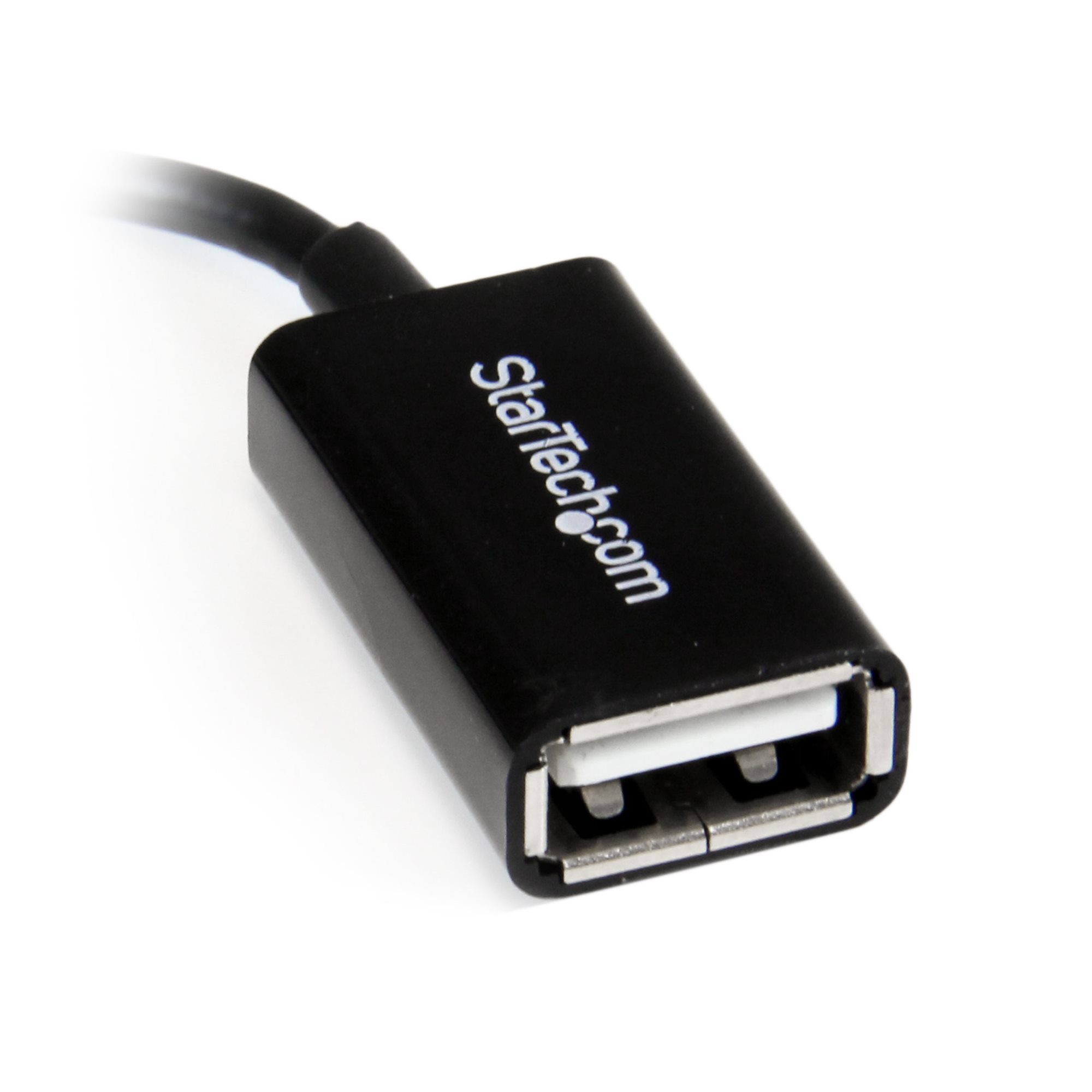

  • USB-A female port (480Mbps, 2.5W) for USB 2.0 peripherals
  • 5.0 in (12.7 cm) cable, straight to right-angle connector style
  • Aluminum-Mylar foil with braided shielding and 28 AWG wire
  • Durable PVC jacket with nickel-plated connectors
  • The right-angle plug keeps the cable flush with the device so it stays comfortable to hold
  • Reduced leverage on the Micro USB port helps protect the connection during use

The StarTech.com UUSBOTGRA turns a Micro USB tablet or smartphone that supports USB On-The-Go into a USB host. It connects to a standard USB-A peripheral such as a flash drive, keyboard or mouse. It suits mobile workers and field staff who need to move files or type on a device while travelling.

The cable runs straight to right angle. One end is a USB-A female port, and the other is a right-angle Micro USB-B male connector. Both ends are rated at 480Mbps and 2.5W. The angled plug lets you position the cable and the attached USB device so the phone or tablet stays comfortable to hold. It also takes pressure off the connection. At 5.0 in (12.7 cm), the cable is long enough to keep a thumb drive or dongle out of the way without adding clutter.

The cable uses 28 AWG wire and aluminum-Mylar foil with braided shielding inside a durable PVC jacket, with nickel-plated connectors. The package contains one adapter cable, and StarTech.com publishes a datasheet for the model. The cable works only with devices that support USB OTG. StarTech.com backs the UUSBOTGRA with a lifetime warranty.

Ideal for

  • Add a standard USB port to a Micro USB OTG-capable tablet or smartphone
  • Connect a USB keyboard or mouse to a tablet while travelling
  • Attach a thumb drive to a tablet, phone or eReader for removable storage
  • Hold a mobile device comfortably while a USB peripheral is attached

Specifications

General

MPN
UUSBOTGRA
UPC
065030857185
Brand
StarTech.com
Warranty
Lifetime
Package Quantity
1

Hardware

Connector Plating
Nickel
Cable Jacket Material
PVC - Polyvinyl Chloride
Cable Shield Material
Aluminum-Mylar Foil with Braid

Packaging

Package Depth
3.5 in [90 mm]
Package Width
2.6 in [67 mm]
Package Height
0.6 in [15 mm]
Shipping Weight
0.4 oz [12 g]
Included IN Package
1 - 5in Right Angle Micro USB to USB OTG Host Adapter M/F

Connectors

Connector 1
USB Micro-B (480Mbps, 2.5W)
Connector 2
USB-A (480Mbps, 2.5W)
Connector 1 Quantity
1
Connector 2 Quantity
1

Physical Environmental

Color
Black
Wire Gauge
28 AWG
Cable Length
5.0 in [12.7 cm]
Product Width
0.6 in [15 mm]
Product Height
0.3 in [7 mm]
Product Length
5.0 in [12.7 cm]
Connector Style
Straight to Right Angle
Weight OF Product
0.2 oz [7 g]

Questions buyers ask

Why choose a right-angle OTG cable?

The right-angle Micro USB connector lets you position the cable and USB device so the phone or tablet stays comfortable to hold. It also reduces strain on the connection.

Does it work with every Micro USB device?

It works only with devices that support USB On-The-Go (OTG). Devices without OTG host support will not recognize attached peripherals.

How long is the cable?

The cable is 5.0 in (12.7 cm) long.

What speed does it support?

Both connectors are rated at 480Mbps (USB 2.0) and 2.5W.
