Panorama WMM29G-24-58-NJ 2x2 MIMO Directional Antenna, 2.4/5 GHz Wi-Fi, N-Female

MPN WMM29G-24-58-NJ
  • Wi-Fi
  • 9 dBi and up
$155.70$213.34Save $57.64

Backordered · ships as soon as it arrives

1
Request a quote · volume, multi-site or with plans

Overview

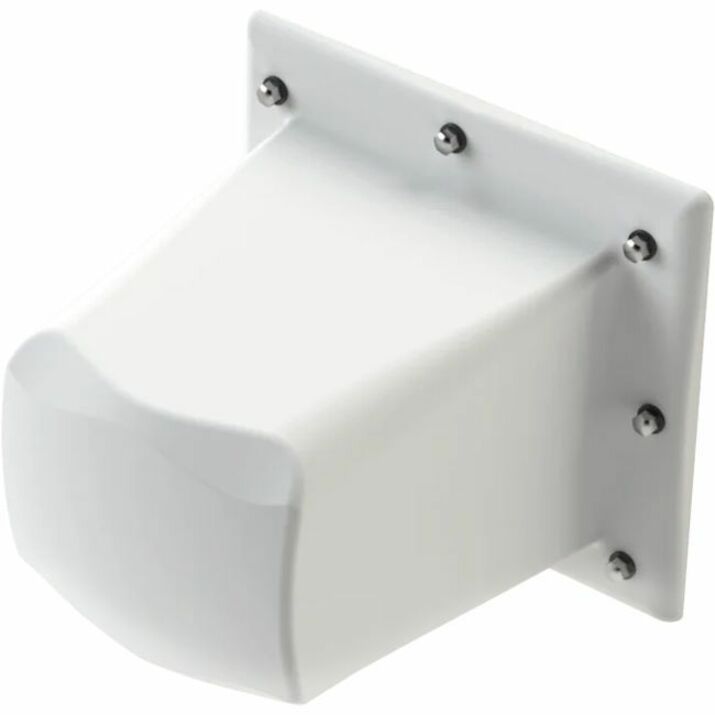

The Panorama WMM29G-24-58-NJ packs two isolated gain elements covering 2.4-2.5 / 4.9-6.0 GHz into one weather-resistant directional housing with N-female bulkheads - client-side MIMO from a single tidy panel. It covers 2.4-2.5 / 4.9-6.0 GHz and delivers 9 dBi of gain through a N-type female (bulkhead, 2x) connector. Two chains, one mount, one aim - instead of a pair of drifting dish brackets.

  • 2.4-2.5 / 4.9-6.0 GHz operating frequency range
  • 9 dBi antenna gain
  • N-type female (bulkhead, 2x) connector termination
  • White housing finish
  • Wall, mast, or rail (bracket included) mounting
  • Panorama part number WMM29G-24-58-NJ
  • UPC 5055416035332
  • Install in seconds - hand-thread the N-type female (bulkhead, 2x) connector onto the port, no tools or software

The Panorama WMM29G-24-58-NJ is a directional 2x2 MIMO antenna from the WMM[X]9G range, built to provide client-side MIMO coverage across 2.4-2.5 / 4.9-6.0 GHz. Up to 9 dBi of gain per element rewards careful aiming, and the robust low-profile housing keeps both elements aligned permanently - no more twin-antenna installs slowly rotating out of polarization on a windy mast.

RF performance is matched to cellular service: the element operates from 2.4-2.5 / 4.9-6.0 GHz with 9 dBi of gain and terminates in a N-type female (bulkhead, 2x) connector. Fitted N-female bulkheads accept standard jumpers, so cable length is chosen per site rather than fixed at the factory.

Point it at the far end for point-to-point links, or use its relatively wide beamwidth to cover a sector; several units arranged around a mast blanket a yard. The weather-resistant housing is designed for rail, mast, and wall duty.

Cloud Care Networks stocks the Panorama WMM29G-24-58-NJ alongside the gateways and routers it supports, so IT and field-service teams can consolidate antennas, spares, and replacement hardware on a single order.

Ideal for

  • Point-to-point links between buildings
  • Sector coverage across yards and laydown areas
  • Rail and mast-mounted client radios
  • Camera and telemetry backhaul on industrial sites

Specifications

Package

UPC
5055416035332
Quantity
1 antenna per package
Shipping Weight
4.0 lb

Cellular

Antenna Gain
9 dBi
Frequency Range
2.4-2.5 / 4.9-6.0 GHz
Network Support
2x2 MIMO 2.4/5 GHz Wi-Fi
Radiation Pattern
Directional

Physical

Color
White
Height
6.61 in
Mounting
Wall, mast, or rail (bracket included)
Connector
N-type female (bulkhead, 2x)

Questions buyers ask

Which hardware is the WMM29G-24-58-NJ designed for?

Connect it to radios and routers with two antenna ports via N-male jumpers - outdoor APs, CPE radios, and industrial gateways. Both ports should be cabled to preserve MIMO throughput; single-port radios can use one element.

What connector does it use?

It uses a N-type female (bulkhead, 2x) connector. Confirm your router or gateway exposes a matching port before ordering; most fixed wireless devices in this class do.

What is included in the box?

The WMM29G-24-58-NJ antenna with its mounting bracket. N-male jumper cables to the radio are ordered separately in the length your run needs.

Is there a warranty?

It is covered under Panorama's standard accessory warranty. Cloud Care Networks can confirm the current term and handle RMAs on your behalf.
