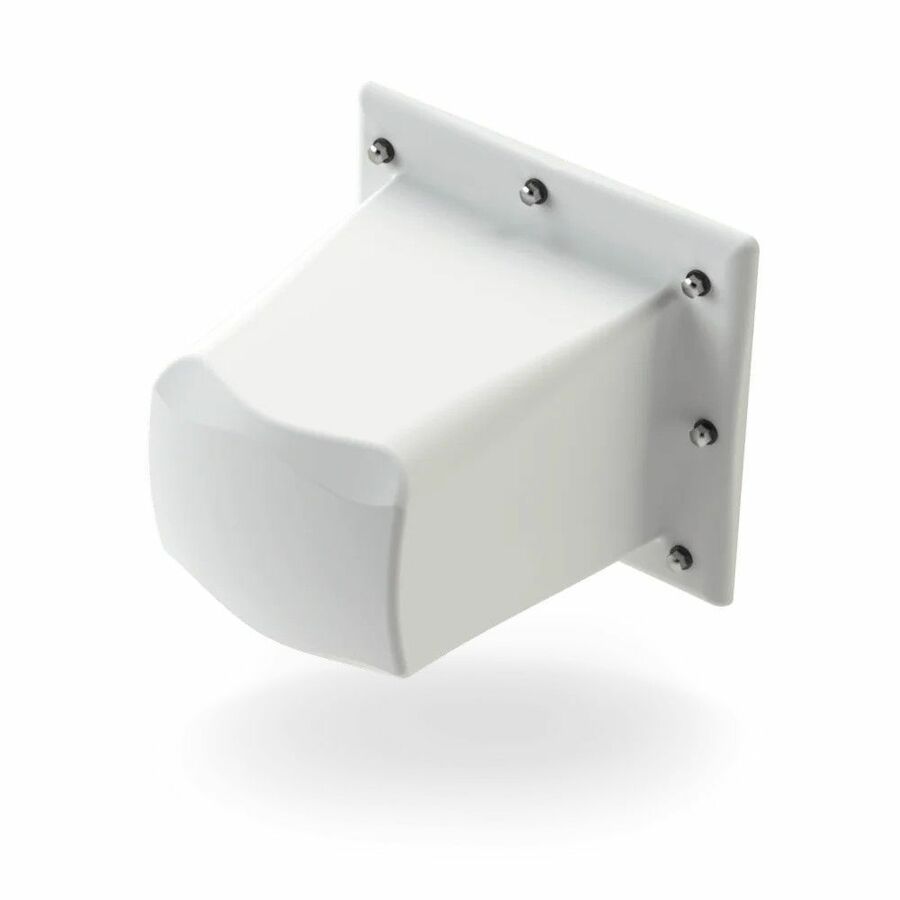

Panorama WMM49G-24-58-NJ 4x4 MIMO Directional Wi-Fi 6E Antenna, N-Female

MPN WMM49G-24-58-NJ
  • Wi-Fi
$179.87$249.72Save $69.85

Backordered · ships as soon as it arrives

1
Request a quote · volume, multi-site or with plans

Overview

The Panorama WMM49G-24-58-NJ houses four separately fed gain elements covering 2.4-5.0 and 4.9-7.2 GHz, delivering client-side 4x4 MIMO with Wi-Fi 6E support through N-female bulkheads. It covers 2.4-5.0 / 4.9-7.2 GHz and delivers 9 dBi of gain through a N-type female (bulkhead, 4x) connector. Four aligned chains, 6 GHz-ready spectrum, one bracket on the mast.

  • 2.4-5.0 / 4.9-7.2 GHz operating frequency range
  • 9 dBi antenna gain
  • N-type female (bulkhead, 4x) connector termination
  • White housing finish
  • Mast, rail, or pole (bracket included) mounting
  • Panorama part number WMM49G-24-58-NJ
  • Install in seconds - hand-thread the N-type female (bulkhead, 4x) connector onto the port, no tools or software
  • Keep every band usable with continuous 2.4-5.0 / 4.9-7.2 GHz coverage instead of narrowband whips

The Panorama WMM49G-24-58-NJ is the four-element flagship of the WMM[X]9G directional Wi-Fi range. Four separately fed wideband gain elements provide client-side MIMO for 2.4 and 5.0-7.2 GHz networks - including the 6 GHz Wi-Fi 6E band - at 9 dBi of directional gain, from a weather-resistant housing built for rail and mast duty.

RF performance is matched to cellular service: the element operates from 2.4-5.0 / 4.9-7.2 GHz with 9 dBi of gain and terminates in a N-type female (bulkhead, 4x) connector. Coverage to 7.2 GHz means the panel survives the jump to Wi-Fi 6E APs without hardware replacement.

Outdoor Wi-Fi 6E radios are arriving with four chains and 6 GHz radios, and legacy dual-band panels cannot follow them. This housing feeds all four chains across the full span from one aimed position - sector coverage, long bridges, or high-capacity yard networks.

Cloud Care Networks stocks the Panorama WMM49G-24-58-NJ alongside the gateways and routers it supports, so IT and field-service teams can consolidate antennas, spares, and replacement hardware on a single order.

Ideal for

  • Outdoor Wi-Fi 6E access points with 4x4 radios
  • High-capacity point-to-point bridges
  • Port, rail, and logistics yard Wi-Fi
  • Future-proof sector antennas ahead of 6 GHz rollouts

Specifications

Package

Quantity
1 antenna per package
Shipping Weight
1.0 lb

Cellular

Antenna Gain
9 dBi
Frequency Range
2.4-5.0 / 4.9-7.2 GHz
Network Support
4x4 MIMO Wi-Fi 6E / WLAN
Radiation Pattern
Directional

Physical

Color
White
Depth
7.60 in
Height
6.61 in
Mounting
Mast, rail, or pole (bracket included)
Connector
N-type female (bulkhead, 4x)

Questions buyers ask

Which hardware is the WMM49G-24-58-NJ designed for?

Pair it with 4x4 outdoor access points and bridges exposing N-type or adaptable antenna ports. All four bulkheads should be cabled for 4x4 operation; it also serves 2x2 and 3x3 radios with spare ports unused.

What connector does it use?

It uses a N-type female (bulkhead, 4x) connector. Confirm your router or gateway exposes a matching port before ordering; most fixed wireless devices in this class do.

What is included in the box?

The antenna with its mounting bracket; four N-male jumper cables are ordered separately to suit the run length.

Is there a warranty?

It is covered under Panorama's standard accessory warranty. Cloud Care Networks can confirm the current term and handle RMAs on your behalf.
