Panorama WMMG-7-38-03NJ 2x2 MIMO 4G/5G Wall/Mast Antenna with 0.3 m N-Female Leads

5GMPN WMMG-7-38-03NJ
  • 2x2 MIMO
  • 3–5 dBi
  • Up to 1 m
$122.70$169.34Save $46.64

Backordered · ships as soon as it arrives

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

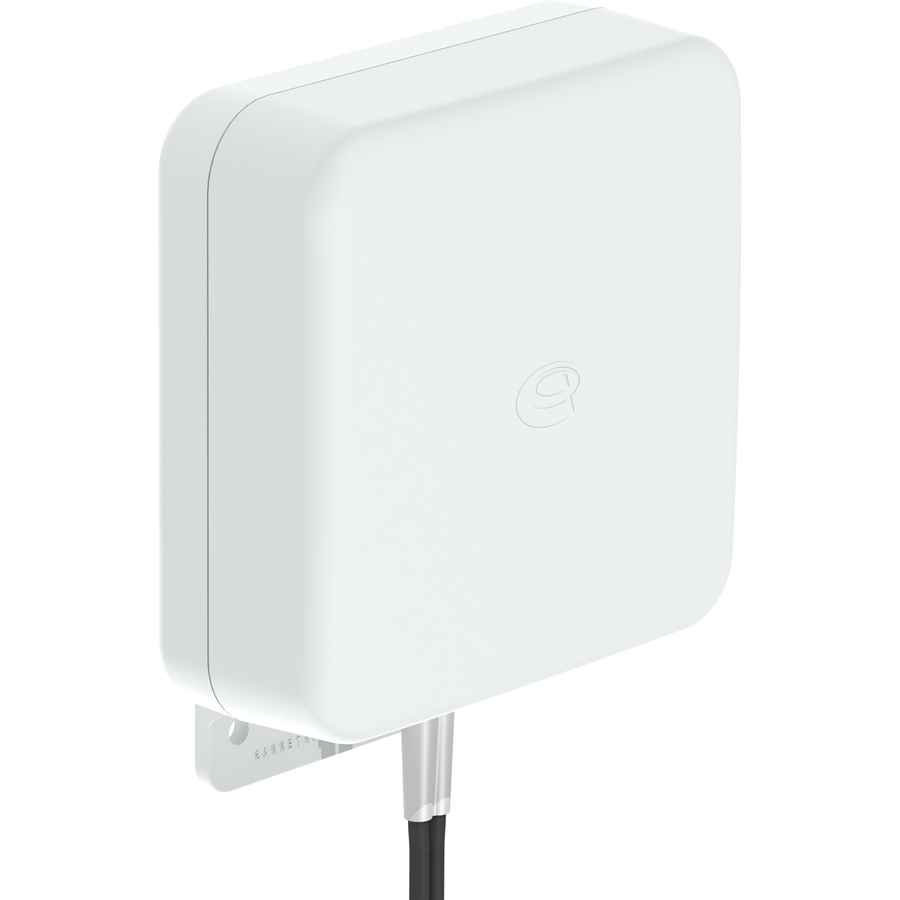

The Panorama WMMG-7-38-03NJ is a fixed-site 2x2 MIMO cellular antenna covering 698–3800 MHz for 2G/3G, 4G LTE and 5G networks up to 3.8 GHz. Two wideband elements deliver 2–5 dBi gain from a UV-stable, IP65-rated housing that mounts on a wall or mast, or sits on a desk stand. Short 0.3 m CS29 tails end in N female connectors, so you can run the low-loss cable of your choice to the router.

  • 2x2 MIMO antenna with two separately fed ultra-wideband cellular elements
  • Covers 698–3800 MHz for 2G/3G, 4G LTE and 5G up to 3.8 GHz
  • Gain of 2 dBi (698–960 MHz), 5 dBi (1710–2170 MHz) and 4 dBi (2200–3800 MHz)
  • UV-stable, IP65-rated white housing, 155 x 155 mm
  • Integral twinned CS29 cable, 0.3 m, terminated in N female connectors
  • Wall and mast hardware provided, plus a desk stand for window-sill placement
  • Improves signal and data rates in fringe coverage areas where a router's internal antennas struggle
  • Short N-female tails let you choose low-loss cable for longer runs to indoor equipment

The Panorama WMMG-7-38-03NJ is a fixed-site 2x2 MIMO cellular antenna for routers and gateways that need a stronger, more stable connection than their built-in or stick antennas deliver. Two separately fed ultra-wideband elements share one white, UV-stable, IP65-rated housing and cover 698–3800 MHz. That range spans 2G/3G, 4G LTE and 5G networks up to 3.8 GHz. Gain is 2 dBi at 698–960 MHz, 5 dBi at 1710–2170 MHz and 4 dBi at 2200–3800 MHz. The wide beam pattern suits metro and urban areas as well as fringe coverage zones.

This version comes with an integral twinned CS29 coaxial cable just 0.3 m long, terminated in N female (socket) connectors. The short tails let installers run lower-loss cable to the router, which is the better approach for longer runs between an exterior wall or mast and an indoor equipment location. This is the cellular-only model. Panorama's WMMGG-7-38-03NJ adds a GPS/GNSS module.

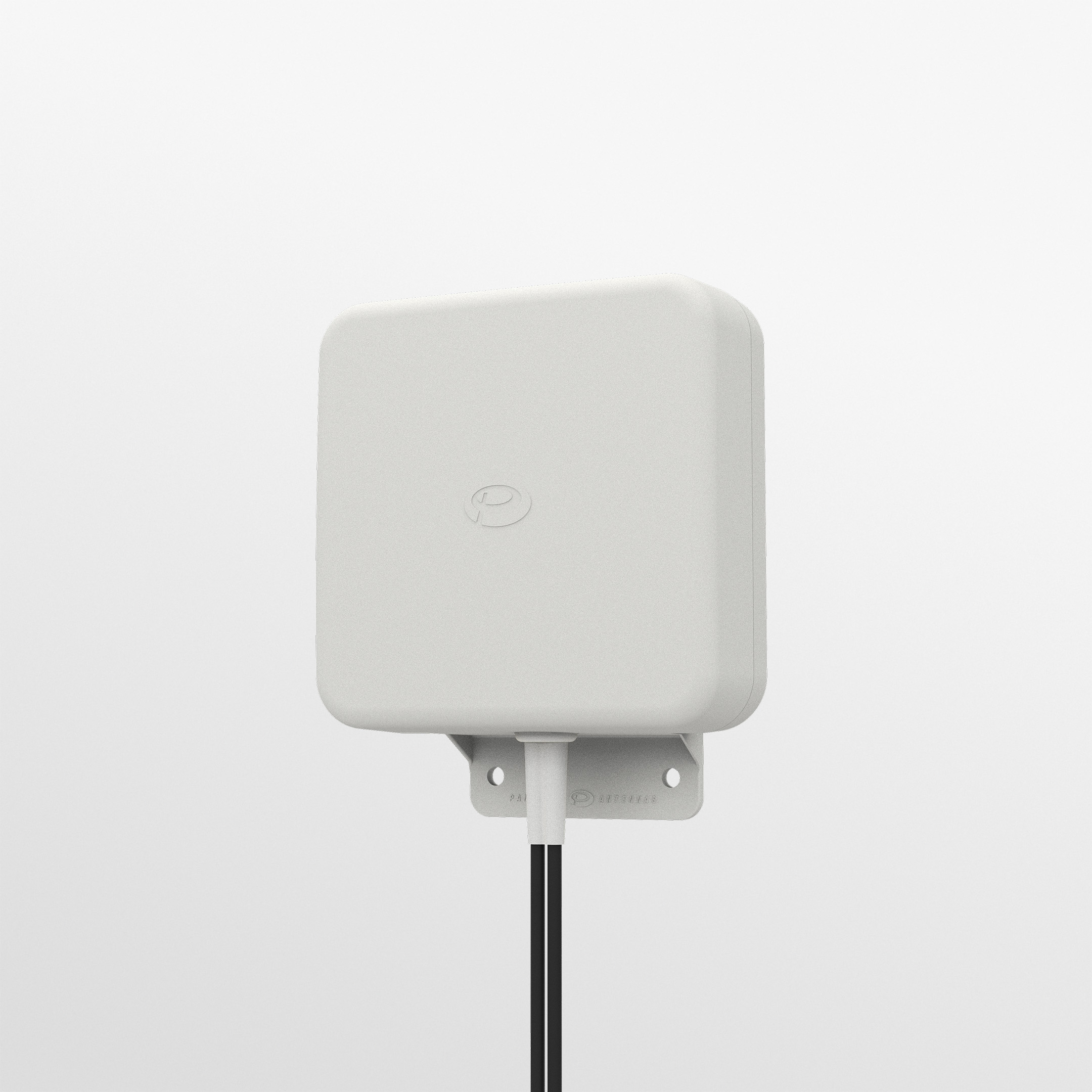

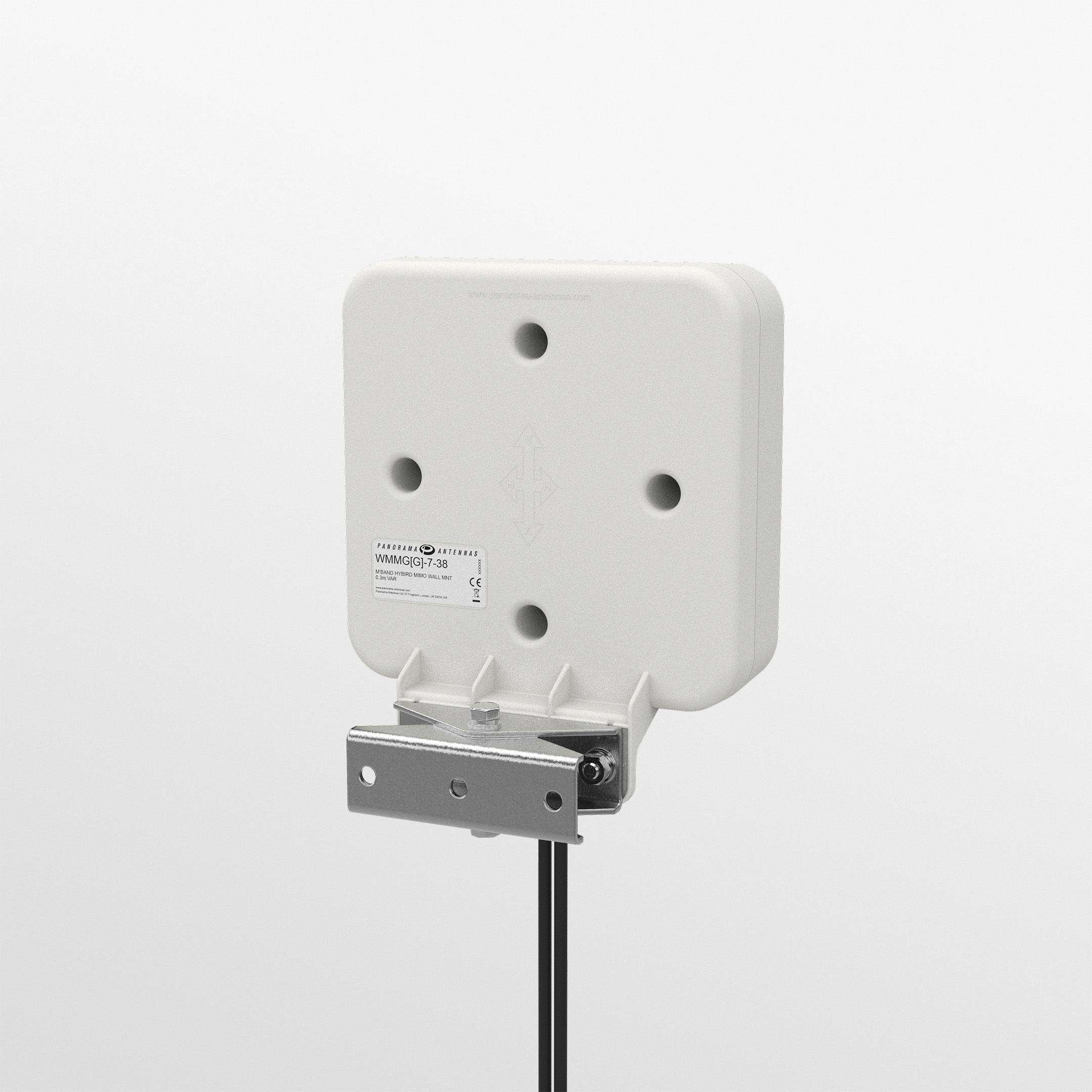

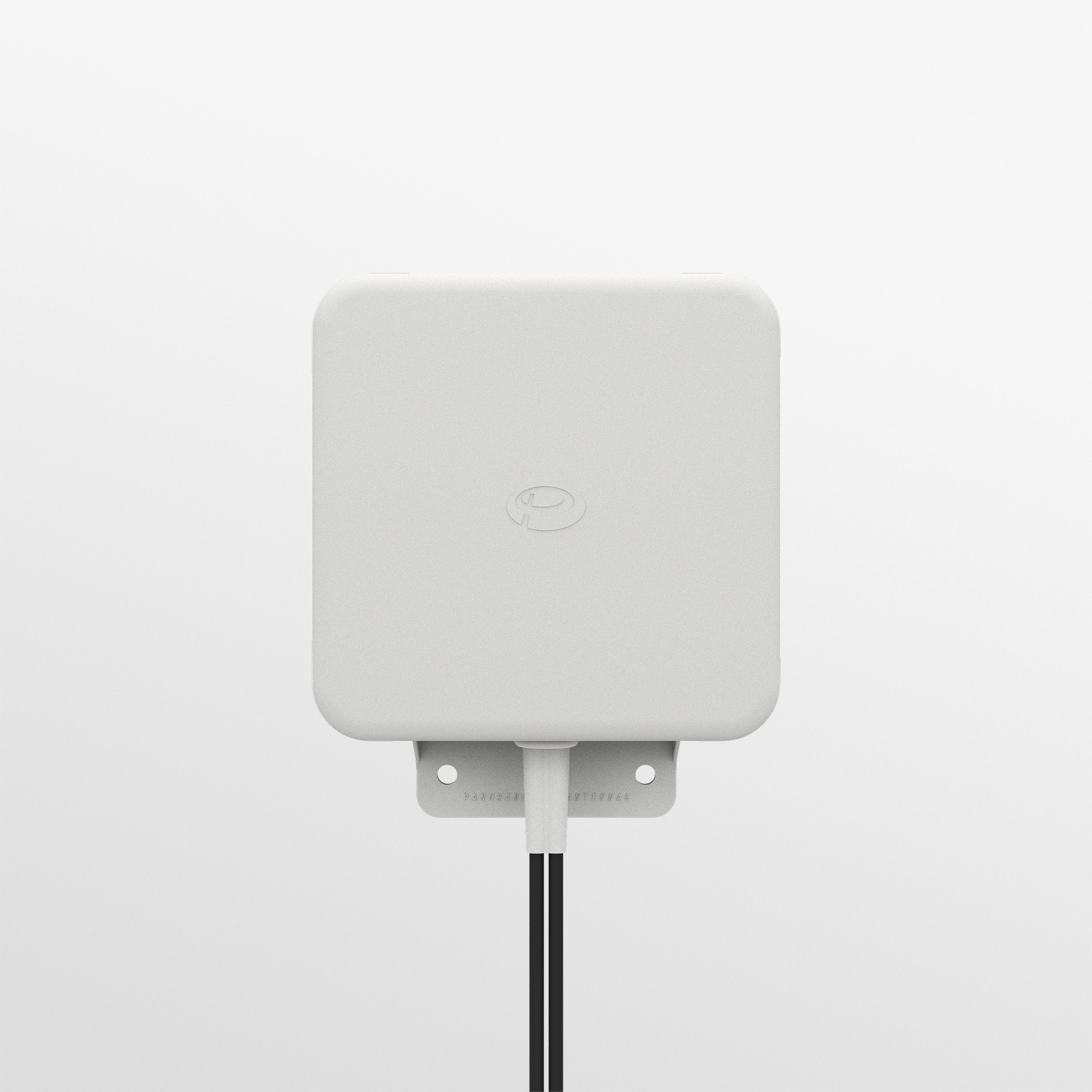

Wall and mast hardware is provided. A desk stand is also included so the antenna can sit on a window sill. The housing measures 155 x 155 mm, operates from -45 °C to +80 °C and handles up to 20 W input power. Cable flammability approvals include EN45545-2 HL3 and UN ECE R118. Panorama's datasheet and installation instructions cover setup.

Typical deployments include rural broadband, failover connectivity for branch sites, and enterprise fixed-wireless installations where one external antenna serves a cellular router.

Ideal for

  • Rural broadband with a cellular router in fringe coverage areas
  • Failover connectivity for branch offices and retail sites
  • Enterprise fixed-wireless installations with longer low-loss cable runs to an indoor comms room

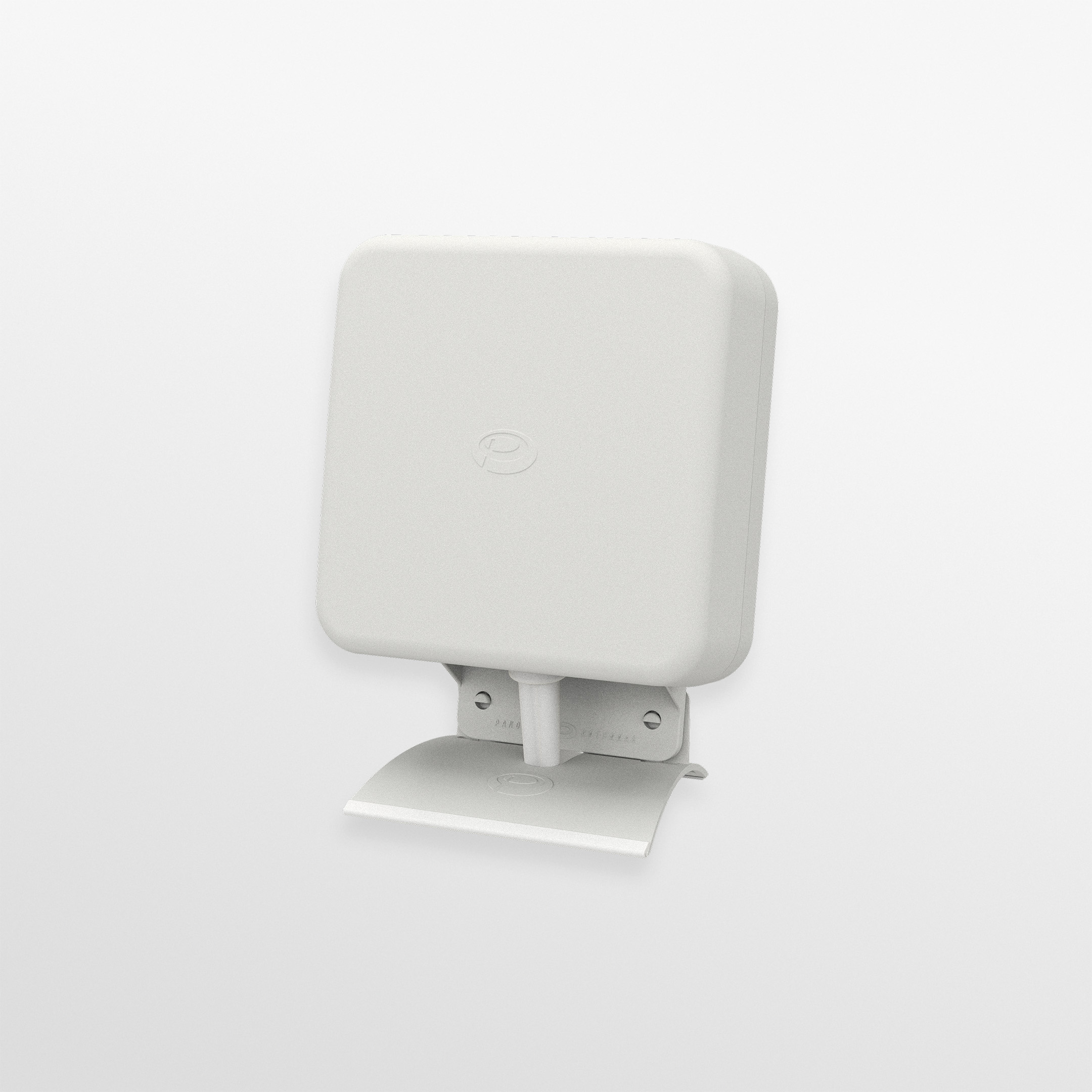

  • Window-sill placement on the included desk stand where exterior mounting isn't possible

Specifications

GPS

Number OF GPS Elements
None on this model (GPS on WMMGG versions)

Cable

Cable Type LTE
CS29 (integral twinned coax)
Cable Length LTE
0.3 m (0.98 ft)

General

MPN
WMMG-7-38-03NJ
UPC
5019738848995
Brand
Panorama Antennas
Product Family
WMMG[G]-7-38 MiMo Wall / Mast Antenna

Package

Shipping Weight
1.80 lb
Included Mounting
Wall/mast hardware and desk stand

Mounting

Mounting Methods
Desk, mast, wall
Mounting Type Fixed
Desk, mast, wall

Approvals

IP Rating
IP65
Cable Flammability
EN45545-2 HL3, UN ECE R118, EN6722

Electrical

Pattern
Directional (wide beam)
Uhf Elements
No
Wi-Fi Elements
No
Max Input Power
20 W
Cellular LTE Elements
2 x 2 MIMO
Frequency Gain Low Band
698–960 MHz: 2 dBi
Frequency Gain Mid Band
1710–2170 MHz: 5 dBi
Frequency Gain High Band
2200–3800 MHz: 4 dBi

Mechanical

Width
155 mm (6.10 in)
Colour
White
Height
155 mm (6.10 in)
Operating Temperature
-45 °C to +80 °C (-49 °F to +176 °F)

Technology

Technology
2G/3G, 4G LTE, 5G (to 3.8 GHz)

Termination

Connector LTE
N female (socket)

Questions buyers ask

Does the WMMG-7-38-03NJ include a GPS antenna?

No. The WMMG-7-38-03NJ is the cellular-only 2x2 MIMO version. Panorama's WMMGG-7-38-03NJ adds a GPS module with its own 0.3 m N-female lead.

Why does it have such short cables?

The 0.3 m CS29 tails end in N female connectors. You can join them to lower-loss cable of your choice, which is the preferred approach for longer runs between the antenna and the router.

Which networks does it cover?

It covers 698–3800 MHz, supporting 2G/3G, 4G LTE and 5G networks up to 3.8 GHz, with 2 to 5 dBi gain depending on frequency.

How can it be mounted?

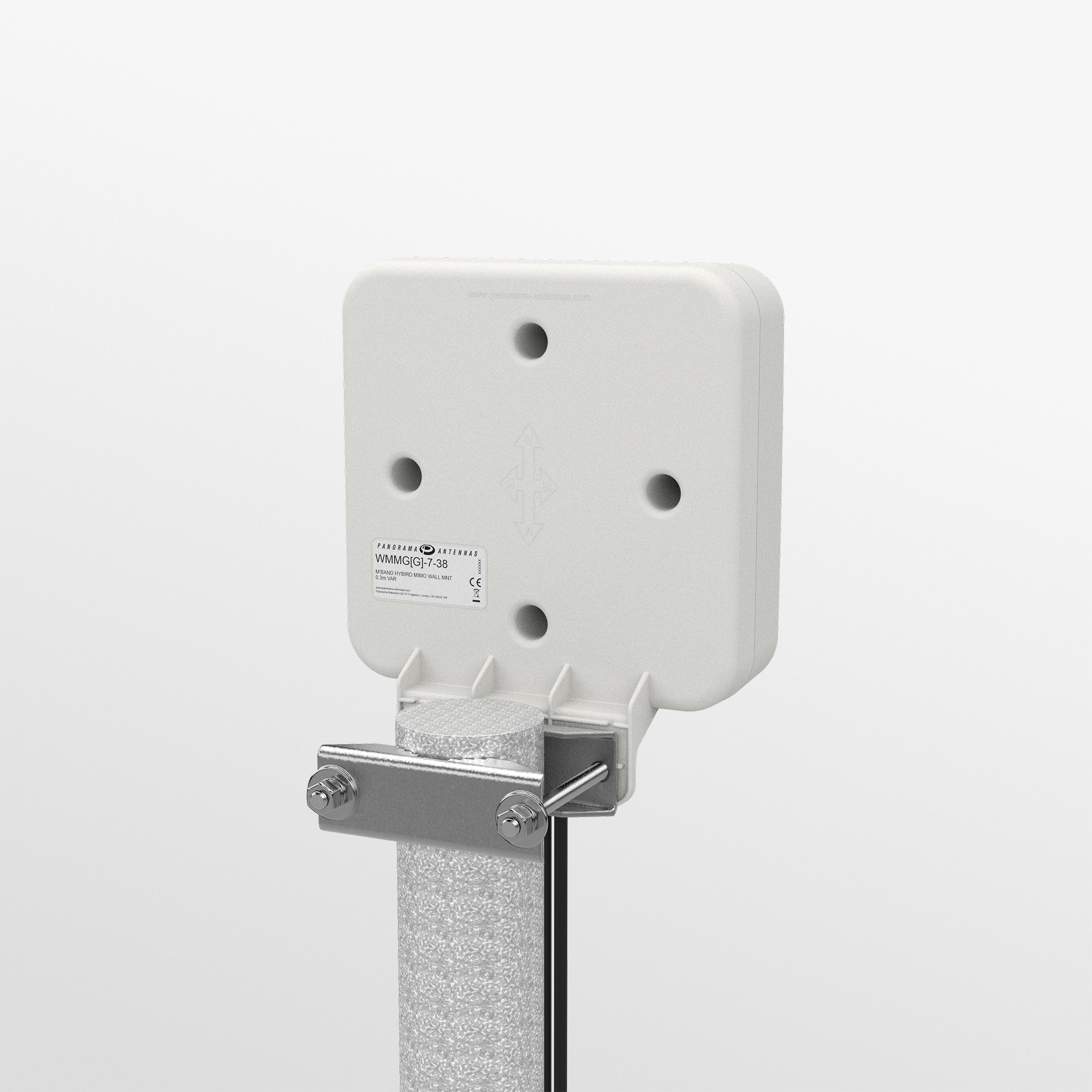

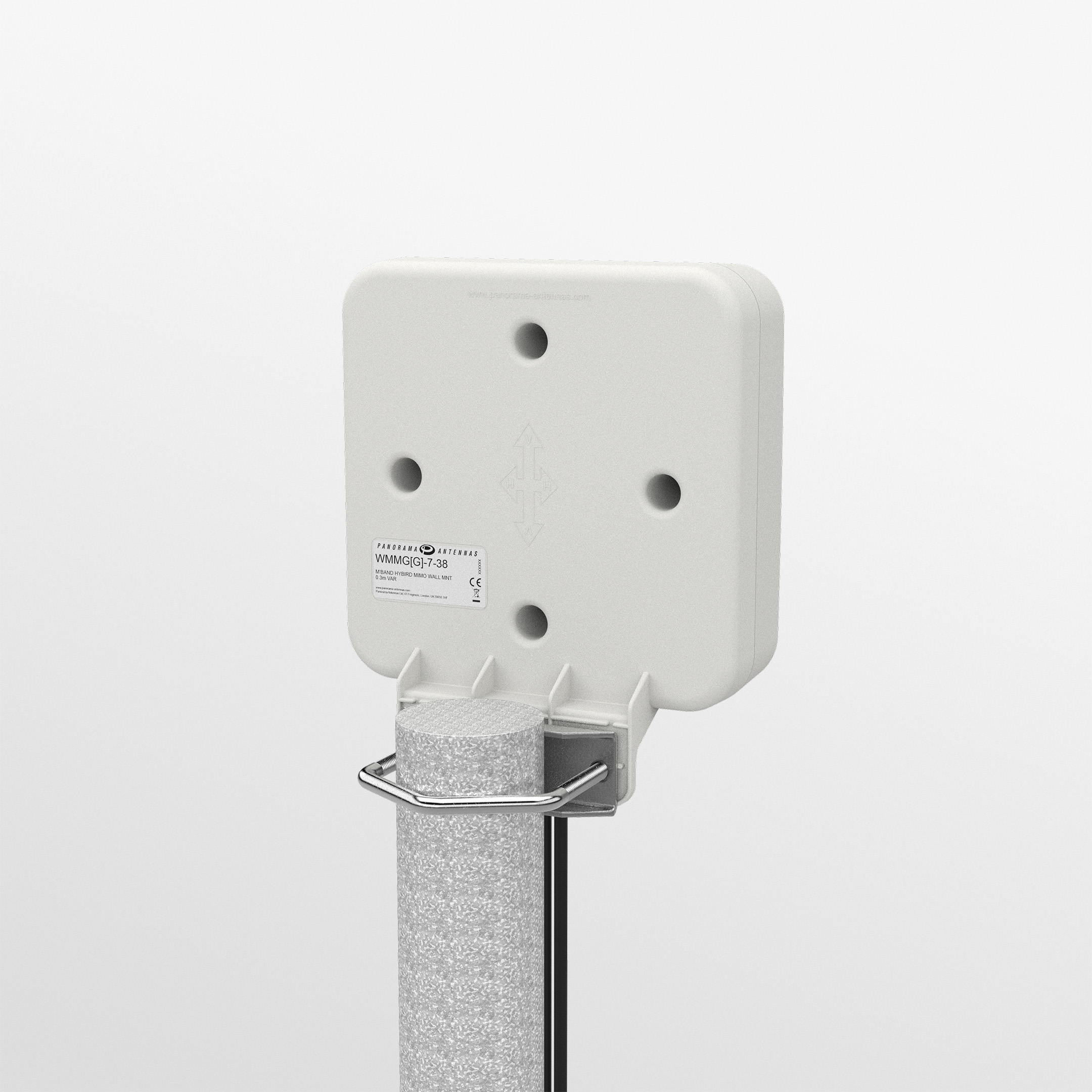

Wall and mast hardware is provided, and a desk stand is included so the antenna can be placed on a window sill.

Is it suitable for outdoor use?

Yes. The housing is UV stable and IP65 rated, with an operating range of -45 °C to +80 °C.
