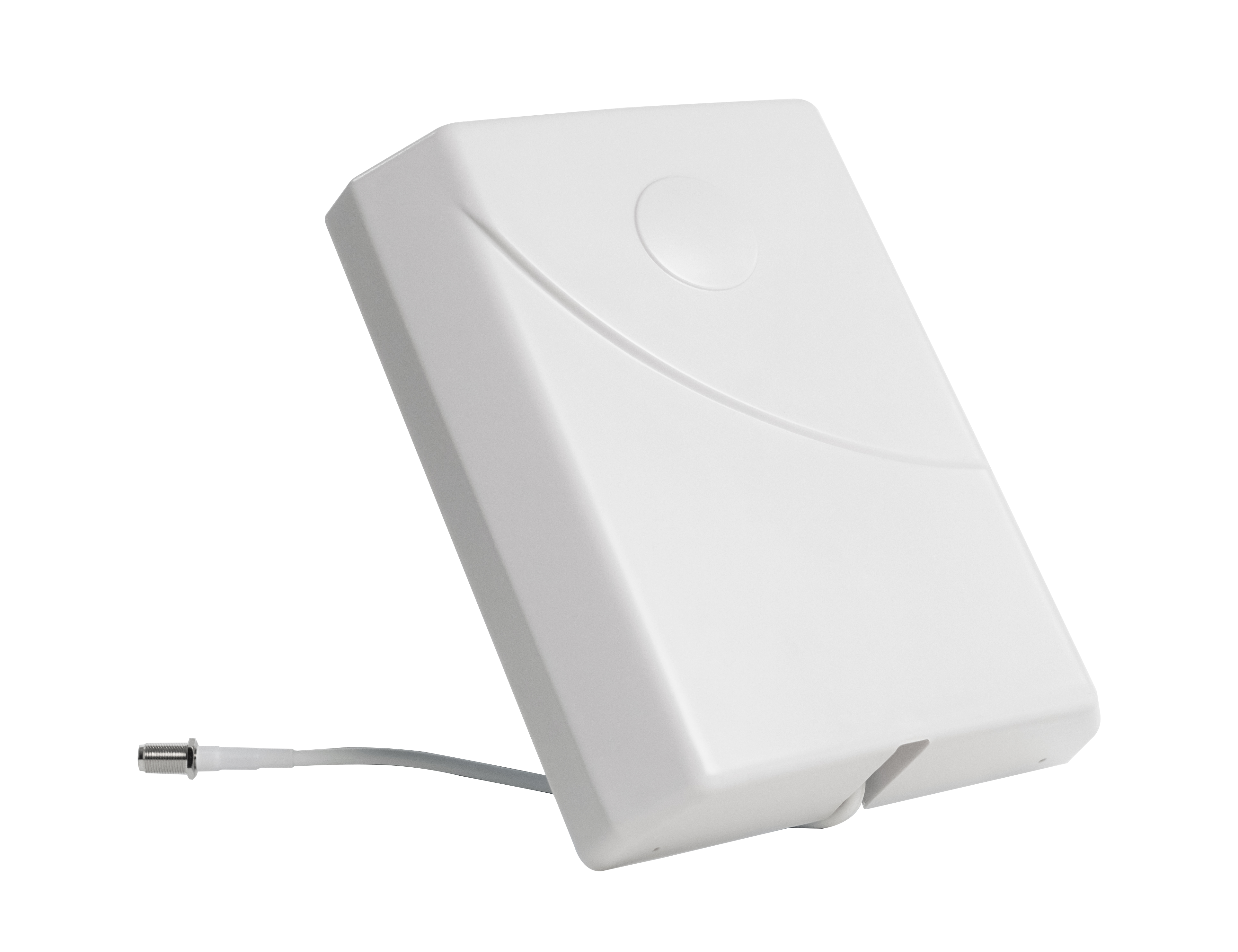

Wilson Electronics 311135 Indoor Wall Mount Panel Antenna
- 9 dBi and up
In stock · only 2 leftFree 2-3 day shipping
- Free 2-3 day shipping to the US
- 30-day returns on unopened devices
- Secure checkout · pay by card
Overview
Direct cellular signal into indoor coverage areas with a wall-mounted panel antenna for compatible signal boosters. Operating across 700–2,700 MHz with 50 Ohm impedance, this white directional antenna combines vertical polarization, a built-in ground plane and an N-Female connector on a 9 in pigtail. Mounting hardware is included.
- 700–2,700 MHz multiband operation for cellular signal booster systems
- 50 Ohm impedance and N-Female termination for compatible antenna cabling
- Directional radiation pattern with vertical polarization
- 9 in pigtail for connection at the wall-mounted panel
- Built-in ground plane and included mounting hardware
- 8.27 × 7.09 × 1.73 in panel dimensions
- Support indoor cellular booster coverage across 700–2,700 MHz.
- Connect to compatible 50 Ohm booster cabling through an N-Female connector on a 9 in pigtail.
Direct a compatible cellular signal booster's indoor coverage toward occupied rooms, corridors or work areas with Wilson Electronics 311135. This white directional panel antenna operates across 700–2,700 MHz and uses vertical polarization with 50 Ohm impedance. Its wall-mount format suits installations where the indoor antenna needs to face a particular coverage area. A built-in ground plane forms part of the antenna assembly, and the included mounting hardware supports attachment at the selected wall location.
Connect the antenna through its N-Female connector, carried on a 9 in pigtail. This connection and the 50 Ohm impedance are the key interface requirements when selecting the mating cable and compatible booster system. Common applications include the Connect 4G-X and Wilson AG Pro Quint Wireless Signal Booster. The antenna serves as the indoor coverage component of the booster installation. Its directional pattern makes wall position and orientation relevant when arranging coverage across the intended indoor space.
Gain varies by frequency: 5.2 dB at 700–800 MHz, 4.4 dB at 824–894 MHz, 4.2 dB at 880–960 MHz, 10.1 dB at 1,710–1,880 MHz, 10.6 dB at 1,850–1,990 MHz and 8.2 dB at 2,110–2,170 MHz. Rated power is 50 W, with a 1.5:1 VSWR. Horizontal beamwidth is specified as 70°/60°, and vertical beamwidth as 50°/45°. The panel measures 8.27 in high, 7.09 in wide and 1.73 in deep. Its combination of a directional wall panel, N-Female pigtail and included mounting hardware defines the connection and installation arrangement for this version.
Ideal for
- Indoor coverage antenna installation for a Connect 4G-X cellular signal booster.
- Wall-mounted directional coverage for a Wilson AG Pro Quint Wireless Signal Booster installation.
- Indoor cellular booster layouts requiring a 50 Ohm panel antenna with an N-Female cable connection.
Specifications
Design
- Color
- White
- Form Factor
- Panel
- Mounting Type
- Wall mount
- Mounting Hardware
- Mounting hardware included
Support
- Warranty (years)
- 2-year limited warranty
Identity
- UPC
- 811815023555
- Brand
- Wilson Electronics
- Product Name
- Indoor Wall Mount Antenna (N-Female)
- Manufacturer Part Number
- 311135
Physical
- Depth
- 1.73 in
- Width
- 7.09 in
- Height
- 8.27 in
- Metric Dimensions
- 21 × 18 × 4.39 cm
- Nominal Dimensions
- 8 × 7 × 2 in
- Alternate Accessory Dimensions
- 9.75 × 2.88 × 7.75 in
Shipping
- Shipping Weight
- 1.3 lb
Wireless
- Antenna Type
- Directional panel antenna
- Ground Plane
- Built-in ground plane
- Polarization
- Vertical
- Frequency Band
- 700–2,700 MHz
- Vertical Beamwidth
- 50°/45°
- Frequency Band Type
- UHF
- Horizontal Beamwidth
- 70°/60°
- Maximum Isotropic Gain
- 10.6 dBi
Electrical
- VSWR
- 1.5:1
- Impedance
- 50 Ohm
- Rated Power
- 50 W
Connectivity
- USB
- No
- Connector Type
- N-Female
- Pigtail Length
- 9 in
Installation
- Application
- Indoor antenna for cellular signal boosters
- Indoor/Outdoor
- Indoor
- Compatible Systems
- Connect 4G-X; Wilson AG Pro Quint Wireless Signal Booster
Gain BY Frequency
- 700–800 MHz
- 5.2 dB at 700–800 MHz
- 824–894 MHz
- 4.4 dB at 824–894 MHz
- 880–960 MHz
- 4.2 dB at 880–960 MHz
- 1,710–1,880 MHz
- 10.1 dB at 1,710–1,880 MHz
- 1,850–1,990 MHz
- 10.6 dB at 1,850–1,990 MHz
- 2,110–2,170 MHz
- 8.2 dB at 2,110–2,170 MHz
Questions buyers ask
What is included with Wilson Electronics 311135?
The antenna assembly includes a white directional wall panel, a built-in ground plane and a 9 in pigtail terminated with an N-Female connector. Mounting hardware is included for attaching the antenna to an indoor wall.
What frequencies and gain does this indoor panel antenna support?
The operating range is 700–2,700 MHz. Band-specific gain is 5.2 dB at 700–800 MHz, 4.4 dB at 824–894 MHz, 4.2 dB at 880–960 MHz, 10.1 dB at 1,710–1,880 MHz, 10.6 dB at 1,850–1,990 MHz and 8.2 dB at 2,110–2,170 MHz.
Which connector and impedance does the antenna use?
The antenna uses 50 Ohm impedance and an N-Female connector on a 9 in pigtail. The mating cable needs an N-Male connection at the antenna end. Compatible applications include the Connect 4G-X and Wilson AG Pro Quint Wireless Signal Booster.
How should this directional antenna be mounted indoors?
Mount the panel on an indoor wall with its directional coverage pattern facing the intended coverage area. It uses vertical polarization and includes mounting hardware. The panel measures 8.27 in high, 7.09 in wide and 1.73 in deep.
