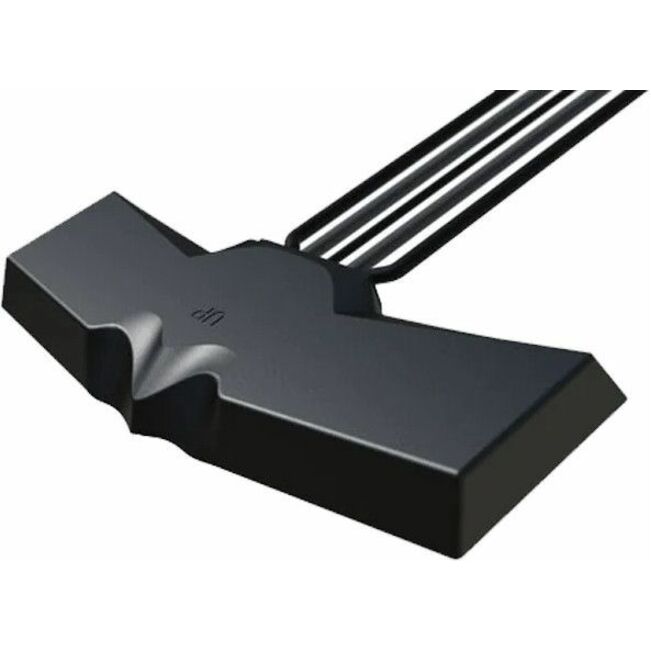

Panorama BATGM-7-60-24-58 Covert 5-in-1 Antenna - GPS/GNSS, 2x2 MIMO Cellular, Wi-Fi, 3 m SMA

5GMPN BATGM-7-60-24-58
  • 2x2 MIMO
  • GNSS
  • Wi-Fi
  • 9 dBi and up
  • 1–3 m
$99.59$137.45Save $37.86

In stock · only 3 leftShips from the US

1
Request a quote · volume, multi-site or with plans
Compare all 3 configurations

Overview

Get roof-antenna performance without drilling the roof. The Panorama BATGM-7-60-24-58 packs 2x2 MIMO cellular + active GPS/GNSS + 2x2 MIMO dual-band Wi-Fi into one discreet 0.65 in low-profile housing that mounts on or under a vehicle dashboard. Cellular elements span 617-6000 MHz for full 4G LTE and sub-6 GHz 5G coverage, and the 3 m (9.8 ft) leads terminate in SMA plugs (RP-SMA on Wi-Fi leads) for direct connection to in-vehicle routers.

  • 5-in-1 design: 2x2 MIMO cellular + active GPS/GNSS + 2x2 MIMO dual-band Wi-Fi
  • Cellular elements cover 617-6000 MHz (4G LTE and sub-6 GHz 5G, incl. Band 71)
  • Active GPS/GNSS with 26 dB LNA and advanced B13/B14 filtering
  • 2x2 MIMO dual-band Wi-Fi for 2.4/5 GHz in-vehicle connectivity
  • High isolation, low correlation for true 2x2 MIMO throughput
  • Ultra-low-profile 0.65 in housing for covert dash or glass mounting
  • 3 m (9.8 ft) factory-terminated leads, SMA plugs (RP-SMA on Wi-Fi leads)
  • Up to 9 dBi peak cellular gain, omnidirectional pattern

The Panorama BATGM-7-60-24-58 is built for vehicles that cannot show an antenna - unmarked units, leased fleet vehicles, and refined executive transport. Its 0.65 in tall housing tucks on or under the dash or against glass and combines 2x2 MIMO cellular + active GPS/GNSS + 2x2 MIMO dual-band Wi-Fi in one covert package, so a full connectivity stack installs with zero exterior drilling or visual signature.

The cellular section uses two separately fed ultra-wideband elements covering 617-960 / 1710-2170 / 2500-3800 / 4900-6000 MHz, including 600 MHz Band 71/n71, engineered for high isolation and a low correlation coefficient so 2x2 MIMO actually delivers its throughput gains rather than just adding a second cable. The active GPS/GNSS element adds a 26 dB gain LNA with advanced filtering, including B13/B14 rejection, keeping position fixes clean even with an LTE transmitter inches away - critical for telematics and public-safety AVL. A 2x2 mimo dual-band wi-fi section covers dual-band 2.4/5 GHz for in-vehicle hotspot or offload duty.

Each lead is factory terminated - SMA plugs (RP-SMA on Wi-Fi leads) on 3 m (9.8 ft) of cable - for clean, plug-in connection to Cradlepoint, Sierra Wireless, Digi, Peplink, and similar mobile routers. If you are standardizing a fleet install kit, the BAT family lets you keep one antenna footprint while choosing cable lengths and element counts per vehicle role.

Ideal for

  • Fleet telematics and AVL in service vans where roof mounting is prohibited
  • Unmarked and covert public-safety vehicles needing hidden connectivity
  • Leased or short-cycle fleet vehicles that must return without drilled holes
  • Mobile router installs (Cradlepoint, Peplink, Sierra) in cars, trucks, and buses

Specifications

GNSS

Element
Active GPS/GNSS
Lna Gain
26 dB
Filtering
Advanced filtering incl. B13/B14 rejection

Wi-Fi

Bands
Dual-band 2.4/5 GHz
Configuration
2x2 MIMO dual-band Wi-Fi

Package

Cable
3 m (9.8 ft) leads
Connectors
SMA plugs (RP-SMA on Wi-Fi leads)
Shipping Weight
1.45 lb

Cellular

Peak Gain
Up to 9 dBi
Technology
4G LTE / 5G sub-6 GHz (2G/3G fallback)
Configuration
2x2 MIMO
Frequency Range
617-960 / 1710-2170 / 2500-3800 / 4900-6000 MHz

Physical

Color
Black
Height
0.65 in
Mounting
Dash / under-dash / glass, covert internal

Performance

Directivity
Omnidirectional
MIMO Isolation
High isolation, low correlation elements

Questions buyers ask

Does this antenna work with Verizon, AT&T, and T-Mobile?

Yes. This is a passive, carrier-agnostic antenna covering 617-6000 MHz, which spans the low-band, mid-band, and C-band spectrum used by Verizon, AT&T, T-Mobile, and FirstNet. Carrier compatibility is determined by the router or modem it is attached to, not the antenna.

Will it really work from inside the vehicle?

Yes. The BAT family is designed as an internal antenna: mounted on or under the dash or against glass, its wideband elements are tuned for the in-cabin environment. Performance approaches an external antenna in most conditions while staying completely hidden.

What connectors does it use, and will it fit my router?

The leads are factory terminated in SMA plugs (RP-SMA on Wi-Fi leads). Most in-vehicle routers use SMA antenna ports; check your router's port genders, and note Wi-Fi ports typically use RP-SMA. Adapters are available from Cloud Care Networks if your device differs.

What is included in the box?

The BATGM-7-60-24-58 antenna assembly with 3 m (9.8 ft) integrated leads and adhesive mounting provisions. No external bracket is required for dash installation.

What warranty applies to this antenna?

It is covered by Panorama Antennas' standard manufacturer warranty against materials and workmanship defects. Cloud Care Networks ships from authorized U.S. distribution stock, so full warranty coverage applies, and our support team can coordinate any RMA directly with the manufacturer.
