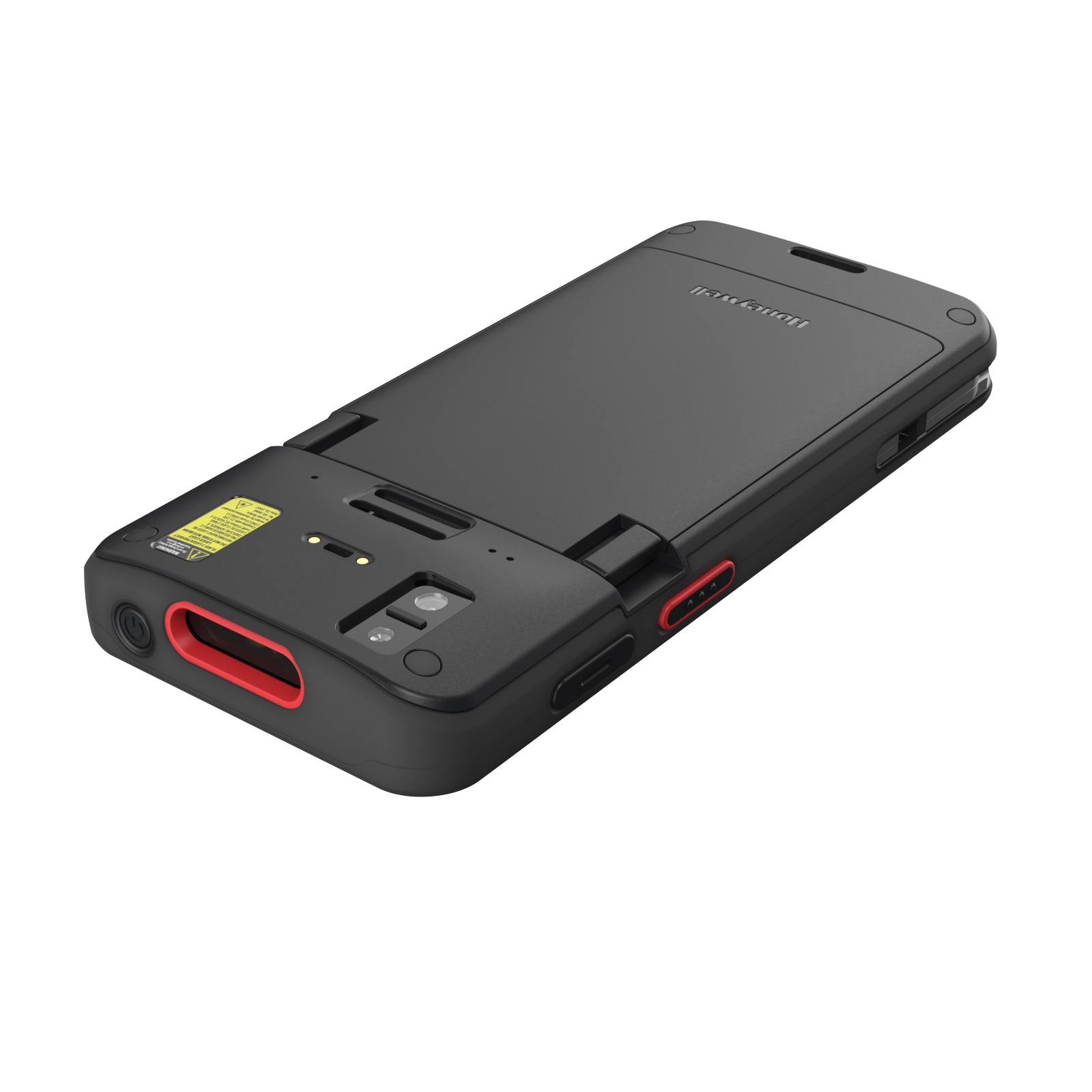

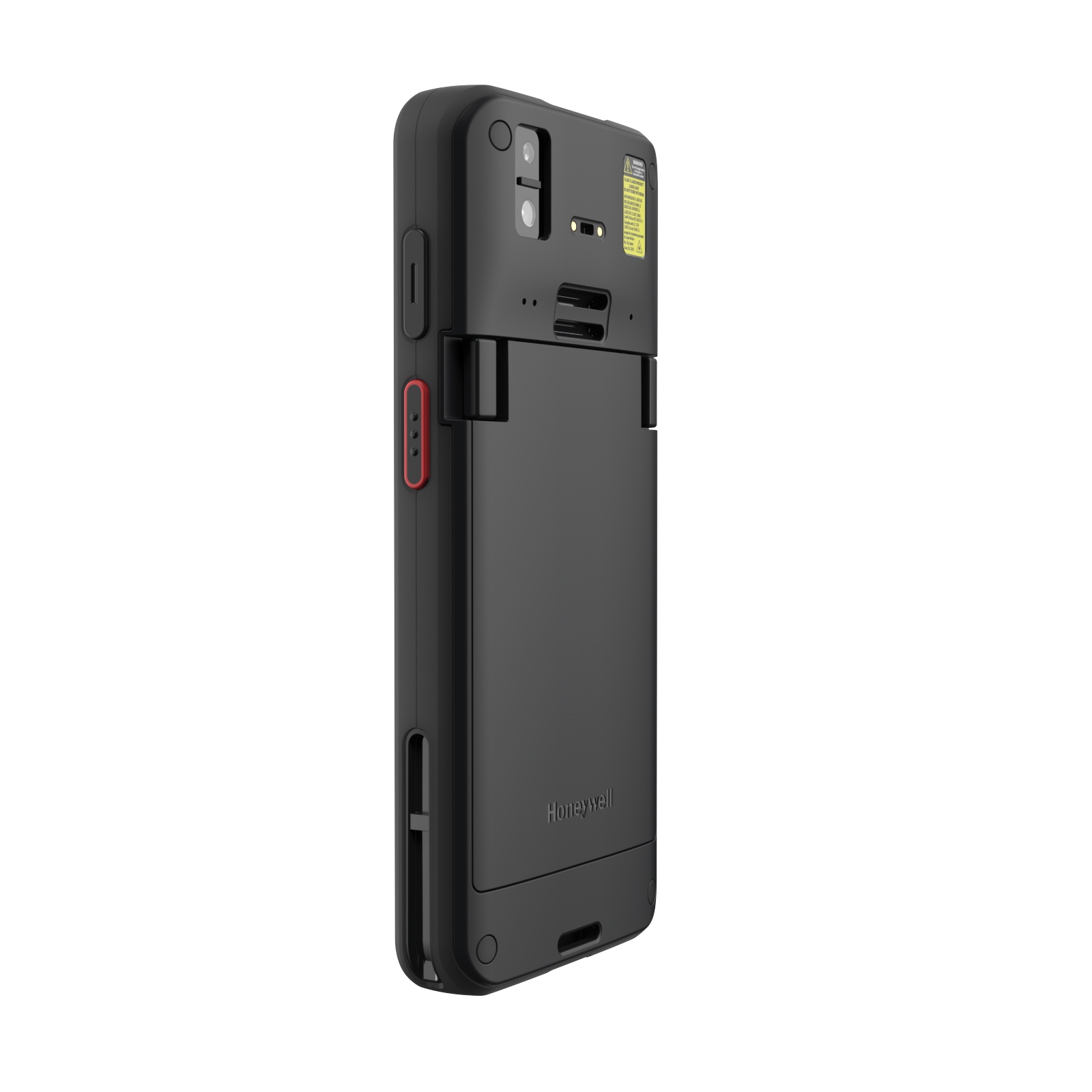

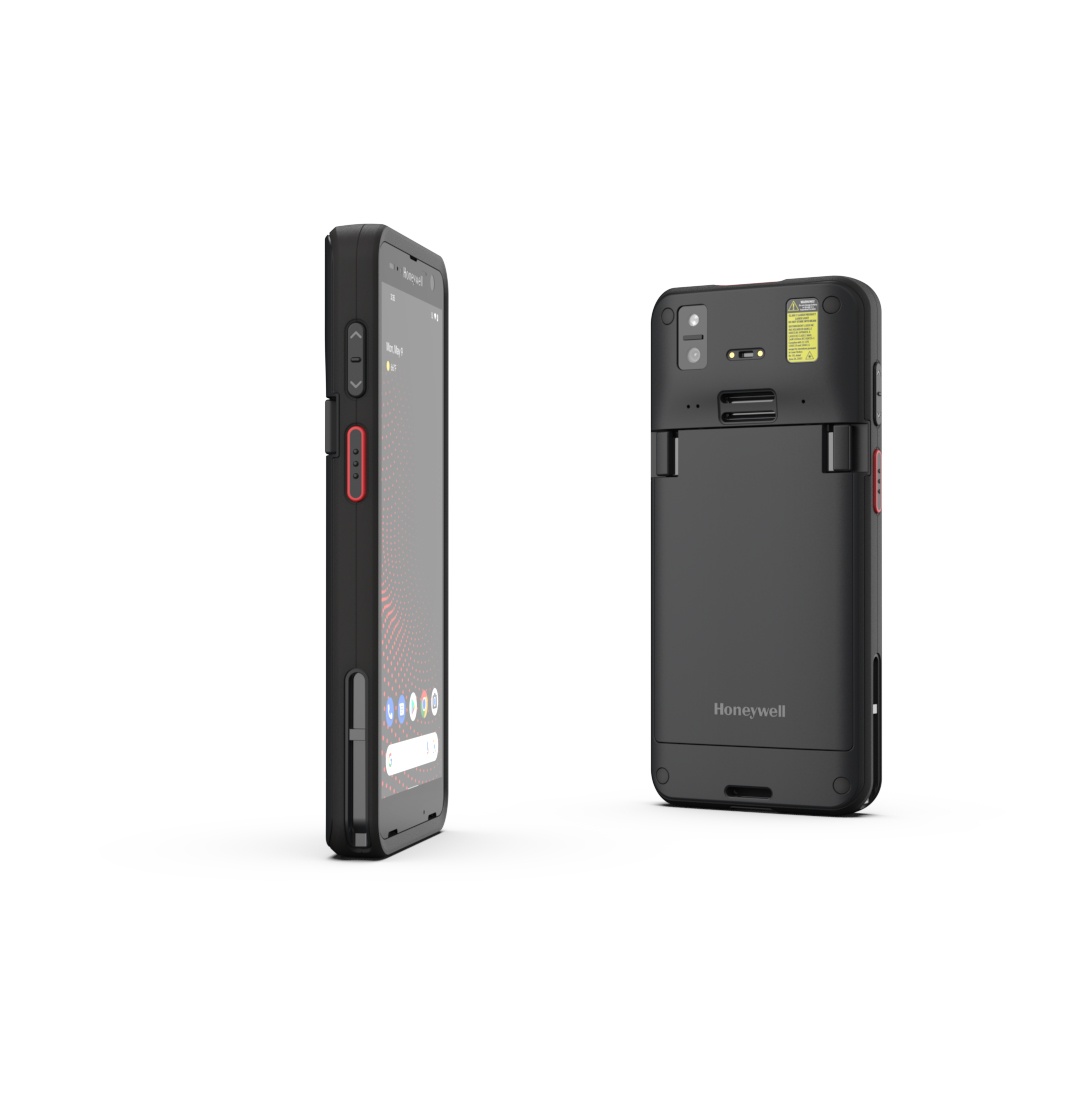

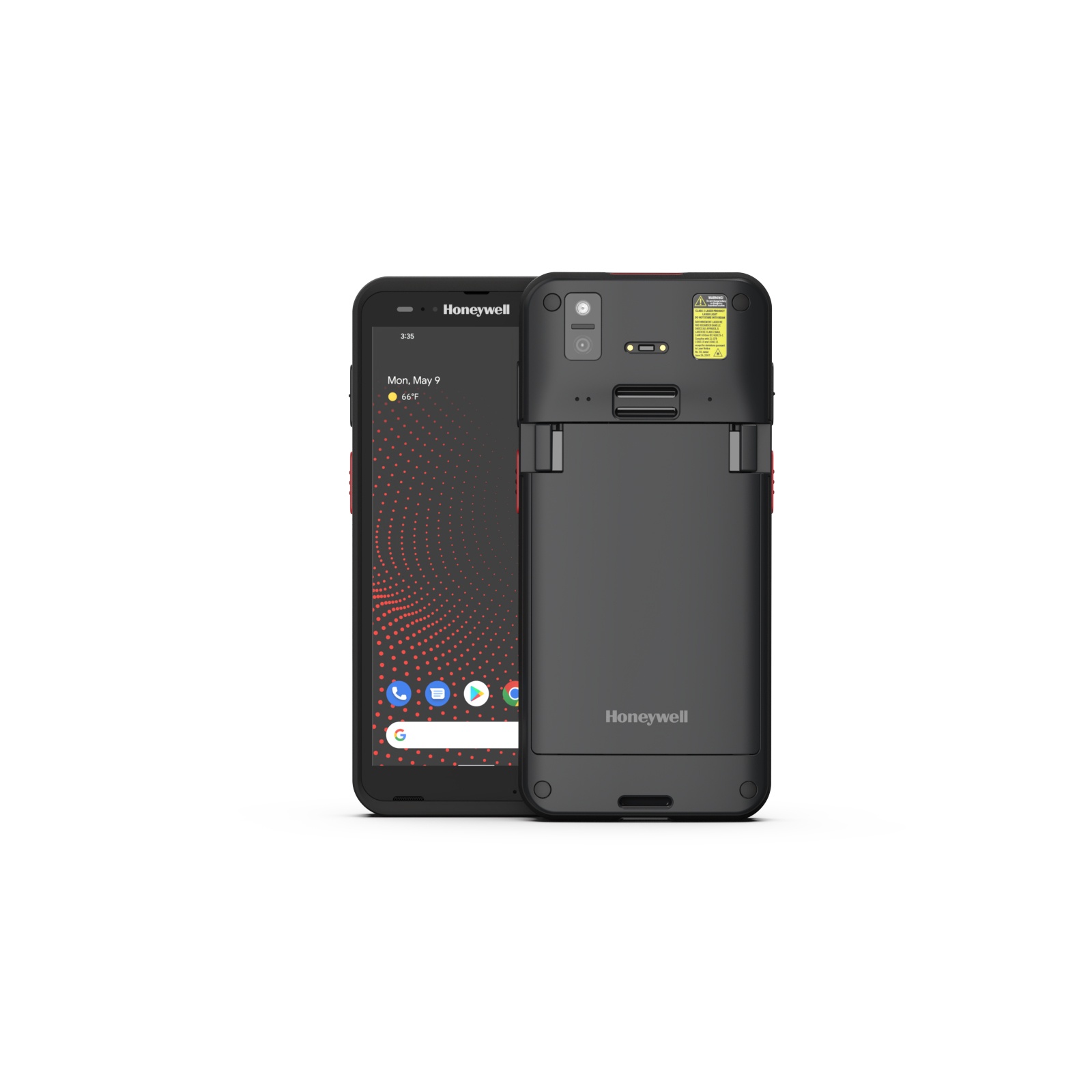

Honeywell CT70 5G Mobile Computer with Wi-Fi 7, 8GB/128GB, Standard Range Scanner, Extended Battery

5GMPN CT70-X1N-057CE104G
  • 128 GB
  • Rugged
$2,188.39$3,018.46Save $830.07

In stockShips from the US

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Honeywell CT70-X1N-057CE104G is an ultra-rugged 5G mobile computer for logistics, grocery retail and field teams that need a long service life. This worldwide configuration pairs an Edge AI-enabled Qualcomm octa-core processor with 8GB LPDDR5 RAM and 128GB UFS 3.1 flash. It adds Wi-Fi 7 and Wi-Fi 6E, a nano SIM plus eSIM, a 6-inch Full HD display, and the S0703 standard-range scan engine. Power comes from a 7,692 mAh hot-swap extended battery.

  • 5G FR1 with global band support, nano SIM plus eSIM, GCF-PTCRB, AT&T, T-Mobile and Verizon certified, AT&T FirstNet compliant, CBRS
  • Wi-Fi 7 and Wi-Fi 6E certified, tri-band 2.4/5/6 GHz, 2x2 MU-MIMO, multi-link operation
  • Qualcomm Snapdragon QCS/QCM6690 octa-core up to 2.9 GHz with Edge AI, 8GB LPDDR5 RAM, 128GB UFS 3.1 flash
  • 6-inch Full HD (2280 x 1080) touchscreen with glove, stylus and rain support and integrated NFC in display
  • Honeywell S0703 standard-range 1D/2D scan engine (0-1 m) with laser aimer
  • 7,692 mAh extended Li-ion battery, hot swap and field replaceable
  • IP65/IP68; 6 ft drops without boot and 8 ft with boot per MIL-STD-810H; Android support planned through Android 19
  • Keep devices in service longer with planned Android support through Android 19 on the Mobility Edge platform

The Honeywell CT70 is a 6-inch ultra-rugged mobile computer for frontline retail and logistics workers who need fast data access over a long service life. This worldwide configuration, CT70-X1N-057CE104G, includes 5G cellular, 8GB LPDDR5 RAM, 128GB UFS 3.1 flash, and the Honeywell S0703 standard-range 1D/2D scan engine with a red laser aimer. It also ships with a 7,692 mAh extended battery. The device runs Android with Google Mobile Services on the Mobility Edge platform, and Honeywell plans OS support through Android 19. It is supplied without government certification and includes a Launcher, Browser and BasicTE software set.

The Qualcomm Snapdragon QCS/QCM6690 octa-core processor runs at up to 2.9 GHz and includes an NPU for on-device Edge AI workloads. The cellular side offers 5G FR1 with global band support. The device is certified with GCF-PTCRB, AT&T, T-Mobile and Verizon, and it is AT&T FirstNet compliant with CBRS support. Wi-Fi 7 adds tri-band operation and multi-link operation (MLO) for crowded facilities. Bluetooth 6.0, NFC built into the display and dual-band GNSS complete the radios.

The CT70 is rated IP65 and IP68. It survives multiple 6 ft (1.8 m) drops to concrete without a boot, or 8 ft (2.4 m) drops with a boot, per MIL-STD-810H. It also exceeds 3,000 tumbles at 0.5 m. The 6-inch Full HD (2280 x 1080) display stays readable outdoors, including through polarized sunglasses, and supports gloves, a stylus and rain. The field-replaceable battery supports true hot swap, so workers can change packs without following on-screen steps.

Optional accessories include universal docks, scan handles, vehicle docks, a wearable kit and a protective boot. A datasheet, quick start guide, accessories guide and universal dock user guide are available for this model.

Ideal for

  • Last-mile delivery and route operations with 5G, GNSS and in-display NFC payments
  • Grocery and retail store tasks such as price checks, replenishment and mobile point of sale
  • Distribution center and yard work over Wi-Fi 7 and CBRS
  • Field service and inspections needing photo capture and multi-shift battery life
  • Enterprise fleets that need a long, predictable Android upgrade path

Specifications

Wlan

Mlo
Supports multi-link operation (MLO)
Bands
Tri-band 2.4/5/6 GHz
Standards
802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax/be, 2x2 MU-MIMO
Certification
Wi-Fi 6E and Wi-Fi 7 certified

Camera

Rear Camera
13-megapixel rear camera, phase detection autofocus, torch mode
Front Camera
8-megapixel front-facing camera
Camera Position
Rear and front

Display

Keypad
Full touchscreen
Resolution
Full High-Definition (2280 x 1080)
Display Size
15.2 cm (6.0 in)

General

MPN
CT70-X1N-057CE104G
Brand
Honeywell
Model
CT70 Mobile Computer
Region
Worldwide configuration
Part Description
5G, 8GB, 128GB, S0703, eSIM, extended battery, worldwide
Government Certification
No government certification

Cellular

LTE
LTE Advanced support
SIM
Nano SIM + eSIM
CBRS
CBRS supported
Firstnet
AT&T FirstNet compliant
Generation
5G WWAN
5G Fr1 Bands
n1, n2, n3, n5, n7, n8, n12, n13, n14, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n77, n78, n79
Certifications
Certified with GCF-PTCRB, AT&T, T-Mobile, Verizon

Features

Features
Integrated RFID, NFC in display, Edge AI capable, Wi-Fi 7
Durability
Ultra-rugged
Application
Transportation & Logistics, Grocery Retail, Field Operations
Environment
Standard
Connectivity
Wi-Fi & Cellular
For Use With
Android
Housing Grade
Standard

Hardware

RAM
8GB LPDDR5 RAM
Flash
128GB UFS 3.1 Flash
Network
Wi-Fi and Cellular
Processor
Qualcomm Snapdragon QCS/QCM6690 octa-core, up to 2.9 GHz, Edge AI enabled

Scanning

Scan Engine
Honeywell S0703 standard-range engine, red laser
Scan Distance
Standard range (0-1 m)
Scan Engine Type
Laser aimer
Decode Capability
1D/2D symbologies, Honeywell SDKs for Android, DPM via license

Software

Platform
Honeywell Mobility Edge
OS Lifecycle
Planned support through Android 19
Software Set
Launcher, Browser and BasicTE
Operating System
Android with Google Mobile Services

Wireless

NFC
NFC in display with card emulation, contactless payment, ECP 1.0/2.0
GNSS
GPS, GLONASS, Galileo, BeiDou, NavIC, QZSS; a-GPS, XTRA, SBAS
Bluetooth
Bluetooth 6.0 and BLE, Class 1.5
Wireless Communication
5G, CBRS, Wi-Fi 7, Wi-Fi 6E, Bluetooth 6.0, UHF, NFC

Dimensions

Dimensions Extended Battery
170 mm x 78.6 mm x 22.3 mm (grip area) with extended battery
Dimensions Standard Battery
170 mm x 78.6 mm x 16.7 mm (grip area) with standard battery

Electrical

Battery Type
Li-ion
Battery Options
4,775 mAh standard, 4,775 mAh wireless, 7,692 mAh extended
Battery Capacity
7,692 mAh extended battery
Battery Features
Hot swap, field replaceable

Environmental

Operating Humidity
5% to 95% (non-condensing)
Storage Temperature
-30°C to 70°C (-22°F to 158°F)
Operating Temperature
-20°C to 50°C (-4°F to 122°F)

Service Terms

Warranty
1 year

Standards Approvals

Drop
8 ft (2.4 m) booted, 6 ft (1.8 m) unbooted drops per MIL-STD-810H
Tumble
3,000+ tumbles at 0.5 m and 1,500+ at 1 m unbooted; 2,000+ at 1 m booted
Protection Rating
IP68 and IP65

Questions buyers ask

Does the Honeywell CT70-X1N-057CE104G have 5G?

Yes. It has 5G FR1 with global band support, a nano SIM plus eSIM, and LTE Advanced support. It is certified with GCF-PTCRB, AT&T, T-Mobile and Verizon, and it is AT&T FirstNet compliant.

What scanner is in this CT70 configuration?

It uses the Honeywell S0703 standard-range 1D/2D scan engine with a red laser aimer, rated for a 0-1 m standard range. DPM decoding is available via license.

How long will the CT70 receive Android updates?

Honeywell plans support through Android 19 on the Mobility Edge platform. That timeline makes the CT70 suited to long enterprise deployment cycles.

What battery comes with this model?

This part number includes the 7,692 mAh extended Li-ion battery. The battery is field replaceable and supports true hot swap.

Does the CT70 support Wi-Fi 7?

Yes. It is Wi-Fi 6E and Wi-Fi 7 certified, with tri-band 2.4/5/6 GHz operation, 2x2 MU-MIMO and multi-link operation (MLO).
