ZebraPhones

Zebra TC27 5G Mobile Computer with SE4710 Scanner, 6GB/64GB, Extended Battery, 2-Pin, North America

5GMPN WCMTA-T27B6ABE2-NA
  • 64 GB
  • Rugged
$1,277.70$2,115.94Save $838.24

In stockShips from the US

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

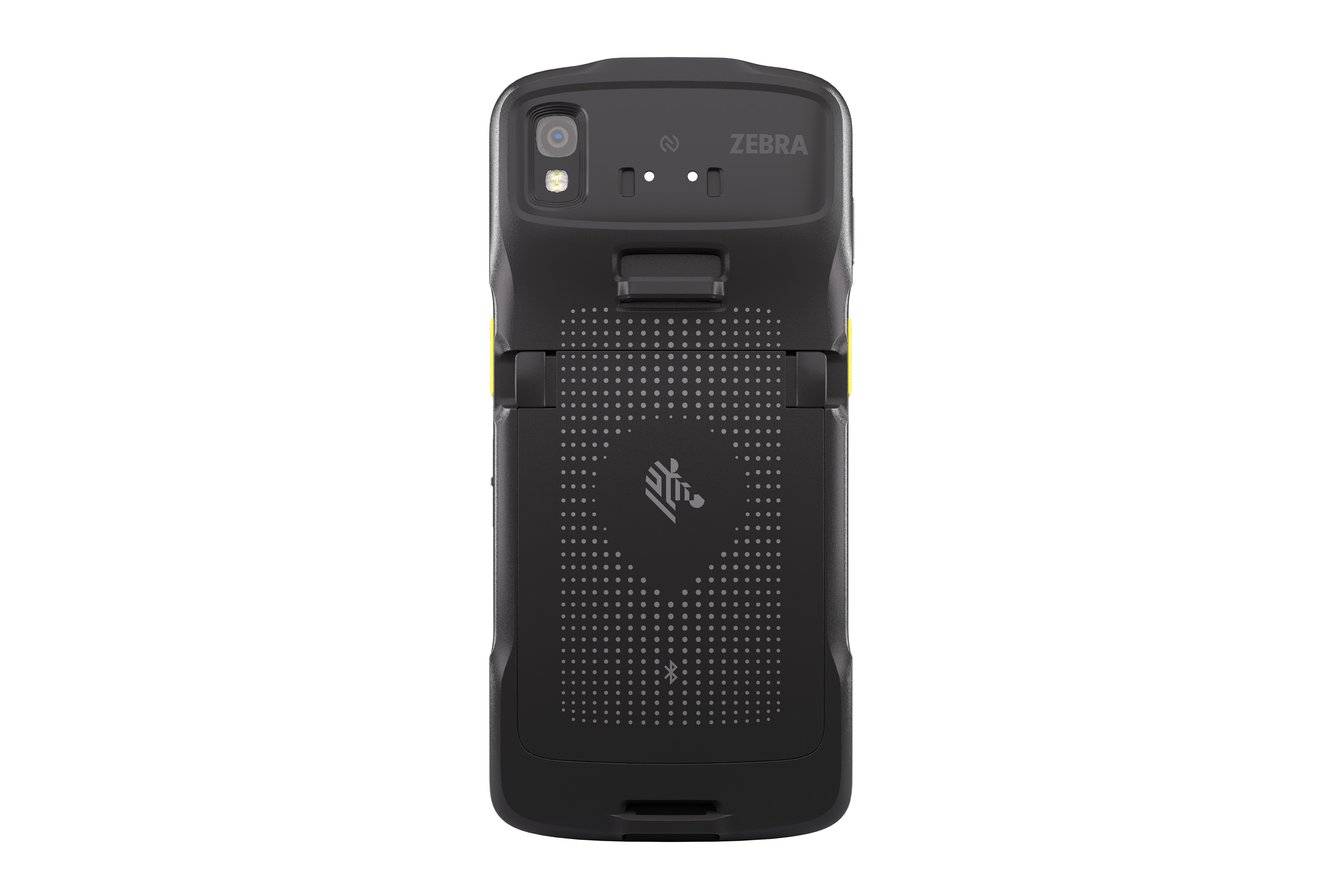

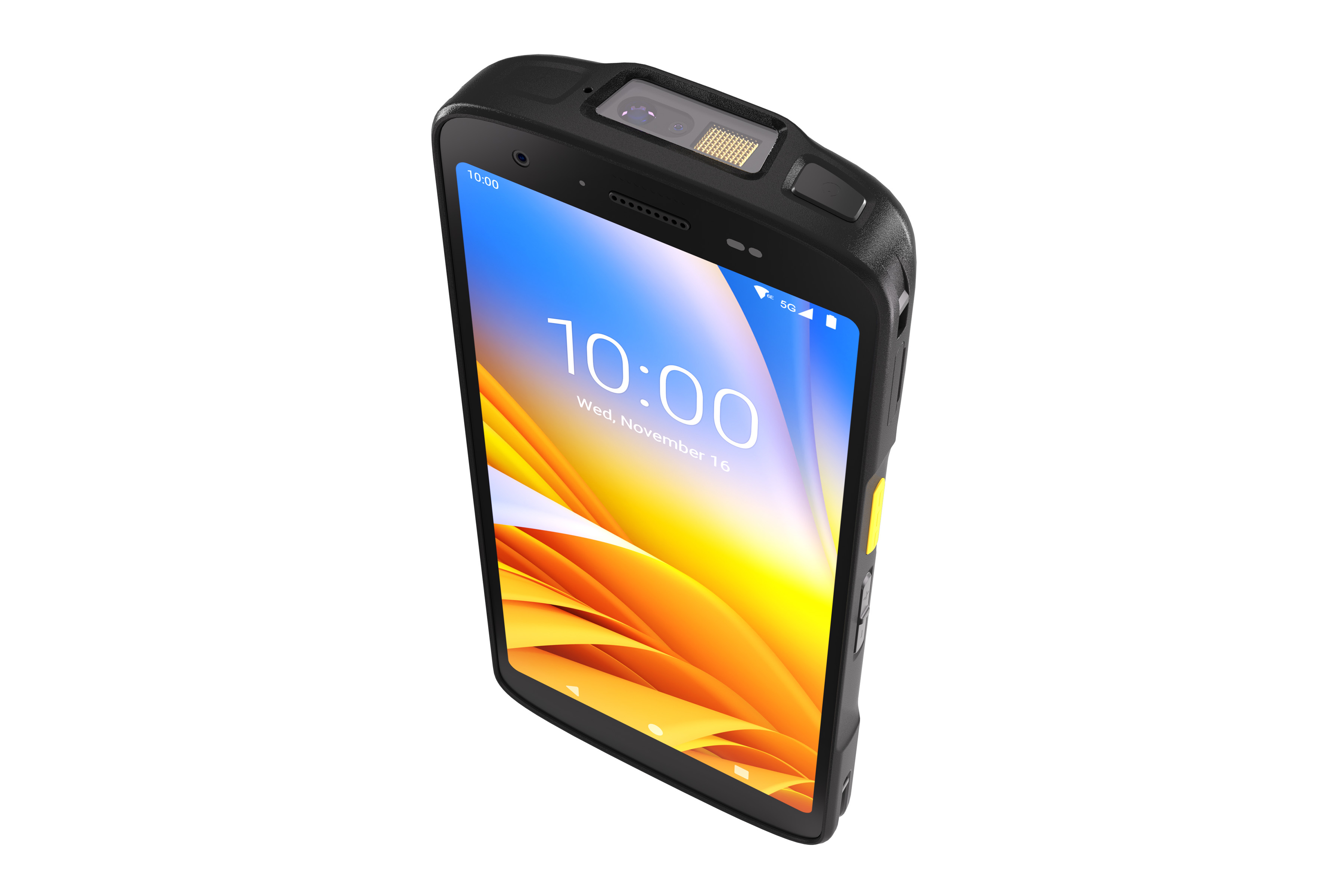

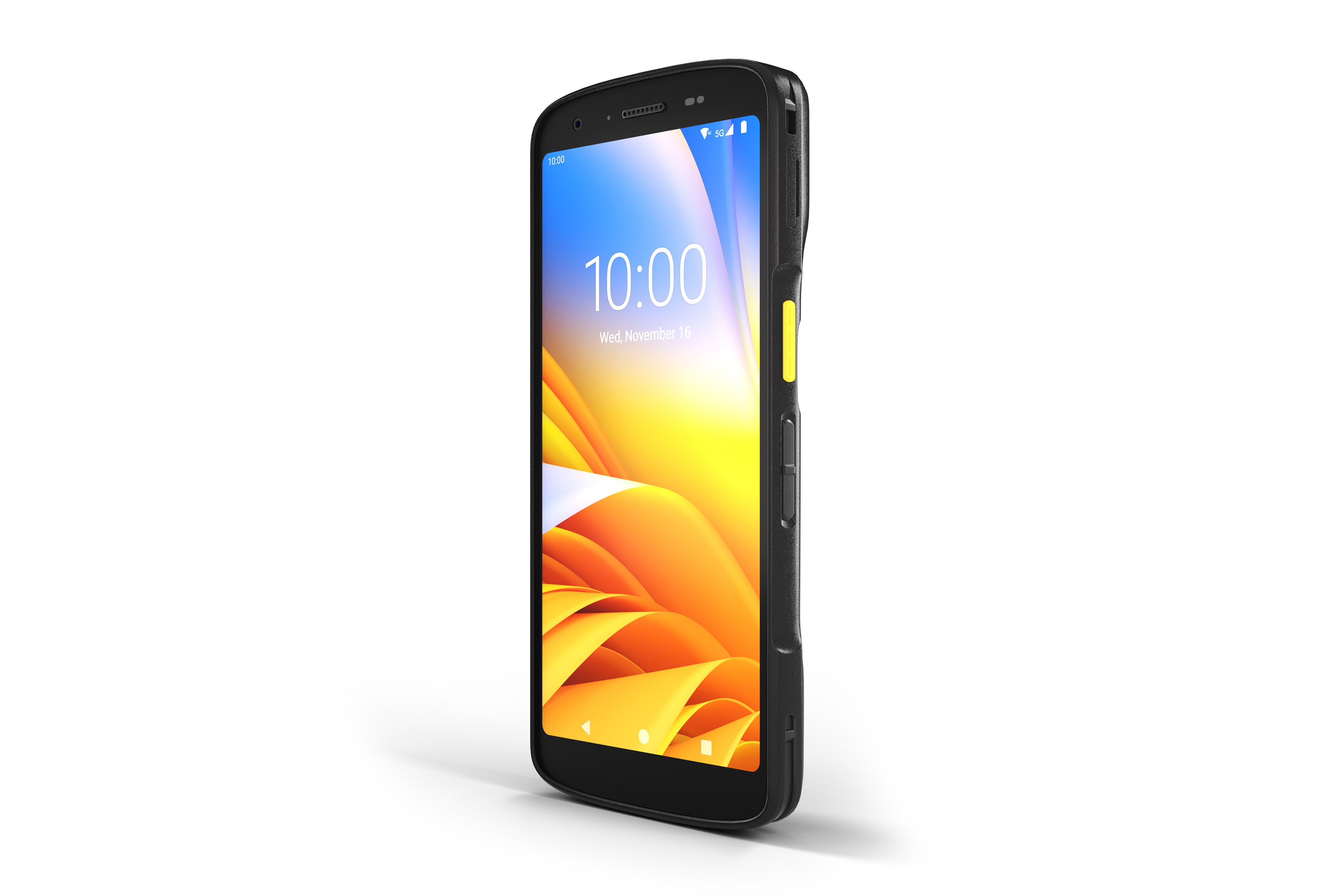

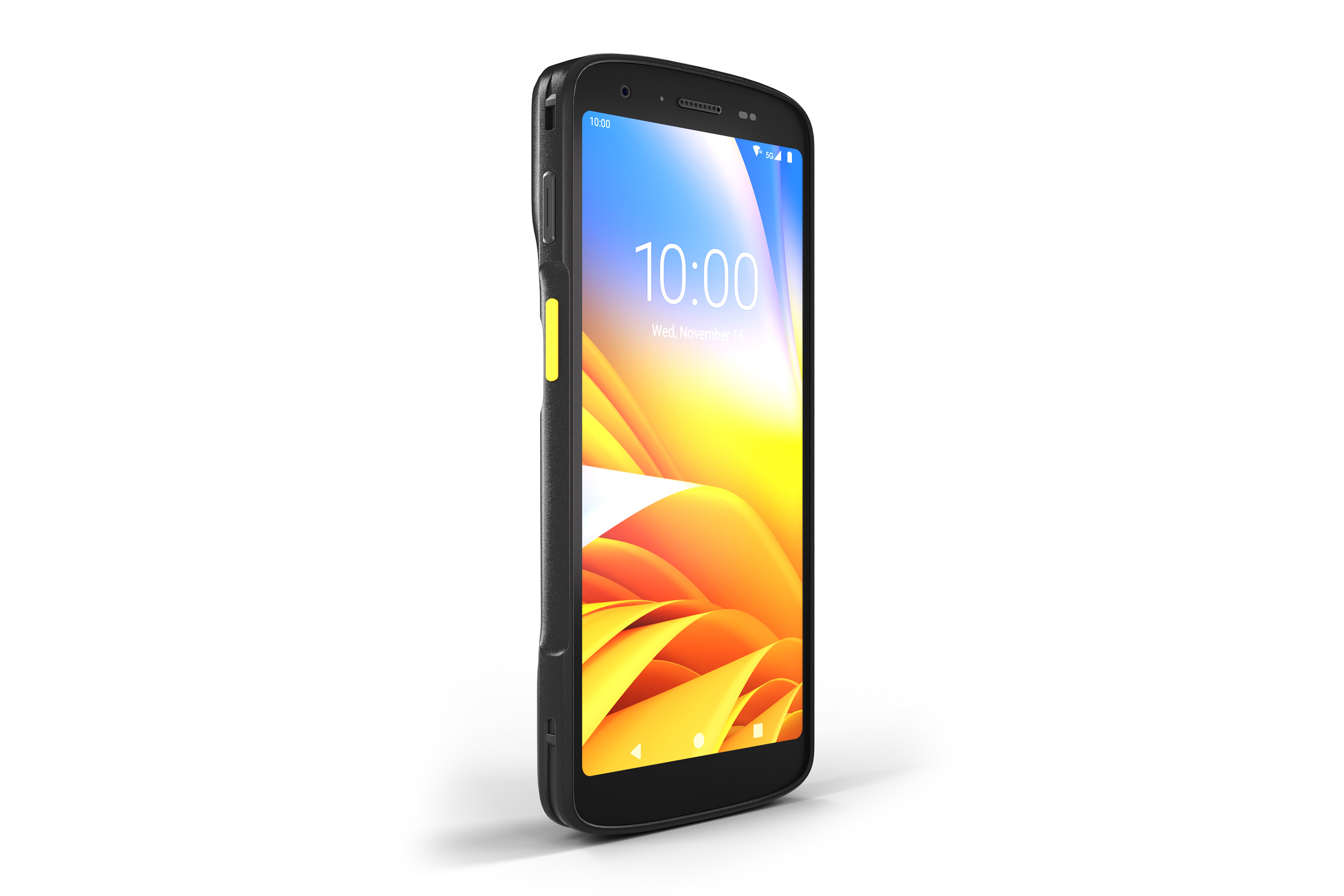

The Zebra TC27 (WCMTA-T27B6ABE2-NA) is a 5G Android mobile computer in a smartphone-style body. This North America configuration has the SE4710 1D/2D scan engine, 6 GB RAM and 64 GB flash, and a 6 in. Full HD+ display. It also includes a removable 5200 mAh extended battery for multi-shift work, NFC with tap-to-pay and wallet support, a Nano SIM plus eSIM, and a 2-pin rear connector. It is built for couriers, field service teams, retail staff and ticketing crews.

  • 5G NR Sub-6 (NSA/SA), Gigabit LTE-A and VoLTE with 1 Nano SIM + 1 eSIM, plus private 5G and CBRS support (US only)
  • SE4710 1D/2D scan engine with dual dedicated scan buttons
  • 6 GB RAM / 64 GB UFS flash on a Qualcomm 5430 hex-core 2.1 GHz CPU, microSD up to 2 TB
  • 6.0 in. FHD+ (1080 x 2160) 450-nit display with Corning Gorilla Glass
  • User-removable 5200 mAh / 20.02 Wh extended Li-Ion battery with PowerPrecision metrics
  • NFC with contactless payment support, Apple VAS and Google Smart Tap certified
  • IP68/IP65 sealing, MIL-STD-810H drop testing and 500 tumbles at 1.6 ft
  • Keep couriers and technicians connected on public 5G/LTE, private 5G or CBRS networks, with the eSIM leaving the Nano SIM slot free for a second line

The Zebra TC27 is the 5G member of Zebra's third-generation TC2x Series and replaces the TC26. It gives small and mid-size businesses an enterprise handheld at smartphone size. This SKU, WCMTA-T27B6ABE2-NA, is the North America build. It has the SE4710 1D/2D scan engine, 6 GB RAM with 64 GB UFS flash, 16 MP rear and 5 MP front cameras, a 2-pin rear connector and Google Mobile Services.

Connectivity covers 5G NR Sub-6 (NSA and SA), Gigabit LTE-A, VoLTE and dual SIM/dual standby using one Nano SIM and one eSIM. The TC27 also supports private 5G and CBRS private LTE networks (CBRS in the US only). On the local side it has 2x2 MU-MIMO Wi-Fi 6, with Wi-Fi 6E available through the Mobility DNA Enterprise License, plus Bluetooth 5.2. NFC handles contactless payments and is Apple VAS and Google Smart Tap certified, so it can read wallet-based tickets, loyalty cards and passes.

The device runs on a Qualcomm 5430 hex-core 2.1 GHz processor. Zebra rates it at twice the performance of the prior generation. The 6.0 in. 1080 x 2160 display reaches 450 nits and sits under Corning Gorilla Glass, which also protects the scanner exit window.

The TC27 is built for daily field use: - IP68 and IP65 sealing - Multiple 4.5 ft drops to tile over concrete per MIL-STD-810H, or 5 ft to concrete with the protective boot - 500 tumbles at 1.6 ft - Operation from 14°F to 122°F

The 5200 mAh (20.02 Wh) extended battery is Zebra's multi-shift option. Because it is user-removable, a device can stay in service while spare batteries charge. Mobility DNA Professional tools come preloaded at no cost for staging, app control and barcode-to-app data entry.

Ideal for

  • Courier, last-mile and direct store delivery with proof-of-delivery photos and payment on delivery
  • Field service parts scanning, 5G video support calls and on-site payment
  • Retail price checks, inventory, picking and mPOS
  • Event ticketing and access control using Apple VAS and Google Smart Tap wallet passes
  • Multi-shift operations where a swappable extended battery keeps devices in service

Specifications

General

MPN
WCMTA-T27B6ABE2-NA
Brand
Zebra Technologies
Model
Zebra TC27 Mobile Computer
Region
NA (North America) configuration
Replaces
Replaces Zebra TC26
IN The Box
TC27 Mobile Computer
Sku Radios
WWAN 5G, Wi-Fi 6, Bluetooth, NFC
Sku Back I/O
2-pin rear connector
Sku Battery
Extended 5200 mAh battery
Sku Software
Google Mobile Services (GMS)
Sku Scan Engine
SE4710 1D/2D scan engine

Services

Recommended Services
Zebra OneCare Special Value (SV); Zebra VisibilityIQ Foresight; Professional Services Video on Device

Software

Mobility Dna
Mobility DNA Professional preloaded and pre-licensed at no cost; full Mobility DNA suite requires Mobility DNA Enterprise License

Warranty

Hardware Warranty
1 year from date of shipment against defects in workmanship and materials, per Zebra hardware warranty statement

Compliance

General Certifications
ARCore Google certified
Environmental Compliance
RoHS Directive 2011/65/EU, Amendment 2015/863; REACH SVHC 1907/2006

Data Capture

NFC
NFC ISO 14443 Type A and B; Mifare, FeliCa and ISO 15693 cards; NFC Forum tags 2, 3, 4, 5; Host Card Emulation; contactless payment support; VAS and wallet support; Apple ECP1.0 and ECP2.0; Apple VAS and Google Smart Tap certified; VAS Library/SDK
Scanning
SE4710 1D/2D scan engine
Uhf Rfid
Supports RFD40 UHF RFID Sled and RFD90 Ultra-Rugged UHF RFID Sled
Rear Camera
16 MP rear camera
Front Camera
5 MP front camera

Wireless LAN

Fast Roam
PMKID caching; Cisco CCKM; 802.11r; OKC
Data Rates
6 GHz 802.11ax 20/40/80/160 MHz up to 2402 Mbps; 5 GHz 802.11a/n/ac/ax 20/40/80/160 MHz up to 2402 Mbps; 2.4 GHz 802.11b/g/n/ax 20 MHz up to 286.8 Mbps
Wlan Radio
IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax; 2x2 MU-MIMO; Wi-Fi 6 Certified; Wi-Fi 6E (802.11ax, requires Mobility DNA Enterprise License); dual band simultaneous; IPv4, IPv6
Certifications
Wi-Fi CERTIFIED n, ac and 6; Enhanced Open; WPA2/WPA3 Personal and Enterprise (incl. 192-bit); Protected Management Frames; Agile Multiband; WMM, WMM-Power Save, WMM Admission Control; Voice-Enterprise; Wi-Fi Direct; QoS Management; OCE
Operating Channels
Channel 1-13 (2401-2483 MHz); Channel 36-165 (5150-5850 MHz); Channel 1-233 (5925-7125 MHz); bandwidth 20/40/80/160 MHz; actual channels depend on regulatory rules
Security Encryption
WEP (40/104 bit); Enhanced Open (OWE); WPA/WPA2 Personal (TKIP, AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP, AES); WPA3 Enterprise (AES) with EAP-TTLS, EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP, EAP-PWD; WPA3 Enterprise 192-bit (GCMP256) EAP-TLS; EAP-SIM, EAP-AKA, EAP-AKA Prime on WWAN models

Wireless Pan

Bluetooth
Class 2, Bluetooth v5.2; secondary BLE for beaconing within BLE battery

Wireless WAN

GNSS
GPS, GLONASS, Galileo, BeiDou, QZSS; dual-band GNSS concurrent L1/G1/E1/B1 + L5/E5a/BDSB2a; a-GPS; supports XTRA
3g Bands
North America 3G: B2/4/5
4G Bands
North America 4G: B2/4/5/7/12/13/14/17/25/26/29/38/41/48/66/71
5G Bands
North America 5G FR1: n2/5/7/12/13/14/25/26/29/38/41/48/66/71/77/78
Wwan Features
Dual SIM/Dual Standby, VoLTE, Gigabit LTE-A, 5G NR Sub-6 (NSA, SA), LTE/NR carrier aggregation, private networking (LTE/5G)
Private Networks
5G private network and CBRS private LTE (CBRS US only)

User Environment

Esd
+/-15 kV air discharge, +/-8 kV direct discharge, +/-8 kV indirect discharge
Sealing
IP68 and IP65, with battery, per applicable IEC sealing specifications
Humidity
5% - 95% non-condensing
Drop Spec
Multiple 5 ft./1.5 m drops to concrete over operating temp with protective boot per MIL-STD-810H; multiple 4.5 ft/1.3 m drops to tile over concrete over operating temp per MIL-STD-810H
Tumble Spec
500 tumbles, 1.6 ft./0.5 m; 500 tumbles, 3.3 ft./1.0 m with optional protective boot
Storage Temperature
-40°F to 158°F / -40°C to 70°C
Operating Temperature
14°F to 122°F / -10°C to 50°C

Physical Characteristics

SIM
1 Nano SIM and 1 eSIM
Audio
Two microphones with noise cancellation; dual speakers; Bluetooth wireless headset support; high quality speakerphone; PTT headset (Zebra USB-C) support; HD Voice incl. Super-wideband, Wideband and Fullband
Power
User removable, rechargeable Li-Ion, PowerPrecision real-time battery metrics; Extended Capacity: 5200 mAh / 20.02 Wh
Keypad
On-screen keypad
Weight
9.24 oz / 262 g with 5200 mAh battery
Buttons
Dual dedicated scan buttons; programmable button for PTT or other use; volume up/down; power
Display
6.0 in. color Full High Definition+ (1080 x 2160); LED backlight; 450 nits; Corning Gorilla Glass
Dimensions
6.5 in. L x 3.0 in. W x 0.49 in. D; 165 mm L x 76.3 mm W x 12.5 mm D
Touch Panel
Multi mode capacitive touch with bare or light gloved fingertip input
Imager Window
Corning Gorilla Glass
Notifications
Audible tone; multi-color LEDs; vibration
Expansion Slot
User accessible microSD card, supports up to 2 TB
Interface Ports
USB 3.1 (bottom Type-C) SuperSpeed, host and client; 2-pin rear connector
Network Connections
WWAN, WLAN, WPAN

Performance Characteristics

CPU
Qualcomm 5430 hex-core, 2.1 GHz
Memory
6 GB RAM / 64 GB UFS Flash
Operating System
Android with GMS; supported versions listed at zebra.com/android-versions

Interactive Sensor Technology

Light Sensor
Automatically adjusts display backlight brightness
Magnetometer
eCompass to detect direction
Motion Sensor
3-axis accelerometer with MEMS gyro
Pressure Sensor
Altitude for locating (TC27 North America)
Proximity Sensor
Disables display and touch input when held to the head during calls

Questions buyers ask

Is this TC27 a 5G device?

Yes. The TC27 supports 5G NR Sub-6 in both NSA and SA modes, along with Gigabit LTE-A and VoLTE. In North America it covers 5G bands n2/5/7/12/13/14/25/26/29/38/41/48/66/71/77/78.

What battery does WCMTA-T27B6ABE2-NA use?

It ships with the extended 5200 mAh / 20.02 Wh rechargeable Li-Ion battery, which Zebra positions for multi-shift use. The battery is user-removable and reports real-time metrics through PowerPrecision.

Can it use two cellular lines?

Yes. The TC27 has 1 Nano SIM and 1 eSIM and supports Dual SIM/Dual Standby.

Does it support contactless payments and digital wallets?

Yes. NFC supports contactless payment and Host Card Emulation, and it is Apple VAS and Google Smart Tap certified. That lets it read tickets, loyalty cards and passes stored in Apple or Google wallets.

How rugged is the TC27?

It is sealed to IP68 and IP65. It survives multiple 4.5 ft drops to tile over concrete per MIL-STD-810H, or 5 ft to concrete with the protective boot, and 500 tumbles at 1.6 ft. Gorilla Glass covers both the display and the imager window.
