Sonim Klein CURL Wired PTT Headset (CURL-SO3-WP) for XP10, XP5plus, XP5s and XP8
MPN CURL-SO3-WP
Fits Sonim XP5s, Sonim XP8, Sonim XP5plus, Sonim XP10
$48.63$59.95Save $11.32
In stockShips from the US
- 30-day returns on unopened devices
- Secure checkout · pay by card
Datasheets & documents
Overview

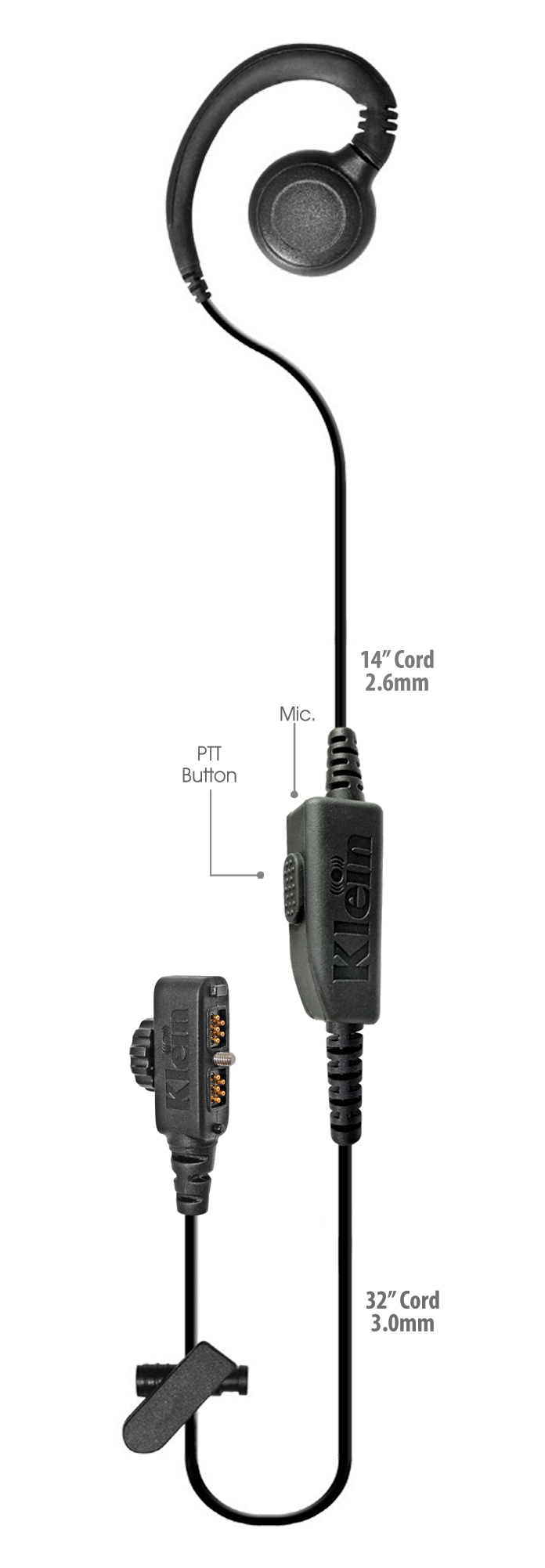

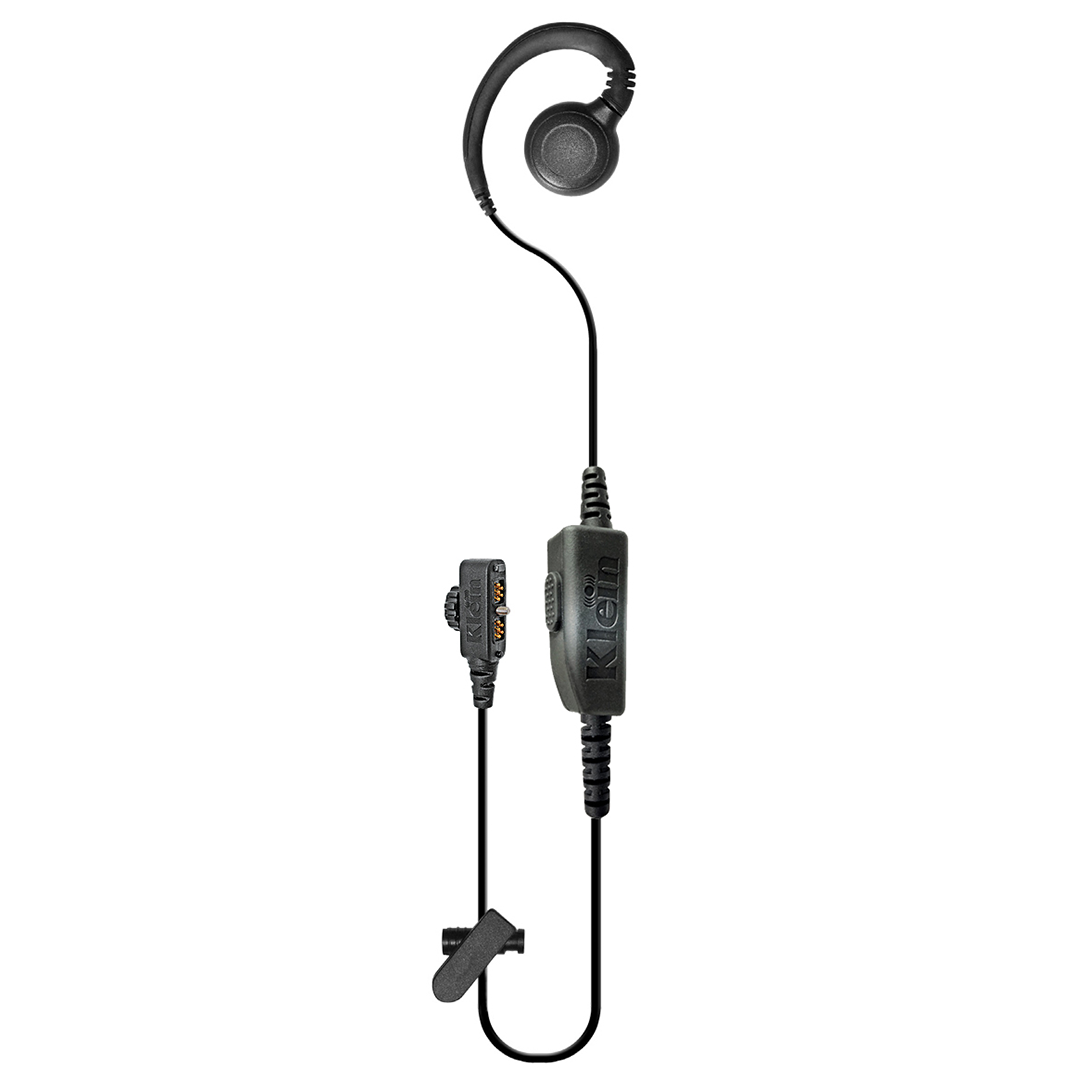

The Klein CURL Wired PTT Headset (CURL-SO3-WP) is an official Sonim accessory made by Klein Electronics for the Sonim XP10, XP5plus, XP5s and XP8. It screws into Sonim's SecureAudio Connector and supports push-to-talk and full-duplex use. The earpiece rests on the ear rather than in it and rotates for right- or left-ear wear. A large tactile PTT button works with heavy work gloves. The headset is third-party lab tested to the IP-67 standard and rated for -40°C to +80°C.
- Push-to-talk and full-duplex wired headset for Sonim XP10, XP5plus, XP5s and XP8
- Screw-in connection to Sonim's SecureAudio Connector
- Flexible C-ring earloop with rotating earpiece for right- or left-ear wear
- Large, tactile PTT button compatible with heavy work gloves
- In-line omni-directional noise-reduction microphone
- Third-party lab tested to IP-67, operating range -40°C to +80°C
- Kevlar-reinforced 46-inch cable with swivel clothing clip
- Stays connected in the field: the headset screws into the SecureAudio Connector instead of relying on a push-fit jack.
The Klein CURL Wired PTT Headset is a push-to-talk and full-duplex wired headset for crews using the Sonim XP10, XP5plus, XP5s and XP8 rugged handsets. Klein Electronics custom designed it to connect to Sonim's SecureAudio Connector. The headset connector screws into the handset, so the audio connection holds on the move and on the job.
The CURL is built for all-day wear. A flexible C-ring earloop wraps the ear, and the speaker rests on the outer ear instead of being inserted. You can rotate the earpiece to wear it on either ear. Because nothing goes in the ear canal, the earpiece can be wiped off and shared between shift workers. The large, easy-to-reach PTT button is tactile and usable with heavy work gloves. A built-in swivel clip holds the 46-inch cable against a uniform.
For audio, the headset uses an in-line, omni-directional, noise-reduction microphone. It has a 50 Hz to 10 kHz frequency range and a signal-to-noise ratio of more than 58 dB. The 16 Ω speaker is rated at 500 mW, with 800 mW maximum input and 105 dB sensitivity.

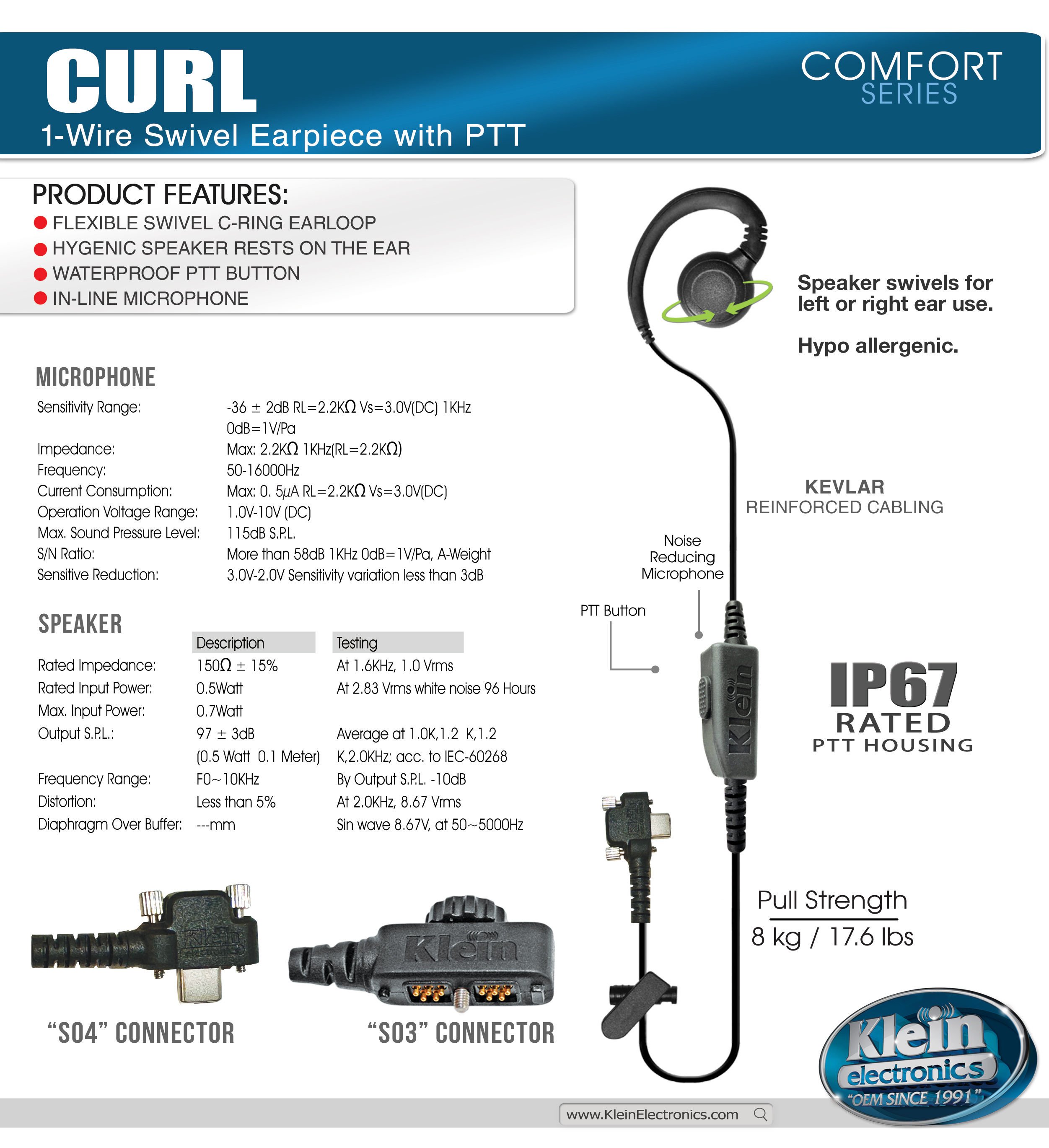

The CURL is designed and assembled in the USA and uses Kevlar-reinforced cables. It is third-party lab tested to the IP-67 rating standard (Pony Lab certified) and operates from -40°C to +80°C. The headset weighs 39 g and carries a 3-year comprehensive warranty. A Klein CURL datasheet covers the full specifications.
Ideal for
- Push-to-talk dispatch for field service and utility crews on Sonim XP-series handsets
- Construction and industrial sites where workers wear heavy gloves
- Shift-based teams sharing headsets between workers
- Public safety and security staff needing hands-free PTT on the move
- Outdoor and cold-weather operations down to -40°C
Specifications
Design
- Cable
- Kevlar-reinforced cable
- Earloop
- Flexible C-ring earloop, right or left ear
- Ptt Button
- Easy-to-access tactile PTT button, glove compatible
- Wear Style
- Speaker rests on outer ear (not inserted)
- Clothing Clip
- Built-in swivel clothing clip
General
- MPN
- CURL-SO3-WP
- UPC
- 096962275242
- Brand
- Sonim
- Category
- Audio
- Klein Sku
- Klein SKU CURL-SO3-WP
- Manufacturer
- Made by Klein Electronics
- Product Type
- Push-to-talk and full-duplex wired headset
Package
- Packaged Weight
- 81 g
- Packaged Dimensions
- 5 x 6 x 1.5 inches
- Packaged Part Number
- CURL-SO3-WP-P
- Packaged UPC Datasheet
- 096962277055
- Packaged UPC Ean Sonim Listing
- 610452278850
Speaker
- Impedance
- 16Ω±15%
- Distortion
- Less than 2% at 2.0 kHz, 8.67vrms
- Rated Power
- 500mW
- Sensitivity
- 105dB±5%
- Frequency Range
- F0-20KHz
- Max Input Power
- 800mW
Physical
- Origin
- Designed and assembled in the USA
- Weight
- 39 g
- Cable Length
- 46 inches
Warranty
- Warranty
- 3-year comprehensive warranty
Microphone
- Type
- In-line omni-directional noise-reduction microphone
- Impedance
- 2.2kΩ
- Sensitivity
- -36dB±3dB
- Frequency Range
- 50-10KHz
- Current Consumption
- Max: 0.5μA (RL=2.2KΩ, Vs=3.0V DC)
- Signal TO Noise Ratio
- More than 58dB (1KHz, 0dB=1V/Pa, A-Weight)
- Operation Voltage Range
- 1.0-10V
Compatibility
- Connector
- Screws into Sonim SecureAudio Connector
- Compatible Devices
- Sonim XP10, XP5plus, XP5s and XP8
Environmental
- Ingress Protection
- Third-party lab tested to IP-67 (Pony Lab certified)
- Operating Temperature
- -40°C to +80°C
Questions buyers ask
Which Sonim phones does the CURL-SO3-WP work with?
It is compatible with the Sonim XP10, XP5plus, XP5s and XP8 handsets. It connects through Sonim's SecureAudio Connector.
Can I wear it on either ear?
Yes. Rotate the earpiece, and the flexible C-ring earloop fits either the right or left ear.
Can I use the PTT button while wearing gloves?
Yes. The large, tactile PTT button is designed to work with heavy work gloves.
Is the headset waterproof?
It is third-party lab tested to meet the IP-67 rating standard and operates from -40°C to +80°C.
What warranty does it carry?
The CURL headset carries a 3-year comprehensive warranty.
