Klein Patriot Pro Wired PTT Headset for Sonim XP10, XP5plus, XP5s and XP8

MPN PATRIOTP-SO3-WP

Fits Sonim XP5s, Sonim XP8, Sonim XP5plus, Sonim XP10

$92.74$99.95Save $7.21

In stockShips from the US

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

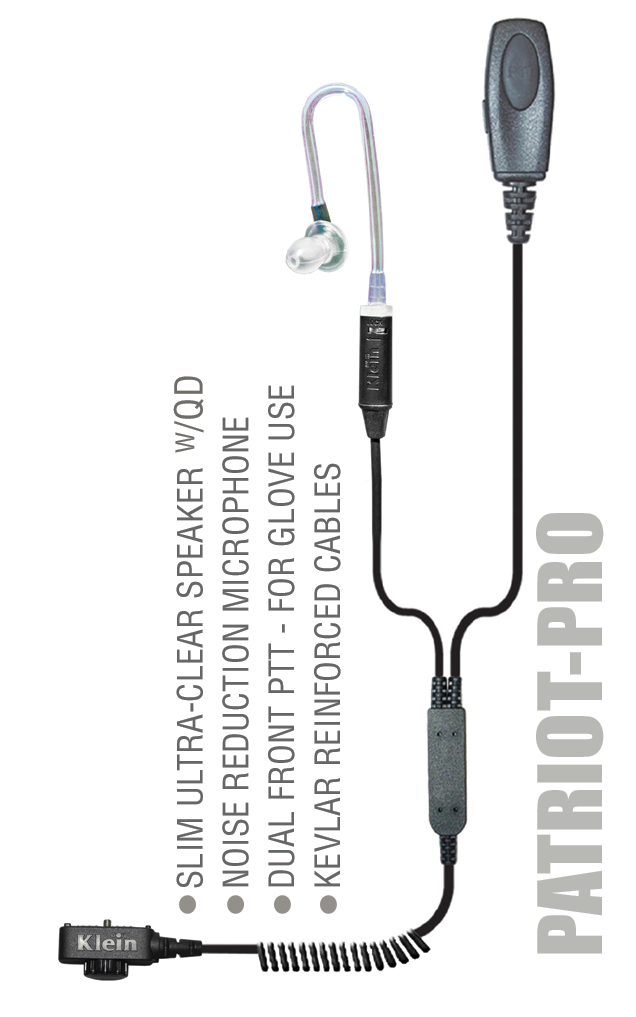

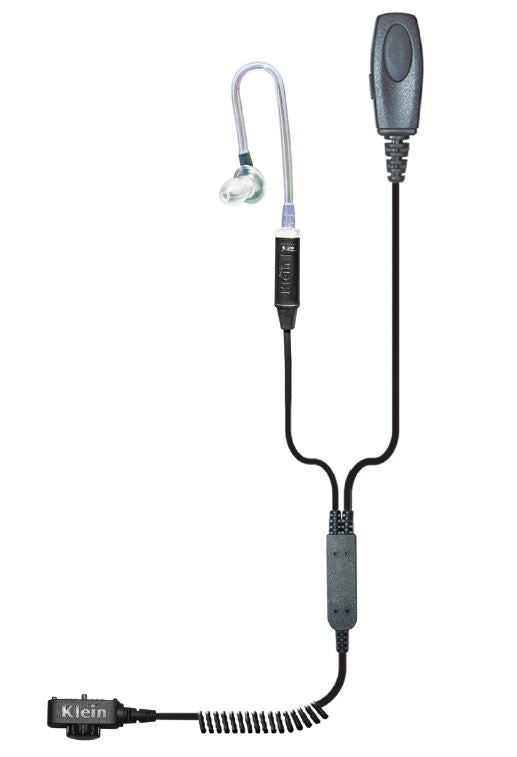

The Klein PATRIOT PRO Wired PTT Headset is an official Sonim accessory for the XP10, XP5plus, XP5s and XP8 handsets. This 2-wire surveillance earpiece has a clear quick-disconnect acoustic tube and a noise-reduction microphone. Dual front PTT buttons are large enough to use in heavy work gloves. The rugged SO3 connector screws into Sonim's SecureAudio port. The headset is third-party lab tested to IP67 and operates from -40°C to +80°C.

  • Compatible with Sonim XP10, XP5plus, XP5s and XP8 handsets through the SecureAudio (SO3) screw-in connector
  • Push-to-talk, full-duplex, 2-wire surveillance earpiece with a clear quick-disconnect acoustic coil tube

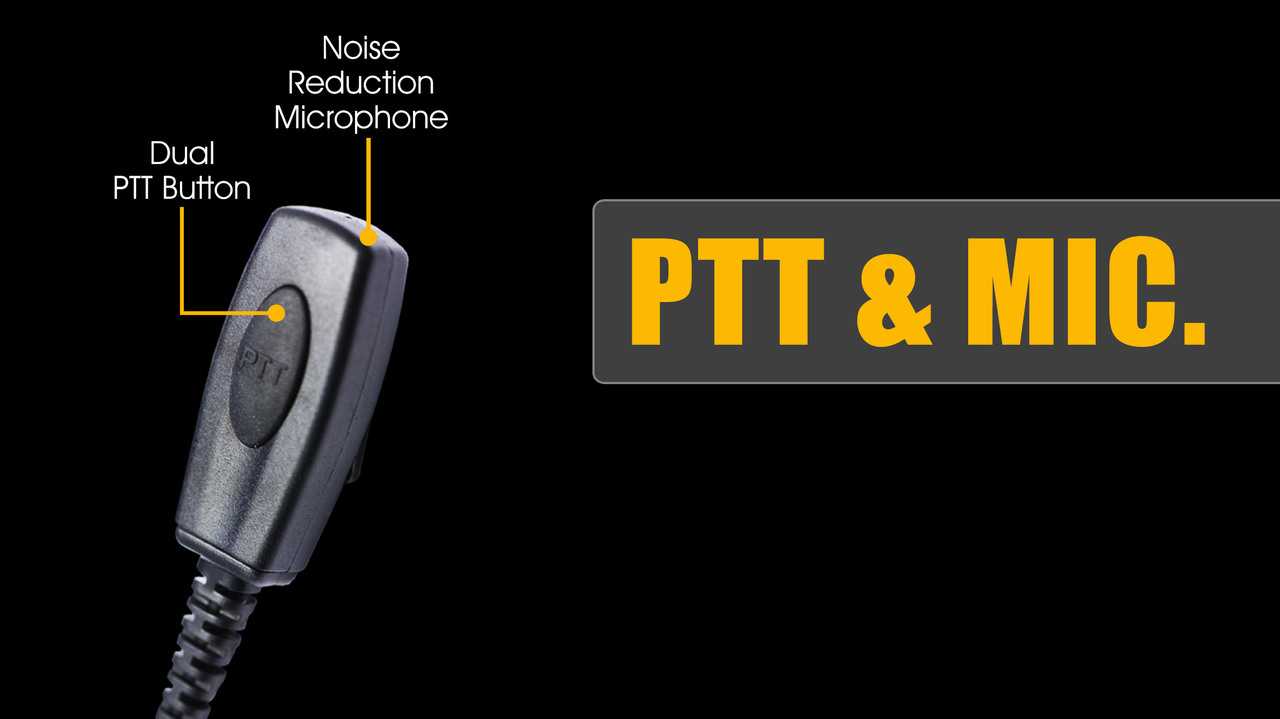

  • Front-facing dual PTT button switches for redundancy, sized for use with heavy work gloves
  • Omni-directional noise-reduction microphone and balanced armature magnetic speaker

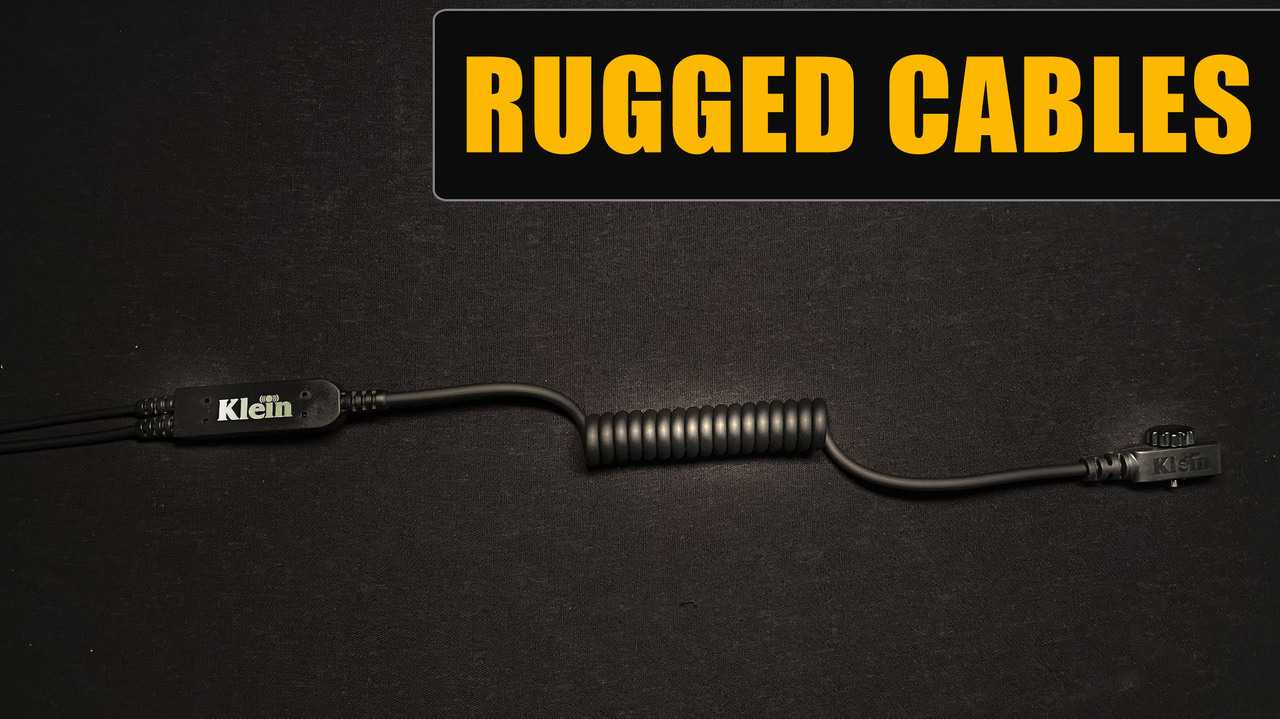

  • Kevlar-reinforced cables, third-party lab tested to meet the IP67 rating standard
  • -40°C to +80°C operating temperature; designed and assembled in the USA with a 3-year comprehensive warranty
  • The screw-in SecureAudio connection keeps audio connected during heavy movement on the job
  • Glove-friendly dual PTT buttons let workers transmit without removing protective gear

The Klein PATRIOT PRO Wired PTT Headset is a professional 2-wire push-to-talk earpiece made by Klein Electronics and sold as an official Sonim accessory. Klein custom designed it to connect to Sonim's SecureAudio Connector on the XP10, XP5plus, XP5s and XP8 handsets. The rugged SO3 side connector screws into the handset, so the connection holds during active work. It is a full-duplex wired headset for users who need hands-free push-to-talk throughout a shift.

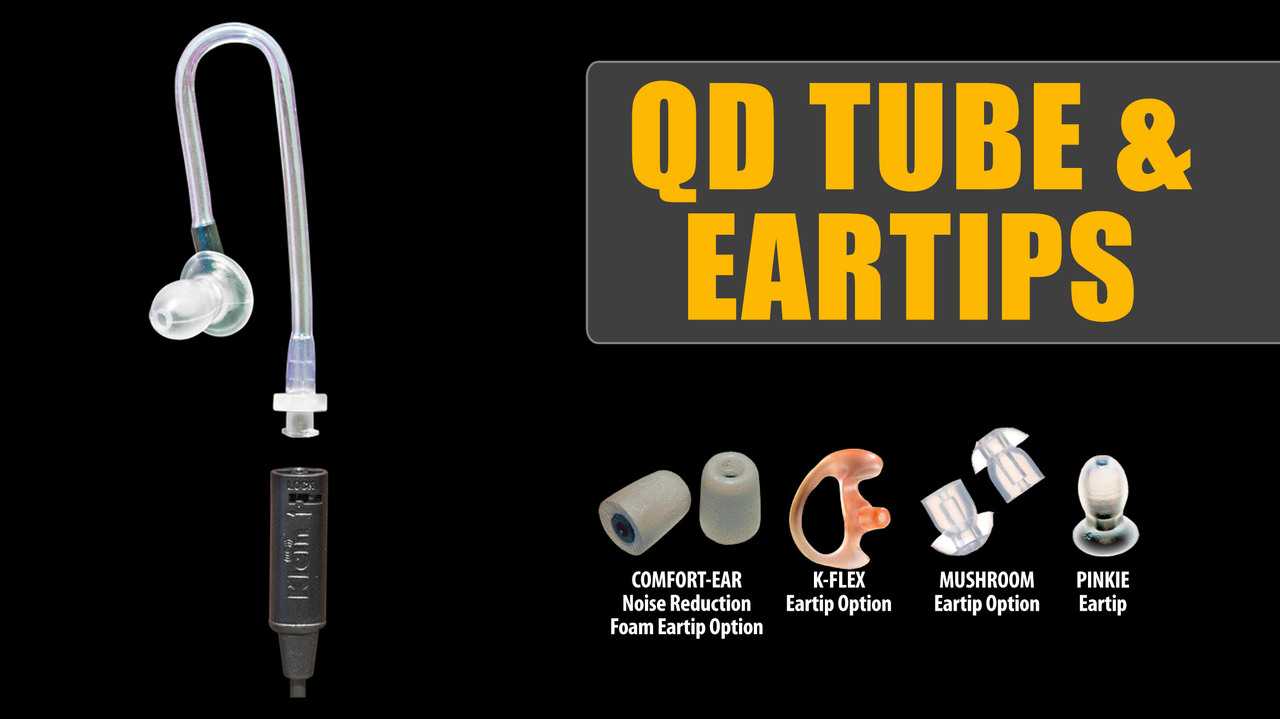

The 2-wire design lets the cords run over or under clothing or a uniform, and a built-in clip holds the cable in place. A clear quick-disconnect acoustic coil tube carries audio from the balanced armature magnetic speaker to a replaceable earpiece for all-day comfort. The omni-directional noise-reduction microphone has -36dB±2dB sensitivity and a +58dB signal-to-noise ratio at 1kHz. Two front-facing PTT switches provide redundancy and are large enough to press in heavy work gloves.

The PATRIOT PRO is built for demanding environments. Its Kevlar-reinforced cables are third-party lab tested to the IP67 rating standard, and it operates from -40°C to +80°C. Overall length is 78 inches, with a 26-inch top cable from the splitter and an 8-inch coiled bottom cable. The headset weighs 88g. It is designed and assembled in the USA and backed by a 3-year comprehensive warranty. A product datasheet is available.

Ideal for

  • Public safety and security teams using push-to-talk on Sonim XP10, XP5plus, XP5s or XP8 handsets
  • Utility, construction and industrial crews who work in heavy gloves
  • Discreet surveillance-style communication with cables routed under a uniform
  • Event, hospitality and venue staff who need clear audio in loud environments
  • Outdoor field operations in extreme temperatures

Specifications

General

MPN
PATRIOTP-SO3-WP
UPC
610452278843
Brand
Sonim (made by Klein Electronics)
Model
Klein PATRIOT PRO Wired PTT Headset
Klein Sku
PATRIOT-PRO-SO3
Product Type
2-wire wired PTT surveillance headset
Packaged Part Number
PATRIOTP-SO3-WP-P

Package

Packaged Weight
130g
Packaged Dimensions
5 x 6 x 1.5 inches

Speaker

Type
Balanced armature magnetic speaker
Impedance
200 Ohms @ 500 Hz
Sensitivity
108 dB SPL @ 1kHz
DC Resistance
92 Ohms

Support

Origin
Designed and assembled in the USA
Warranty
3-Year Comprehensive Warranty

Features

Ptt
Front-facing dual PTT button switches
Cables
Kevlar-reinforced cables
Duplex
Push-to-talk and full-duplex
Earpiece
2-wire surveillance earpiece with clear quick-disconnect acoustic coil tube
Cable Clip
Built-in clip for uniform attachment

Physical

Weight
88g
Total Length
78 inches
Top Cable Length
26 inches from splitter
Bottom Cable Coiled Length
8 inches coiled

Microphone

Type
Omni-directional noise-reduction microphone
Impedance
Max. 2.2K Ω 1kHz (RL-2.2K Ω)
Sensitivity
-36dB±2dB
Current Consumption
Max 0.5μA RL=2.2KΩ Vs=3.0V(DC)
Signal TO Noise Ratio
+58dB @ 1kHz (0dB=1V/Pa)
Max Sound Pressure Level
115dB S.P.L

Compatibility

Connector

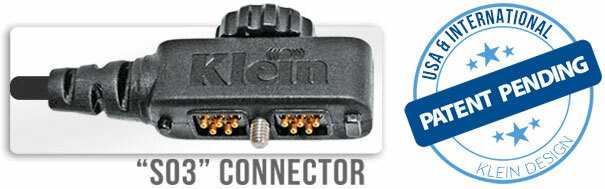

SO3 rugged SecureAudio side connector with screw
Compatible Devices
Sonim XP10, XP5plus, XP5s and XP8

Environmental

IP Rating
Third-party lab tested to IP67 rating standard
Operating Temperature
-40°C to +80°C

Questions buyers ask

Which Sonim phones does the Klein PATRIOT PRO work with?

It is compatible with the Sonim XP10, XP5plus, XP5s and XP8 handsets. It connects to their SecureAudio Connector.

How does the headset attach to the phone?

The rugged SO3 side connector screws into the SecureAudio port on the handset. This keeps the connection secure during active work.

Can I use the PTT button while wearing gloves?

Yes. The headset has large front-facing dual PTT switches that are compatible with heavy work gloves, and the second switch provides redundancy.

Is the headset water and dust resistant?

It is third-party lab tested to meet the IP67 rating standard and operates from -40°C to +80°C.

Is the earpiece replaceable?

Yes. The headset includes a replaceable audio tube and earpiece, and the clear acoustic coil tube is quick-disconnect.
