Sonim Klein VALOR Remote Speaker Microphone for XP10, XP5plus, XP5s and XP8 (VALOR-SO3-WP)

MPN VALOR-SO3-WP

Fits Sonim XP5s, Sonim XP8, Sonim XP5plus, Sonim XP10

$132.94$149.95Save $17.01

In stockShips from the US

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

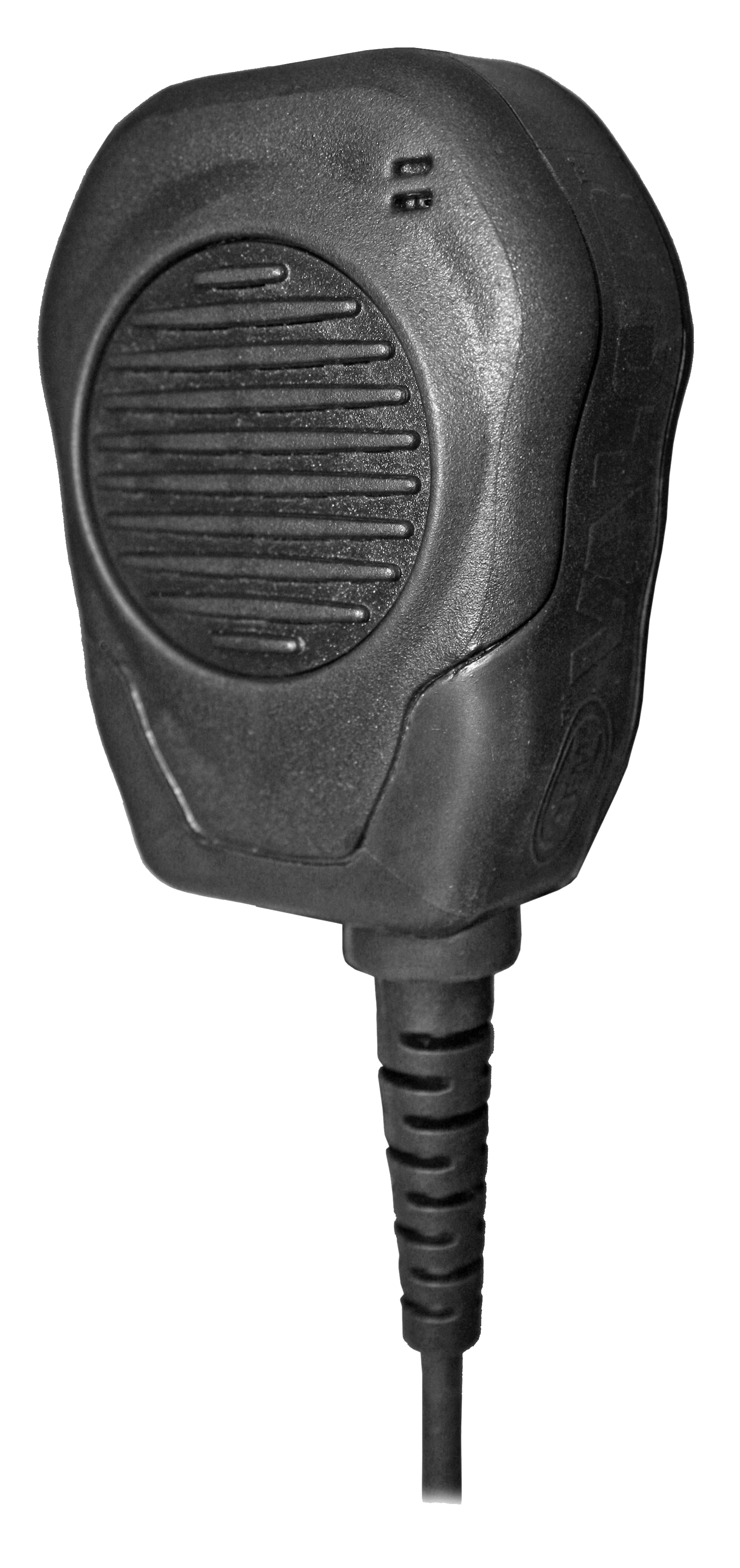

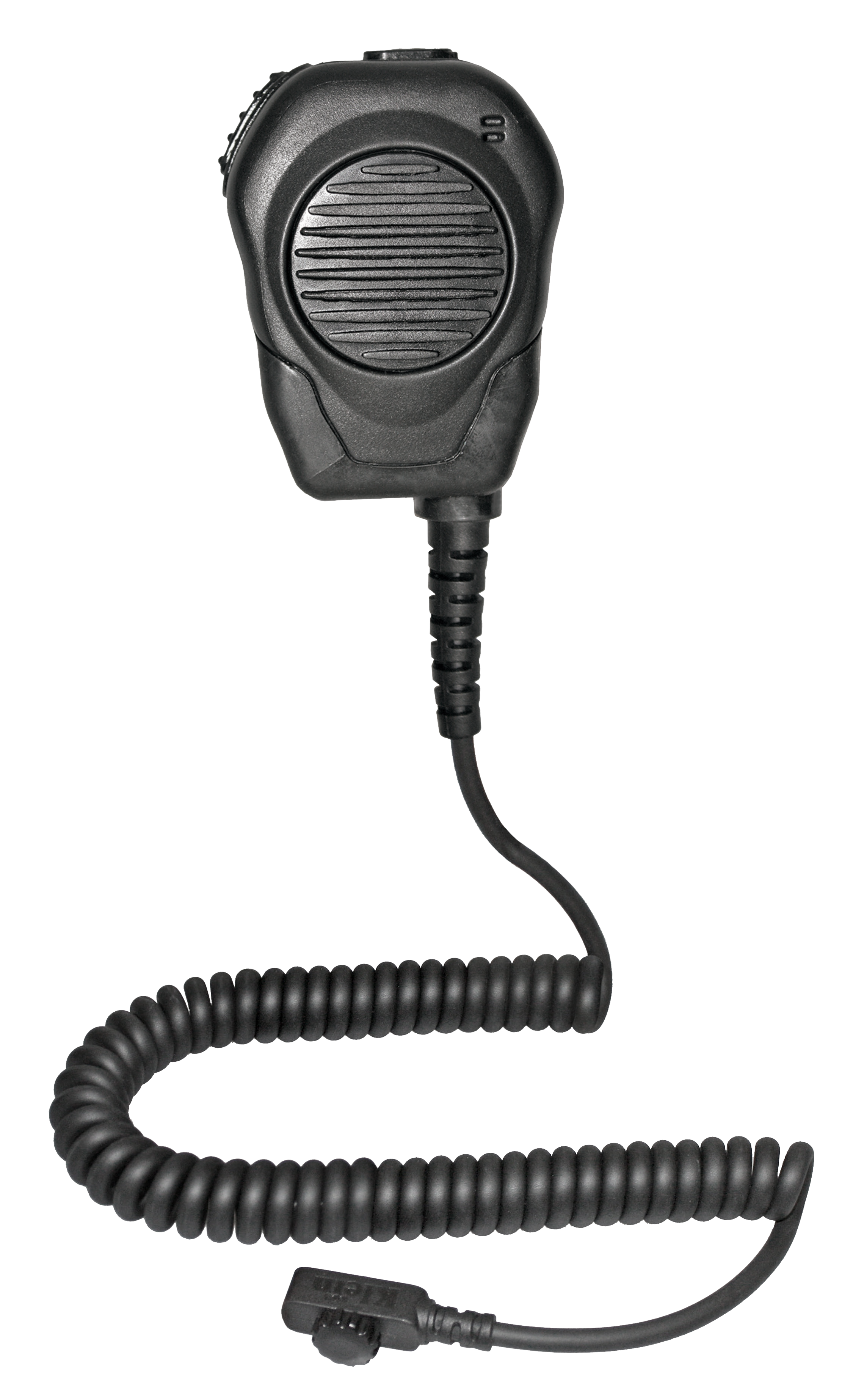

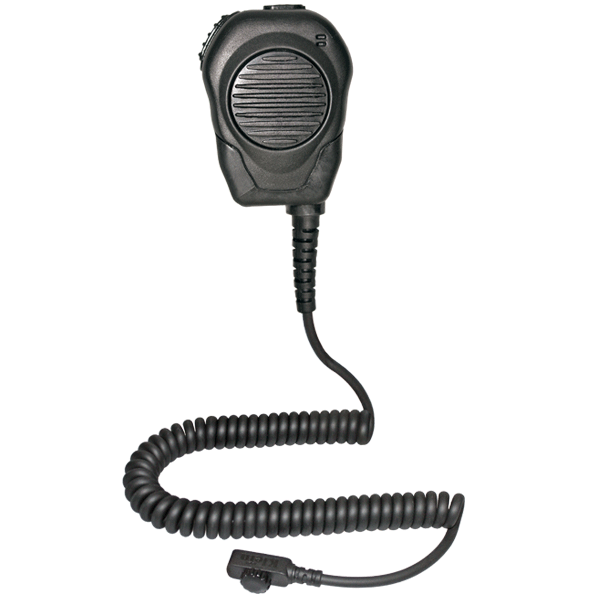

The Klein VALOR Remote Speaker Microphone (VALOR-SO3-WP) is the official Sonim shoulder speaker mic for the XP10, XP5plus, XP5s and XP8. Its SO3 connector screws into Sonim's SecureAudio Connector and draws power from the handset. A built-in amplifier tested to 104 dB output and large glove-friendly push-to-talk buttons keep crews heard on loud job sites. It is third-party lab tested to IP-66 and rated from -40°C to +100°C.

  • Official Sonim accessory made by Klein Electronics for the XP10, XP5plus, XP5s and XP8

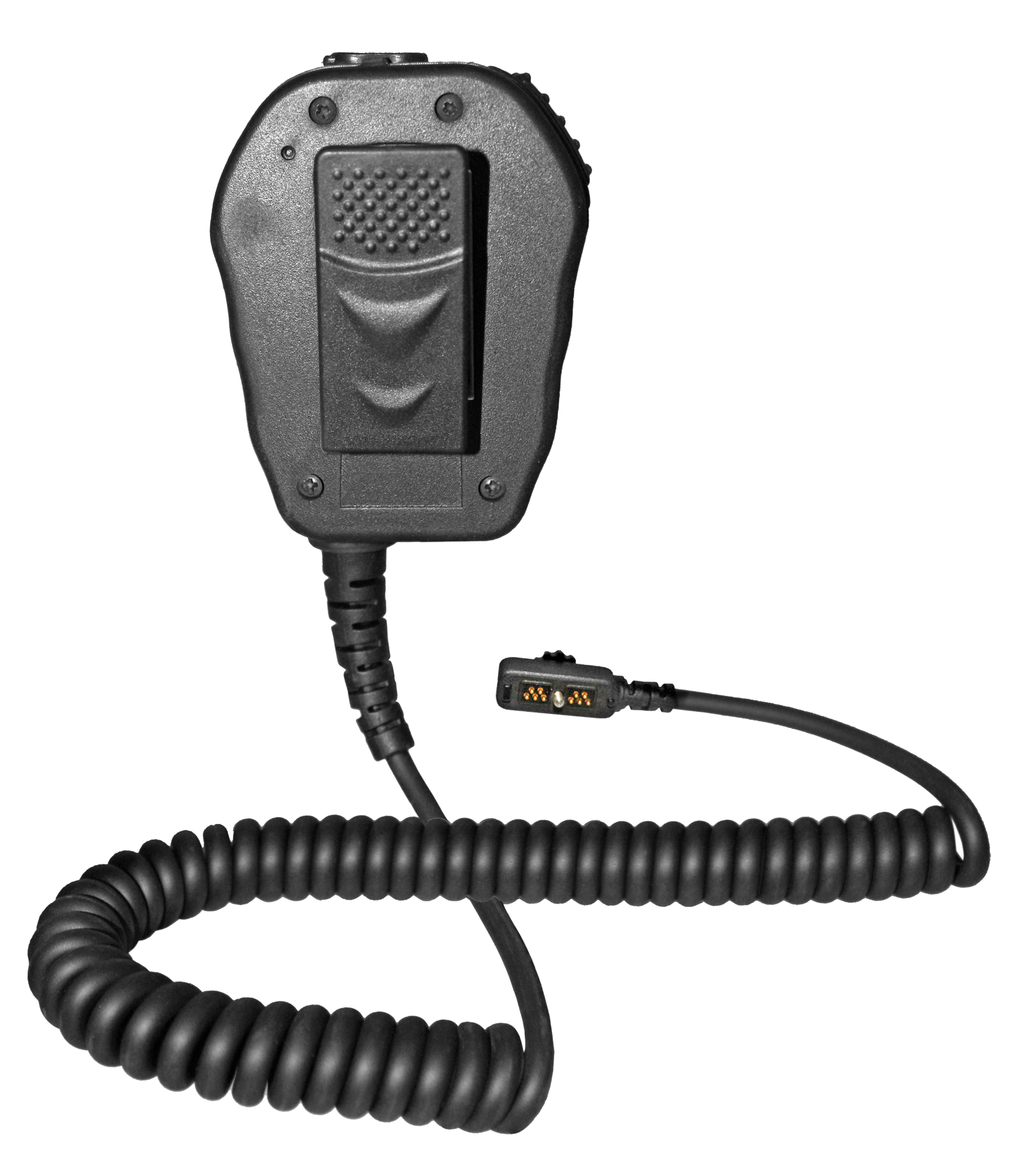

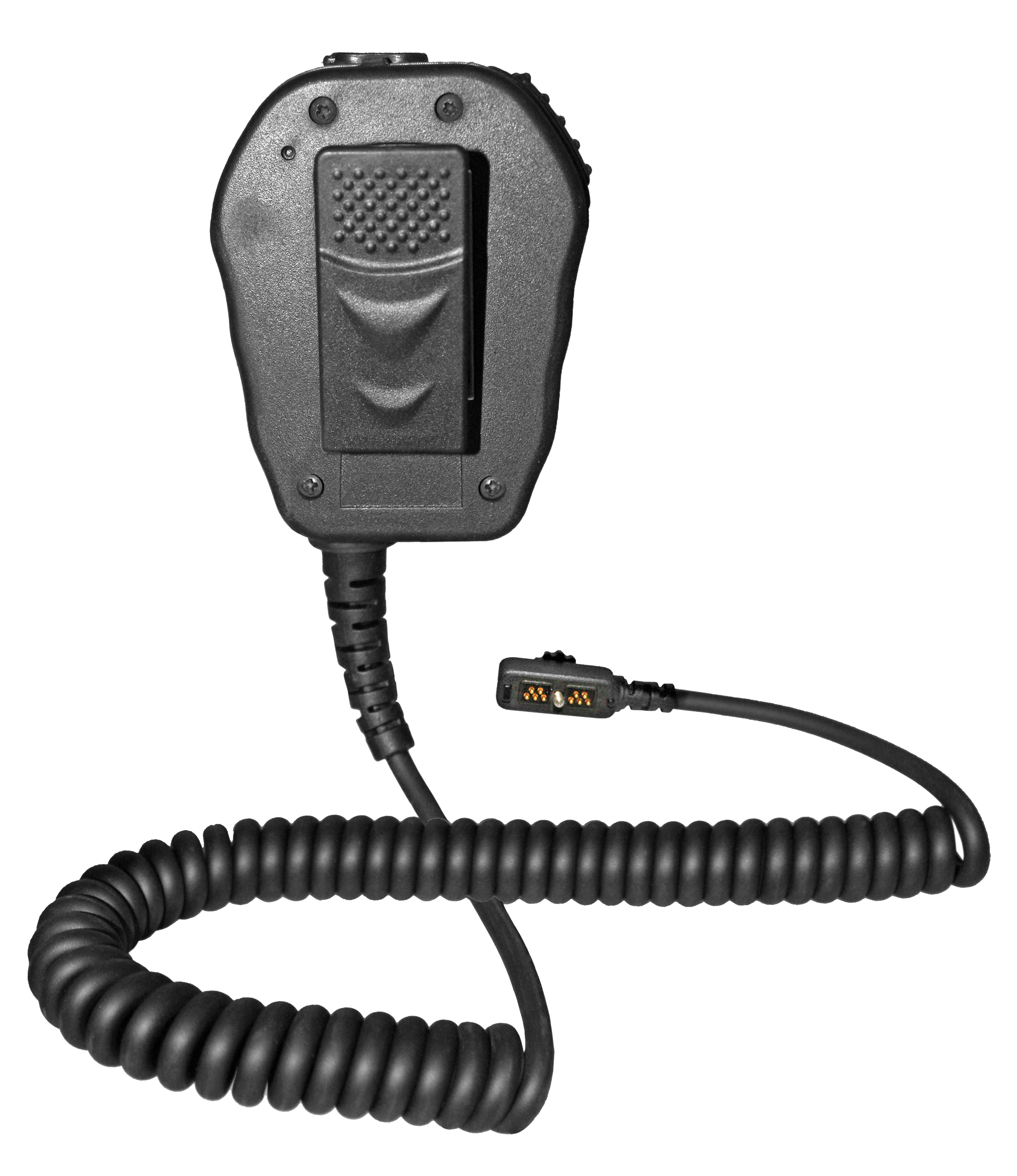

  • SO3 connector screws into Sonim's SecureAudio Connector and draws power from the handset
  • Built-in amplifier with 3 W nominal (5 W max) speaker, tested to 104 dB SPL max

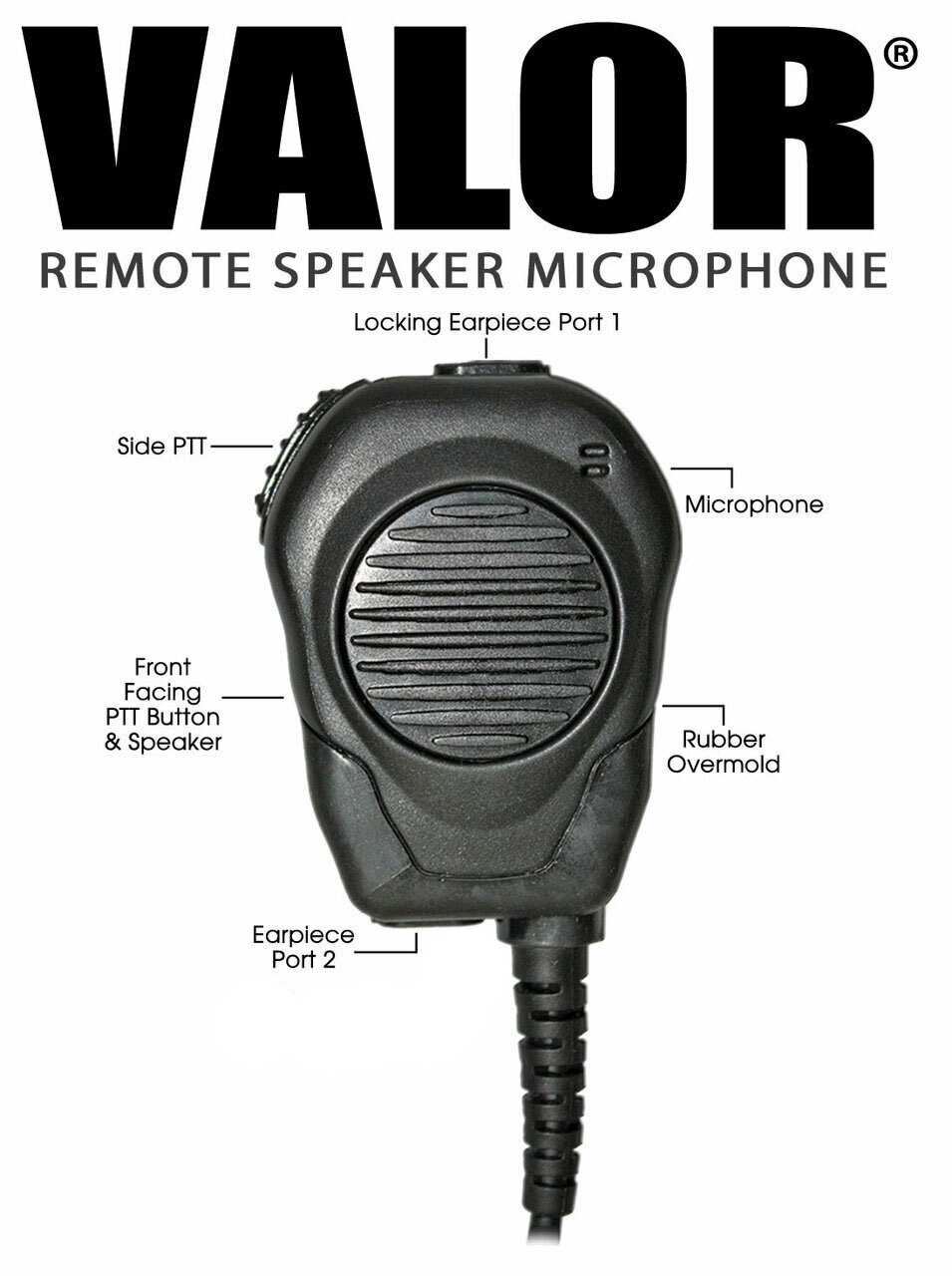

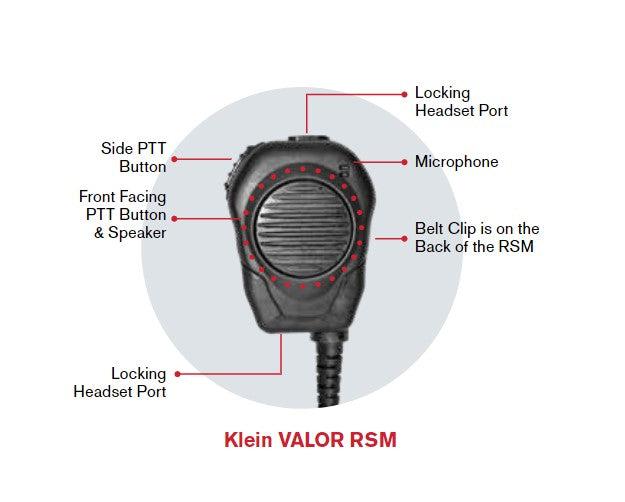

  • Large front-facing PTT button plus dual thumb PTT buttons, usable with heavy work gloves
  • Knowles omni-directional microphone, 55-60+ dB signal-to-noise ratio at 1 kHz

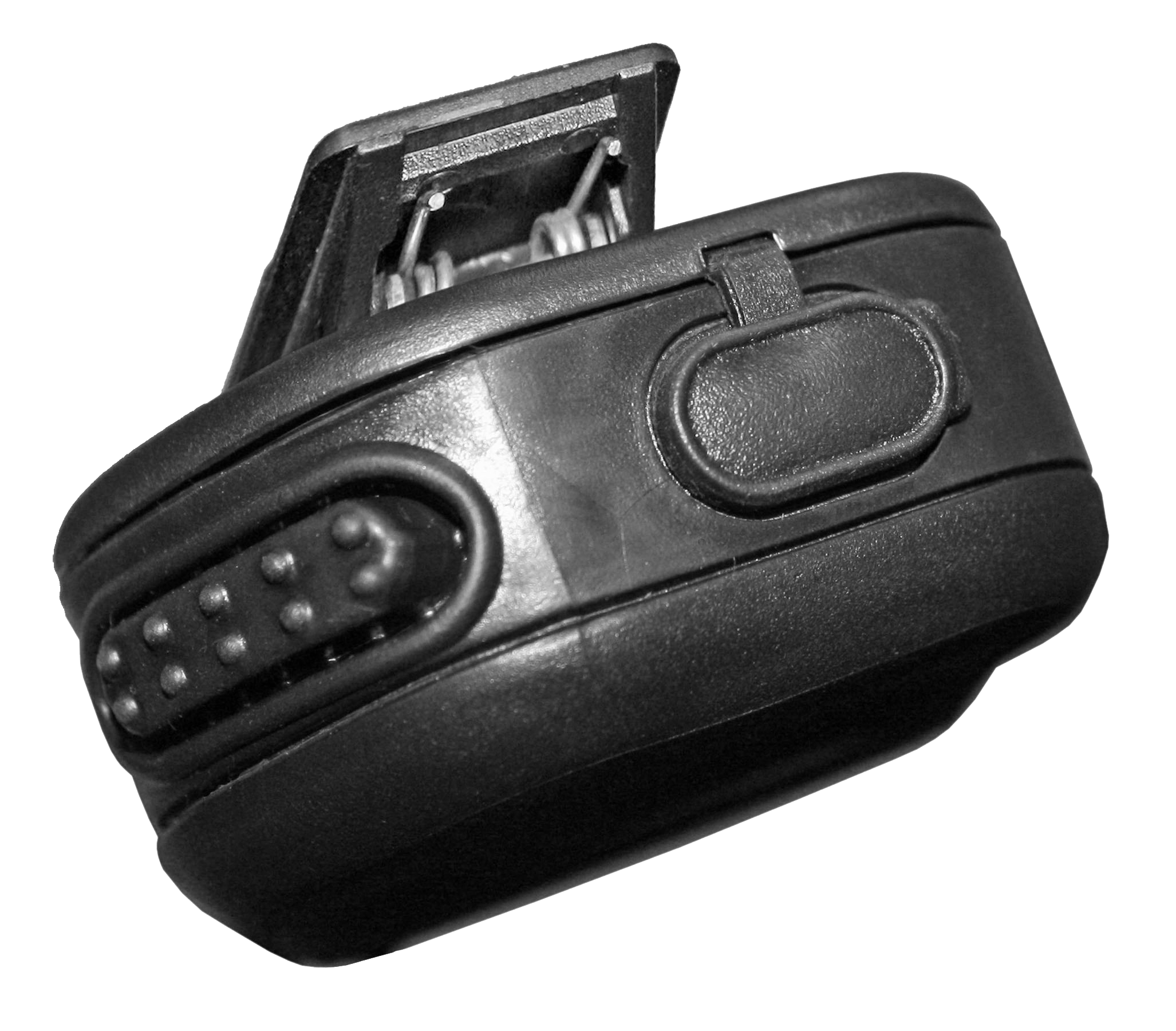

  • Dual top and bottom locking audio ports for optional listen-only earpieces
  • Third-party lab tested to IP-66; operating temperature -40°C to +100°C
  • Be heard over machinery, traffic and crowds with amplified audio tested to 104 dB

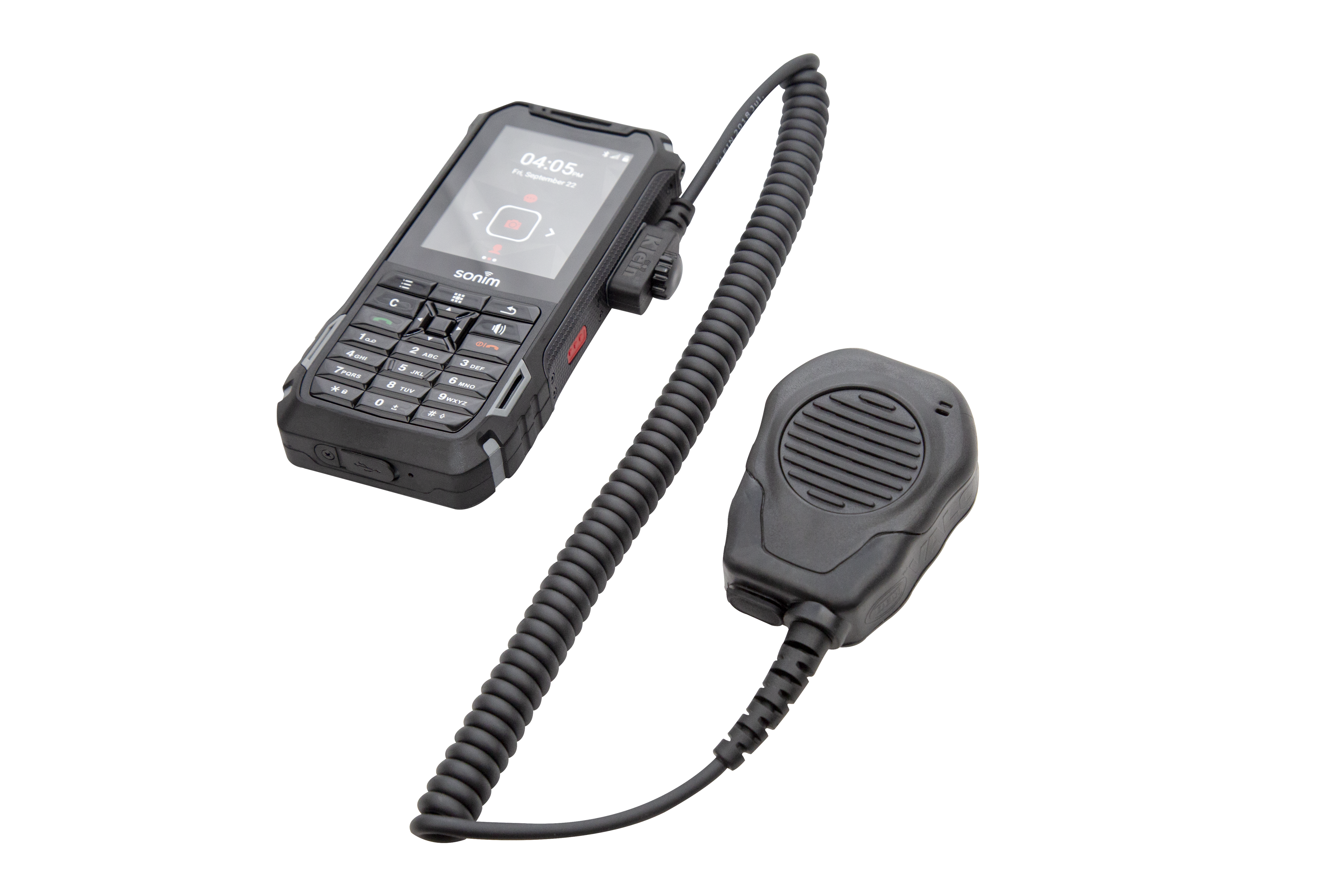

The Klein VALOR Remote Speaker Microphone is a rugged shoulder-worn speaker and PTT microphone for teams on Sonim XP10, XP5plus, XP5s and XP8 handsets. Klein Electronics designed it for Sonim's SecureAudio Connector. The SO3 connector screws into the handset and draws power from it, so the RSM has no separate battery to charge. Sonim sells it as an official accessory, and it is designed and assembled in the USA.

Audio is the reason to choose the VALOR. A built-in amplifier drives a speaker rated at 3 W nominal (5 W max), tested to a maximum output of 104 dB SPL. Transmit audio comes from a Knowles omni-directional microphone with a 55-60+ dB signal-to-noise ratio at 1 kHz. The VALOR has two ways to key up: a large front-facing PTT button and dual thumb PTT buttons. Both work with heavy work gloves.

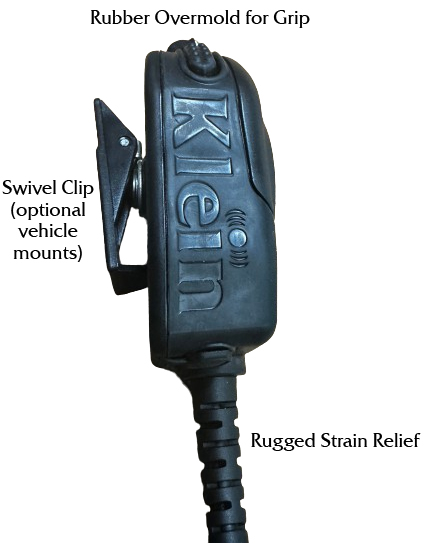

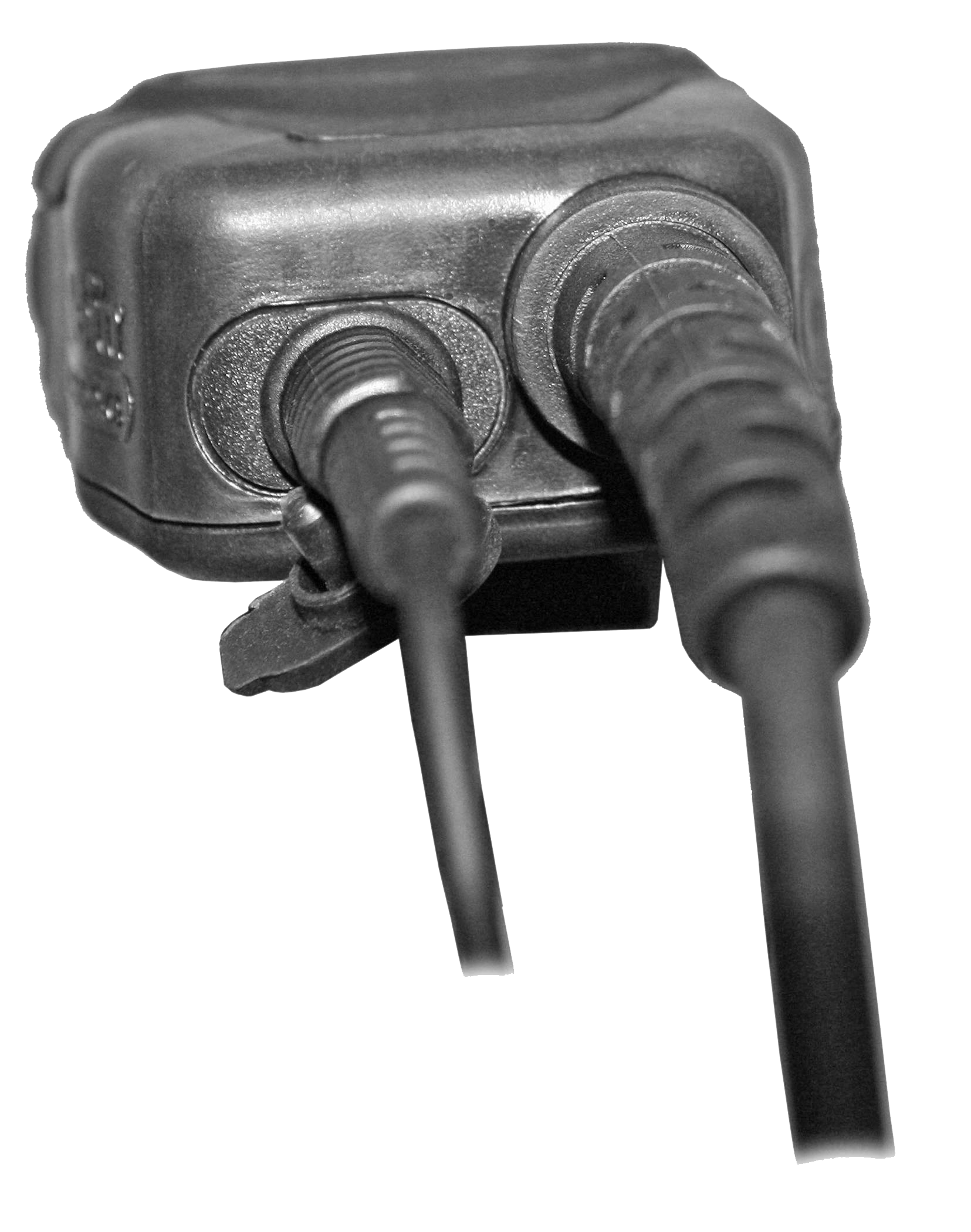

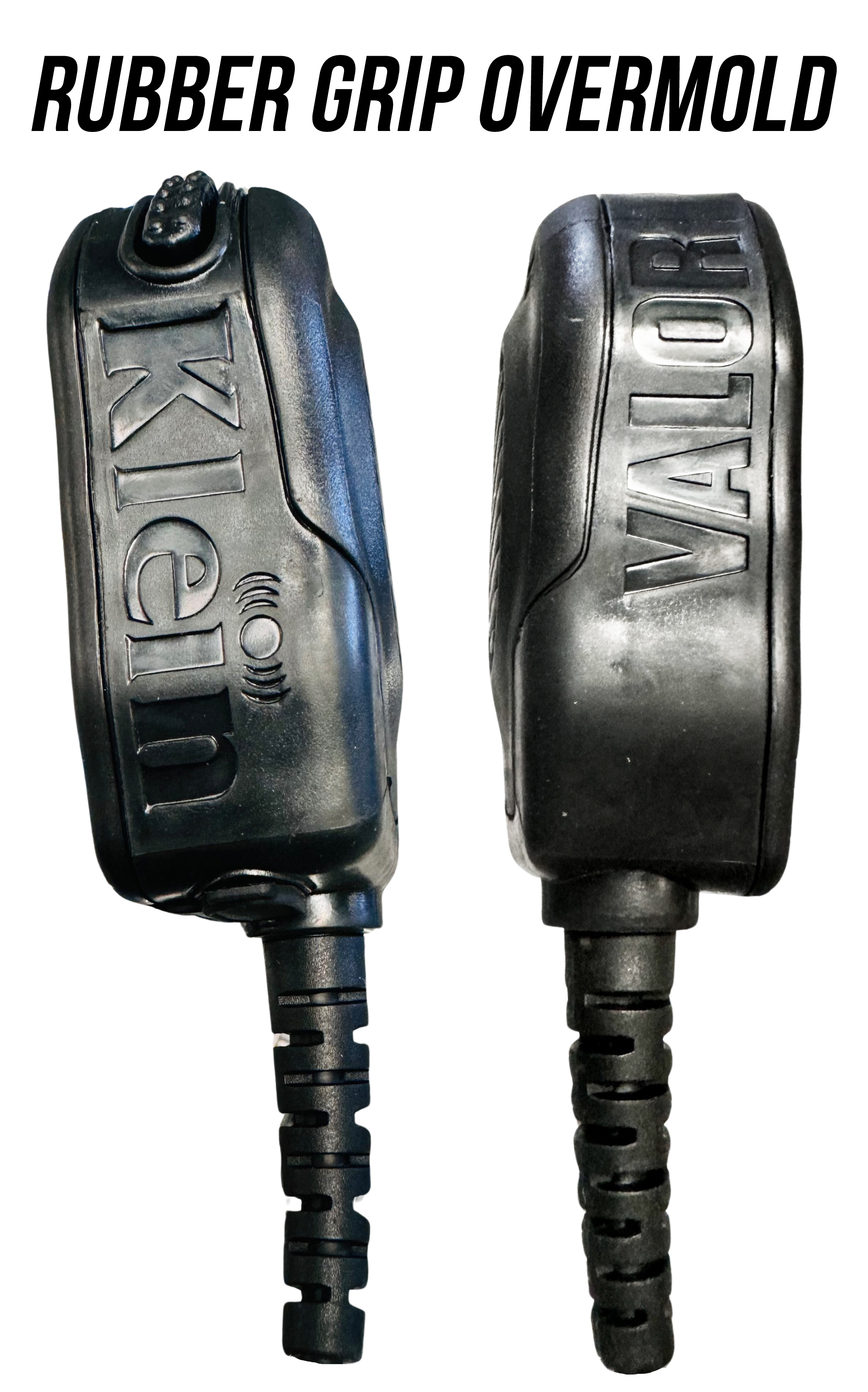

The body has a rubber overmold with contoured edges for a secure grip. It has locking audio ports on both the top and bottom for optional listen-only earpieces. The optional earpiece moves received audio off the loudspeaker while you keep transmitting through the RSM, which helps when broadcasting audio is not appropriate. Because there are ports at both ends, the handset can be worn on the front or the back.

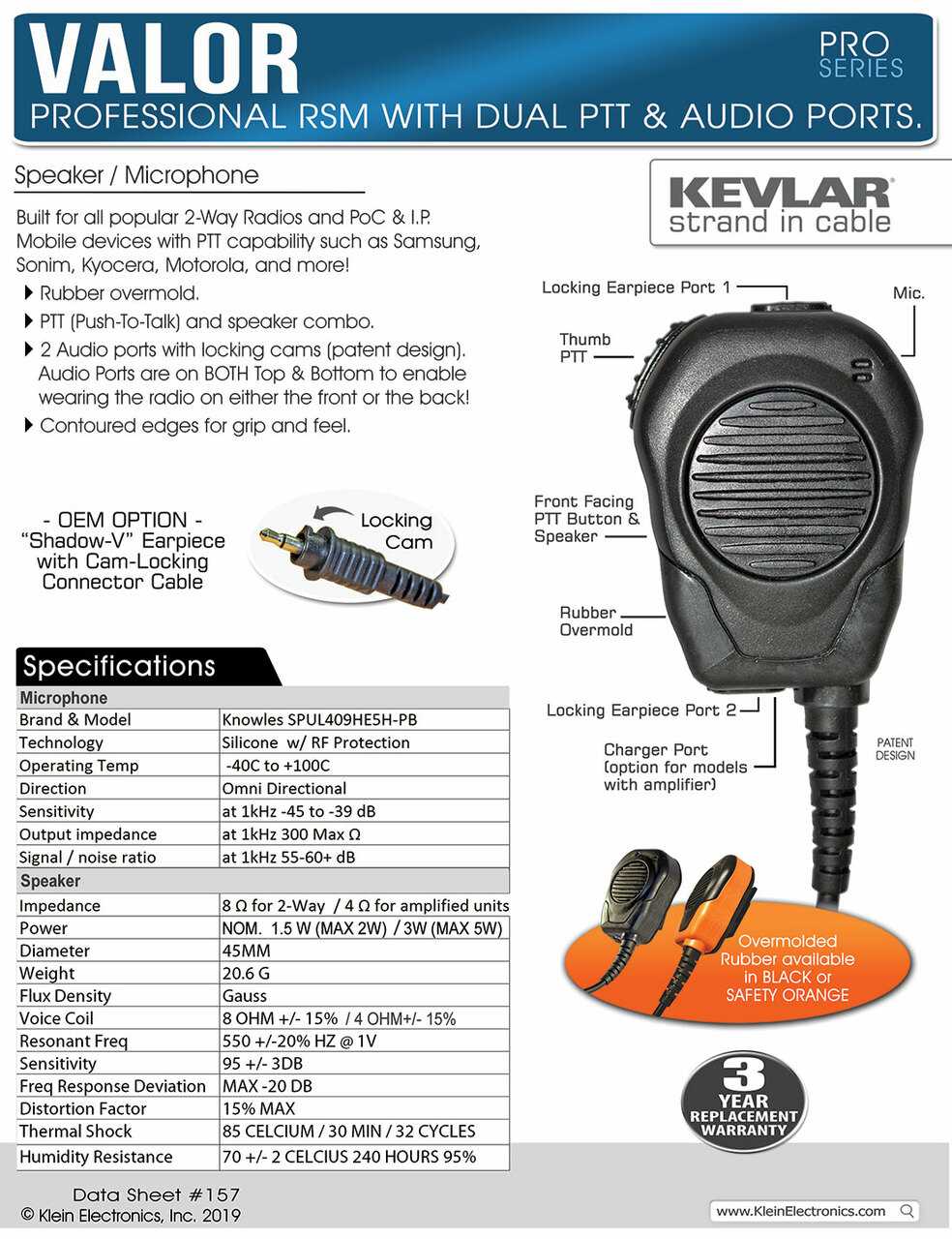

The VALOR is third-party lab tested to the IP-66 rating standard and specified for operation from -40°C to +100°C. It carries a 3-year comprehensive warranty. A datasheet and a user guide are available for this model.

Ideal for

  • Utility, construction and field-service crews using Sonim XP10 or XP5plus handsets on loud job sites
  • Public safety and security teams running push-to-talk on Sonim XP5s or XP8 phones
  • Warehouse, plant and logistics staff who need glove-friendly PTT without handling the phone
  • Outdoor and cold-weather operations that need an IP-66 accessory rated from -40°C
  • Discreet operations using an optional listen-only earpiece for private receive audio

Specifications

General

MPN
VALOR-SO3-WP
UPC
610452278881
Brand
Sonim
Category
Audio
Klein Sku
Klein SKU SONIM-VALOR-SO3
Manufacturer
Made by Klein Electronics
Product Type
Remote Speaker Microphone (RSM)
Packaged Part Number
VALOR-SO3-WP-P

Speaker

Amplifier
Built-in amplifier
Impedance
4 Ω
Voice Coil
8 Ω ±15% / 4 Ω ±15%
Sensitivity
95 ±3 dB
Output Power
3 W nominal (5 W max)
Output Level Spl
104 dB SPL max
Distortion Factor
15% max
Resonant Frequency
550 Hz ±20% @ 1 V

Controls

Audio Ports
Dual top and bottom locking audio ports for listen-only earpieces
Ptt Buttons
Large front-facing PTT plus dual thumb PTT buttons
Glove Compatible
Compatible with heavy work gloves

Physical

Length
100 in
Origin
Designed and assembled in the USA
Weight
214 g
Construction
Rugged rubber overmold, contoured edges
Packaged Weight
263 g
Shipping Weight
0.55 lb
Packaged Dimensions
7 x 4 x 2.75 in

Warranty

Warranty
3-year comprehensive warranty

Microphone

Microphone Type
Knowles omni-directional microphone
Sensitivity 1khz
-45 to -39 dB at 1 kHz
Signal TO Noise 1khz
55-60+ dB at 1 kHz
Output Impedance 1khz
300 Ω max at 1 kHz

Compatibility

Connector
SO3
Power Source
Draws power from the handset
Handset Interface
Screws into Sonim SecureAudio Connector
Compatible Devices
Sonim XP10, XP5plus, XP5s and XP8

Environmental

Ingress Protection
Third-party lab tested to IP-66
Operating Temperature
-40°C to +100°C

Questions buyers ask

Which Sonim phones does the VALOR-SO3-WP work with?

It is compatible with the Sonim XP10, XP5plus, XP5s and XP8 handsets, which use the SO3 SecureAudio Connector.

Does the VALOR RSM need its own battery?

No. The connector screws into the handset's SecureAudio Connector and draws power from the phone.

How loud is the VALOR speaker?

It has a built-in amplifier and a speaker rated at 3 W nominal (5 W max), tested to a maximum output of 104 dB SPL.

Can I use it with gloves on?

Yes. The large front-facing PTT button and the dual thumb PTT buttons are designed to work with heavy work gloves.

Can I add a private earpiece?

Yes. Locking audio ports on the top and bottom accept optional listen-only earpieces, which carry received audio while you continue to transmit through the RSM.
