Panorama FI-IN2682 Dual Sharkee 4x4 MIMO 4G/5G Sharkfin Antenna Kit with 5 m Cables, Black

5GMPN FI-IN2682
  • 4x4 MIMO
  • 3–5 m
$306.84$423.28Save $116.44

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans
Compare all 3 configurations

Datasheets & documents

Overview

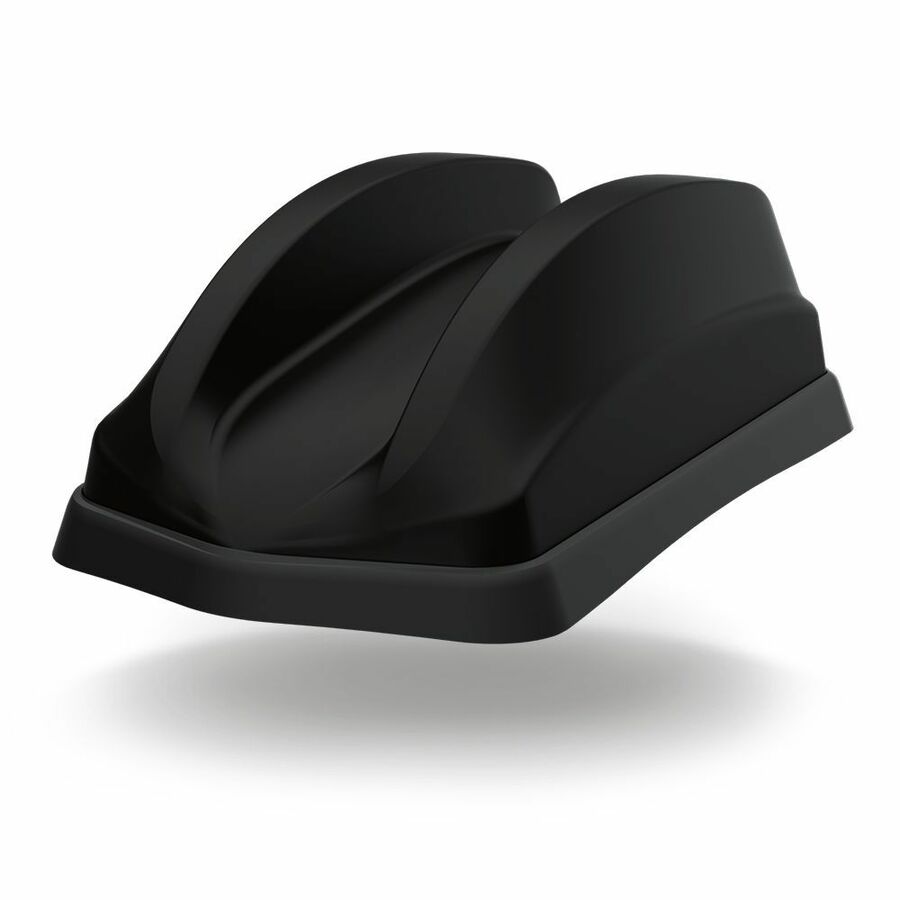

The Panorama FI-IN2682 is a 4-in-1 Dual Sharkee sharkfin antenna kit for vehicles running 4x4 MIMO 4G/5G routers. Four cellular elements cover 617-960 MHz and 1427-6000 MHz inside an IP69K-rated black housing. The kit ships with four 5 m cables already fitted and terminated in SMA (m) connectors. It installs through a single roof hole and connects directly to the router.

  • 4x4 MIMO 4G/5G cellular elements covering 617-960 MHz and 1427-6000 MHz
  • Four 5 m cellular cables fitted, terminated in SMA (m) connectors
  • Automotive-style sharkfin housing, 253 x 142 x 82 mm, black
  • IP69K rated; cable flammability to EN45545-2 HL3, UN ECE R118 and EN6722
  • Integral stud mount for an external VHF/UHF whip, blanking cap supplied
  • Single-hole panel mounting, with a magnetic option for temporary installs
  • Operating temperature -40 °C to +80 °C
  • Feeds all four cellular ports of a 4x4 MIMO 4G/5G router from one roof antenna

The Panorama FI-IN2682 is the cellular-only kit version of the Dual Sharkee (GPS[X]D4[X]-6-60) family. It pairs the FIND4-6-60 black sharkfin with four fitted 5 m cables. The housing contains a 4x4 MIMO antenna function for 4G/5G covering 617-960 MHz and 1427-6000 MHz, including Band 71 600 MHz. Fleets, public safety agencies and utilities get a single discreet roof antenna that feeds all four cellular ports of a 4x4 MIMO router.

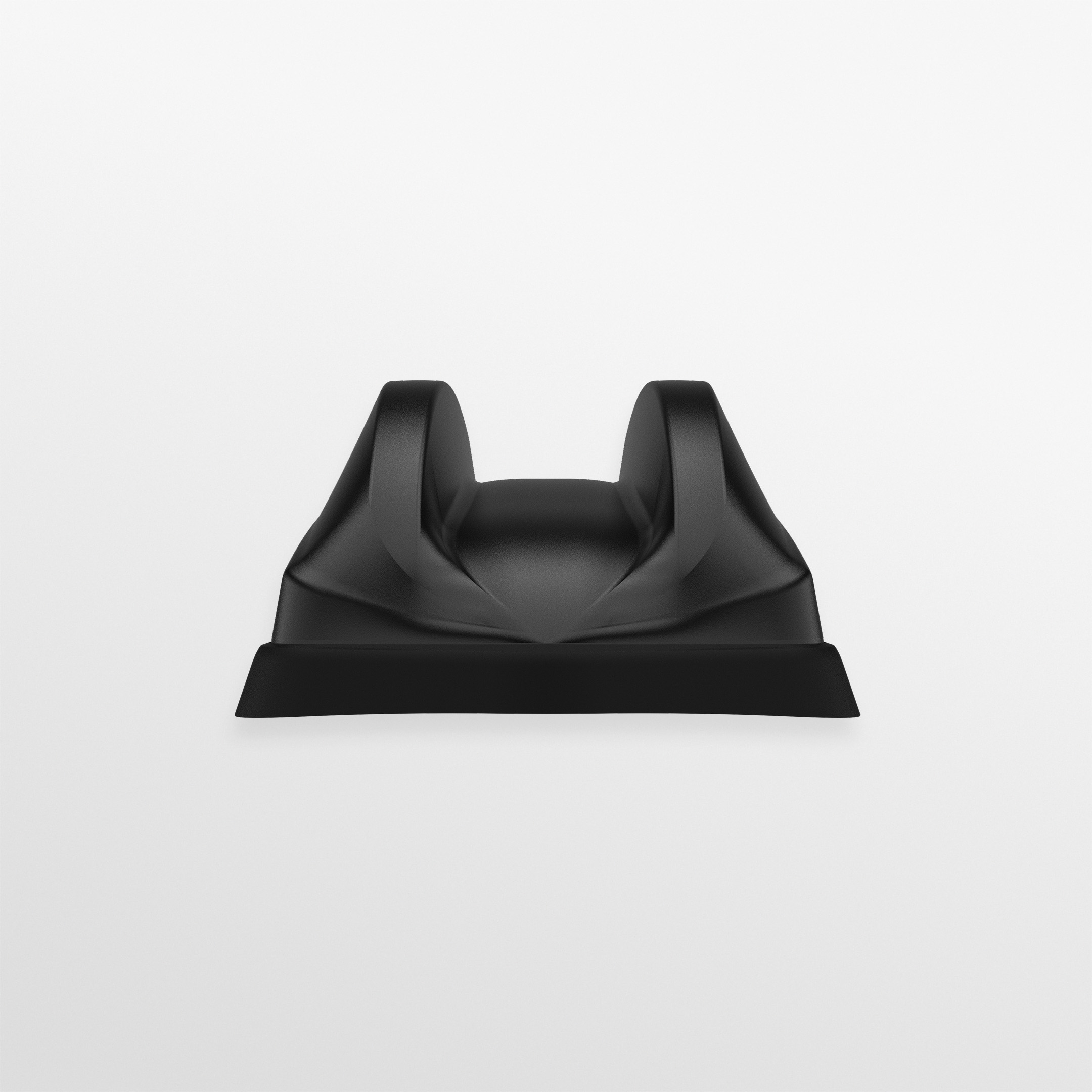

The omnidirectional elements sit in an automotive-style sharkfin measuring 253 x 142 x 82 mm (9.96 x 5.59 x 3.23 in). The housing is IP69K rated and operates from -40 °C to +80 °C. Cable feeds meet EN45545-2 HL3, UN ECE R118 and EN6722 flammability requirements, which suits buses, rail and emergency vehicles. Each cellular lead terminates in an SMA (m) connector. Because the cables are fitted at the factory, the kit arrives ready to route to the router.

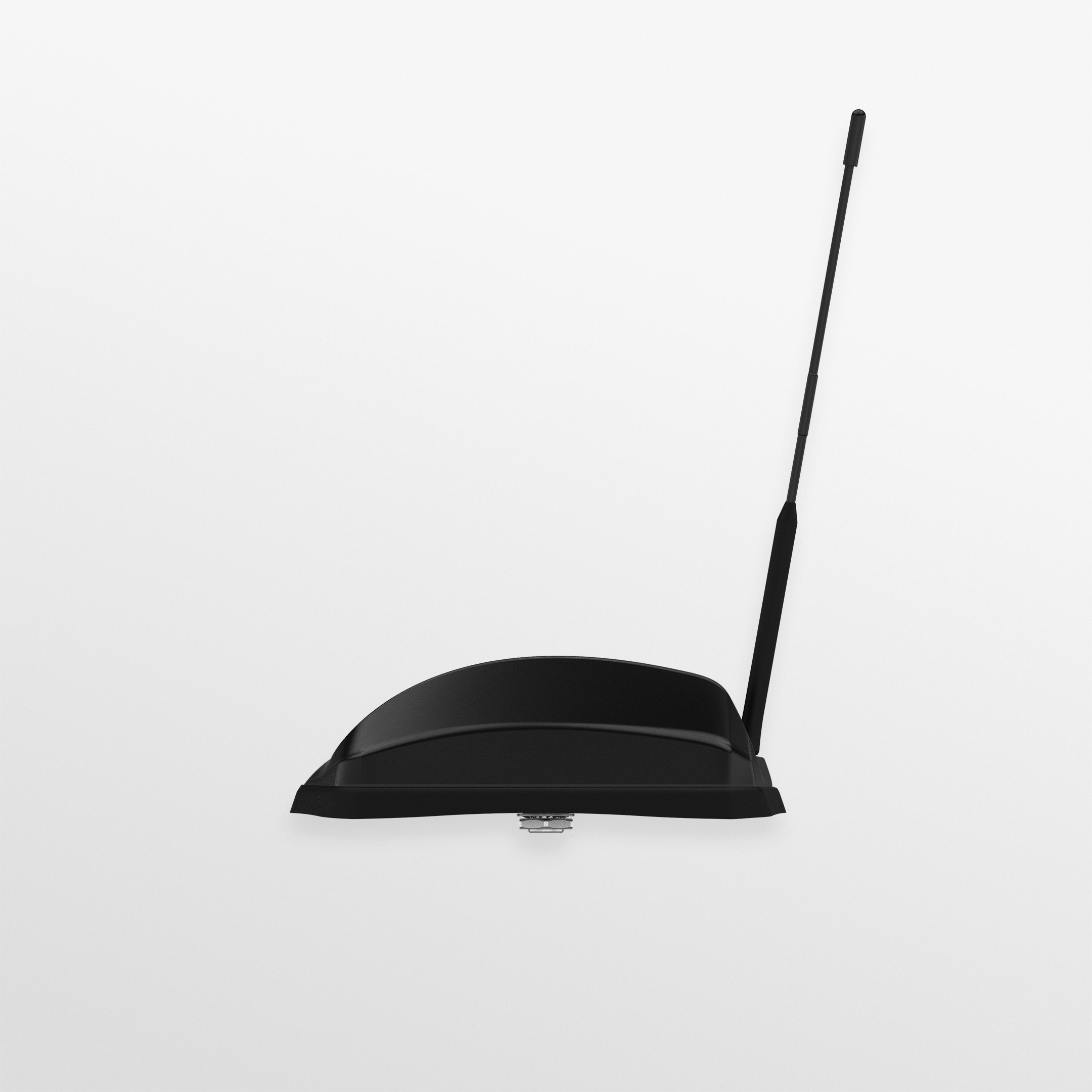

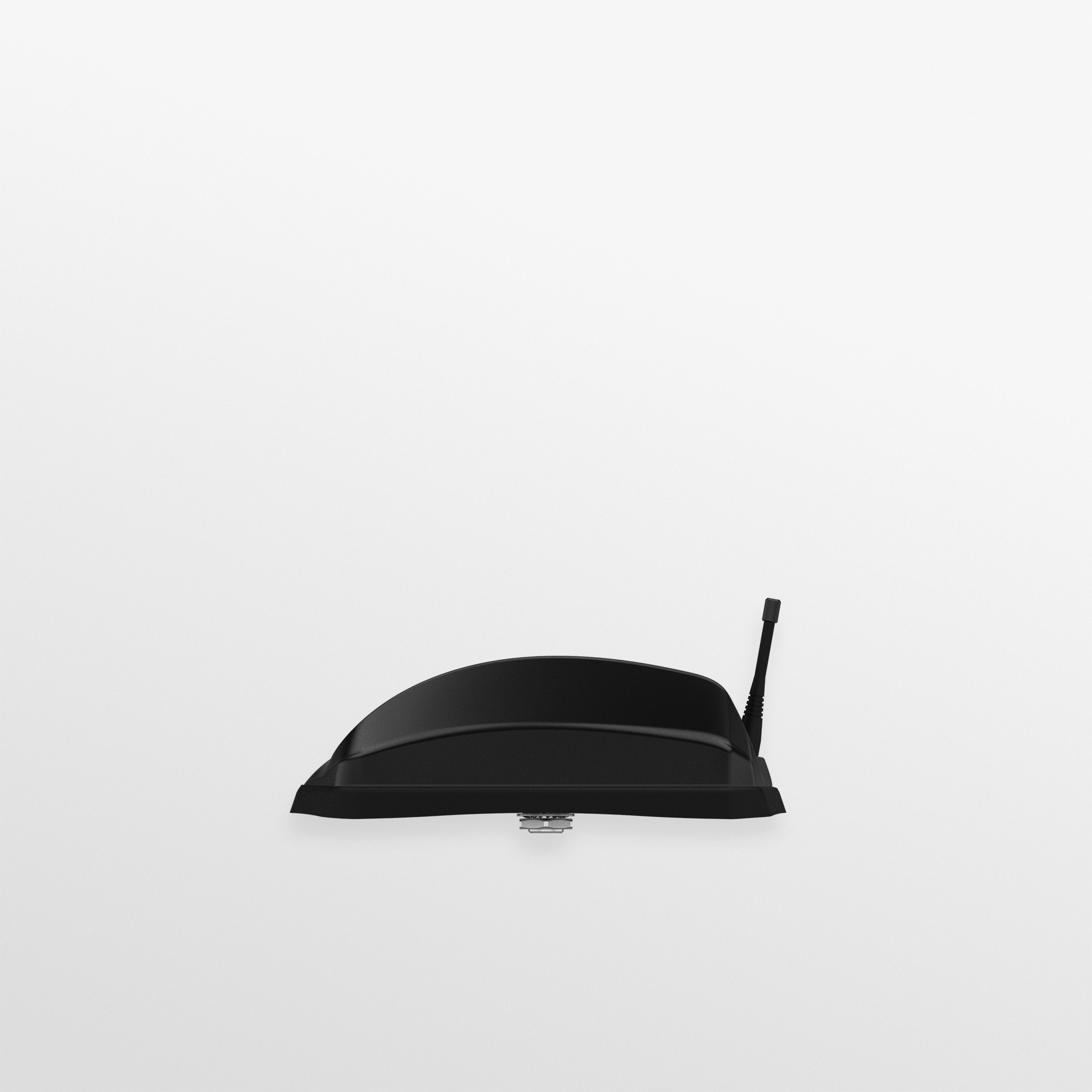

Mounting needs only a single hole, which limits vehicle damage and installation time and helps protect resale value. The family also includes an integral stud mount with an FME (m) connection for an external VHF, UHF or combination whip for voice radio, and a blanking cap covers it when no whip is used. If you fit a whip, mount the antenna on a metal panel. Without a whip, it can go on a non-metallic panel with similar performance. Panorama lists panel mounting as the fixed option and magnetic mounting as the temporary option.

Panorama publishes a datasheet and installation instructions for this antenna family. It also lists compatible mounting accessories: the SAB-333 magnetic mount solution, the SAB-312 ribbed roof mounting kit, and the SAB-324-2 adaptor kit for the Ford Explorer / Interceptor.

Ideal for

  • Police, fire and EMS vehicles running 4x4 MIMO 4G/5G in-vehicle routers
  • Mass transit buses and coaches that need flame-retardant cable feeds
  • Utility and industrial fleet vehicles in harsh weather
  • Covert or low-visibility vehicle installations that also need a voice radio whip

Specifications

GPS

Lna Gain
26 dB (GPS-equipped family variants)
GPS Frequency Range
1559-1612 MHz (GPS-equipped family variants)
Number OF GPS Elements
None on this model (family options: 1 or 2 modules)

Cable

Cable Type GPS
FR CS29; FR RG174 (GPS-equipped variants)
Cable Type LTE
FR RG174; CS32
Cable Type Wi-Fi
FR CS32; FR RG174 (Wi-Fi-equipped variants)
Cable Length GPS
Not applicable (family range 0.3-5 m)
Cable Length LTE
5 m (16.4 ft), fitted (family range 0.3-5 m)
Cable Length Whip
0.3 m (0.98 ft)
Cable Length Wi-Fi
Not applicable (family range 0.3-5 m)
Quantity OF Cell Cable
4
Quantity OF GPS Extension
Not applicable (family: 1)
Quantity OF Wi-Fi Extension
Not applicable (family: up to 4)

General

MPN
FI-IN2682
UPC
5055416074379
Brand
Panorama Antennas
Base Antenna
FIND4-6-60 with fitted 5 m cables
Configuration
4-in-1: 4x4 MIMO cellular, no GPS, no Wi-Fi
Product Family
Dual Sharkee (GPS[X]D4[X]-6-60)

Package

Documentation
Panorama GPS[X]D4[X]-6-60[-X] datasheet; installation instructions SW3-1025
Cables Included
Four 5 m cellular cables, fitted
Shipping Weight
4.70 lb

Mounting

Mounting Methods
Magnetic; Panel
Mounting Type Fixed
Panel
Mounting Type Temporary
Magnetic

Approvals

IP Rating
IP69K
Cable Flammability
EN45545-2 HL3; UN ECE R118; EN6722

Electrical

Pattern
Omnidirectional
Uhf Elements
No
Wi-Fi Elements
None on this model (family options: 4x4, 3x3, 2x2 MIMO)
Cellular LTE Elements
4 x 4 MIMO
Cellular Frequency Range
617-960 MHz / 1427-6000 MHz

Mechanical

Width
142 mm (5.59 in)
Colour
Black
Height
82 mm (3.23 in)
Length
253 mm (9.96 in)
Operating Temperature
-40 °C to +80 °C (-40 °F to +176 °F)

Technology

Technology
4G/5G, 5G, 2G/3G, 2G/3G/4G, Band 71 600 MHz ready, FirstNet, GPS, Wi-Fi MIMO, Wi-Fi, GNSS (family)

Termination

Connector GPS
SMA (m); FME (f) (GPS-equipped variants)
Connector LTE
SMA (m)
Connector Whip
FME (m), VHF/UHF whip
Connector Wi-Fi
Reverse Polarity SMA; SMA (f) (Wi-Fi-equipped variants)

Questions buyers ask

What frequencies does the FI-IN2682 cover?

Its four cellular elements cover 617-960 MHz and 1427-6000 MHz in a 4x4 MIMO configuration for 4G and 5G.

Does this kit include GPS or Wi-Fi antennas?

No. FI-IN2682 is the cellular-only version. GPS and Wi-Fi are available in other Dual Sharkee part numbers such as GP-IN2712 and GP-IN2670.

What cables and connectors come with it?

Four 5 m cellular cables come fitted to the antenna, each terminated in an SMA (m) connector.

Can I mount it on a fiberglass or plastic roof?

Yes, if you are not using a comms whip. With a whip installed, Panorama specifies mounting on a metal panel.

How rugged is the antenna?

The housing is IP69K rated and operates from -40 °C to +80 °C. The cable feeds meet EN45545-2 HL3, UN ECE R118 and EN6722 flammability standards.
