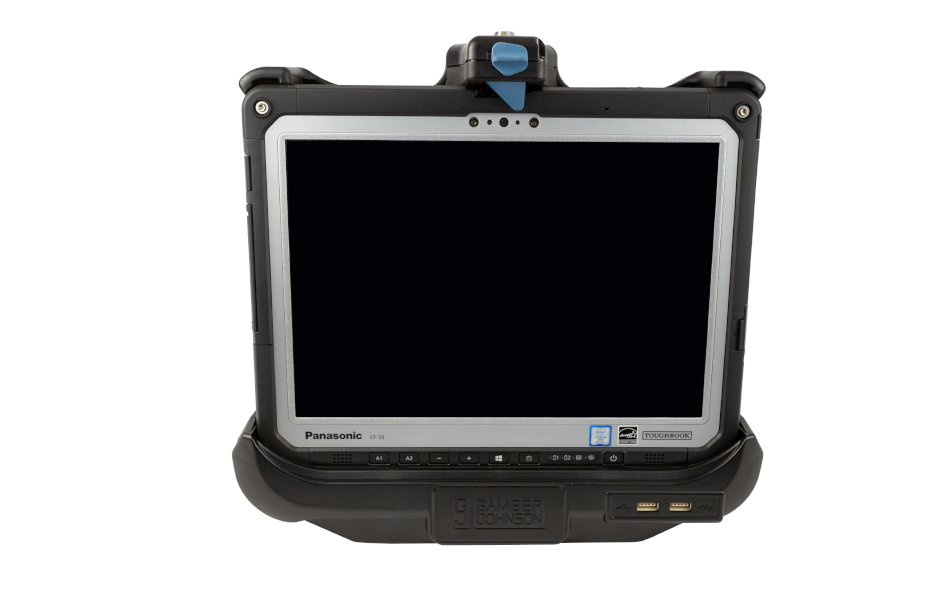

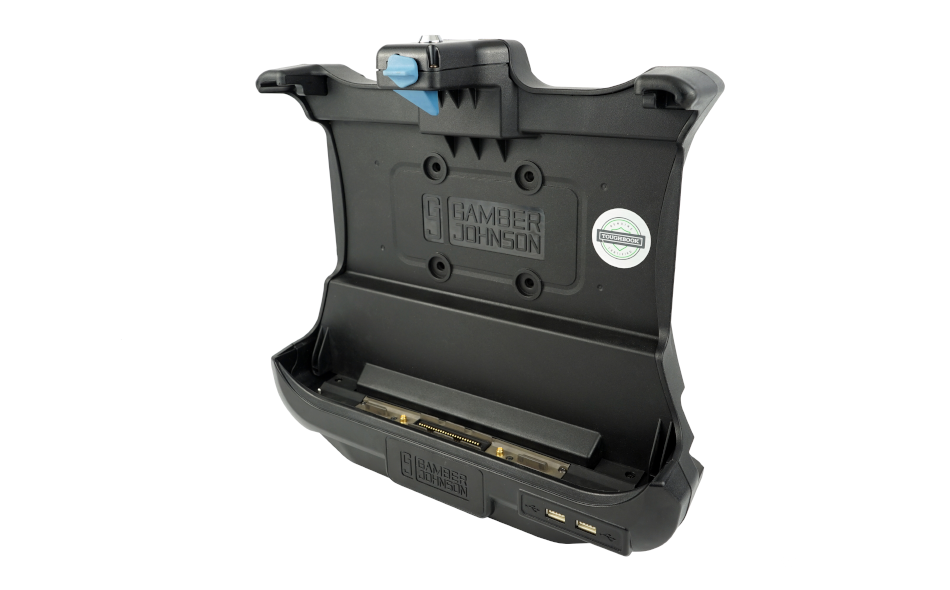

Gamber-Johnson Panasonic Toughbook 33 Tablet Vehicle Docking Station with LIND 120W Power Adapter, Full Port, Dual RF

The Gamber-Johnson Toughbook 33 Tablet Docking Station kit (Gamber-Johnson item 7170-0684-02, Panasonic part number GJ-33TVDF2L) is designed for vehicle fleets that use the Panasonic Toughbook 33 detachable tablet with roof-mounted or external antennas. The kit includes the Dual RF full port replication docking station (item 7160-0907-02) and a LIND 120W auto power adapter (item 14103). It is used across fire and rescue, public safety, utility, logistics and material handling fleets.

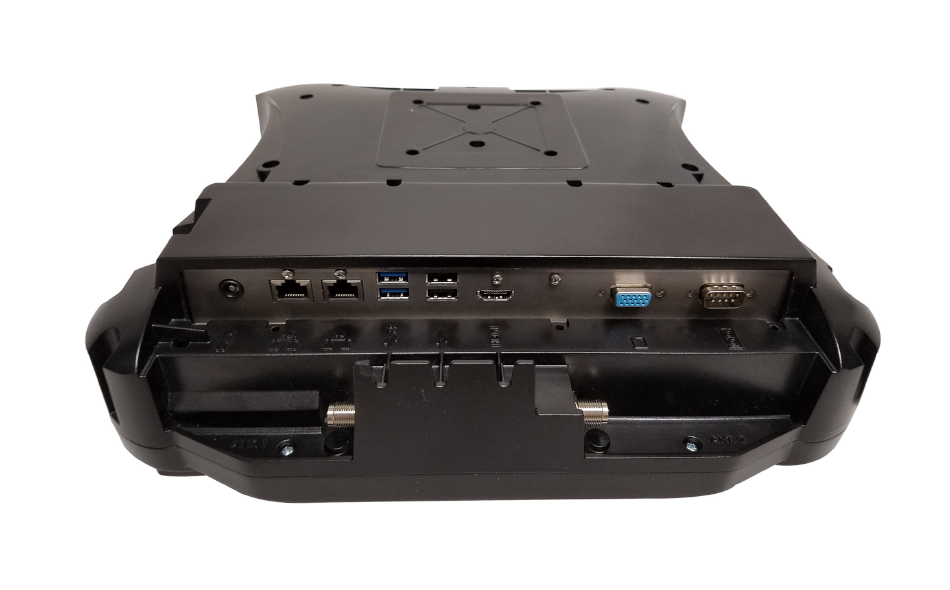

Dual RF TNC pass-through routes the tablet's radio connections to external vehicle antennas, and an external antenna select switch is built in. Full port replication adds two USB 3.0 ports, four USB 2.0 ports (two front-facing and two rear-facing), two RJ45 Ethernet ports, a 9-pin D-Sub serial port, a 15-pin VGA port, HDMI and a 15.6 Vdc power input. Docking and release take one hand. Alignment tabs protect the docking connector, and a floating connector keeps the connection reliable in extreme environments.

The composite dock mounts to a VESA 75 pattern and works in either a horizontal or vertical position. An offset adapter bracket (item 7160-0872) is available as an accessory. The dock fits a tablet fitted with either a hand strap or an additional battery pack, and an optional keyed lock adds theft deterrence. The dock is Toughbook Certified by Panasonic and tested to MIL-STD 810G vibration, SAE J1455 crash hazard, 40g mechanical shock and 30,000 latch, lock and connector cycles. It is FCC, CE and RoHS certified and carries a 3 year limited warranty.

This dock is not compatible with CF-33 tablets configured with the 5G option. It is also not compatible with tablets that combine a quick-release SSD or Long Life Batteries with the Panasonic Rotating Hand Strap. A product sheet, installation guide and testing summary are available.
