Panorama GPSB5G Sharkee Sharkfin Antenna with 4G/5G, Dual-Band Wi-Fi and GPS/GNSS

5GMPN GPSB5G
  • Single (SISO)
  • GNSS
  • Wi-Fi
  • Under 3 dBi
$134.70$187.19Save $52.49

In stockShips from the US

1
Request a quote · volume, multi-site or with plans
Compare all 2 configurations

Datasheets & documents

Overview

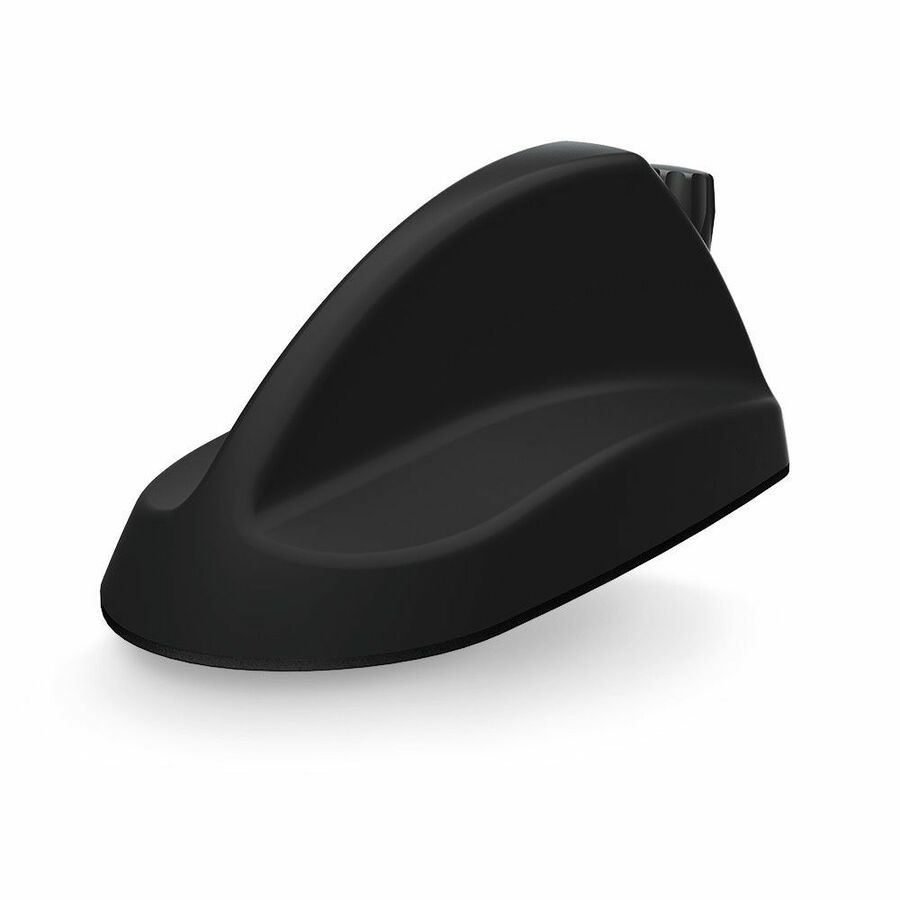

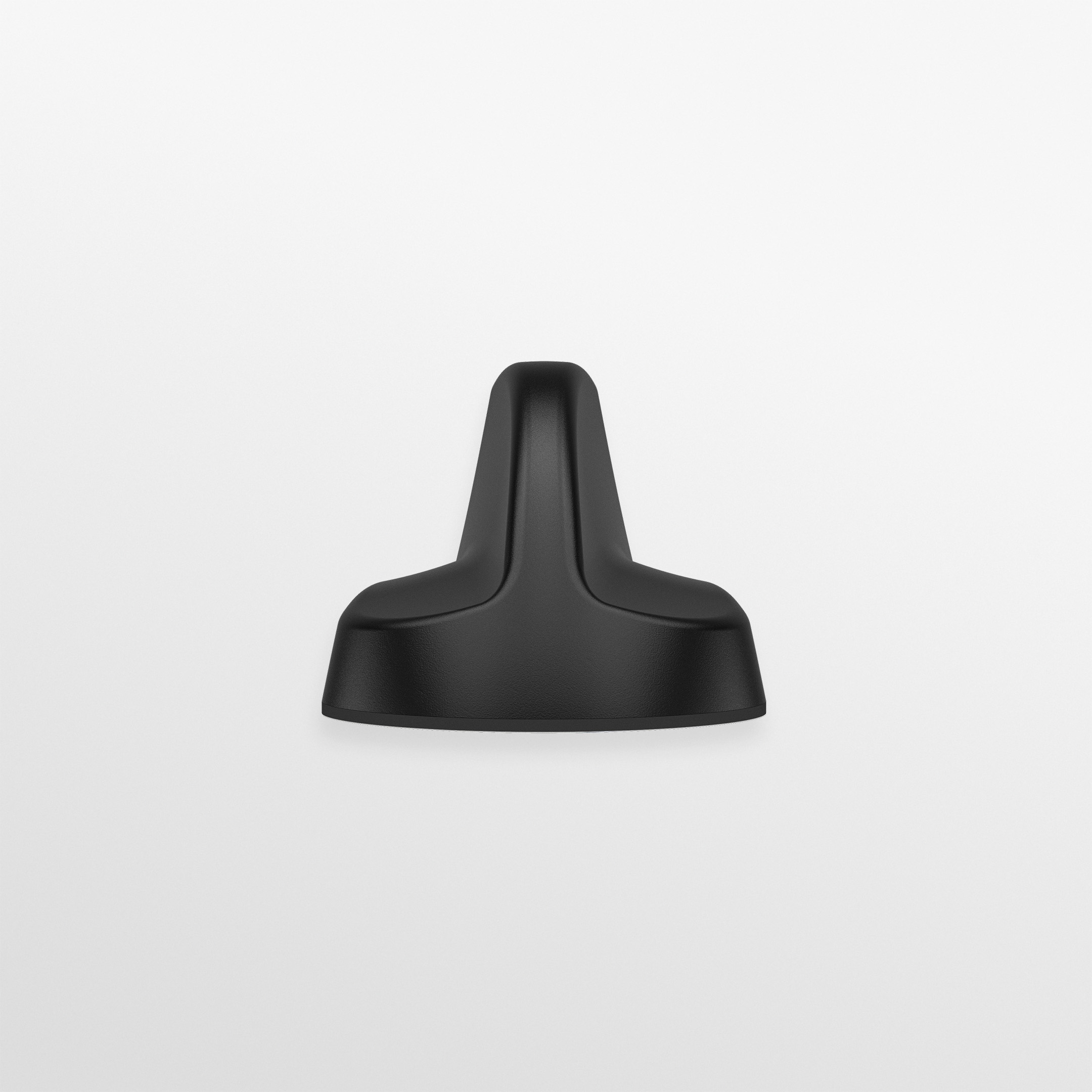

The Panorama GPSB5G Sharkee is an OEM-style sharkfin vehicle antenna that places four functions in one housing: 4G/5G cellular across 698-960 and 1710-3800 MHz, dual-band 2.4/5.0 GHz Wi-Fi, an improved GPS/GNSS module with a 26 dB LNA, and a whip position for VHF or UHF radio. It installs through a single hole, is rated IP66 and is built for public safety, utility and transportation fleets.

  • Four antenna functions in one OEM sharkfin housing: cellular, Wi-Fi, GPS/GNSS and a radio whip position
  • SISO cellular element covering 698-960 and 1710-3800 MHz for 2G/3G/4G LTE/5G
  • Dual-band Wi-Fi at 2.4 and 5.0 GHz
  • Improved GPS/GNSS module with advanced filtering and a 26 dB LNA

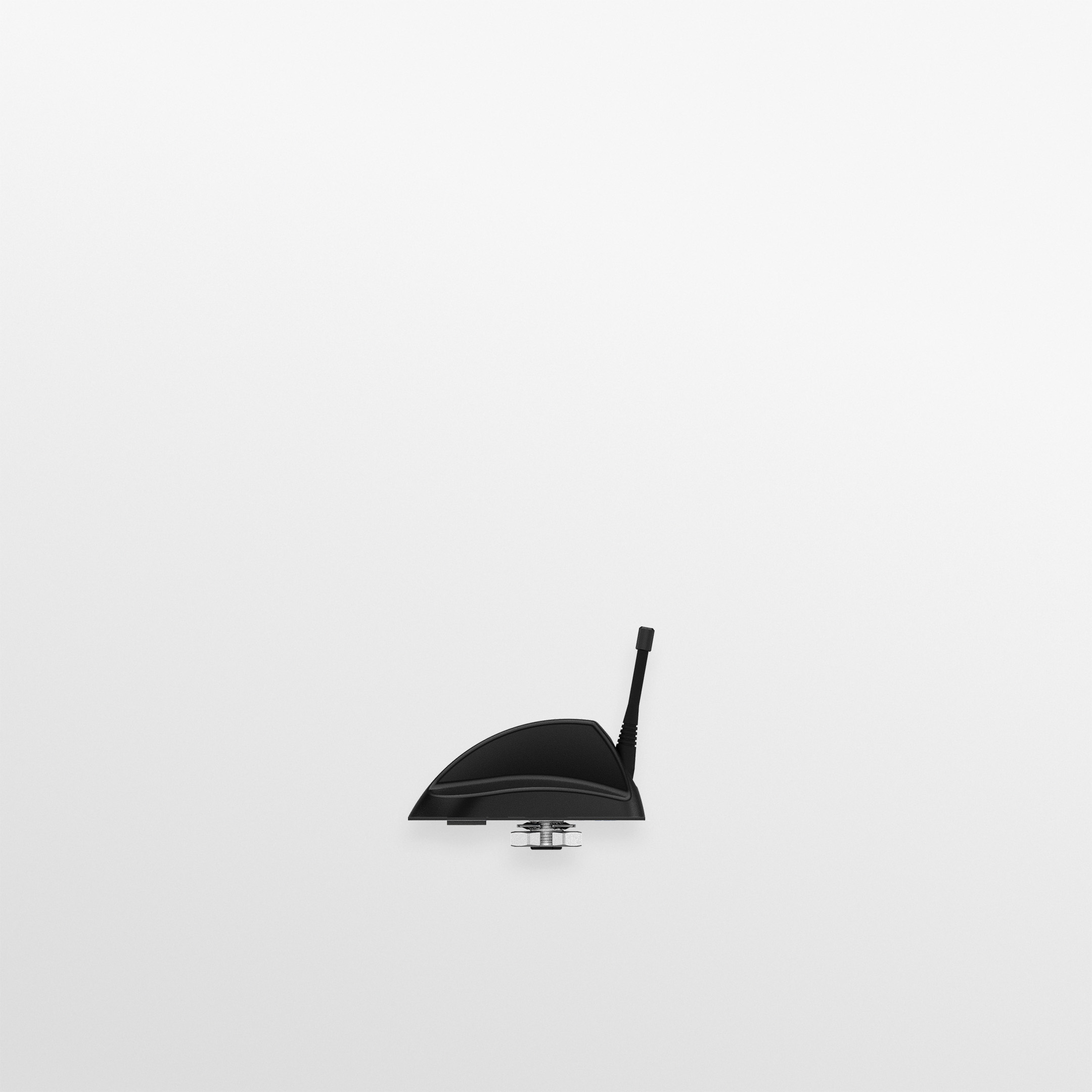

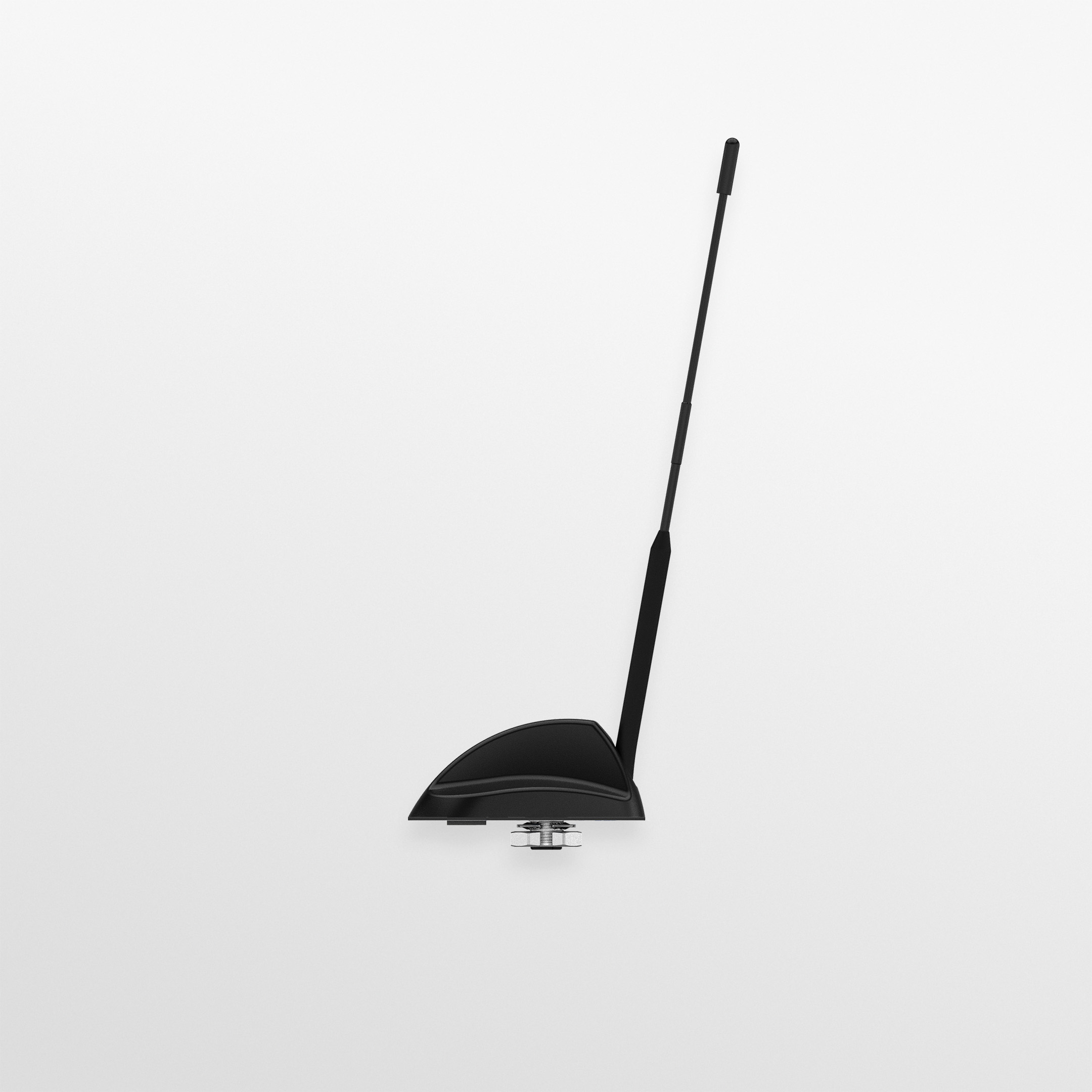

  • Whip position for a range of VHF or UHF mobile radio whips
  • Single-hole panel mount, IP66 rated, -40 °C to +80 °C
  • UNECE R118 compliant flame-retardant pigtail cables for M3 category vehicles
  • Combines all vehicle antenna functions into one housing, freeing scarce roof space

The Panorama GPSB5G is the latest version of the Sharkee, a multi-technology sharkfin antenna for fleet vehicles. It combines GPS/GNSS, 4G/5G cellular and dual-band Wi-Fi in one OEM automotive-style housing, with a whip mounting position for VHF or UHF radio. Public safety agencies, utilities and transportation companies use the GPSB range worldwide when roof space is limited and every function has to share one fixing.

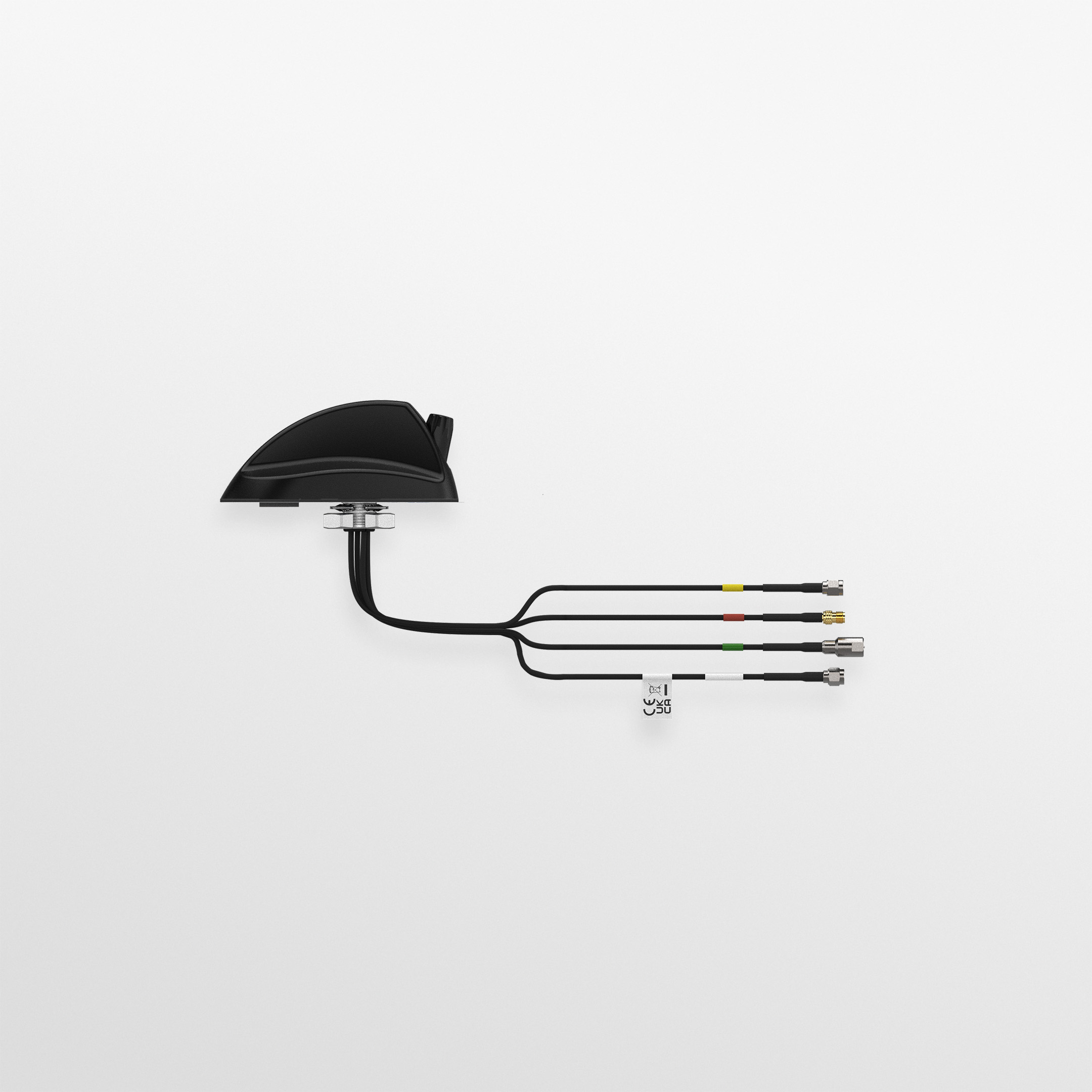

Three internal antenna systems handle the data side. A single cellular element (SISO) covers 698-960 and 1710-3800 MHz for 2G, 3G, 4G LTE and 5G. Dual-band Wi-Fi works at 2.4 and 5.0 GHz. An improved GPS/GNSS module with advanced filtering has a 26 dB LNA. Panorama also lists CBRS among the supported technologies, and the pattern is omnidirectional. Each function has its own termination: SMA (m) for LTE, SMA (f) for Wi-Fi, FME (f) for GPS and FME (m) for the whip.

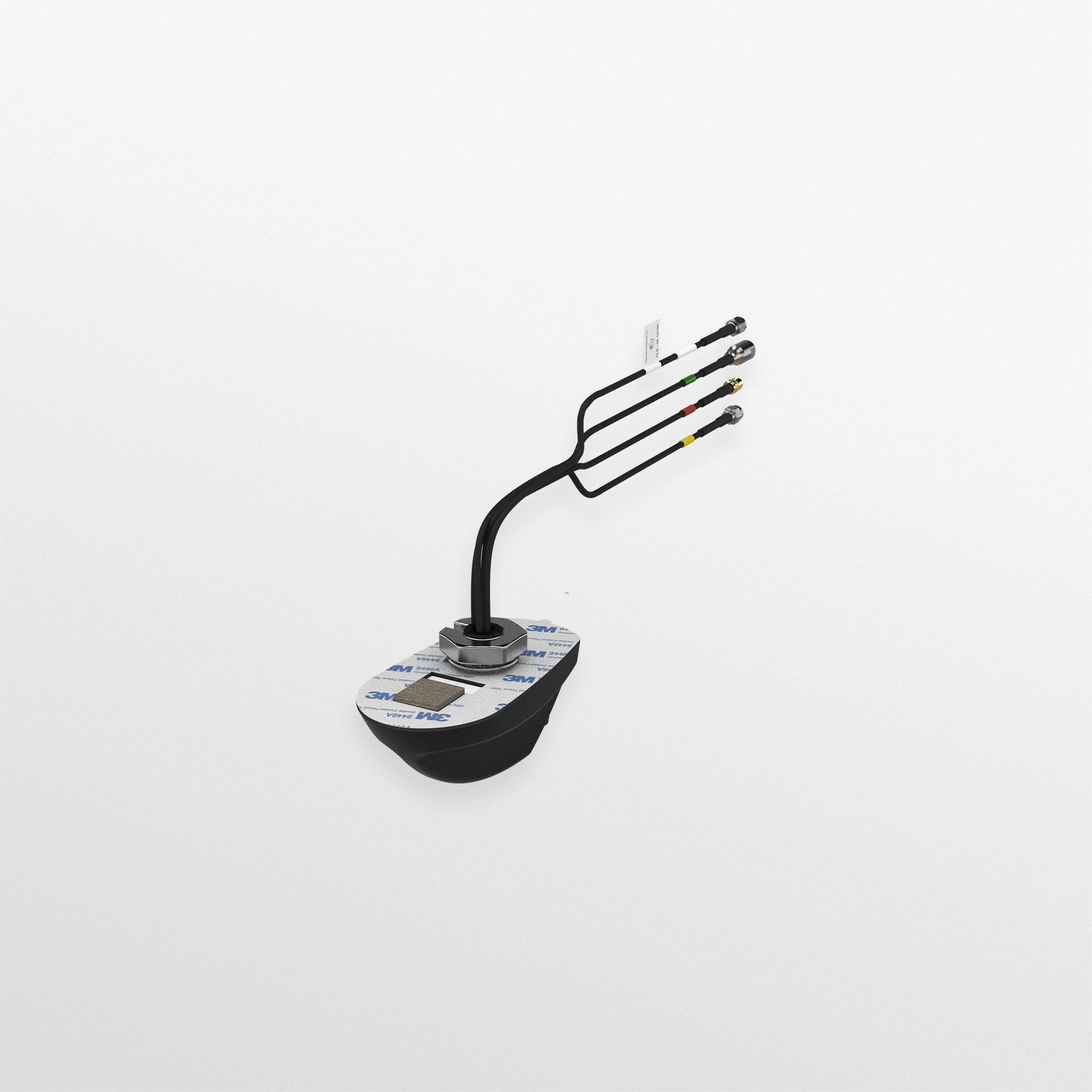

The antenna needs only a single hole in the vehicle panel. That reduces vehicle damage, installation cost and visual impact, and it helps protect resale value. The housing measures 120 x 58 x 50 mm (4.72 x 2.28 x 1.97 in), is rated IP66 and operates from -40 °C to +80 °C. Its flame-retardant pigtail cables comply with UNECE R118, so it is suitable for fitment to M3 category vehicles.

The GPSB5G suits covert and discreet public safety vehicles, industrial fleets and transportation operators that want an efficient, robust antenna. Panorama publishes a datasheet and installation instructions for the GPSB5G.

Ideal for

  • Police and public safety vehicles, including covert and discreet installations
  • Utility service trucks linking an in-vehicle 4G/5G router, Wi-Fi hotspot and GNSS tracking
  • Transit and M3 category vehicles that require UNECE R118 compliant cabling
  • Fleets that need two-way radio and data antennas on one roof fixing

Specifications

General

MPN
GPSB5G
UPC
5055416074829
Brand
Panorama Antennas
Product Family
Sharkee

Package

Shipping Weight
0.55 lb

GPS Data

Lna Gain
26 dB
Number OF GPS Elements
1 module

Mounting Data

Mounting Methods
Panel, single-hole fixing
Mounting Type Fixed
Panel

Approvals Data

IP Rating
IP66
Cable Flammability
Flame-retardant pigtails compliant with UNECE R118 (M3 category vehicles)

Electrical Data

Pattern
Omnidirectional
Wi-Fi Bands
Dual-band Wi-Fi, 2.4 / 5.0 GHz
Cellular LTE Elements
SISO (single cellular element)
Cellular Frequency Range
698-960 / 1710-3800 MHz

Mechanical Data

Width
58 mm (2.28 in)
Colour
Black
Height
50 mm (1.97 in)
Length
120 mm (4.72 in)
Operating Temperature
-40 °C to +80 °C (-40 °F to +176 °F)

Technology Data

Technology
GPS, 4G/5G, Wi-Fi, 5G, CBRS, GNSS

Termination Data

Connector GPS
FME (f)
Connector LTE
SMA (m)
Connector Wi-Fi
SMA (f)
Connector Vhf Uhf Whip
FME (m)

Questions buyers ask

What functions are built into the GPSB5G?

It combines a 4G/5G cellular element, dual-band 2.4/5.0 GHz Wi-Fi, an improved GPS/GNSS module with advanced filtering, and a whip mounting position for VHF or UHF radio whips.

Is the cellular section MIMO?

No. The GPSB5G has a single (SISO) cellular element covering 698-960 MHz and 1710-3800 MHz.

What are the connector types?

LTE terminates in SMA (m), Wi-Fi in SMA (f), GPS in FME (f), and the VHF/UHF whip position uses FME (m).

How big is it and how is it mounted?

It measures 120 x 58 x 50 mm (4.72 x 2.28 x 1.97 in) and mounts on a panel through a single hole. Panorama provides installation instructions.

What environments is it rated for?

The housing is rated IP66 and operates from -40 °C to +80 °C.
