Panorama Sharkee GPSD-6-60-QW 4G/5G Shark Fin Antenna with 4x4 MIMO Wi-Fi, GPS/GNSS and Whip Mount, Black

5GMPN GPSD-6-60-QW
  • 2x2 MIMO
  • GNSS
  • Wi-Fi
  • 9 dBi and up
$223.50$308.70Save $85.20

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans
Compare all 2 configurations

Datasheets & documents

Overview

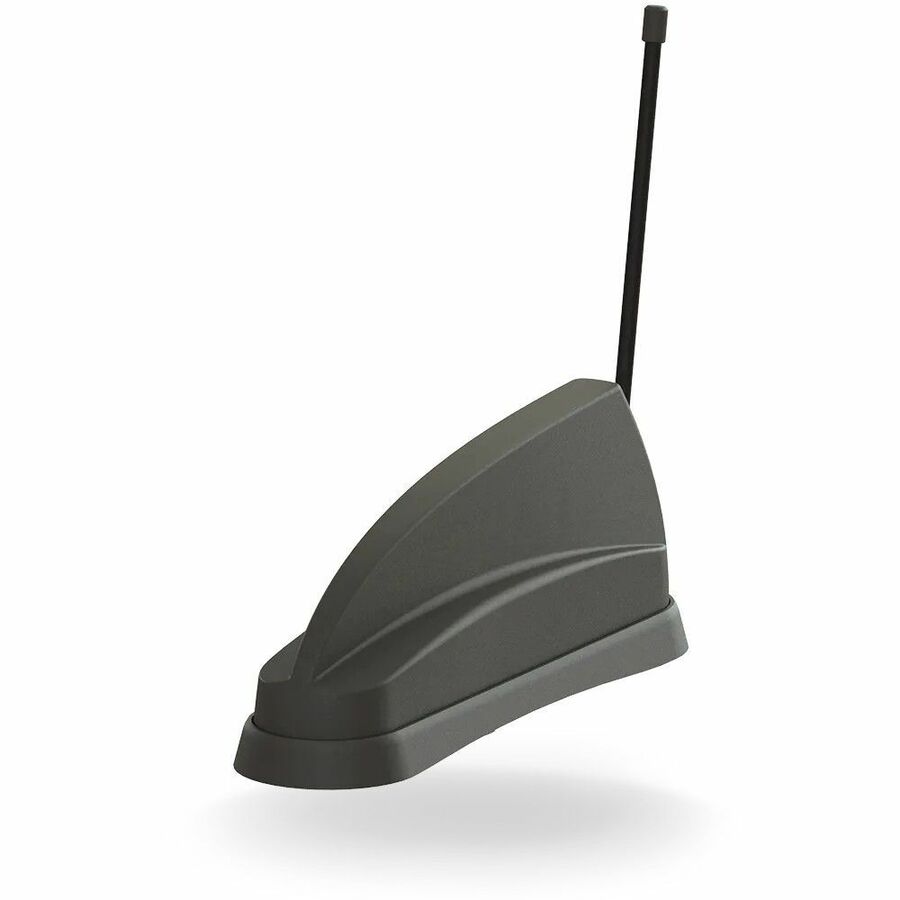

The Panorama GPSD-6-60-QW is the top Wi-Fi configuration of the Sharkee 4G/5G shark fin. One black OEM-style housing combines several antennas: • 2x2 MIMO cellular covering 617–960 and 1710–6000 MHz • 4x4 MIMO dual-band Wi-Fi with Wi-Fi 6 support • An active GPS/GLONASS/Galileo/BeiDou antenna • An integrated stud mount for VHF, UHF or 700/800 MHz radio whips It installs through a single hole and is IP69K certified.

  • 2x2 MIMO 4G/5G cellular covering 617–960 MHz and 1710–6000 MHz, up to 9 dBi gain
  • 4x4 MIMO dual-band Wi-Fi elements with Wi-Fi 6 support
  • Active GPS/GLONASS/Galileo/BeiDou antenna with 26 dB LNA and LTE Band 13/14 filtering
  • Integrated stud mount for VHF, UHF or 700/800 MHz radio whips, with blanking cap supplied
  • Single-hole panel mounting; magnetic mounting for temporary use
  • IP69K certified, with UN ECE R118 and EN45545-2 HL3 compliant cable feeds

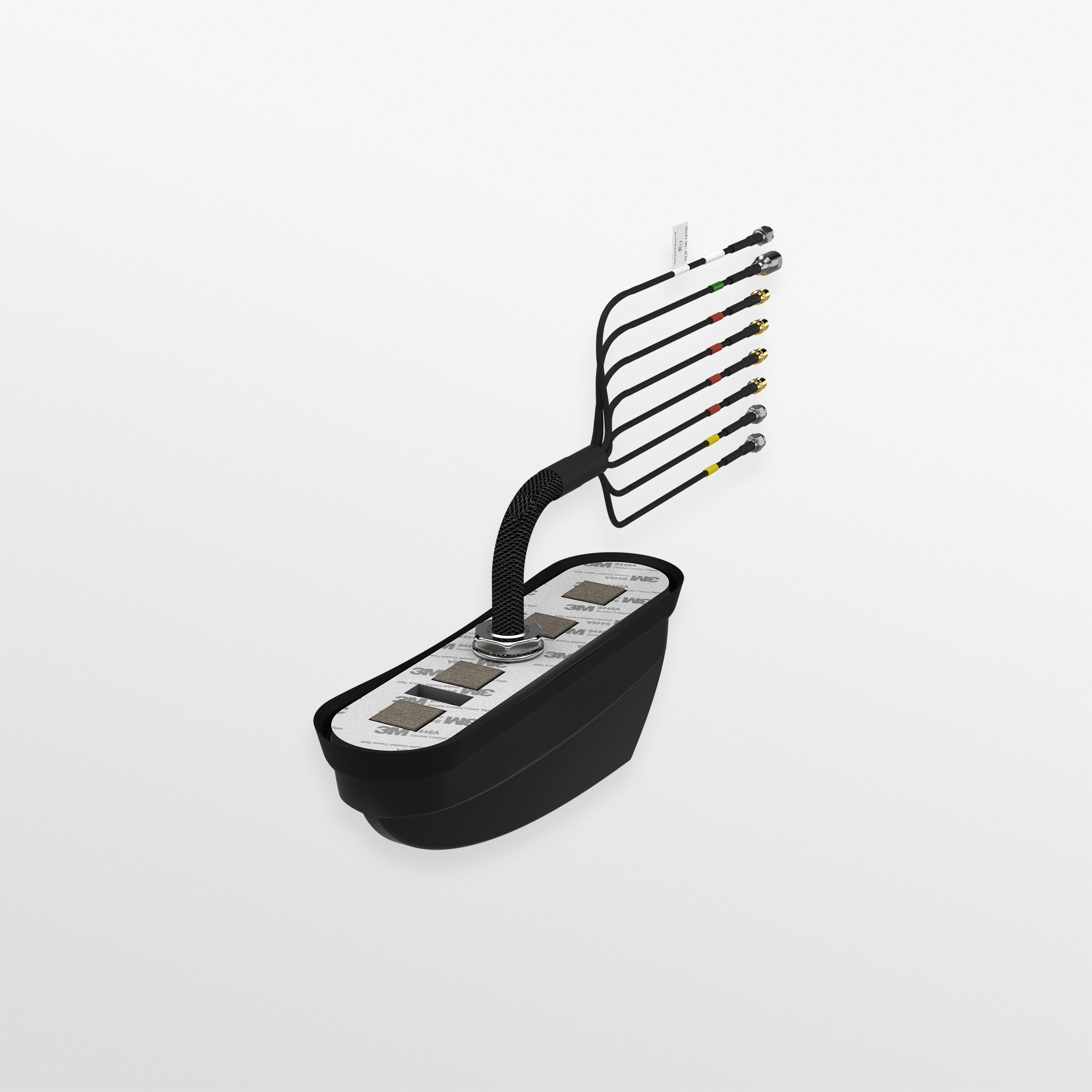

  • 0.3 m FR RG174 leads: SMA (m) cellular, SMA (f) Wi-Fi, FME (f) GPS
  • Serves a router's four Wi-Fi ports from the roof for stronger in-vehicle and around-vehicle hotspot coverage

The Panorama GPSD-6-60-QW pairs the Sharkee 4G/5G shark fin with 4x4 MIMO Wi-Fi. It is designed for vehicle routers that use four Wi-Fi antennas, alongside cellular backhaul, GNSS and a two-way radio whip, all through one roof hole. Typical users are police, EMS and fire, utility, transit and industrial fleets.

The 2x2 MIMO cellular elements cover 617–960 MHz and 1710–6000 MHz. Published gain is 5 dBi at 617–960 MHz, 8 dBi at 1710–3800 MHz and 9 dBi at 4900–6000 MHz, and the antenna is Band 71 600 MHz ready. Four dual-band Wi-Fi elements provide 4x4 MIMO with Wi-Fi 6 support. The active GNSS antenna receives GPS, GLONASS, Galileo and BeiDou. It uses a 26 dB LNA with advanced filtering for LTE Band 13/14 operation.

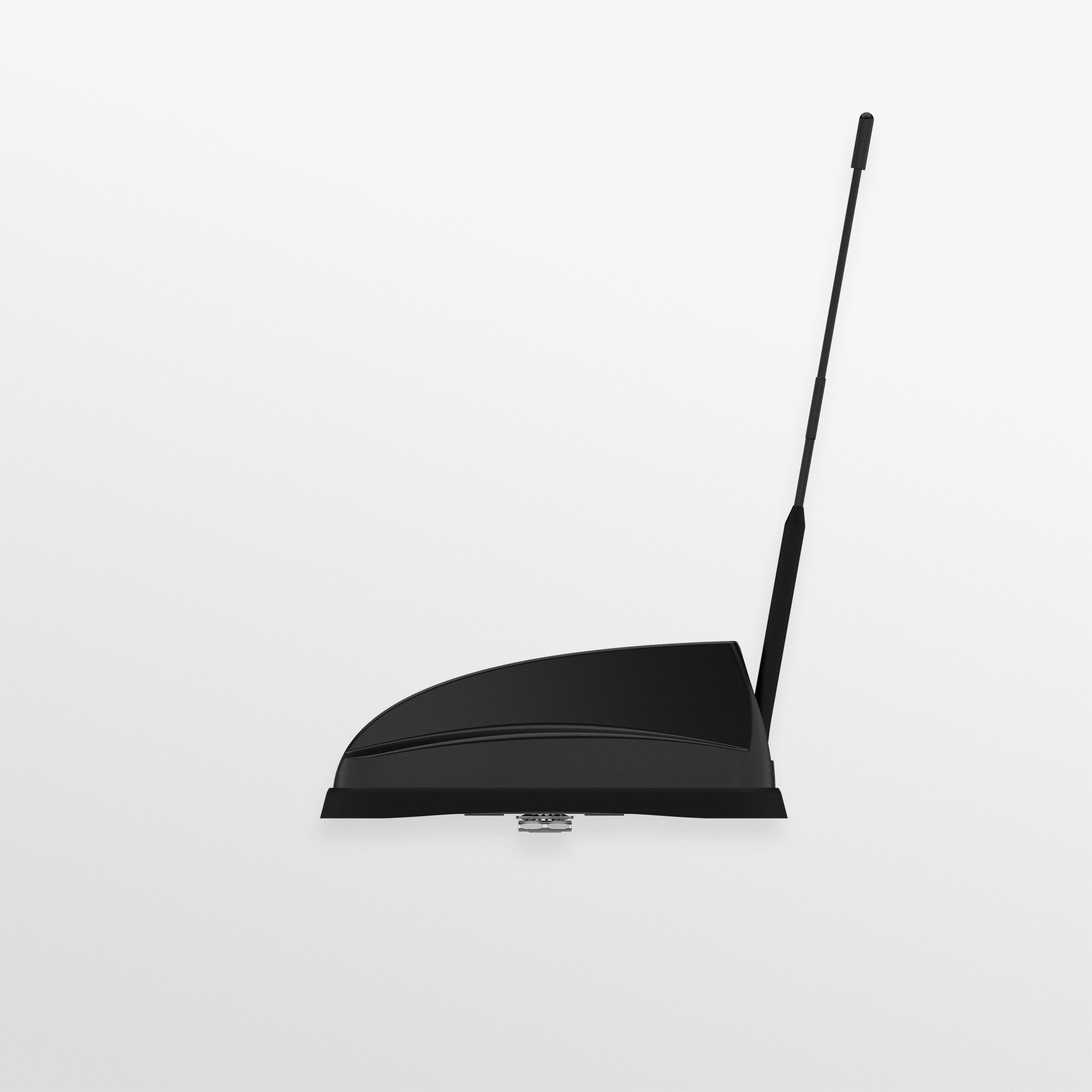

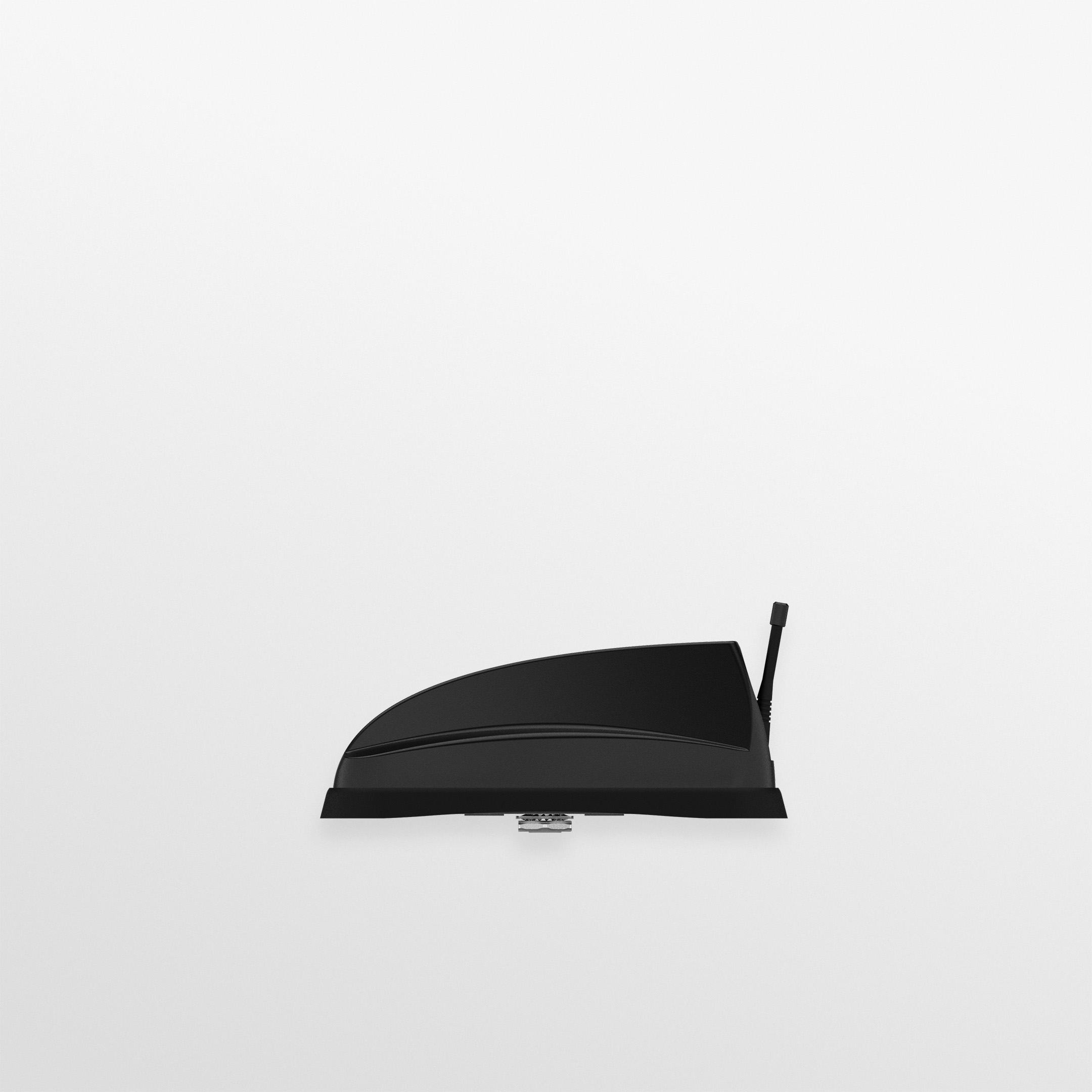

The integrated stud mount accepts a range of VHF, UHF or 700/800 MHz mobile radio whips. A blanking cap is included for vehicles that run without one. When a whip is used, fit the antenna to a metal panel. Without a whip, a non-metallic panel offers similar performance. Magnetic mounting is supported for temporary installations.

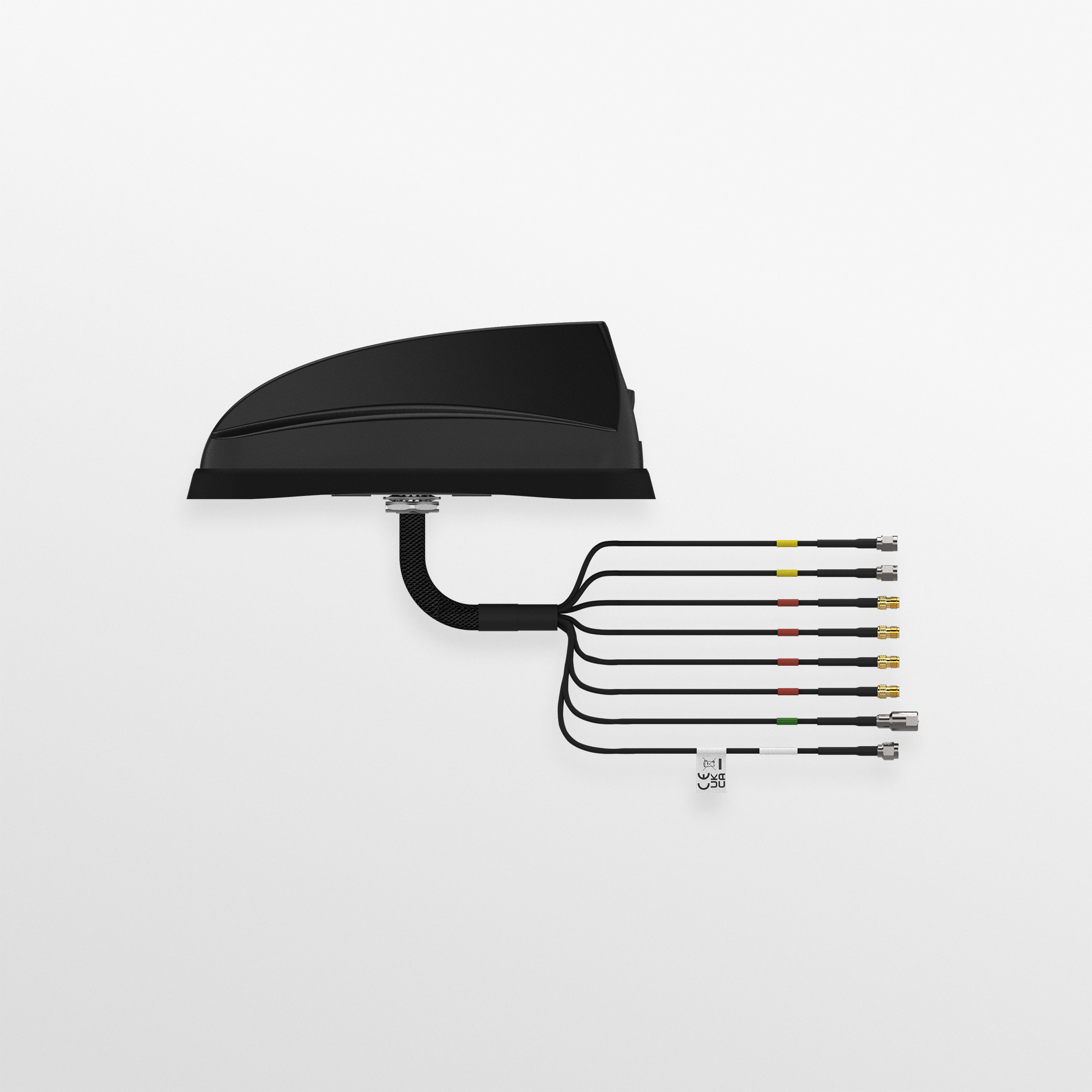

The housing measures 243 x 63 x 90 mm, carries IP69K certification and operates from -40 °C to +80 °C. All leads are 0.3 m FR RG174 cable, terminated as follows: • Cellular: SMA (m) • Wi-Fi: SMA (f) • GPS: FME (f) The cable feeds comply with UN ECE R118 and EN45545-2 HL3. The shape fits between roof ribs on all major vehicle makes and can replace a factory antenna.

Ideal for

  • Public safety vehicles with 4G/5G routers using four Wi-Fi antenna ports
  • Mobile command and EMS units providing Wi-Fi to crews and on-scene devices
  • Transit buses and coaches offering passenger Wi-Fi over cellular backhaul
  • Utility and field service fleets combining GNSS, cellular, Wi-Fi and radio on one roof mount

Specifications

GPS

Lna Gain
26 dB
GPS Elements
1 Module
LTE Filtering
Advanced filtering for LTE Band 13/14 operation
GNSS Constellations
GPS, GLONASS, Galileo, BeiDou (active)
GPS Frequency Range
1562–1612 MHz

Cable

Cable Type GPS
FR RG174
Cable Type LTE
FR RG174
Cable Type Wi-Fi
FR RG174
Cable Length GPS
0.3 m (0.98 ft)
Cable Length LTE
0.3 m (0.98 ft)
Cable Length Wi-Fi
0.3 m (0.98 ft)

General

Brand
Panorama Antennas
Model
GPSD-6-60-QW
Antenna Type
OEM automotive-style shark fin, 4G/5G + Wi-Fi + GPS/GNSS + whip mount
Product Family
Sharkee (GPSD-6-60 family)

Mounting

Whip Mount
Integrated stud mount for VHF, UHF or 700/800 MHz whips; blanking cap supplied
Mounting Methods
Magnetic, Panel
Mounting Type Fixed
Panel (single hole)
Mounting Type Temporary
Magnetic

Approvals

IP Rating
IP69K
Cable Flammability
EN45545-2 HL3, UN ECE R118, EN6722

Electrical

Pattern
Omnidirectional
Uhf Elements
No
Wi-Fi Elements
4 x 4 MIMO, dual band, Wi-Fi 6 support
Gain 617 960 MHz
5 dBi (617–960 MHz)
Cellular Elements
2 x 2 MIMO
Gain 1710 3800 MHz
8 dBi (1710–3800 MHz)
Gain 4900 6000 MHz
9 dBi (4900–6000 MHz)
Cellular Frequency Range
617–960 MHz / 1710–6000 MHz

Mechanical

Width
63 mm (2.48 in)
Colour
Black
Height
90 mm (3.54 in)
Length
243 mm (9.57 in)
Operating Temperature
-40 °C to +80 °C (-40 °F to +176 °F)

Technology

Technology
GPS, GNSS, 2G/3G/4G, 4G/5G, Band 71 600 MHz ready, FirstNet, Wi-Fi MIMO

Termination

Connector GPS
FME female
Connector LTE
SMA male
Connector Wi-Fi
SMA female

Documentation

Documents
Panorama datasheet, installation instructions, IP69K certificate, product flyer

Questions buyers ask

How many Wi-Fi leads does the GPSD-6-60-QW have?

It has 4x4 MIMO dual-band Wi-Fi, with four 0.3 m leads terminating in SMA (f). Panorama states the Wi-Fi supports Wi-Fi 6.

Which cellular bands does it cover?

The 2x2 MIMO cellular elements cover 617–960 MHz and 1710–6000 MHz, including Band 71 600 MHz, with 5 to 9 dBi gain depending on band.

Can a radio whip be added?

Yes. An integrated stud mount accepts VHF, UHF or 700/800 MHz whips, and a blanking cap is supplied if no whip is fitted.

Is a white version available?

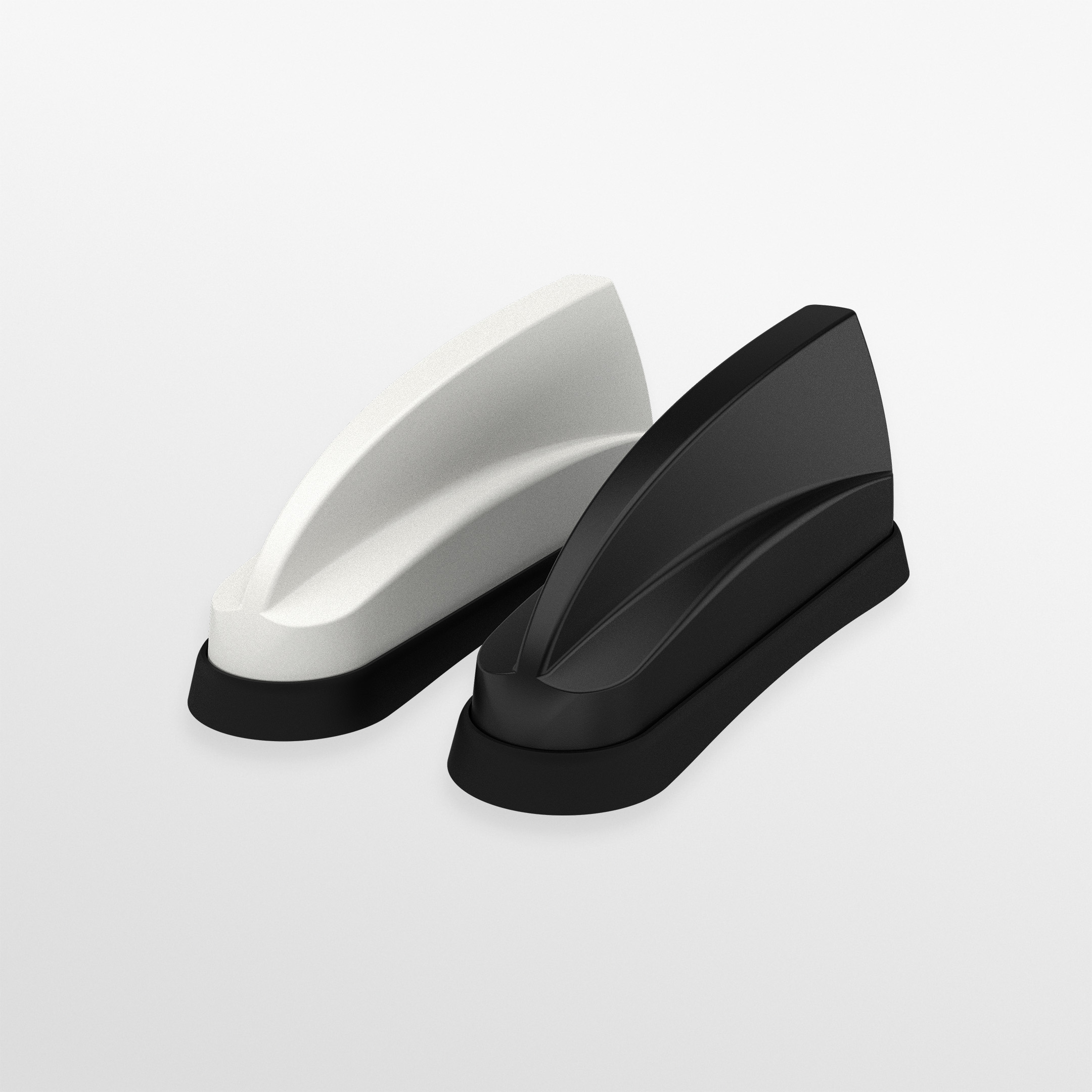

Yes. The GPSDW-6-60-QW is the white-housing version of this configuration.
