Panorama GPSD4-6-60-T Dual Sharkee 4x4 MIMO 4G/5G Sharkfin Antenna with GPS/GNSS and 3x3 Wi-Fi, Black

5GMPN GPSD4-6-60-T
  • 4x4 MIMO
  • GNSS
  • Wi-Fi
$263.72$363.83Save $100.11

In stockShips from the US

1
Request a quote · volume, multi-site or with plans
Compare all 4 configurations

Datasheets & documents

Overview

The Panorama GPSD4-6-60-T is the three-Wi-Fi version of the Dual Sharkee sharkfin, with eight antenna elements in one black single-hole roof antenna. Four cellular elements deliver 4x4 MIMO 4G/5G across 617–960 and 1427–6000 MHz. Three dual-band Wi-Fi elements provide 3x3 MIMO with Wi-Fi 6E support, and one active GPS/GNSS module has a 26 dB LNA. It ships with 0.3 m pigtails only, with no extension cables. The housing is IP69K rated.

  • 4x4 MIMO 4G/5G cellular elements covering 617–960 MHz and 1427–6000 MHz
  • 3x3 MIMO dual-band Wi-Fi elements supporting Wi-Fi 6E
  • One active GPS/GLONASS/Galileo/BeiDou module with a 26 dB LNA and LTE Band 13/14 filtering

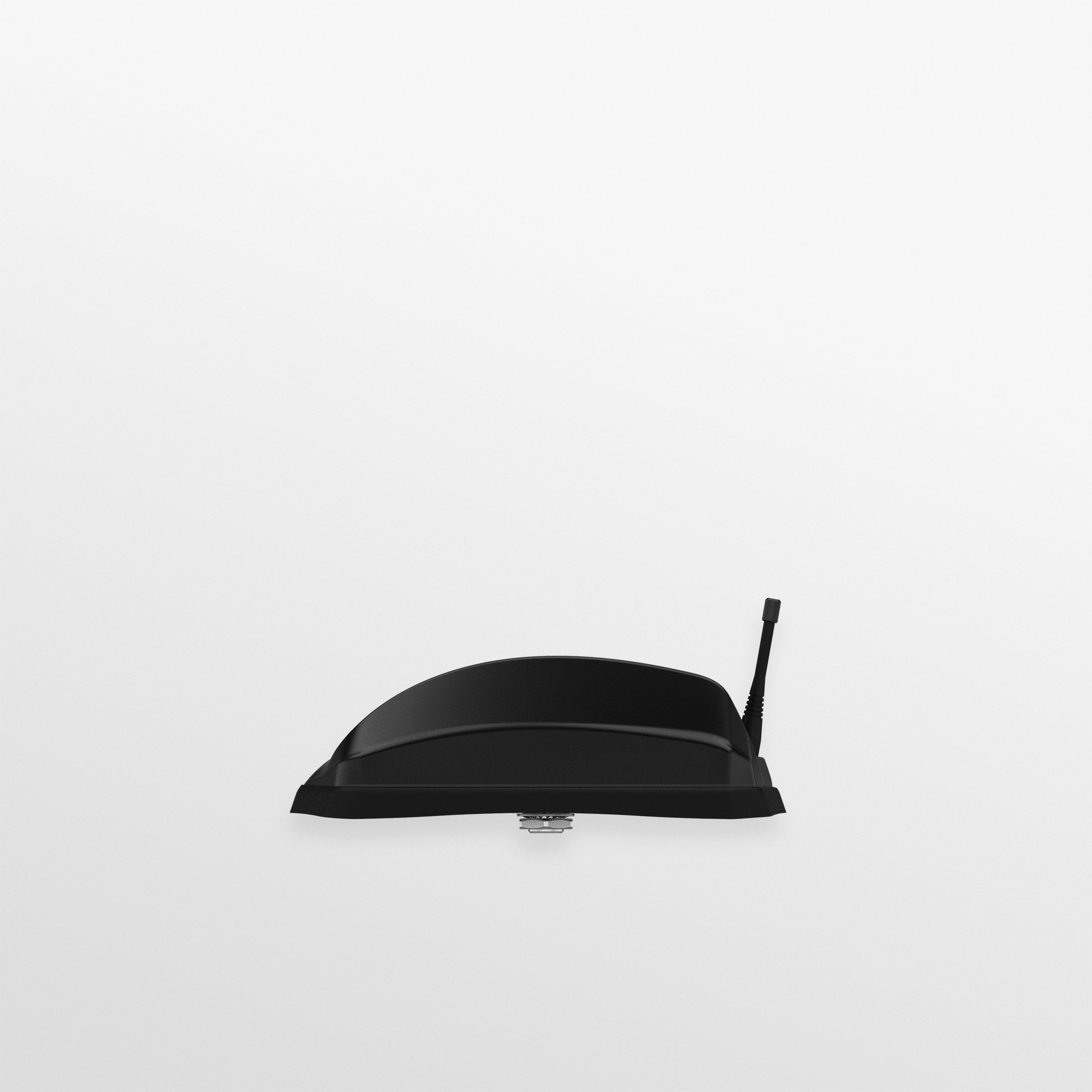

  • Integral stud mount (FME male) for an external VHF, UHF or combination whip; blanking cap supplied
  • Single-hole panel mount; IP69K rated housing

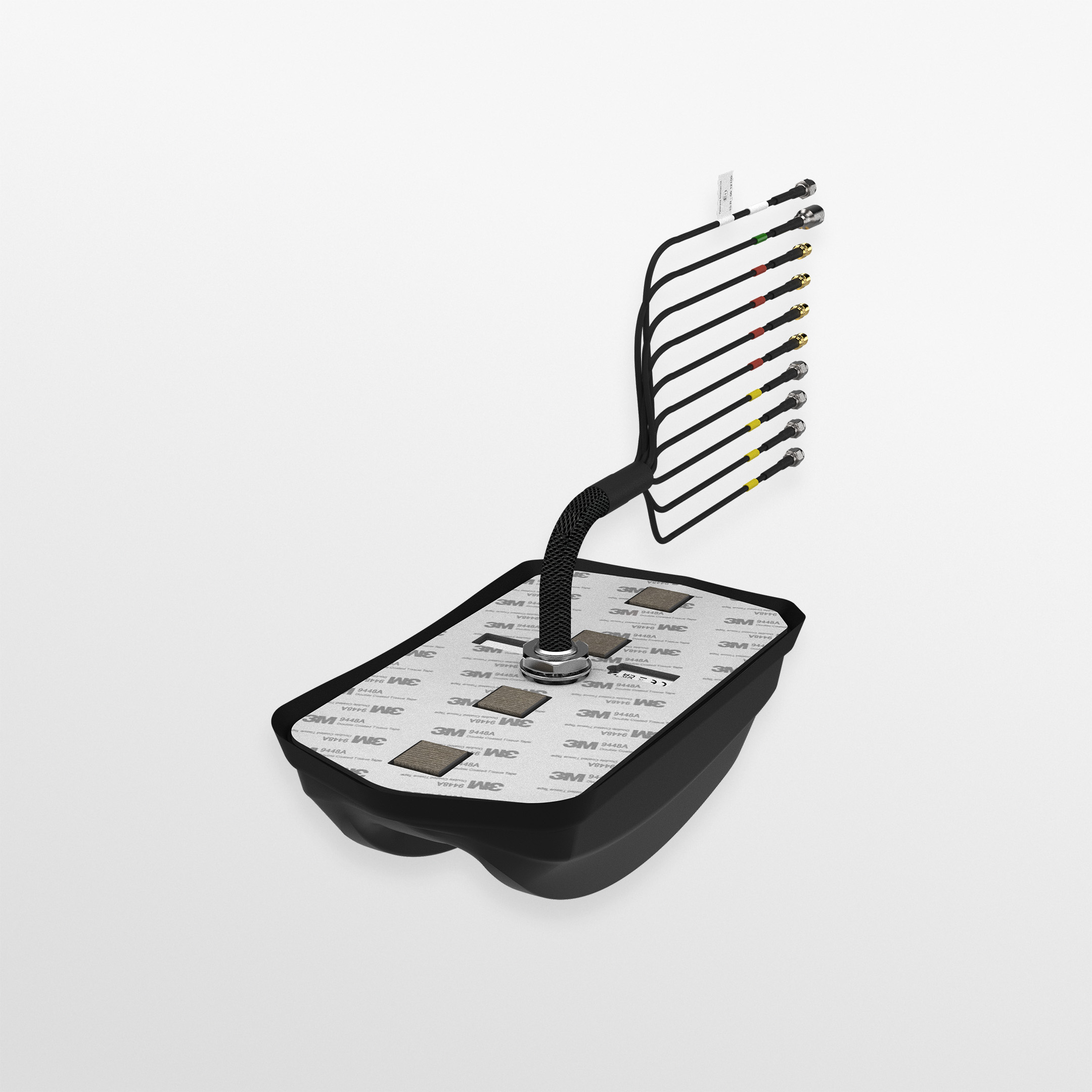

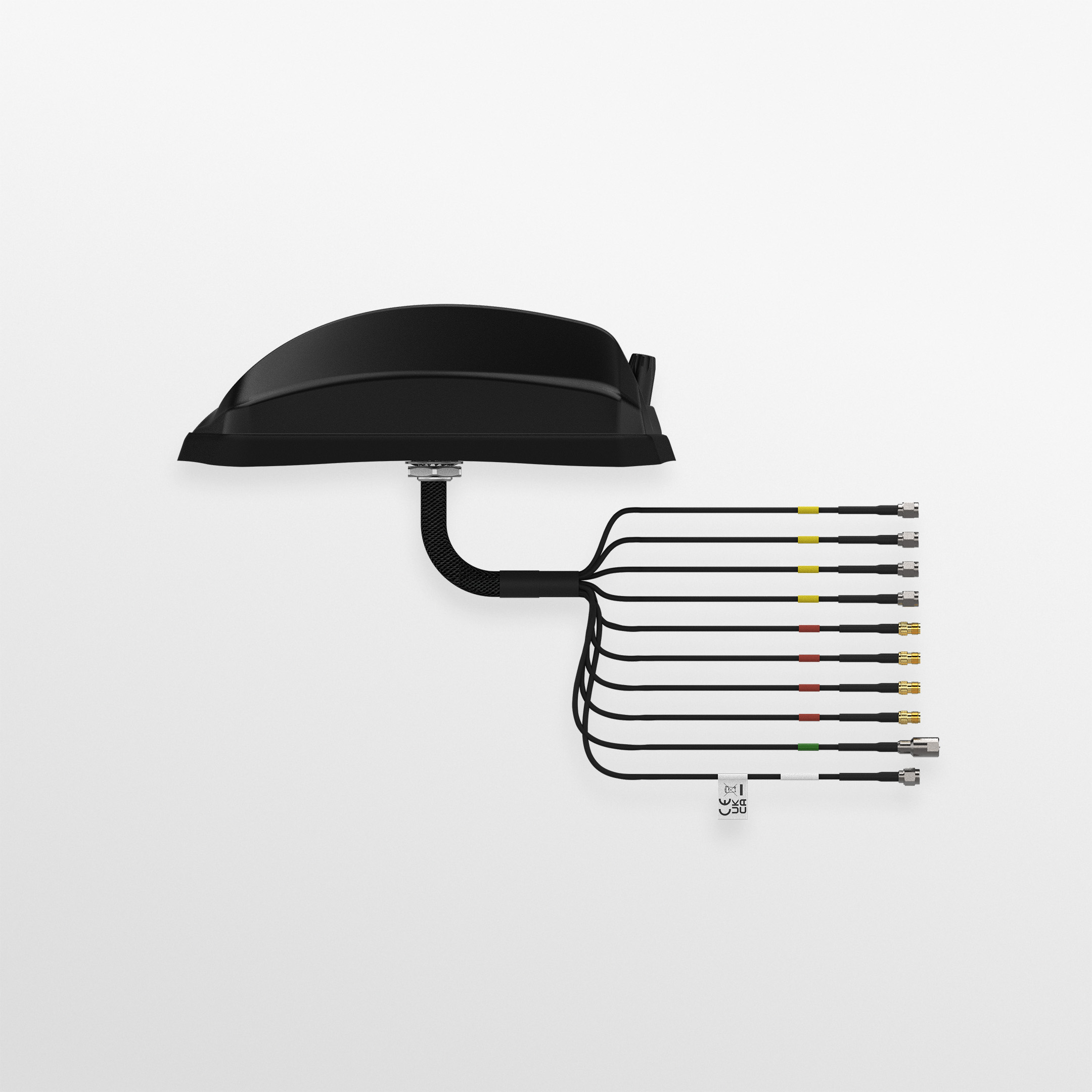

  • Supplied with 0.3 m pigtails (SMA m cellular, FME f GPS, SMA f Wi-Fi); no extension cables
  • Black sharkfin housing, 253 x 142 x 82 mm
  • Matches routers with three Wi-Fi ports and a 4x4 cellular modem in one roof antenna

The Panorama GPSD4-6-60-T is built for vehicles whose router or access point uses three Wi-Fi antenna ports alongside a 4x4 cellular modem. The -T configuration places eight elements in one Dual Sharkee housing: four cellular, three Wi-Fi and one GPS/GNSS. The housing measures 253 x 142 x 82 mm and installs through a single hole.

The cellular array is 4x4 MIMO covering 617–960 MHz and 1427–6000 MHz. Panorama lists it as Band 71 600 MHz ready and FirstNet capable. The three dual-band Wi-Fi elements provide 3x3 MIMO with Wi-Fi 6E support. GNSS comes from one active GPS/GLONASS/Galileo/BeiDou module (1559–1612 MHz) with a 26 dB LNA and filtering for LTE Band 13/14. The antenna is supplied with 0.3 m pigtails only: four SMA (m) cellular, one FME (f) GPS and three SMA (f) Wi-Fi. Extension cables are not included, so plan the cable run to the router separately.

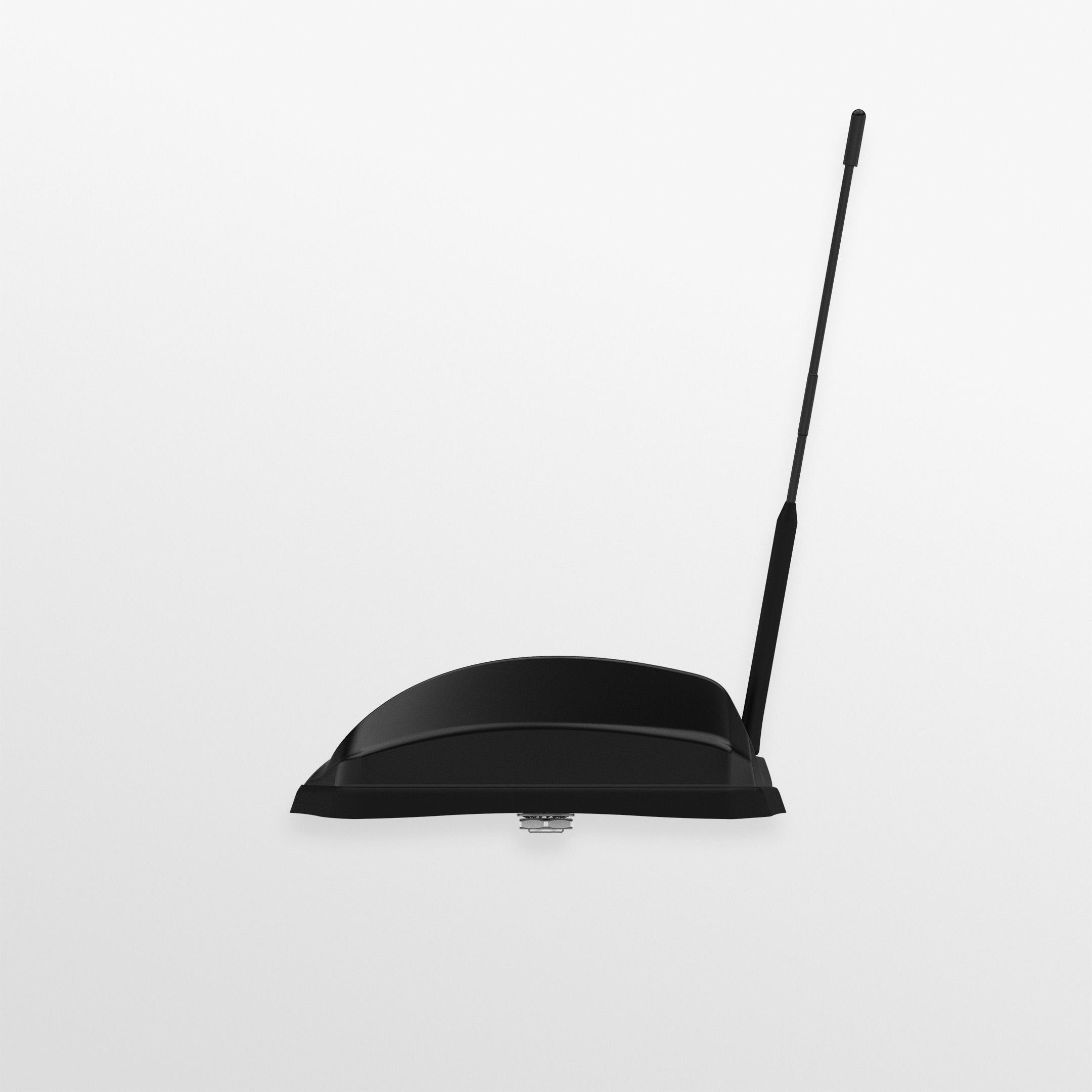

An integral stud mount with an FME (m) connection accepts an external VHF, UHF or combination whip for voice radio. A blanking cap is supplied for when the whip is not needed. Mount on a metal panel when a whip is fitted. Without a whip, a non-metallic panel gives similar performance.

The antenna is IP69K rated and operates from -40 °C to +80 °C. The flame-retardant cabling meets EN45545-2 HL3, UN ECE R118 and EN6722. Panorama lists three compatible mounting accessories: the SAB-333 magnetic mount, the SAB-312 ribbed-roof kit and the SAB-324-2 kit for Ford Explorer/Interceptor. Panorama also publishes a datasheet and the SW3-1025 installation instructions.

Ideal for

  • Public safety vehicles with 3x3 Wi-Fi routers and 4x4 5G modems
  • Transit and shuttle vehicles offering onboard Wi-Fi
  • Utility and industrial service trucks needing data, GNSS and radio on one fin
  • Covert or overt fleet installs where a discreet sharkfin is preferred

Specifications

GPS

Lna Gain
26 dB
GPS Frequency Range
1559–1612 MHz
Number OF GPS Elements
1 module

Cable

Cable Type GPS
FR CS29; FR RG174
Cable Type LTE
FR RG174; CS32
Cable Type Wi-Fi
FR CS32; FR RG174
Cable Length GPS
0.3 m (0.98 ft) pigtail
Cable Length LTE
0.3 m (0.98 ft) pigtails
Extension Cables
No extension cables included
Cable Length Whip
0.3 m (0.98 ft)
Cable Length Wi-Fi
0.3 m (0.98 ft) pigtails
Quantity OF Cell Cable
4
Cable Length Family Range
0.3 m to 5 m (16.4 ft)
Quantity OF Wi-Fi Extension
Up to 4 (family)
Quantity OF GPS GNSS Extension
1

General

MPN
GPSD4-6-60-T
Brand
Panorama Antennas
Product Family
Dual Sharkee 4x4 MIMO 4G/5G Sharkfin

Package

Shipping Weight
4.00 lb

Mounting

Mounting Methods
Magnetic; Panel
Mounting Type Temp
Magnetic
Mounting Type Fixed
Panel (single hole)

Approvals

IP Rating
IP69K
Cable Flammability
EN45545-2 HL3, UN ECE R118, EN6722

Electrical

Pattern
Omnidirectional
Uhf Elements
No
Wi-Fi Elements
3x3 MIMO dual-band (Wi-Fi 6E support)
Frequency Range
617–960 MHz / 1427–6000 MHz
Cellular LTE Elements
4x4 MIMO

Mechanical

Width
142 mm (5.59 in)
Colour
Black
Height
82 mm (3.23 in)
Length
253 mm (9.96 in)
Operating Temperature
-40 °C to +80 °C (-40 °F to +176 °F)

Technology

Technology
4G/5G, 5G, 2G/3G, 2G/3G/4G, Band 71 600 MHz ready, FirstNet, GPS, Wi-Fi MIMO, Wi-Fi, GNSS

Termination

Connector GPS
FME (f)
Connector LTE
SMA (m)
Connector Whip
VHF/UHF whip: FME (m)
Connector Wi-Fi
SMA (f)

Questions buyers ask

What does the -T suffix mean?

In Panorama's part-number table, -T is the version with 3x3 MIMO Wi-Fi, alongside 4x4 MIMO cellular and one GPS/GNSS module.

Are extension cables included?

No. This part is supplied with 0.3 m pigtails: four SMA (m) cellular, one FME (f) GPS and three SMA (f) Wi-Fi.

What frequencies does the cellular section cover?

617–960 MHz and 1427–6000 MHz across four elements, giving 4x4 MIMO for 4G/5G. The low band is 600 MHz Band 71 ready.

Do I need a metal roof?

A metal panel is required when an external radio whip is fitted. Without a whip, the antenna can be installed on a non-metallic panel with similar performance.
