Panorama Mako LG-IN2444-W 5G 5-in-1 Dome Antenna for Cradlepoint, White

5GMPN LG-IN2444-W
  • 4x4 MIMO
  • GNSS
  • 9 dBi and up

Made for Cradlepoint

$279.46$463.29Save $183.83

In stockFree 2-day shipping

Compliance · TAA compliant
Standard+$55.92TAA compliant
1
Request a quote · volume, multi-site or with plans
Compare all 5 configurations

Datasheets & documents

Overview

The Panorama LG-IN2444-W is the white Mako 5G dome antenna. It combines four cellular elements for 4x4 MIMO across 617-960 and 1710-6000 MHz with an active GPS/GNSS module. It ships with 5 m pre-terminated SMA (m) cables fitted, needs no ground plane and mounts through a single hole. It is listed as suitable for Cradlepoint COR IBR1700 Series routers, and the white radome matches white fleet roofs and ambulances.

  • White low-profile dome with 4x4 MIMO cellular plus one GPS/GNSS module
  • Cellular coverage 617-960 MHz (4 dBi), 1710-3800 MHz (8 dBi), 4900-6000 MHz (9 dBi), omnidirectional
  • GPS/GNSS 1562-1612 MHz with integrated 26 dB LNA
  • Five 5 m flame-retardant RG174 cables fitted with SMA (m) connectors and cable flags
  • IK10 and IP69K rated; -40 °C to +80 °C
  • Listed for Cradlepoint COR IBR1700 Series; TAA compliant
  • White radome blends with white ambulance, utility and fleet roofs
  • A single roof penetration covers both cellular and GPS

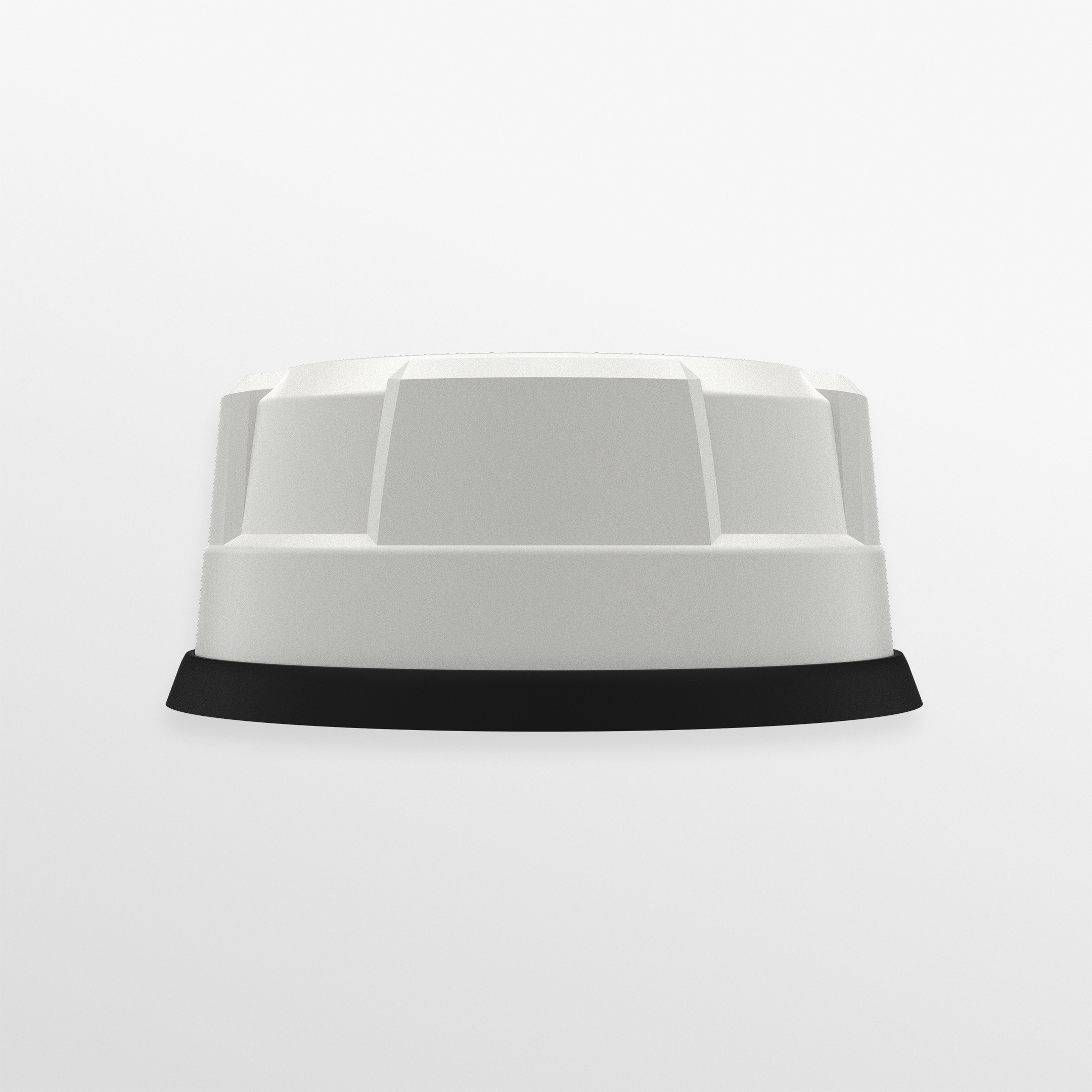

The LG-IN2444-W is the white version of Panorama's Mako 5G 5-in-1 dome. Four isolated cellular elements and one GPS/GNSS module sit under a single low-profile radome that is 180 mm (7.09 in) wide and 80 mm (3.15 in) tall. It is designed for vehicles and fixed sites running current LTE Cat 18/20 and 5G routers. It is listed as suitable for Cradlepoint COR IBR1700 Series routers and is TAA compliant.

The cellular elements are omnidirectional and deliver the following gain: - 4 dBi from 617-960 MHz - 8 dBi from 1710-3800 MHz - 9 dBi from 4900-6000 MHz

That range makes the antenna Band 71 (600 MHz) ready. The GPS/GNSS module covers 1562-1612 MHz and uses an integrated 26 dB LNA with filtering. Because the antenna is ground plane independent, it keeps its performance on fibreglass and composite roofs as well as metal.

The kit includes five 5 m flame-retardant RG174 cables with factory-fitted SMA (m) connectors: four for cellular and one for GPS. Each cable is flagged for identification. Cable flammability approvals include UN ECE R118, EN45545-2 HL3 and EN6722. The housing is rated IK10 and IP69K and operates from -40 °C to +80 °C.

Panorama lists the antenna as suitable for FirstNet (USA) and ESN (UK) public safety networks. The installation instructions cover correct cellular connections, including wiring the elements as two 2x2 pairs for a dual-SIM router in failover mode.

Ideal for

  • Ambulances and white-roofed emergency vehicles using Cradlepoint COR IBR1700 Series routers
  • Utility and municipal fleets needing 4x4 MIMO cellular plus GPS
  • Public transit vehicles on FirstNet or other public safety networks
  • Fixed installations on composite or fibreglass enclosures

Specifications

General

MPN
LG-IN2444-W
UPC
5055416055002
Brand
Panorama Antennas
Colour
White
Configuration
5-in-1: 4x4 MIMO cellular + GPS/GNSS
Product Family
Mako 5G Dome

Package

Shipping Weight
3.65 lb

GPS Data

Lna Gain
26 dB
GPS Frequency Range
1562-1612 MHz
Number OF GPS Elements
1 module

Cable Data

Cable Supply
Cables fitted
Cable Type GPS
FR RG174
Cable Type LTE
FR RG174 / RG174
Cable Length GPS
5 m (16.4 ft)
Cable Length LTE
5 m (16.4 ft)
Quantity OF GPS Cable
1
Quantity OF Cell Cable
4

Electrical

Pattern
Omnidirectional
Uhf Elements
None
Wi-Fi Elements
None
Max Input Power
10 W
Gain 617 960 MHz
4 dBi
Gain 1710 3800 MHz
8 dBi
Gain 4900 6000 MHz
9 dBi
Cellular LTE Elements
4 x 4 MIMO

Mechanical

Height
80 mm (3.15 in)
Diameter
180 mm (7.09 in)
Operating Temperature
-40 °C to +80 °C (-40 °F to +176 °F)

Compatibility

TAA Compliant
TAA compliant
Compatible Routers
Cradlepoint COR IBR1700 Series routers

Mounting Data

Mounting Methods
Magnetic, Panel
Mounting Type Temp
Magnetic
Mounting Type Fixed
Panel (single hole)

Approvals Data

IP Rating
IK10, IP69K
Cable Flammability
EN45545-2 HL3, UN ECE R118, EN6722

Technology Data

Technology
2G/3G/4G/5G, Band 71 600 MHz ready, FirstNet, GPS/GNSS

Termination Data

Connector GPS
SMA (m)
Connector LTE
SMA (m)

Questions buyers ask

Is the LG-IN2444-W compatible with Cradlepoint routers?

It is listed as suitable for Cradlepoint COR IBR1700 Series routers, which connect through the fitted SMA (m) cellular and GPS cables.

How is it different from the LG-IN2444?

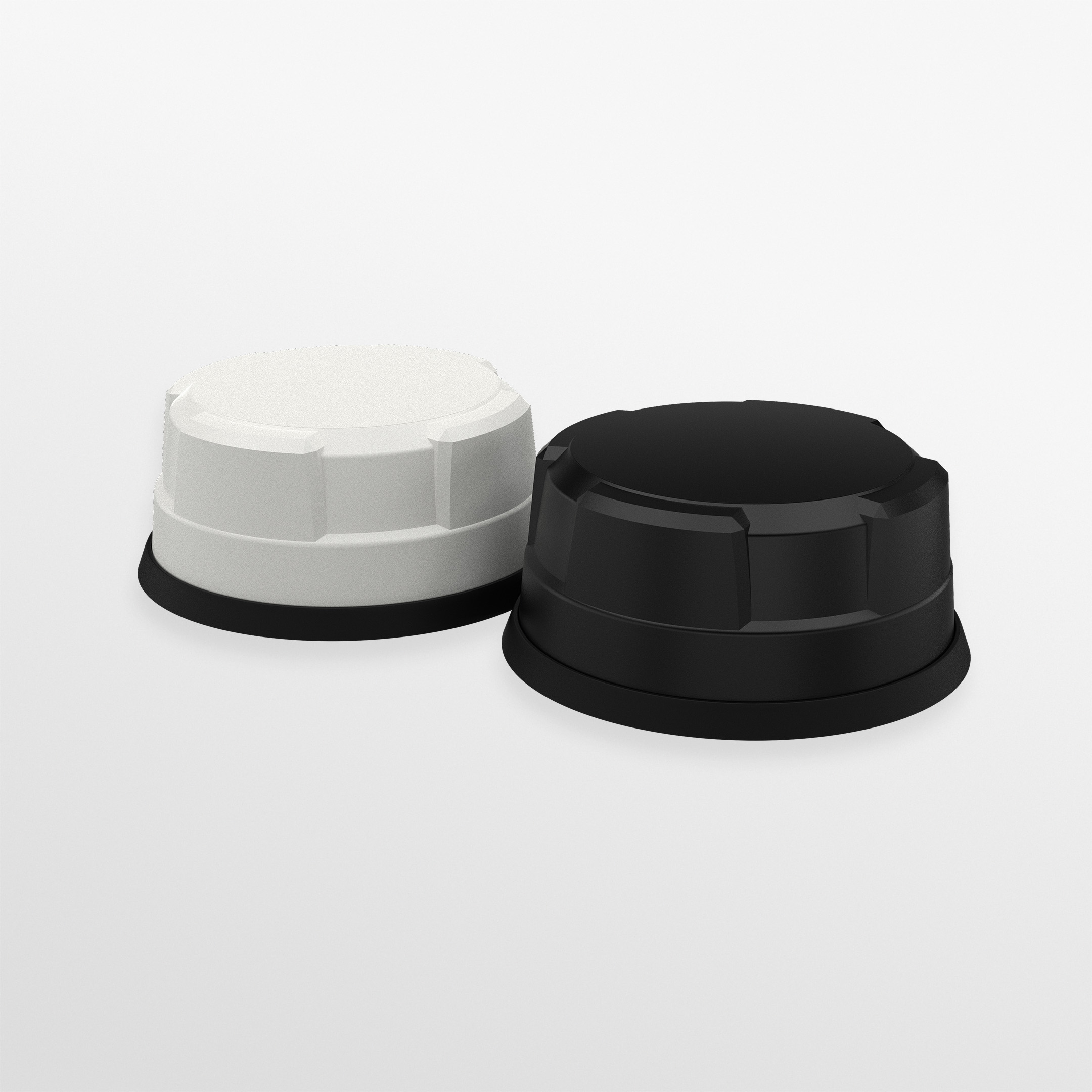

Only the colour differs. The LG-IN2444-W has a white radome, while the LG-IN2444 is black. Frequencies, gain, cables and approvals are the same.

Can I use it for dual-SIM failover?

Yes. The four cellular elements can be wired as two 2x2 pairs for a dual-SIM router in which only one SIM is active at a time. It is not intended for concurrent or aggregated dual-SIM data.

What mounting options are available?

The antenna uses a single-hole panel mount for fixed installs, and magnetic mounting is also listed. Panorama offers accessories such as the SAB-309 wall/mast bracket, SAB-342 pole mount and SAB-225 magnetic mount.
