Panorama LGAM-7-27-24-58-04 Multifunction MiMo Antenna, 4G/5G + 2x2 Wi-Fi + GPS, 0.4 m

5GMPN LGAM-7-27-24-58-04
  • 2x2 MIMO
  • GNSS
  • Wi-Fi
  • 3–5 dBi
  • Up to 1 m
$67.11$101.10Save $33.99

In stock · only 2 leftFree 2-day shipping

1
Request a quote · volume, multi-site or with plans
Compare all 3 configurations

Datasheets & documents

Overview

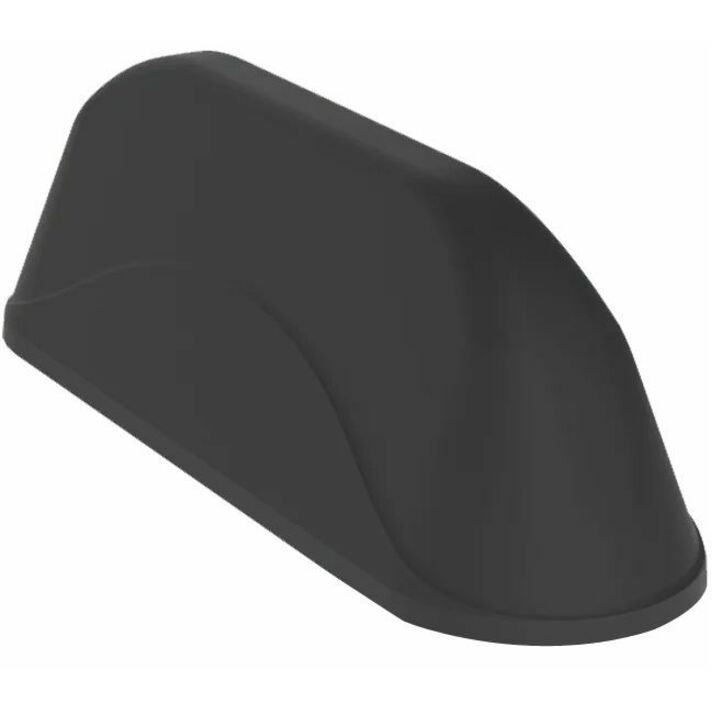

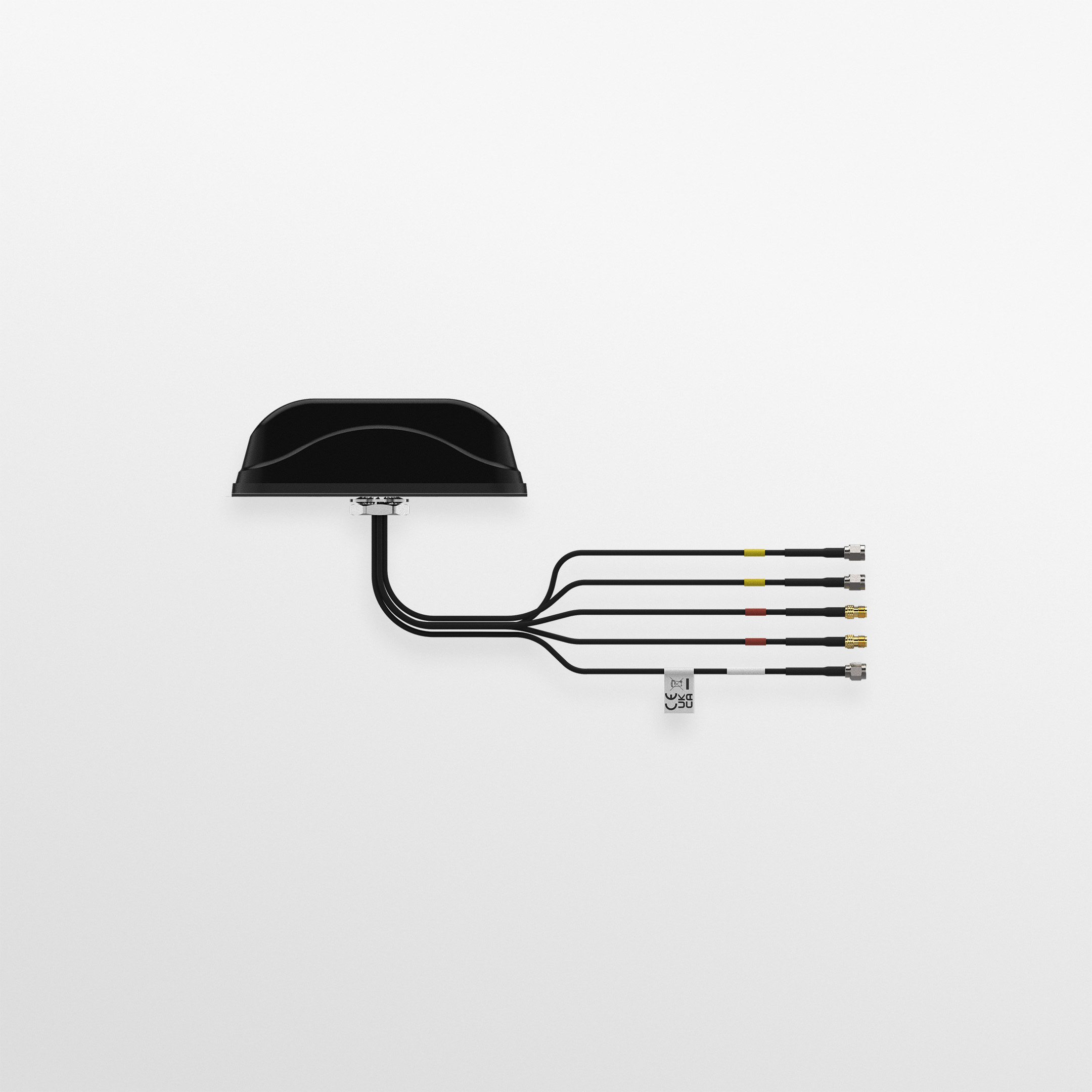

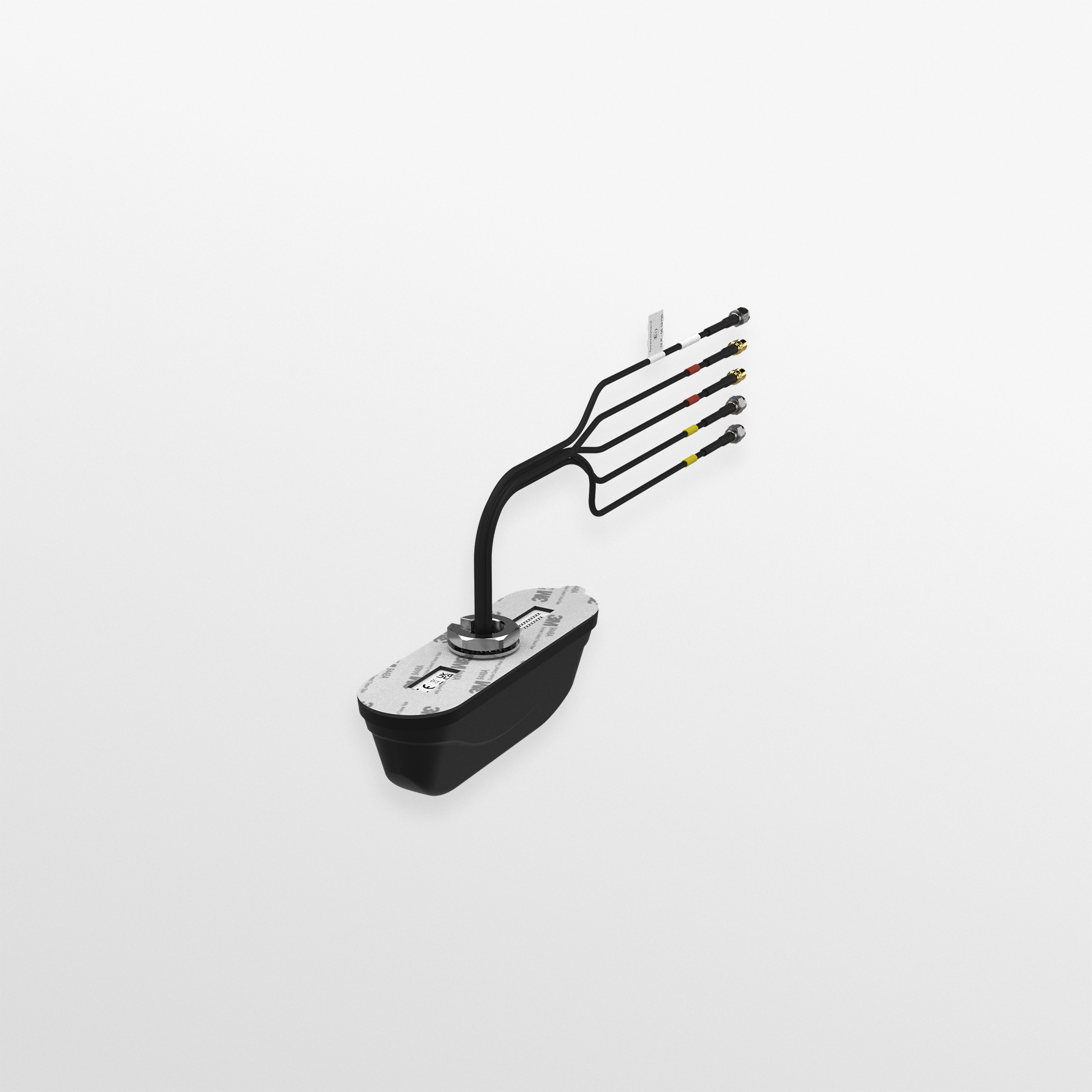

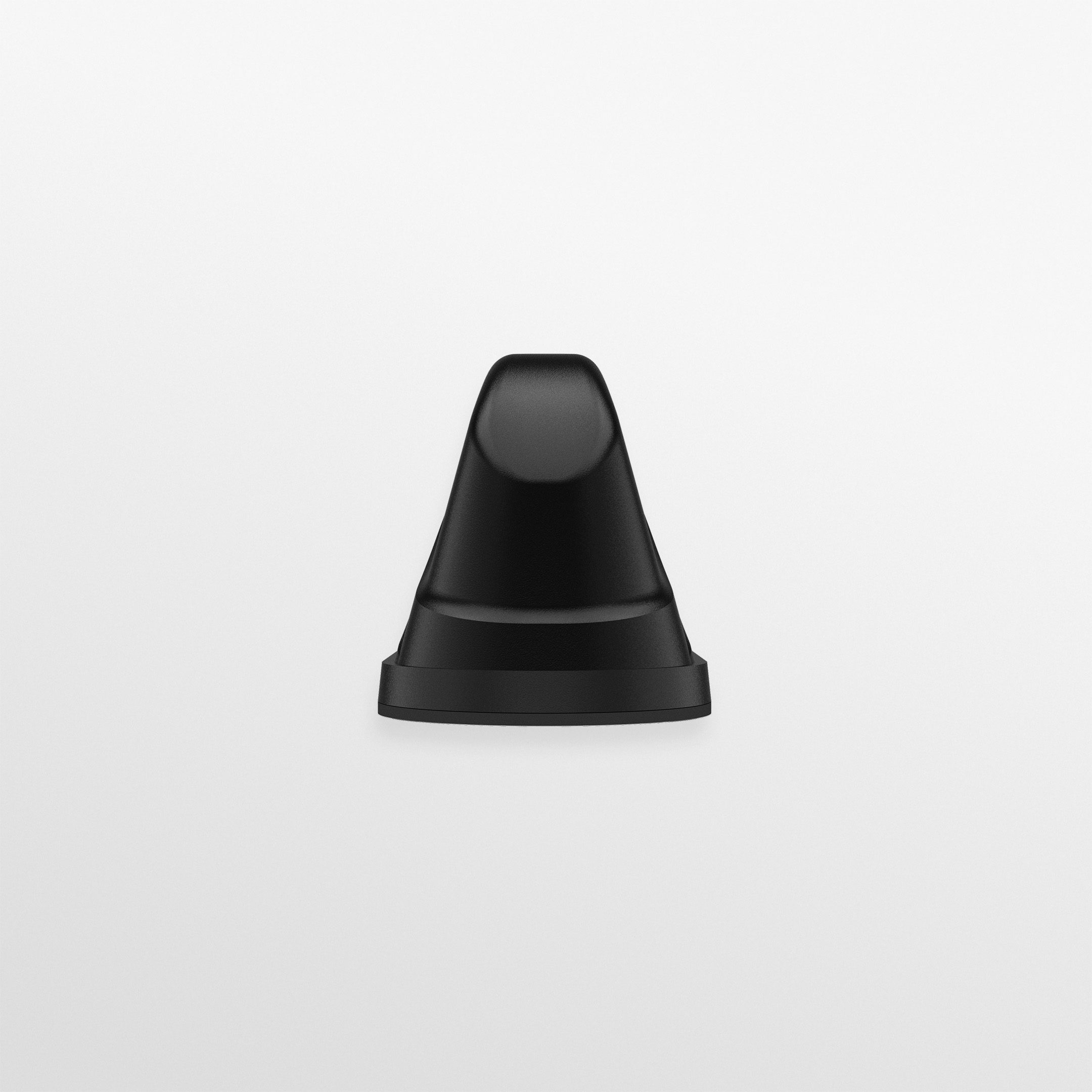

The Panorama LGAM-7-27-24-58-04 is the 0.4 m cable version of the LGAM-7-27-24-58 multifunction antenna. It suits installations where the router or terminal sits directly behind the mounting panel. A single IP66 low-profile housing contains 2x2 MiMo cellular covering 698–3800 MHz for 2G/3G/4G/5G, 2x2 MiMo 2.4/5 GHz Wi-Fi, and an active GPS/GLONASS/Galileo/BeiDou antenna with a 26 dB LNA. The leads terminate in SMA plug and SMA reverse-polarity plug connectors.

  • 0.4 m integrated cable version of the LGAM-7-27-24-58
  • 2x2 MiMo cellular, 698–960 MHz (2 dBi) and 1710–3800 MHz (5 dBi), for 2G/3G/4G/5G
  • 2x2 MiMo dual-band 2.4/5 GHz Wi-Fi
  • Active GPS/GLONASS/Galileo/BeiDou module with 26 dB LNA
  • SMA plug cellular/GPS and SMA reverse-polarity plug Wi-Fi connectors
  • IP66 low-profile single-hole panel mount, -40 °C to +80 °C
  • Short leads keep compact enclosures tidy, with no excess cable to coil
  • Less coax length between antenna and router means less signal loss

The LGAM-7-27-24-58-04 has the same antenna functions as Panorama's LGAM-7-27-24-58, with 0.4 m integrated leads in place of 3 m leads. Short cables reduce slack and coax loss in compact enclosures such as vending machines, payment kiosks and meter cabinets, where the antenna mounts on the housing directly above the gateway.

The cellular section is a 2x2 MiMo pair covering 698–960 MHz at 2 dBi and 1710–3800 MHz at 5 dBi, which spans 2G, 3G, 4G LTE and 5G bands. A second 2x2 MiMo pair covers dual-band 2.4/5 GHz Wi-Fi. An active GNSS module receives 1562–1612 MHz for GPS, GLONASS, Galileo and BeiDou and adds 26 dB of LNA gain for accurate positioning and timing. The cellular and GPS leads use SMA plugs and the Wi-Fi leads use reverse-polarity SMA plugs, so they connect directly to typical router ports.

The omnidirectional housing measures 150 x 44 x 50 mm. It installs through a single hole, is IP66 rated and operates from -40 °C to +80 °C. It performs on or off a conductive surface. Panorama's family datasheet and SW3-704 installation instructions apply to this model.

Ideal for

  • Compact vending machines with the router mounted under the roof panel
  • Payment kiosks where the terminal sits directly behind the antenna
  • Smart meter and utility cabinets
  • Static IoT enclosures needing cellular, Wi-Fi and location

Specifications

GPS

Lna Gain
26 dB
GPS Frequency Range
1562–1612 MHz
Number OF GPS Elements
1 module (GPS/GLONASS/Galileo/BeiDou)

Cable

Cable Type GPS
RG174
Cable Type LTE
RG174
Cable Type Wi-Fi
RG174
Cable Length GPS
0.4 m
Cable Length LTE
0.4 m
Cable Length Wi-Fi
0.4 m

General

MPN
LGAM-7-27-24-58-04
Brand
Panorama Antennas
Family
L[G]AM-7-27-[X]24-58 Multifunction MiMo Antenna
Variant
0.4 m cable variant of LGAM-7-27-24-58

Mounting

Mounting Methods
Panel (single hole)
Mounting Type Fixed
Panel

Approvals

IP Rating
IP66

Electrical

Pattern
Omnidirectional
Uhf Elements
No
Wi-Fi Elements
2 x 2 MIMO (2.4/5 GHz)
Max Input Power
25 W
Frequency Range Gain
698–960 MHz: 2 dBi; 1710–3800 MHz: 5 dBi
Cellular LTE Elements
2 x 2 MIMO

Mechanical

Width
44 mm (1.73 in)
Colour
Black
Height
50 mm (1.97 in)
Length
150 mm (5.91 in)
Operating Temperature
-40 °C to +80 °C (-40 °F to +176 °F)

Technology

Technology
2G/3G/4G/5G cellular, 2x2 MIMO Wi-Fi, GPS/GNSS

Termination

Connector GPS
SMA plug (m)
Connector LTE
SMA plug (m)
Connector Wi-Fi
SMA reverse-polarity plug

Questions buyers ask

How does this differ from the LGAM-7-27-24-58?

It uses 0.4 m integrated cables instead of 3 m. The antenna functions are the same: 2x2 cellular, 2x2 Wi-Fi and GNSS.

When is a 0.4 m cable the right choice?

It suits installations where the router or terminal sits directly behind the mounting surface, such as inside a vending machine or kiosk. The short run avoids excess coax and the loss that comes with it.

What connectors are on the leads?

The cellular and GPS leads have SMA plugs. The Wi-Fi leads have reverse-polarity SMA plugs.

Is it suitable for 5G routers?

Yes. The cellular elements cover 698–3800 MHz, which Panorama rates for 2G/3G/4G/5G.
