Panorama LGAM4-7-42 Clam 4x4 MIMO 4G/5G IoT Antenna with GNSS, Black

5GMPN LGAM4-7-42
  • 4x4 MIMO
  • GNSS
  • 6–8 dBi
$131.43$181.50Save $50.07

In stockShips from the US

1
Request a quote · volume, multi-site or with plans
Compare all 2 configurations

Datasheets & documents

Overview

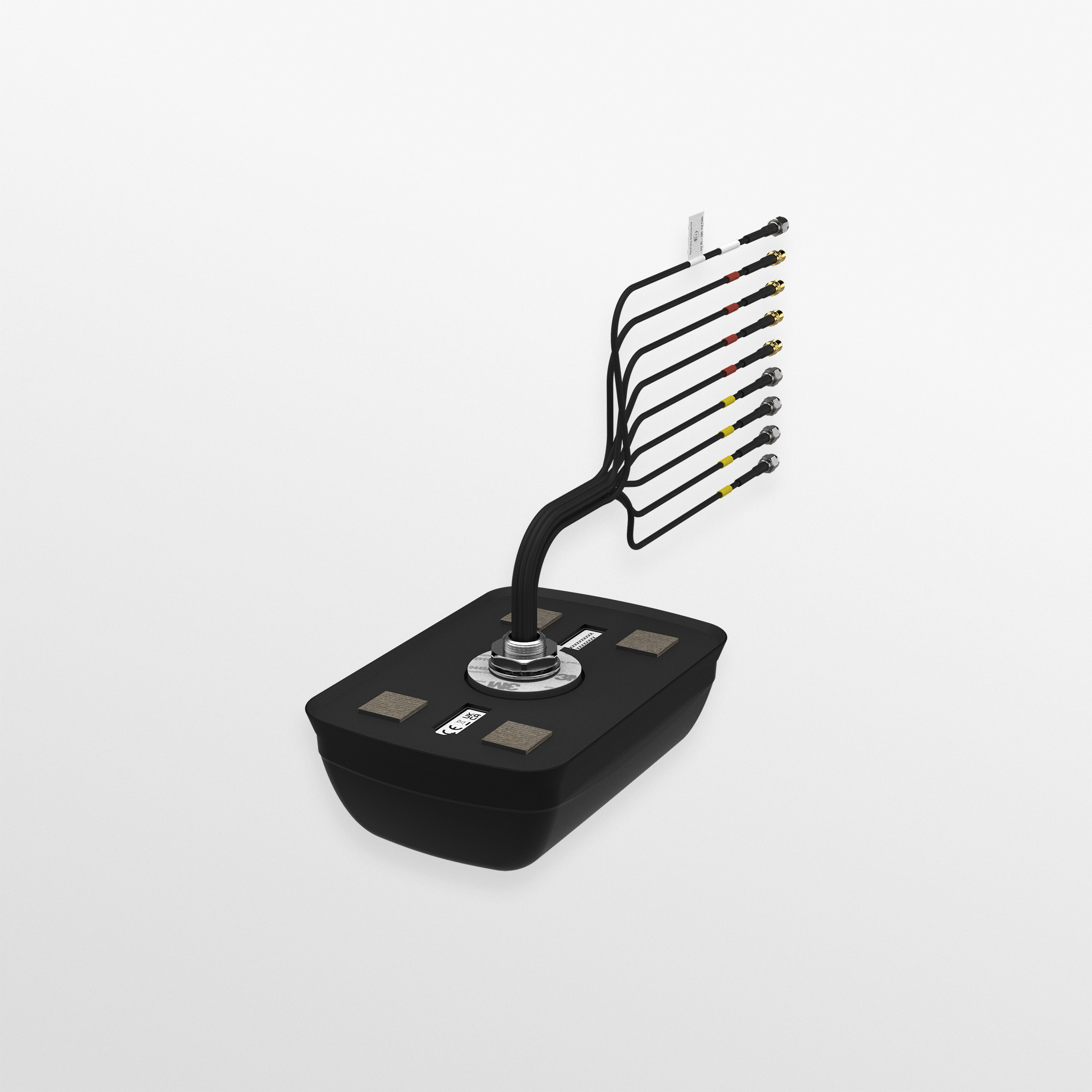

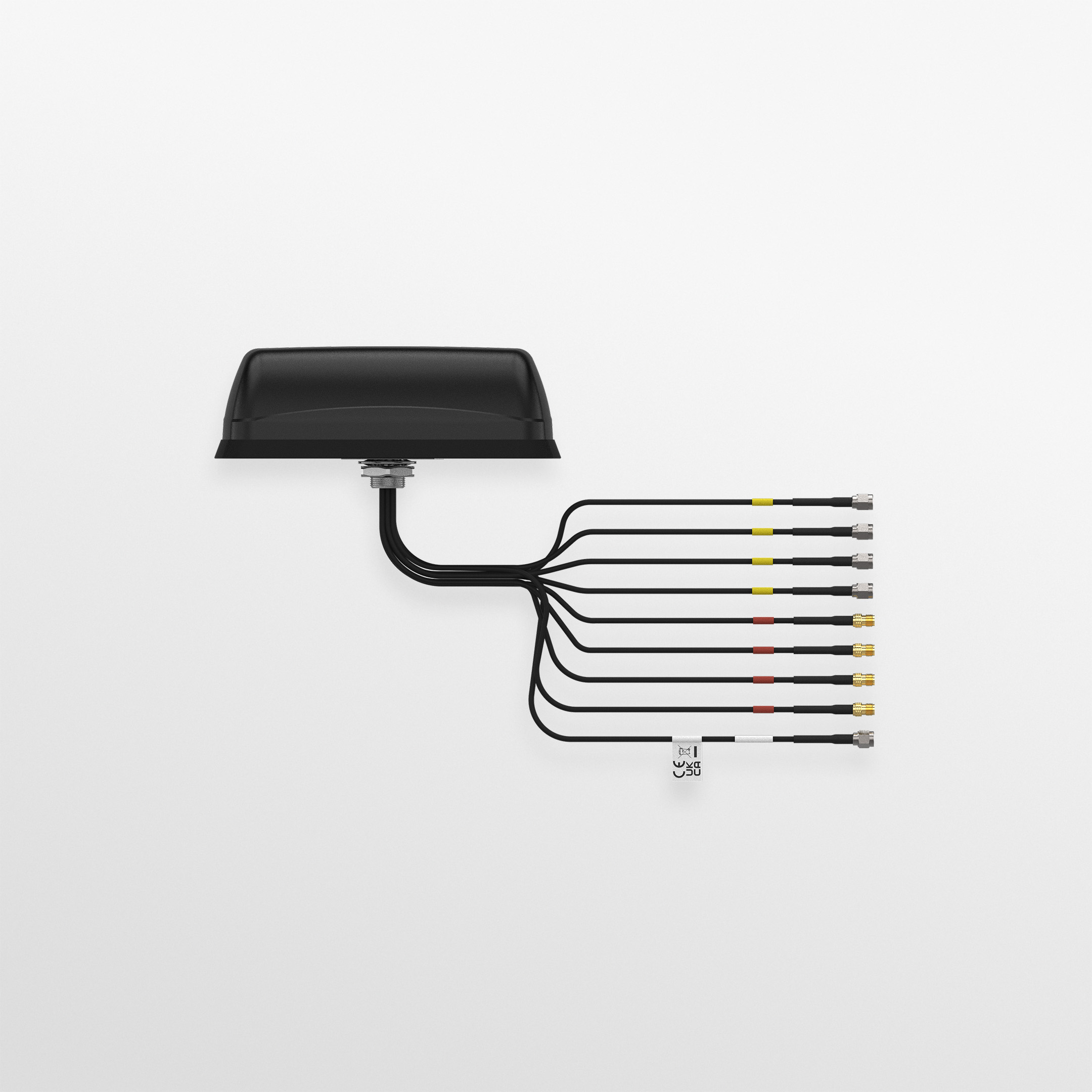

The Panorama LGAM4-7-42 is a black Clam low profile IoT antenna with four 4G LTE/5G NR elements for 4x4 MIMO across 698-960 and 1427-4200 MHz. It also includes an L1 GPS/GNSS module with a 26 dB LNA. There are no Wi-Fi elements, which keeps it focused on cellular and positioning. The impact-resistant, UV-stable housing is rated IK10 and IP69K, and all five 2 m flame-retardant cables end in SMA (m) connectors. It suits 5G routers and gateways in IoT, private network and public-area installations.

  • 4x4 MIMO 4G LTE/5G NR across 698-960 and 1427-4200 MHz
  • L1 GPS/GNSS module (1559-1612 MHz) with a 26 dB LNA
  • No Wi-Fi elements, a cellular and GNSS configuration
  • Low profile black Clam housing, 175 x 118 x 56.9 mm
  • Rated IK10 and IP69K, UV-stable, operating from -40 °C to +85 °C
  • Integrated 2 m UN ECE R118 cables with SMA (m) connectors
  • Four cellular elements match 4x4 MIMO 5G modems for full use of the router's antenna ports
  • Covers 3.5 GHz CBRS and private 4G/5G spectrum up to 4200 MHz

The Panorama LGAM4-7-42 is the cellular-plus-GNSS version of Panorama's Clam L[X]A[X]M4-7-42[-X] family, a low profile antenna built as a one-size-fits-all solution for IoT. Four 4G LTE/5G NR elements deliver 4x4 MIMO across 698-960 MHz and 1427-4200 MHz. That coverage includes the 3.5 GHz CBRS band and spectrum used by private 4G/5G networks, and it lets a 4x4 5G router use every cellular port.

An L1 GPS/GNSS module covering 1559-1612 MHz, with a 26 dB LNA, adds location and timing. This part has no Wi-Fi elements. It is a clean fit where Wi-Fi is handled elsewhere or not required. Each element is supplied with an integrated 2 m low-loss, flame-retardant cable approved to UN ECE R118, terminated in SMA (m) for plug-and-play connection to routers and gateways.

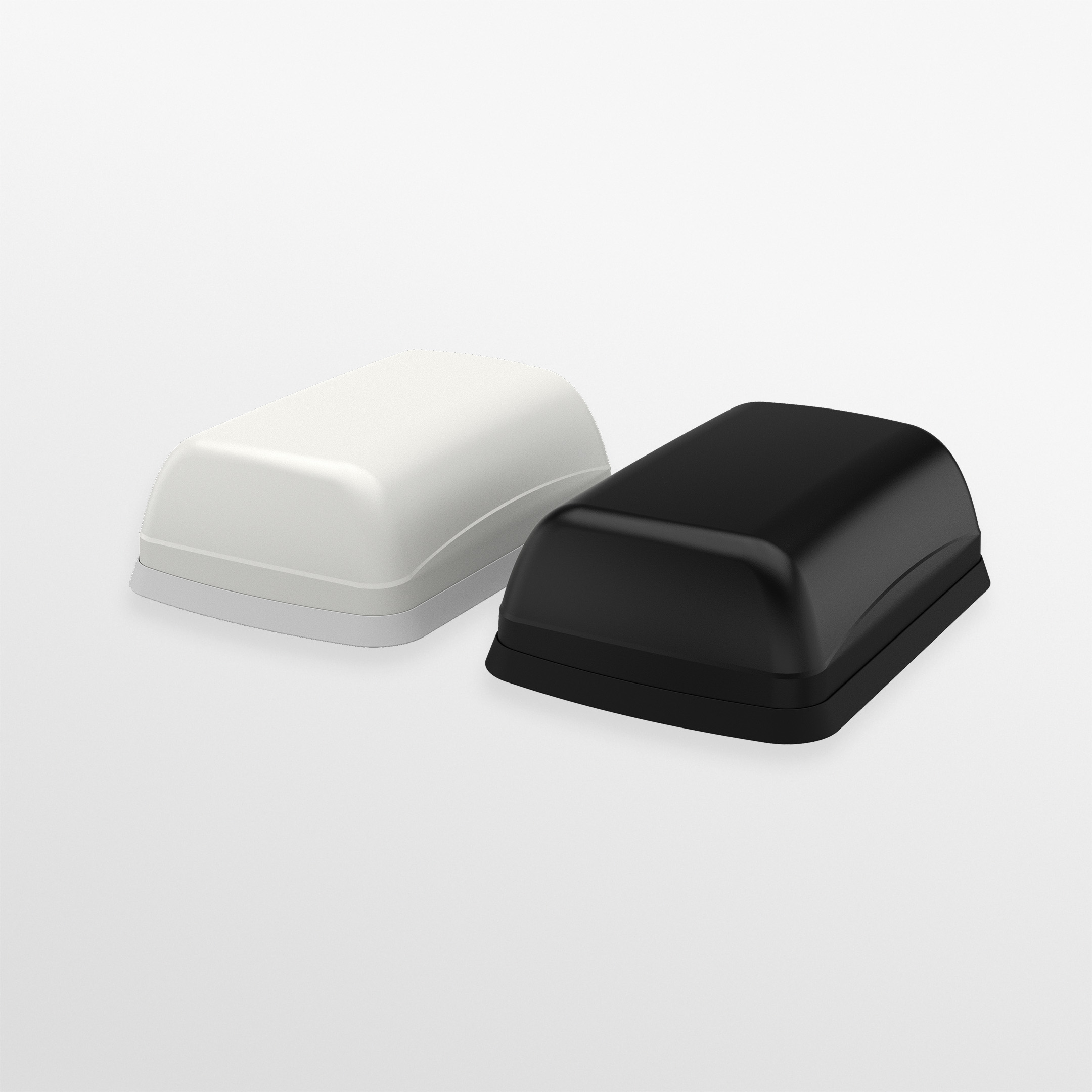

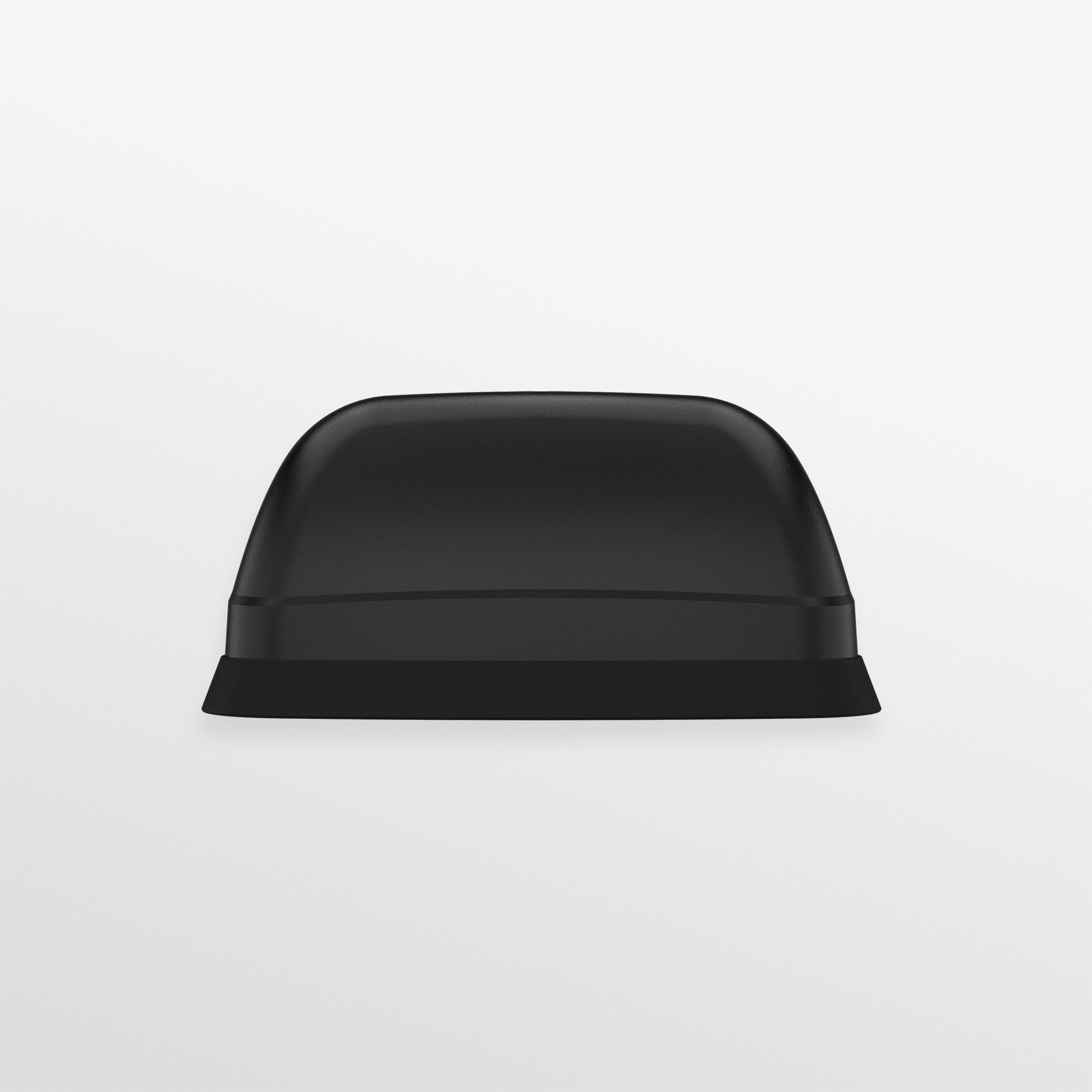

The 175 x 118 x 56.9 mm housing is made from robust, flame-retardant, impact-resistant plastic. Its curved profile makes it harder to vandalise, and the IK10 rating suits devices located in public areas. The UV-stable enclosure is approved to IP69K. The antenna operates from -40 °C to +85 °C and panel-mounts on conductive or non-conductive surfaces without significant loss of performance.

Panorama positions the Clam for 5G IoT applications, smart agriculture, vending machines, kiosks, street furniture and private 4G/5G networks. A datasheet and installation instructions (SW3-1078) are available for the family.

Ideal for

  • 4x4 MIMO 5G gateways on vending machines, kiosks and street furniture
  • Private 4G/5G and CBRS network endpoints
  • Smart agriculture telemetry that needs cellular and GNSS positioning
  • IoT enclosures in public areas that need a vandal-resistant antenna

Specifications

GPS

Lna Gain
26 dB
GPS Frequency Range
1559-1612 MHz (L1)
Number OF GPS Elements
1 Module

Cable

Cable Length GPS
2 m (6.56 ft)
Cable Length LTE
2 m (6.56 ft)
Cable Length Wi-Fi
Not fitted (no Wi-Fi elements)

General

MPN
LGAM4-7-42
UPC
5055416080615
Brand
Panorama Antennas
Product Family
Clam 4x4 MiMo 4G/5G IoT Antenna

Package

Shipping Weight
1.80 lb

Mounting

Mounting Methods
Panel, conductive or non-conductive surfaces
Mounting Type Fixed
Panel

Approvals

IP Rating
IK10, IP69K
Cable Flammability
UN ECE R118

Electrical

Pattern
Omnidirectional
Typical Vswr
<2.5:1
Uhf Elements
No
Wi-Fi Elements
No
Frequency Range
698-960 MHz, 1427-4200 MHz
Max Input Power
5 W
Cellular LTE Elements
4 x 4 MIMO

Mechanical

Width
118 mm (4.65 in)
Colour
Black
Height
56.9 mm (2.24 in)
Length
175 mm (6.89 in)
Operating Temperature
-40 °C to +85 °C (-40 °F to +185 °F)

Technology

Technology
2G/3G/4G, 4G/5G, CBRS, GPS/GNSS

Termination

Connector GPS
SMA male
Connector LTE
SMA male
Connector Wi-Fi
Not fitted (no Wi-Fi elements)

Questions buyers ask

Does the LGAM4-7-42 include Wi-Fi?

No. It contains four 4G LTE/5G NR elements and one GPS/GNSS module. Panorama offers Wi-Fi-equipped versions such as the LGADM4-7-42.

Which frequencies does it cover?

The cellular elements cover 698-960 MHz and 1427-4200 MHz, which includes the 3.5 GHz CBRS band. The GNSS module covers 1559-1612 MHz.

What connectors are on the cables?

All cables are 2 m long and end in SMA (m) connectors.

Can it be mounted on a non-metal surface?

Yes. The Clam panel-mounts on conductive or non-conductive surfaces without significant loss of performance.
