Panorama Clam LPAM4-7-42 4x4 MIMO 4G/5G Low-Profile IoT Antenna, 2 m Cables

5GMPN LPAM4-7-42
  • 4x4 MIMO
  • 6–8 dBi
$105.40$145.50Save $40.10

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans
Compare all 2 configurations

Datasheets & documents

Overview

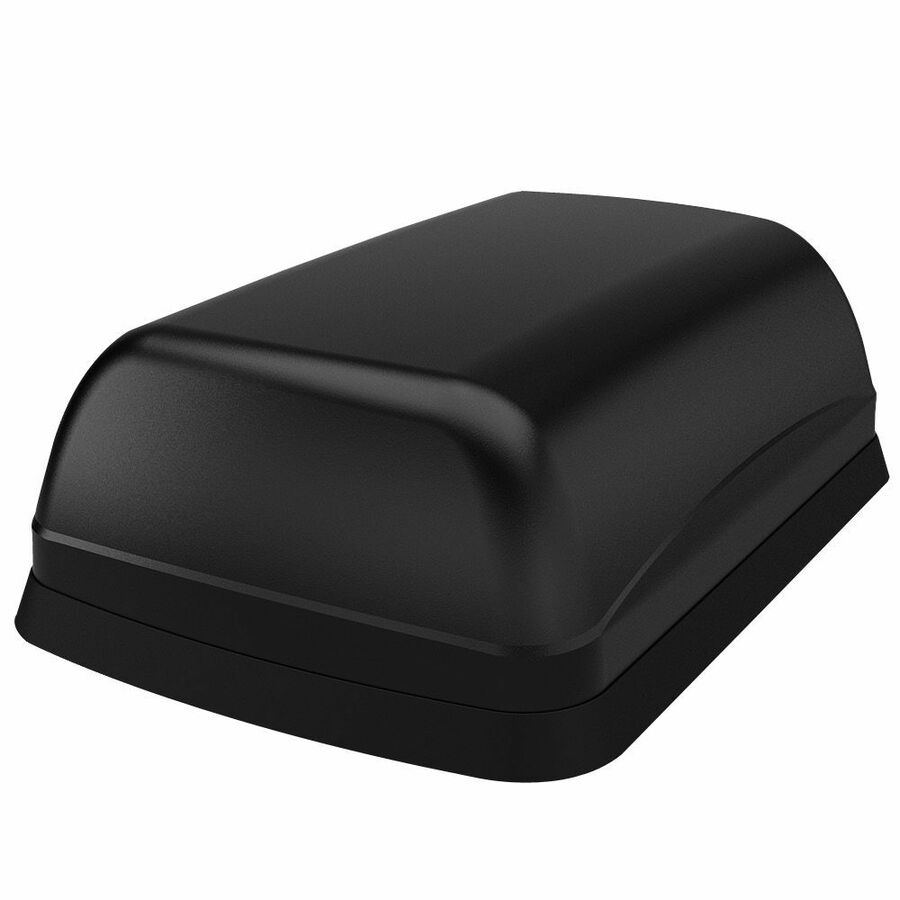

The Panorama LPAM4-7-42 is the cellular-only version of the Clam 4x4 MIMO IoT antenna. Four 4G LTE/5G NR elements cover 698-960 MHz and 1427-4200 MHz inside a low-profile, curved housing rated IK10 for impact and IP69K for ingress. It has four integrated 2 m cables with SMA (m) connectors and mounts on conductive or non-conductive panels, which makes it a good fit for kiosks, vending machines, street furniture and private 4G/5G networks.

  • Four 4G LTE/5G NR elements in a 4x4 MIMO configuration
  • Cellular coverage of 698-960 MHz and 1427-4200 MHz, including CBRS
  • IK10 impact rating and IP69K ingress protection
  • Four integrated 2 m UN ECE R118 flame-retardant cables with SMA (m) connectors
  • Panel mount on conductive or non-conductive panels
  • Operating temperature of -40°C to +85°C
  • Uses all four antenna ports on 4x4 MIMO 4G/5G routers and gateways from a single housing
  • Low-band through 4.2 GHz coverage supports public carrier and private LTE/5G/CBRS networks

The Panorama LPAM4-7-42 is a low-profile 4x4 MIMO antenna for 4G and 5G IoT deployments. It belongs to Panorama's Clam family, which is designed as a one-size-fits-all IoT antenna. This part number carries four 4G LTE/5G NR elements covering 698-960 MHz and 1427-4200 MHz. The 1427-4200 MHz range spans the mid-band and 3.5 GHz CBRS spectrum used in private LTE and 5G networks. It has no GNSS or Wi-Fi elements, so it suits routers and gateways that only need a clean four-port cellular antenna.

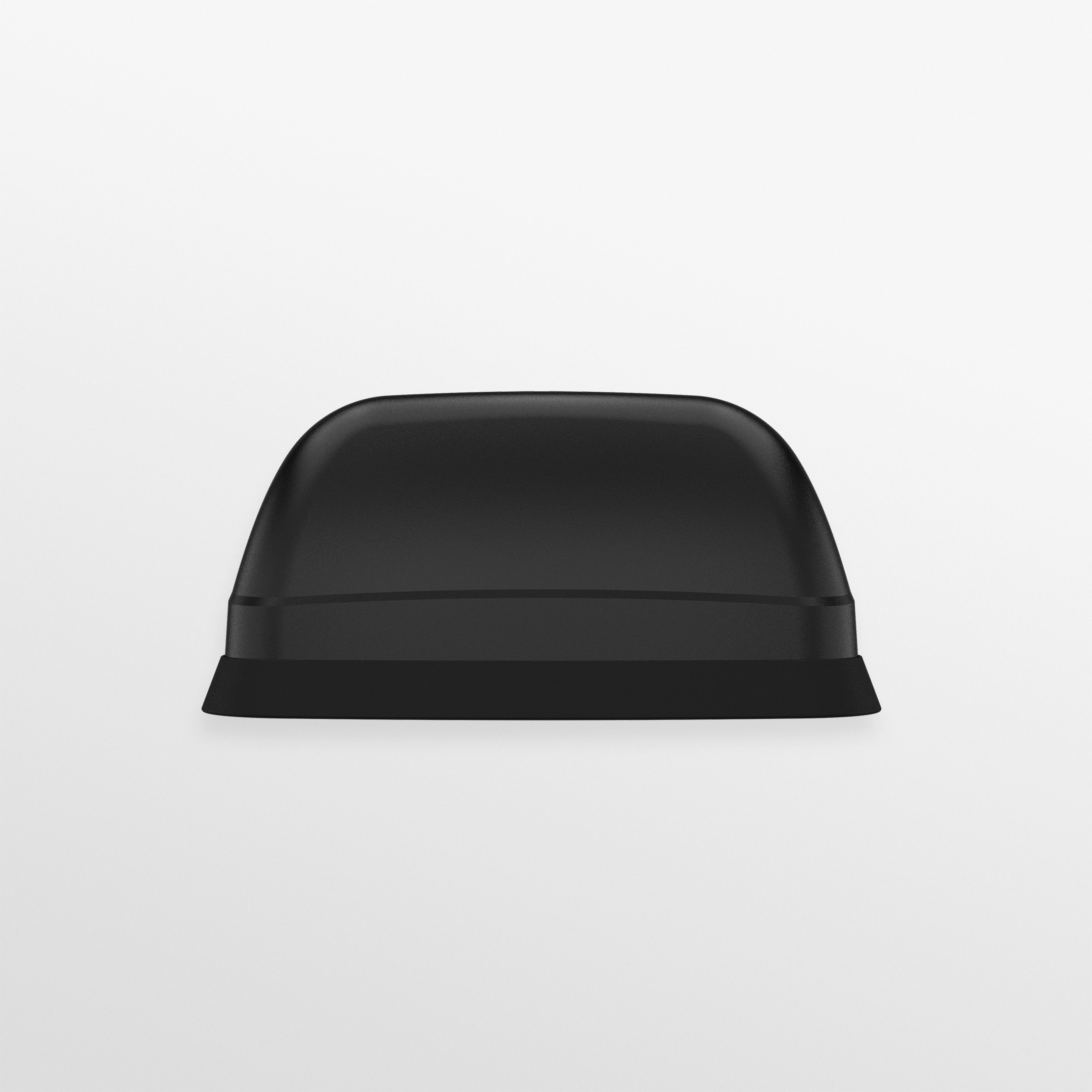

The housing is made from flame-retardant, impact-resistant, UV-stable plastic. The curved shape is harder to vandalise, and the IK10 impact rating suits equipment installed in public areas. IP69K ingress protection covers wash-down and harsh outdoor conditions. The operating range is -40°C to +85°C, and the antenna measures 175 x 118 x 56.9 mm.

Four integrated low-loss, flame-retardant 2 m cables are approved to UN ECE R118 and end in SMA (m) connectors that plug directly into a 4x4 MIMO router or modem. The antenna panel-mounts and works on conductive or non-conductive panels without significant loss of performance. Maximum input power is 5 W and typical VSWR is <2.5:1. Panorama's datasheet and installation instructions (SW3-1078) cover mounting and cabling.

Ideal for

  • Vending machines, kiosks and street furniture in public areas
  • Smart agriculture and remote IoT equipment
  • Private 4G/5G and CBRS network endpoints
  • 4x4 MIMO cellular routers and gateways in harsh environments

Specifications

GPS

GPS Elements
None on this model

Cable

Cable Length LTE
2 m (6.56 ft)

General

MPN
LPAM4-7-42
Brand
Panorama Antennas
Product Type
Low-profile 4x4 MIMO 4G/5G IoT antenna
Product Family
Clam® L[X]A[X]M4-7-42[-X]

Package

UPC
5055416080608
Shipping Weight
1.50 lb

Mounting

Mounting Methods
Panel
Mounting Type Fixed
Panel

Approvals

Impact Rating
IK10
Ingress Rating
IP69K
Cable Flammability
UN ECE R118

Electrical

Pattern
Omnidirectional
Typical Vswr
<2.5:1
Uhf Elements
No
Wi-Fi Elements
None on this model
Frequency Range
698-960 MHz; 1427-4200 MHz
Max Input Power
5 W
Cellular LTE Elements
4 x 4 MIMO

Mechanical

Width
118 mm (4.65 in)
Colour
Black
Height
56.9 mm (2.24 in)
Length
175 mm (6.89 in)
Operating Temperature
-40°C to +85°C (-40°F to +185°F)

Technology

Technology
2G/3G/4G, 5G, CBRS

Termination

Connector LTE
SMA (m)

Questions buyers ask

Does the LPAM4-7-42 include GPS or Wi-Fi?

No. This model is cellular-only, with four 4G LTE/5G NR elements. Versions of the Clam family with GNSS and Wi-Fi 6E elements are sold under different part numbers.

What frequencies does it cover?

698-960 MHz and 1427-4200 MHz across all four cellular elements.

What connectors and cable lengths does it use?

Four integrated 2 m (6.56 ft) cables approved to UN ECE R118, each ending in an SMA (m) connector.

Can it be mounted on a non-metal surface?

Yes. Panorama states the Clam can be installed on conductive or non-conductive panels without significant loss of performance.

Is it suitable for outdoor public installations?

Yes. The housing is UV stable, rated IK10 for impact and IP69K for ingress, and operates from -40°C to +85°C.
