Sonim XP5plus 5G Ultra-Rugged PTT Phone, Unlocked, with Channel-Select and Volume Knobs

5GMPN PH-SON-XP5P-0D-004
  • Rugged
$470.79$499.99Save $29.20

In stockShips from the US

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Sonim XP5plus 5G is an unlocked, ultra-rugged 5G phone built for push-to-talk teams, first responders and crews in hazardous or harsh conditions. Top-mounted channel-select and volume knobs give it radio-like operation. A side PTT key and a programmable SOS button sit alongside. It supports AT&T Enhanced PTT for LMR interoperability and is built FirstNet Ready. It carries IP68, IPX9K, MIL-STD-810H and Class I, II and III Div 2 ratings, and runs on a removable 3500mAh battery with fast charging.

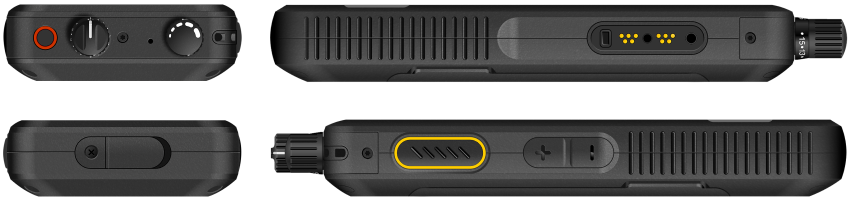

  • Unlocked 5G rugged phone with top-mount channel-select and volume control knobs
  • Side-mounted PTT key and top-mounted programmable SOS button, with AT&T Enhanced PTT support for LMR interoperability
  • Built FirstNet Ready for AT&T's public-safety network
  • IP68, IPX9K, MIL-STD-810H and Class I, II and III, Div 2 hazardous-location certifications
  • Removable 3500mAh Li-Ion battery with 15W/18W fast charge: up to 25 hours VoLTE talk and 390 hours 5G standby
  • Qualcomm SM4450, 4GB RAM, 64GB storage, microSD up to 512GB, Android 15-based Sonim OS
  • Dual 100dB+ front speakers and dual noise- and echo-cancelling microphones
  • Operate it like a two-way radio: knobs switch channels and set volume without looking at the screen

The Sonim XP5plus 5G is a rugged communication phone for teams that need instant push-to-talk and LMR interoperability, businesses running long shifts, and first responders on AT&T's FirstNet network. This SKU is the unlocked version with the top-mount channel-select and volume control knobs, which give the phone radio-style handling. A side-mounted PTT key and a top-mounted programmable SOS button complete the controls. It supports AT&T Enhanced PTT and is built FirstNet Ready for prioritized public-safety access.

Durability is the core of the design. The phone is rated IP68 and IPX9K against water and dust and is built to MIL-STD-810H. It is also certified Class I, Div 2, Groups A, B, C, D, T4; Class II, Div 2, Groups F, G, T4; and Class III, Div 2 for hazardous locations. It operates from -20°C to +55°C. The 2.8-inch 640x480 display sits under Corning Gorilla Glass 3. Dual front-facing speakers deliver 100dB+ output, and dual microphones use noise and echo cancellation.

A Qualcomm SM4450 chipset with 4GB RAM and 64GB storage runs Sonim's proprietary OS based on AOSP Android 15. Storage expands with microSD cards up to 512GB. Wide 5G, LTE and UMTS band support, Wi-Fi 802.11ac, a hotspot for up to 10 devices and GPS L1 + L5 with Galileo cover connectivity and location. The removable 3500mAh battery is rated for up to 25 hours of VoLTE talk time and up to 390 hours of 5G standby, with 15W/18W fast charging. It accepts a 4FF SIM or eSIM.

SonimWare device management tools come preloaded at no extra cost. Sonim backs the phone with a 3-year warranty. Manufacturer datasheets for AT&T Business and AT&T FirstNet, plus an AT&T user guide, are available for this model.

Ideal for

  • Public-safety and first-responder teams on AT&T FirstNet
  • Push-to-talk crews that need to interoperate with LMR radio users
  • Oil, gas, utilities and industrial sites classified Class I/II/III Div 2
  • Construction, logistics and field-service workers in wet, dusty or loud environments
  • Long-shift operations that rely on swappable batteries

Specifications

Audio

Hac
ANSI 2019
Speaker
Dual front-facing loudspeakers, 100dB+
Microphone
Dual mic with noise and echo cancellation

Battery

Capacity
3500mAh Li-Ion, Removable
Standby 5G
Up to 390 hours
Fast Charge
15W/18W Fast Charge
Talk Time Volte
Talk (VoLTE): Up to 25 hours
Wireless Charging
No

Display

Size
2.8 in
Glass
Corning Gorilla Glass 3
Colors
262K colors
Resolution
640 x 480

General

MPN
PH-SON-XP5P-0D-004
UPC
674026783690
Brand
Sonim
Model
XP5plus 5G
Configuration
With channel-select and volume knobs
Carrier Status
Unlocked

Package

Shipping Weight
1.30 lbs

Physical

Ports
USB Type-C, SecureAudio™ Connector
SIM Type
4FF SIM, eSIM
Dedicated Keys
PTT Key, Volume Keys, Emergency Key
Military Standard
MIL-STD-810H
Weight With Knobs
277 g (with knobs)
Ingress Protection
IP68, IPX9K
Weight Without Knobs
265 g (no knobs)
Dimensions With Knobs
163.7 x 65.9 x 21 mm (with knobs)
Operating Temperature
-20°C to +55°C
Dimensions Without Knobs
148.7 x 65.9 x 21 mm (without knobs)
Hazardous Location Class I
Class I, Div 2, Groups A, B, C, D, T4
Hazardous Location Class II
Class II, Div 2, Groups F, G, T4
Hazardous Location Class Iii
Class III, Div 2

IN The Box

Contents
XP5plus 5G, SIM Card, USB Type-C Cable, Screwdriver, Wall Charger, Quick Start Guide

Multimedia

Camera
8MP front camera with flash
Media Player
Yes
Audio Formats
PCM, AAC, MP3*, AMR-NR/WB, FLAC*, Vorbis*, AAC+*, eAAC+*, SBC, aptX/aptX HD
Video Formats
HEVC/H.265, H.264, H.263, MPEG-4, VP8, VP9*
LED Flashlight
Yes
Graphic Formats
JPG, PNG, BMP, GIF, WebP, HEIF

Connectivity

NFC
No
Sensors
Accelerometer, Barometer
Bluetooth
Bluetooth 5.0 BLE
Messaging
SMS, MMS (Text, Image, Audio, Video)
Real Time Text
RTT: Yes
Location Service
GPS L1 + L5 / a-GPS, Galileo
Languages Supported
English, Spanish, Simplified Chinese, Traditional Chinese, Canadian French

Core Platform

RAM
4GB DDR4
Chipset
Qualcomm SM4450 (2x A78 @ 2.0GHz, 6x A55 @ 1.8GHz)
Storage
64GB eMMC ROM
Bands 5G
n2, n5, n7, n14, n25, n28, n38, n41, n48, n66, n71, n77, n78
Bands LTE
1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 20, 25, 26, 28, 29, 30, 38, 41, 42, 43, 48, 66, 71
Bands Umts
I, II, IV, V, VII
Wi-Fi Hotspot
Hotspot capable, up to 10 connections
Wi-Fi Standard
Wi-Fi 802.11 a/b/g/n/ac
Wi-Fi Frequency
2.4/5GHz
Operating System
Sonim Proprietary OS (based on AOSP Android 15)
Expandable Storage
microSD up to 512GB
Preloaded Applications
SonimWare™

Questions buyers ask

Is this version of the XP5plus 5G unlocked?

Yes. This SKU (PH-SON-XP5P-0D-004) is the unlocked XP5plus 5G supplied with the top-mount channel-select and volume knobs.

Does the XP5plus 5G work with FirstNet and LMR radios?

It is built FirstNet Ready for AT&T's public-safety network. It also supports AT&T Enhanced PTT, which enables interoperability with LMR radio systems.

Is the battery replaceable?

Yes. The 3500mAh Li-Ion battery is removable, and a screwdriver is included in the box. The battery supports 15W/18W fast charging and is rated for up to 25 hours of VoLTE talk time.

Does it support NFC or wireless charging?

No. The XP5plus 5G has neither NFC nor wireless charging. It charges over USB Type-C with the included wall charger.

Can it share its connection with other devices?

Yes. The phone can act as a Wi-Fi hotspot for up to 10 connections over 2.4GHz or 5GHz 802.11 a/b/g/n/ac.
