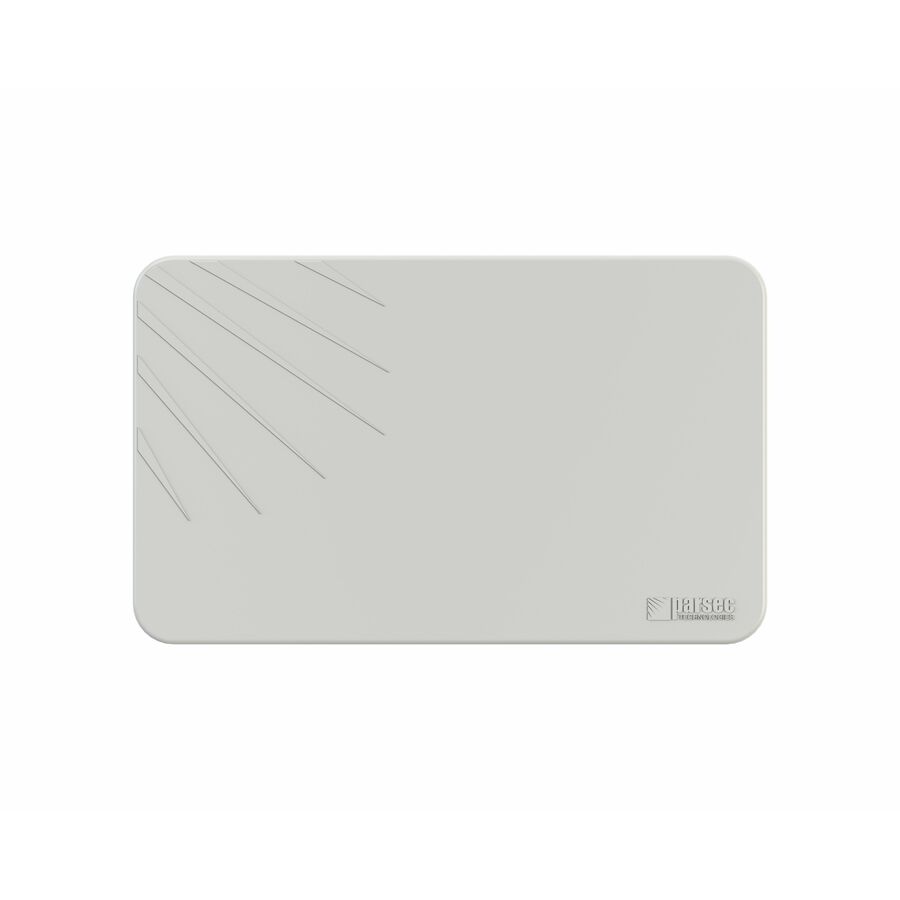

Parsec Akita PRO4A4L01W 4-in-1 5G 4x4 MIMO Wall Mount Antenna, White, 1 ft Cables

5GMPN PRO4A4L01W
  • 4x4 MIMO
  • 6–8 dBi
  • Up to 1 m
$289.70$369.51Save $79.81

In stock · only 4 leftFree 2-day shipping

Compliance · Standard
StandardTAA compliant+$35.73
1
Request a quote · volume, multi-site or with plans
Compare all 2 configurations

Datasheets & documents

Overview

The Parsec Akita PRO4A4L01W is a 4-in-1 omni-directional cellular antenna with four 4G/5G elements for 4x4 MIMO routers and gateways. It covers 617 MHz to 6 GHz, including C-Band, in a 15.5 x 9.5 x 1.4 in white wall-mount housing. This version has 1 ft LSR240 cables with SMA male connectors. It carries an IP54 rating and can be mounted indoors, outdoors, on a wall or on a pole in retail, warehouse, office, RV and home installations.

  • Four 4G/5G cellular elements in one housing for 4x4 MIMO
  • 617-6000 MHz coverage including 600 MHz and C-Band
  • Omni-directional pattern, linear polarization
  • IP54 rated for indoor or outdoor installation
  • Wall, pole (2.5-3.5 in mast) or panel mounting
  • 1 ft LSR240 cables with four SMA(M) connectors, white radome
  • Unlocks the full 4x4 MIMO capability of 5G and LTE routers that ship with basic screw-on antennas
  • Covers low-band 600 MHz through C-Band and 6 GHz, so one antenna serves LTE today and 5G upgrades later

The Parsec Akita PRO4A4L01W is a PRO Series 4:1 antenna: four cellular elements in one low-profile housing, built to feed a 4x4 MIMO 4G LTE or 5G router from a single, tidy wall-mounted panel. It is aimed at fixed wireless access, primary and failover internet, IoT and enterprise networks, and remote video monitoring, where a router's screw-on antennas leave performance on the table.

The Akita covers 617-6000 MHz across five cellular ranges, including the 600 MHz low band and C-Band. On paper that means North American LTE bands B2, B4, B5, B7, B12, B14, B17, B24, B25, B26, B29, B30, B41, B46, B48, B66 and B71, 5G NR bands n2, n5, n12, n25, n26, n41, n48, n66, n71 and n77, plus key EMEA LTE and NR bands. Parsec rates radiated efficiency up to 85% and peak gain up to 5 dBi, with linear polarization and 10 W maximum input power per port.

The housing measures 15.5 x 9.5 x 1.4 in and mounts to a non-metallic surface with the supplied bracket and screws, or to a 2.5-3.5 in mast using the worm-drive clamp pole mount. The IP54 rating allows outdoor installation, and the -30 °C to 85 °C operating range suits unconditioned spaces. Keep it away from wiring and metal studs for best results.

This part number uses 1 ft LSR240 cables terminated in four SMA male connectors, ideal when the router sits right next to the antenna or when you add your own extension cabling. Parsec's Akita datasheet and installation guide cover mounting details and connector torque (SMA: 3-5 inch-lb).

Ideal for

  • Fixed wireless access for offices, retail stores and homes
  • Primary or failover 4G/5G internet for branch and warehouse networks
  • IoT and enterprise network deployments needing 4x4 MIMO
  • RV and remote site connectivity
  • Remote video monitoring over cellular

Specifications

RF

Cable Type
LSR240
Connectors
4x SMA male
Sma Max Torque
3-5 inch-lb

Bands

Emea LTE
B1, B3, B7, B8, B20, B28, B32, B42, B43, B46
Emea 5G NR
n1, n3, n8, n28, n77, n78
North America LTE
B2, B4, B5, B7, B12, B14, B17, B24, B25, B26, B29, B30, B41, B46, B48, B66, B71
North America 5G NR
n2, n5, n12, n25, n26, n41, n48, n66, n71, n77

General

MPN
PRO4A4L01W
MIMO
4x4 MIMO cellular
Brand
Parsec
Radome Color
White
Configuration
4:1 (4 cellular elements)
Product Family
Akita PRO Series
Antenna Pattern
Omni-directional
Country OF Origin
United States

Package

Shipping Weight
3.70 lb

Electrical

Polarization
Linear
Max Input Power
10 W
Measurement Note
Isolation, return loss and peak gain exclude cable loss
Peak Gain 617 663 MHz
3 dBi (617-663 MHz)
Peak Gain 663 930 MHz
4 dBi (663-930 MHz)
Peak Gain 930 1427 MHz
2 dBi (930-1427 MHz)
Peak Gain 1427 1915 MHz
5 dBi (1427-1915 MHz)
Peak Gain 1915 6000 MHz
5 dBi (1915-6000 MHz)
Return Loss 617 663 MHz
10 dB (617-663 MHz)
Return Loss 663 930 MHz
7 dB (663-930 MHz)
Return Loss 930 1427 MHz
10 dB (930-1427 MHz)
Return Loss 1427 1915 MHz
7 dB (1427-1915 MHz)
Return Loss 1915 6000 MHz
6 dB (1915-6000 MHz)
Isolation Adjacent 617 663 MHz
10 dB CELL adjacent (617-663 MHz)
Isolation Adjacent 663 930 MHz
11 dB CELL adjacent (663-930 MHz)
Isolation Cell 1 2 617 663 MHz
15 dB CELL 1-2 (617-663 MHz)
Isolation Cell 1 2 663 930 MHz
20 dB CELL 1-2 (663-930 MHz)
Isolation Adjacent 930 1427 MHz
17 dB CELL adjacent (930-1427 MHz)
Isolation Cell 1 2 930 1427 MHz
19 dB CELL 1-2 (930-1427 MHz)
Radiated Efficiency 617 663 MHz
70% (617-663 MHz)
Radiated Efficiency 663 930 MHz
80% (663-930 MHz)
Isolation Adjacent 1427 1915 MHz
15 dB CELL adjacent (1427-1915 MHz)
Isolation Adjacent 1915 6000 MHz
16 dB CELL adjacent (1915-6000 MHz)
Isolation Cell 1 2 1427 1915 MHz
18 dB CELL 1-2 (1427-1915 MHz)
Isolation Cell 1 2 1915 6000 MHz
20 dB CELL 1-2 (1915-6000 MHz)
Radiated Efficiency 930 1427 MHz
70% (930-1427 MHz)
Radiated Efficiency 1427 1915 MHz
85% (1427-1915 MHz)
Radiated Efficiency 1915 6000 MHz
70% (1915-6000 MHz)

Mechanical

Mounting
Bracket with screws to a non-metallic surface
Dimensions
15.5 x 9.5 x 1.4 in (thickness excluding bracket)
Pole Mount
Pole mount for 2.5-3.5 in mast diameter (two worm drive clamps and hardware)
RF Cable Length
1 ft

Frequencies

Cellular Range 1
617-663 MHz
Cellular Range 2
663-930 MHz
Cellular Range 3
930-1427 MHz
Cellular Range 4
1427-1915 MHz
Cellular Range 5
1915-6000 MHz

Environmental

Ingress Protection
IP54 Outdoor
Operating Temperature
-30 °C to 85 °C (-22 °F to 180 °F)

Questions buyers ask

How many router ports does the Akita PRO4A4L01W connect to?

It has four cellular elements, each on its own 1 ft LSR240 cable with an SMA male connector, for a router or gateway with four cellular antenna ports running 4x4 MIMO.

Can it be installed outdoors?

Yes. The Akita is IP54 rated for outdoor use and operates from -30 °C to 85 °C. It can be mounted on a wall or on a 2.5-3.5 in mast with the worm-drive clamp pole mount.

Does it support 5G C-Band?

Yes. Coverage runs from 617 MHz to 6000 MHz, including C-Band and 5G NR bands n2, n5, n12, n25, n26, n41, n48, n66, n71 and n77 in North America.

Does this model include GPS?

No. PRO4A4L01W is the 4:1 cellular-only configuration. GPS is available in the 5:1 Akita (PRO5A4LG models).

Where should it be mounted for best performance?

Mount it on a non-metallic surface away from electrical wiring and metal wall studs, which degrade performance.
