Panorama Sharkee SH-IN2440 5-in-1 Sharkfin Antenna: 2x2 MIMO Cellular, 2x2 Wi-Fi, GPS/GNSS, Black

4G LTEMPN SH-IN2440
  • 2x2 MIMO
  • GNSS
  • Wi-Fi

Made for Cradlepoint

$210.16$348.29Save $138.13

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans
Compare all 2 configurations

Datasheets & documents

Overview

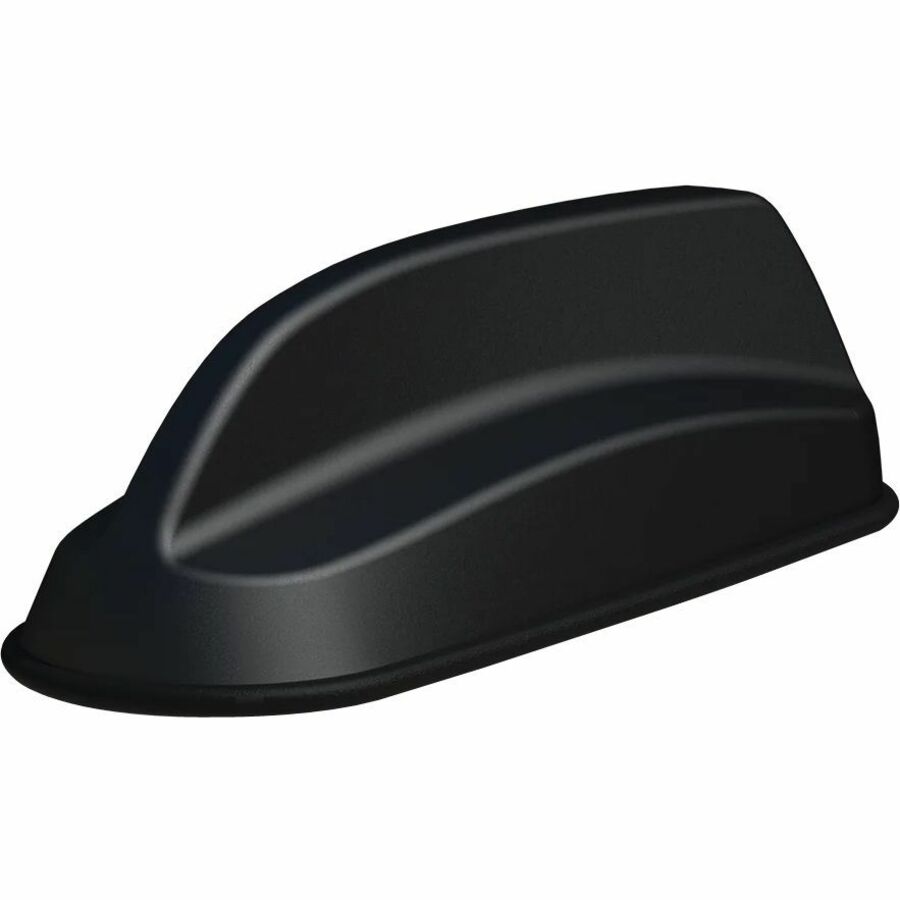

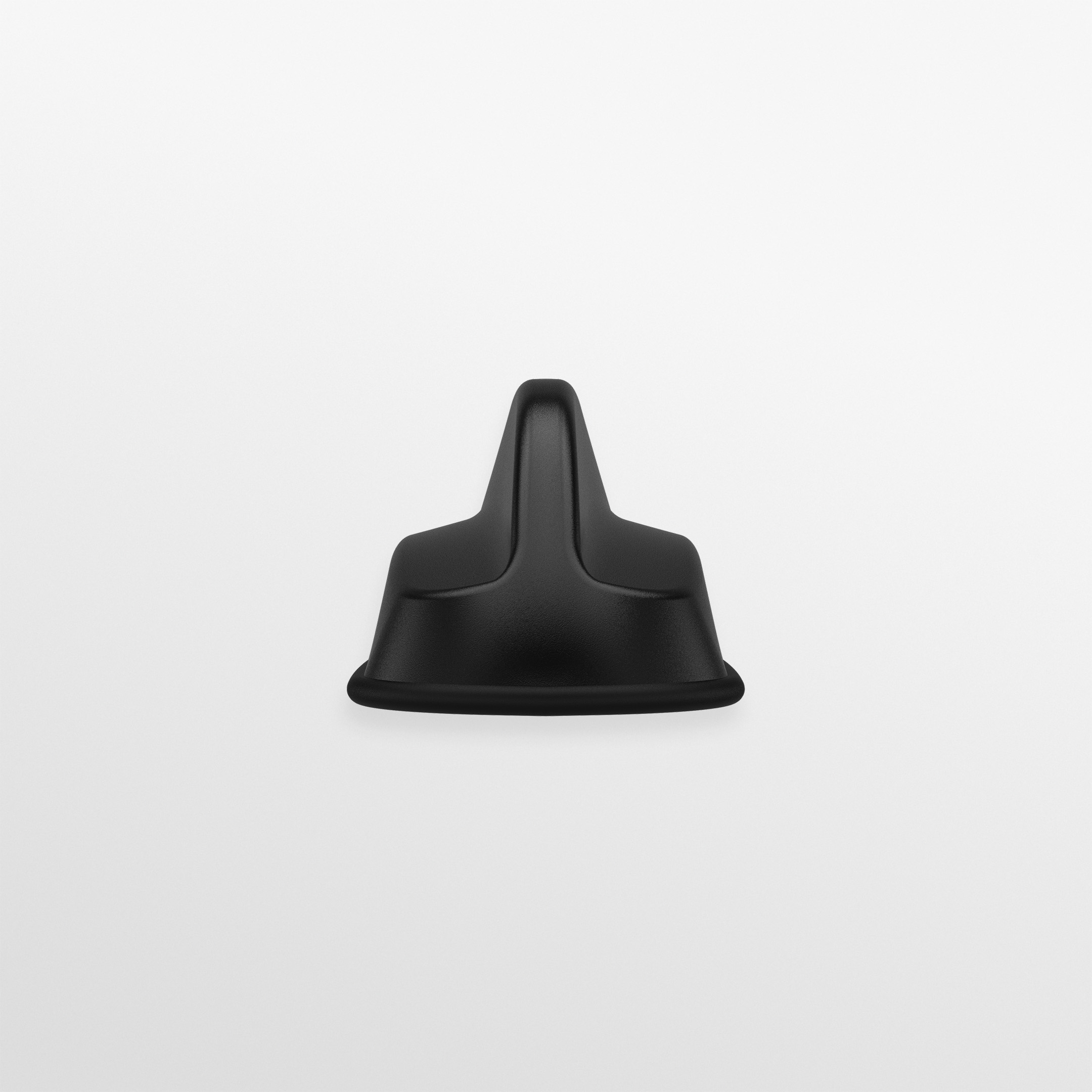

The Panorama Sharkee SH-IN2440 is a black OEM-style sharkfin vehicle antenna with five antenna functions in one housing. It combines 2x2 MIMO cellular covering 698-960 and 1710-3800 MHz, 2x2 MIMO 2.4/5.8 GHz Wi-Fi and an active GPS/GNSS module, each on fitted 5 m (16.4 ft) cables. It mounts through a single hole and is IP66 rated and ECE R118 compliant.

  • Five antenna functions in one OEM-style sharkfin: 2x2 MIMO cellular, 2x2 MIMO Wi-Fi, 1 GPS/GNSS
  • Cellular gain: 2 dBi (698-960 MHz), 5 dBi (1710-3800 MHz); 2G/3G/4G and 5G listed
  • 2.4/5.8 GHz dual-band MIMO Wi-Fi
  • Active GPS/GNSS module, 1562-1612 MHz, 26 dB LNA gain
  • Fitted 5 m (16.4 ft) FR RG174 cables: SMA male (cellular, GPS), RP-SMA (Wi-Fi)
  • IP66 rated, ECE R118 compliant, -40 °C to +80 °C operating range
  • Single-hole panel mount; 170 x 60 x 50 mm black housing
  • Replaces separate cellular, Wi-Fi and GPS antennas with one roof fitting

The Panorama Sharkee SH-IN2440 is part of Panorama's best-selling SHK[G]-7-27 sharkfin series. It puts a vehicle's cellular, Wi-Fi and GPS antennas into one discreet, automotive-style housing. This black 5-in-1 version contains 2x2 MIMO cellular, 2x2 MIMO Wi-Fi and one active GPS/GNSS module. It suits public safety (overt or covert), fleet, industrial and transport vehicles where roof space is limited.

The cellular elements cover 698-960 MHz at 2 dBi and 1710-3800 MHz at 5 dBi, with an omnidirectional pattern and 25 W maximum input power. Panorama lists 2G/3G/4G and 5G support within these ranges. Wi-Fi covers 2.4 and 5.8 GHz. The GPS/GNSS module covers 1562-1612 MHz with a 26 dB LNA, for GPS, GLONASS, Galileo and BeiDou positioning.

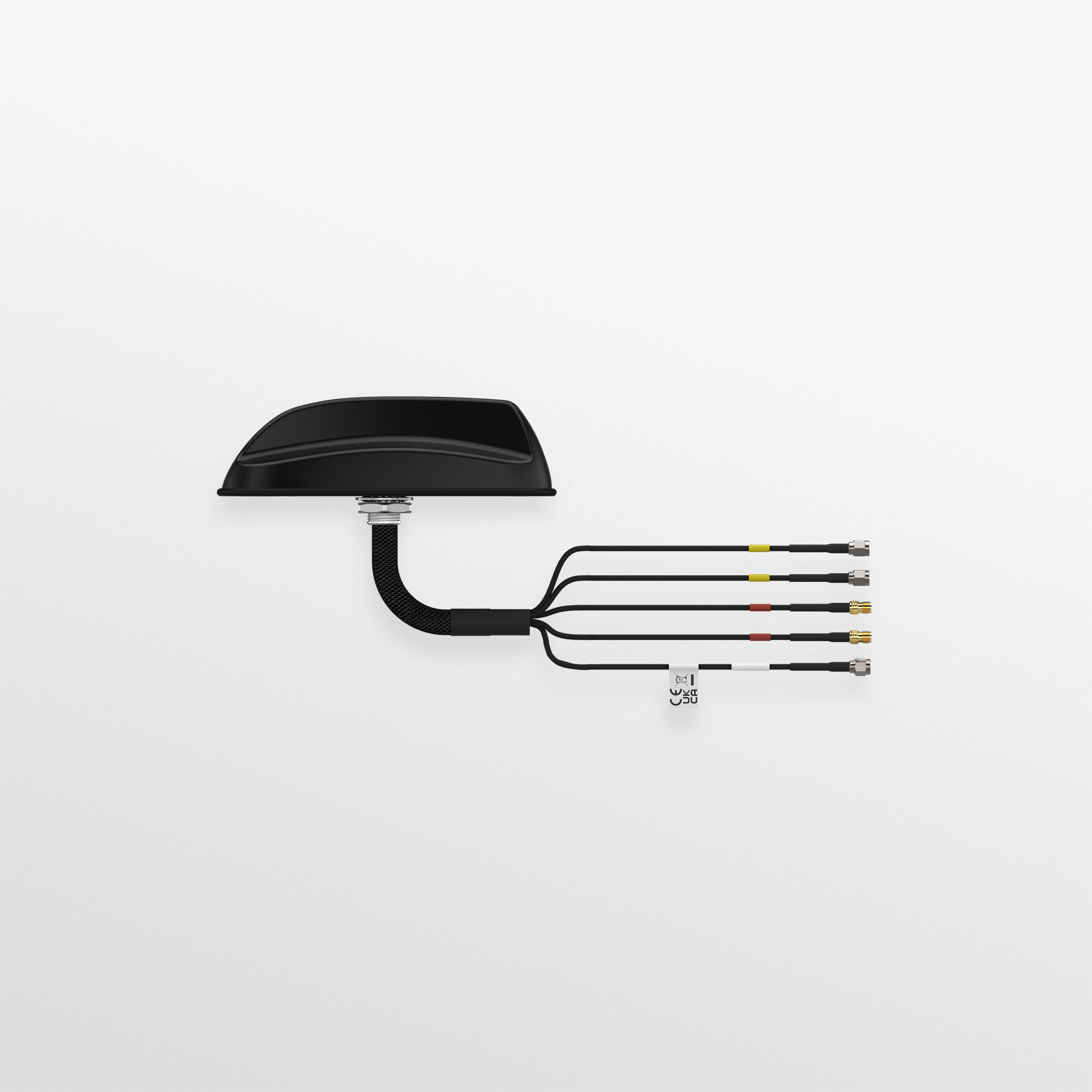

Each function comes pre-fitted with a 5 m (16.4 ft) FR RG174 cable: two cellular leads with SMA male connectors, two Wi-Fi leads with reverse-polarity SMA connectors, and one GPS lead with an SMA male connector. The housing measures 170 x 60 x 50 mm (6.69 x 2.36 x 1.97 in), is rated IP66, and operates from -40 °C to +80 °C. Cable flammability ratings include EN45545-2 HL3, UN ECE R118 and EN6722. The antenna is TAA compliant, and Cradlepoint IBR600, IBR900 and IBR1100 compact routers are listed as compatible.

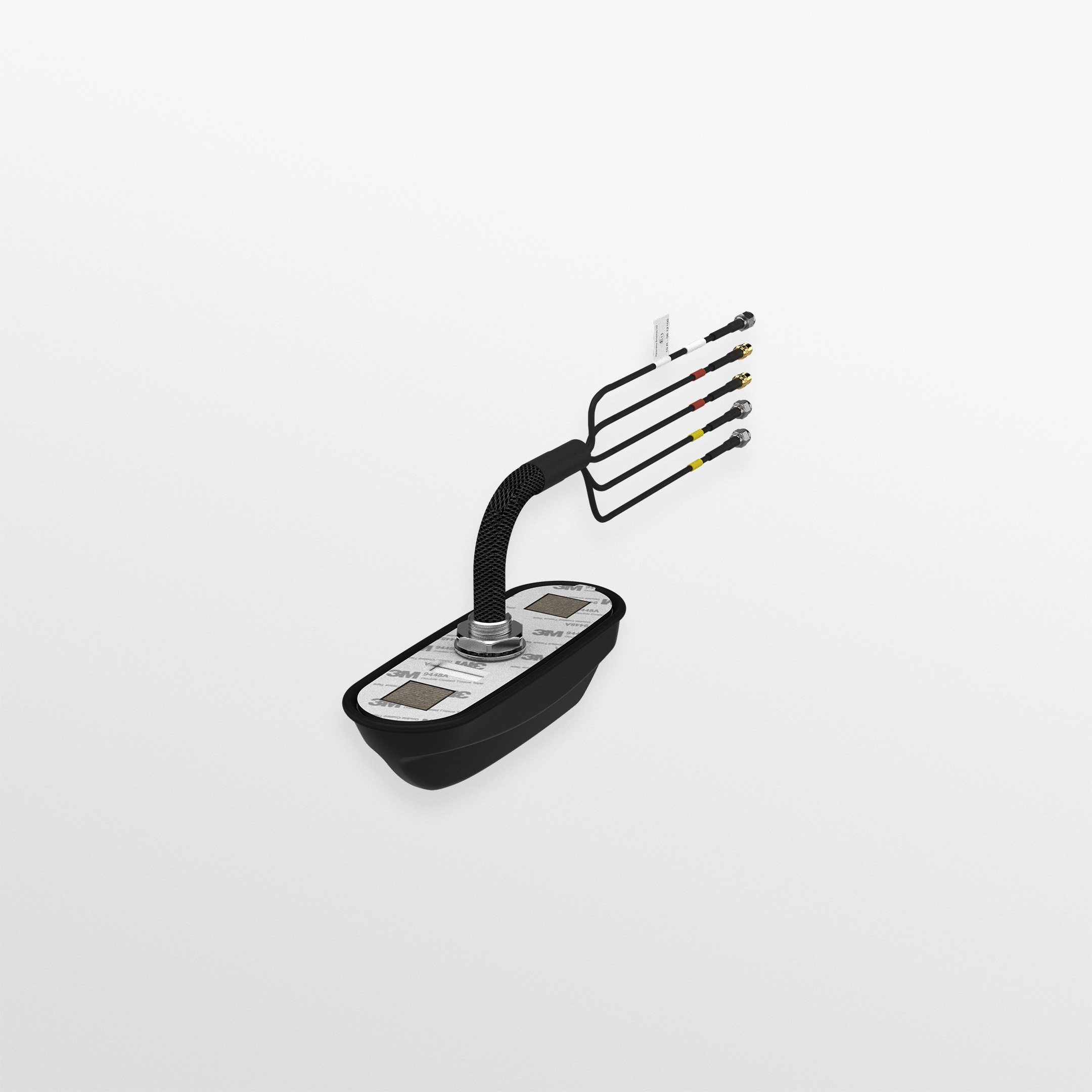

Because it needs only a single mounting hole, the Sharkee reduces vehicle damage, installation time and cost, and helps protect resale value. A datasheet and installation instructions are available.

Ideal for

  • Police, fire and EMS vehicles needing discreet cellular, Wi-Fi and GPS antennas
  • Fleet and transport vehicles where roof space is limited
  • In-vehicle routers such as the Cradlepoint IBR600, IBR900 and IBR1100
  • Industrial and utility vehicles exposed to weather and temperature extremes

Specifications

GPS

Lna Gain
26 dB
Constellations
GPS, GLONASS, Galileo, BeiDou
GPS Frequency Range
1562-1612 MHz
Number OF GPS Elements
1 module

Cable

Cable Type GPS
FR RG174
Cable Type LTE
FR RG174
Cable Type Wi-Fi
FR RG174
Cable Length GPS
5 m (16.4 ft), fitted
Cable Length LTE
5 m (16.4 ft), fitted
Cable Length Wi-Fi
5 m (16.4 ft), fitted
Quantity OF Cell Cable
2
Quantity OF Wi-Fi Extension
2 x 2 MIMO Wi-Fi leads (family maximum 3)
Quantity OF GPS GNSS Extension
1

General

MPN
SH-IN2440
UPC
5055416034533
Brand
Panorama Antennas
Product Line
Sharkee, SHK[G]-7-27 family
Product Type
5-in-1 sharkfin vehicle antenna
TAA Compliant
TAA compliant

Package

Documentation
SHK[G]-7-27 datasheet and installation instructions
Shipping Weight
2.84 lb

Mounting

Mounting Methods
Magnetic, Panel
Mounting Type Temp
Magnetic
Mounting Type Fixed
Panel (single hole)

Approvals

IP Rating
IP66
Cable Flammability
EN45545-2 HL3, UN ECE R118, EN6722

Electrical

Pattern
Omnidirectional
Uhf Elements
None
Wi-Fi Elements
2 x 2 MIMO (2.4/5.8 GHz)
Max Input Power
25 W
Gain 698 960 MHz
2 dBi
Gain 1710 3800 MHz
5 dBi
Cellular LTE Elements
2 x 2 MIMO

Mechanical

Width
60 mm (2.36 in)
Colour
Black
Height
50 mm (1.97 in)
Length
170 mm (6.69 in)
Operating Temperature
-40 °C to +80 °C (-40 °F to +176 °F)

Technology

Technology
2G/3G/4G, 5G, FirstNet, MIMO Wi-Fi, GPS/GNSS

Termination

Connector GPS
SMA male
Connector LTE
SMA male
Connector Wi-Fi
RP-SMA

Compatibility

Listed Routers
Cradlepoint IBR600, IBR900, IBR1100 compact routers

Questions buyers ask

What antenna functions are in the SH-IN2440?

It has five: two cellular elements (2x2 MIMO), two Wi-Fi elements (2x2 MIMO, 2.4/5.8 GHz) and one active GPS/GNSS module.

What cables and connectors are included?

Each function has a fitted 5 m (16.4 ft) FR RG174 cable. The cellular and GPS cables end in SMA male connectors, and the Wi-Fi cables end in reverse-polarity SMA.

Which routers is it listed for?

It is listed as compatible with Cradlepoint IBR600, IBR900 and IBR1100 compact routers.

How is it installed?

It is panel mounted through a single hole in the vehicle roof. The family also supports magnetic mounting for temporary installs.

Is it weatherproof?

Yes. The housing is IP66 rated and operates from -40 °C to +80 °C.
