Panorama Sharkee SH-IN2617 5-in-1 4G/5G Sharkfin Antenna Kit (SHKG-6-60) with 2x2 Wi-Fi and GNSS, 5 m Cables, Black

5GMPN SH-IN2617
  • 2x2 MIMO
  • GNSS
  • Wi-Fi
  • 3–5 m
$307.22$424.66Save $117.44

In stockShips from the US

1
Request a quote · volume, multi-site or with plans
Compare all 3 configurations

Datasheets & documents

Overview

The Panorama SH-IN2617 is the black 5-in-1 version of the Sharkee SHKG-6-60 sharkfin antenna. One discreet housing carries 2x2 MIMO 4G/5G cellular (617–960/1710–6000 MHz), 2x2 MIMO dual-band Wi-Fi that supports Wi-Fi 6, and an active GPS/GLONASS/Galileo/BeiDou module. It ships with 5 m cables fitted, terminated in SMA (m) for cellular and GNSS and reverse-polarity SMA for Wi-Fi.

  • 2x2 MIMO 4G/5G cellular covering 617–960 MHz and 1710–6000 MHz, up to 9 dBi
  • 2x2 MIMO dual-band Wi-Fi (2.4 / 4.9–7.2 GHz) supporting Wi-Fi 6
  • Active GPS/GLONASS/Galileo/BeiDou module with 26 dB LNA and Band 13/14 filtering

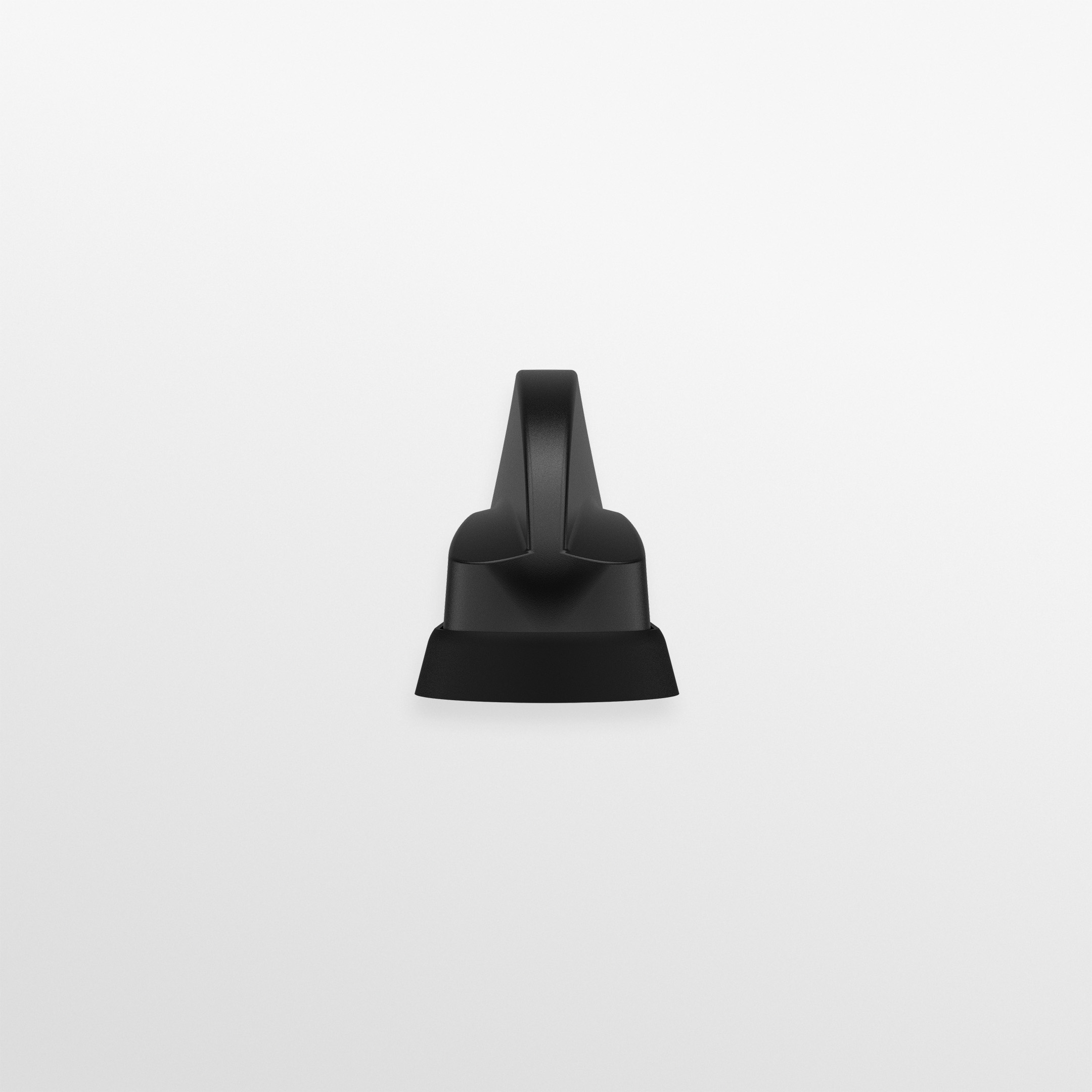

  • IP69K OEM-style sharkfin housing, 243 x 63 x 90 mm

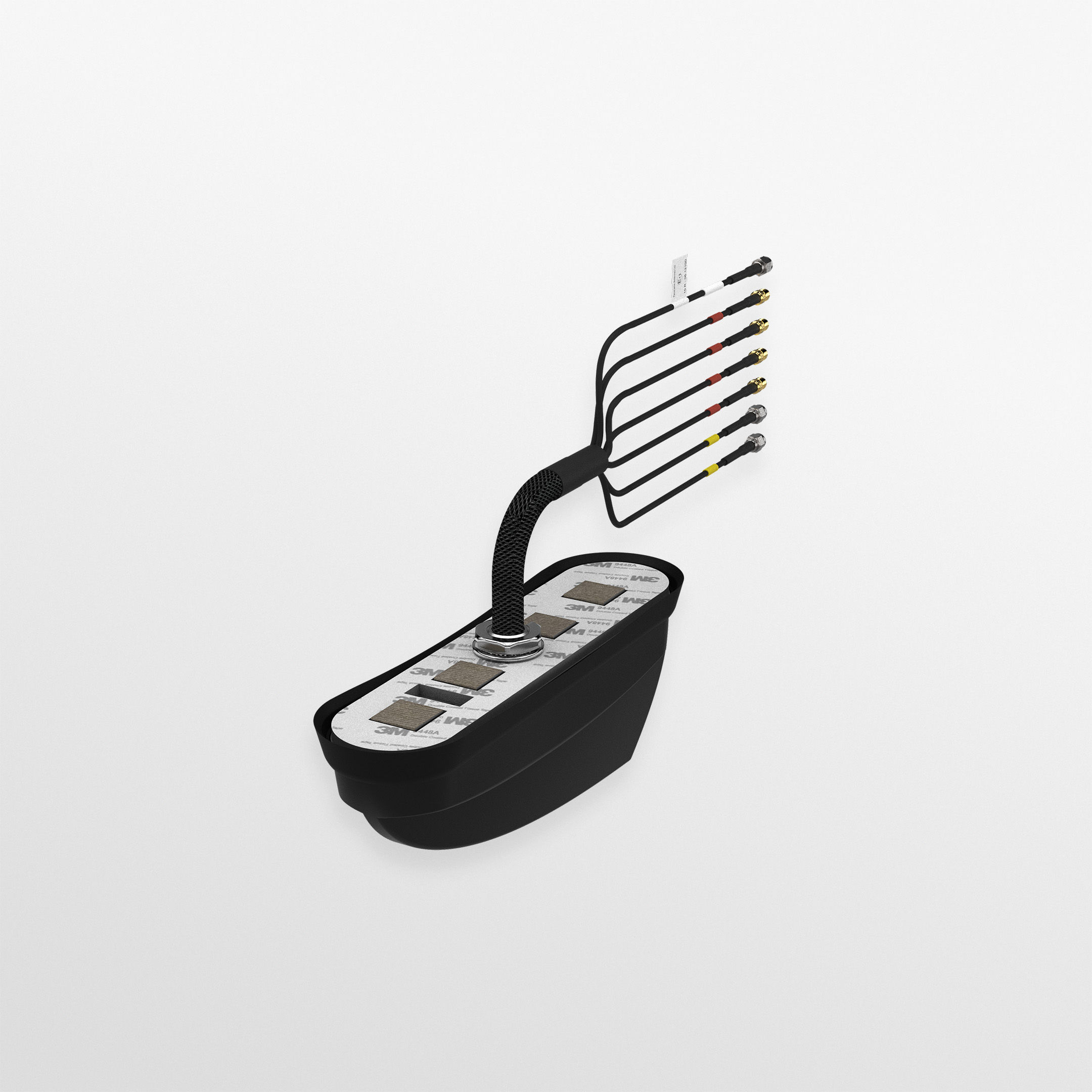

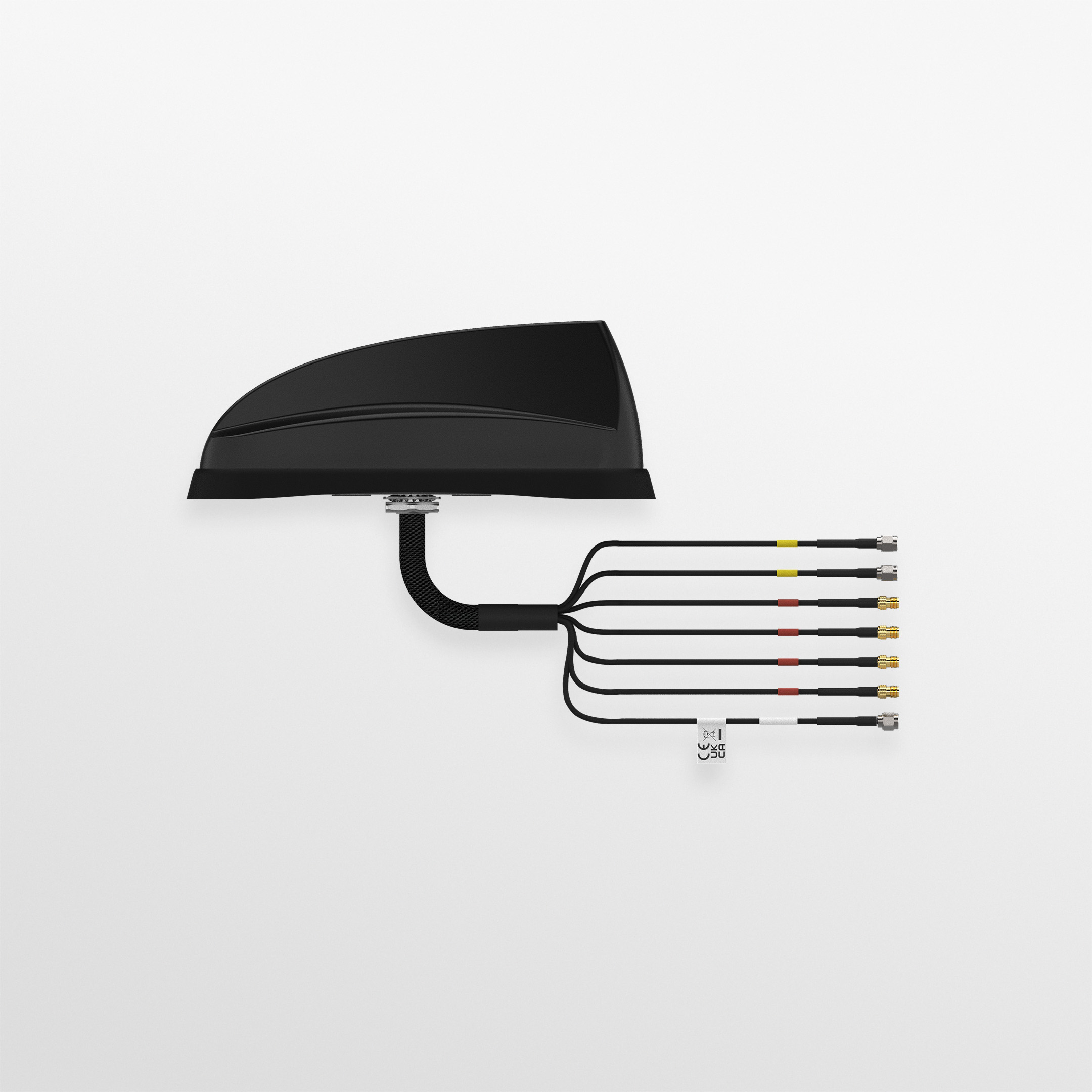

  • 5 m FR RG174 cables fitted: SMA (m) cellular/GNSS, RP-SMA Wi-Fi
  • Single-hole mounting on metallic or non-metallic panels
  • One roof unit serves the router's cellular, Wi-Fi and GNSS ports, replacing several separate antennas
  • 2x2 MIMO on both cellular and Wi-Fi supports the MIMO radios in modern vehicle routers

The Panorama Sharkee SH-IN2617 is a 5-in-1 OEM-style sharkfin antenna for vehicles that run a cellular router with onboard Wi-Fi and GNSS, such as police cars, ambulances, fire apparatus, buses and utility trucks. It is the black SHKG-6-60 configuration with two cellular elements, two Wi-Fi elements and one GNSS module, supplied with 5 m cables already fitted.

The 2x2 MIMO cellular antenna covers 617–960 MHz and 1710–6000 MHz, including the 600 MHz Band 71 range, with gain of 5 dBi, 8 dBi (1710–3800 MHz) and 9 dBi (4900–6000 MHz) in an omnidirectional pattern. The 2x2 MIMO dual-band Wi-Fi elements cover 2.4 and 4.9–7.2 GHz and support Wi-Fi 6. The active GNSS module receives GPS, GLONASS, Galileo and BeiDou across 1562–1612 MHz through a 26 dB LNA with advanced filtering for LTE Band 13/14. Cellular and GNSS feeds terminate in SMA (m); Wi-Fi feeds terminate in reverse-polarity SMA, all on FR RG174 cable.

The housing measures 243 x 63 x 90 mm, is rated IP69K and operates from -40 °C to +80 °C. It mounts through a single hole on metallic or non-metallic panels, fits between roof ribs on all major vehicle manufacturers and can replace a factory-fitted antenna. Cable feeds comply with UN ECE R118, with cable flammability ratings also covering EN45545-2 HL3 and EN6722.

Panorama publishes a datasheet, installation instructions and a product flyer for the SHKG-6-60 family.

Ideal for

  • Police vehicles running a 5G router with in-car Wi-Fi hotspot and GNSS tracking
  • Ambulances and fire apparatus sharing connectivity with crew devices
  • Transit buses offering onboard Wi-Fi with fleet location
  • Utility trucks acting as mobile field offices

Specifications

GPS

Lna Gain
26 dB
Filtering
Advanced filtering for LTE Band 13/14
Constellations
GPS / GLONASS / Galileo / BeiDou
GPS Frequency Range
1562–1612 MHz
Number OF GPS Elements
1 Module

Cable

Wi-Fi Feeds
4)
Cable Supply
Cables fitted
Cable Type GPS
FR RG174
Cable Type LTE
FR RG174
Cable Type Wi-Fi
FR RG174
Cable Length GPS
5 m (16.4 ft)
Cable Length LTE
5 m (16.4 ft)
Cable Length Wi-Fi
5 m (16.4 ft)
Quantity OF Cell Cable
2
Quantity OF GPS GNSS Extension
1

General

MPN
SH-IN2617
UPC
5055416066695
Brand
Panorama Antennas
Colour
Black
Configuration
5-in-1: 2x2 MIMO cellular + 2x2 MIMO Wi-Fi + 1 GPS/GNSS module
Product Family
Sharkee SHKG-6-60

Package

Documents
Datasheet, installation instructions, flyer
Shipping Weight
3.75 lb

Mounting

Mounting Methods
Magnetic; Panel
Mounting Surface
Metallic or non-metallic panel
Mounting Type Temp
Magnetic
Mounting Type Fixed
Panel

Approvals

IP Rating
IP69K
Cable Flammability
EN45545-2 HL3; UN ECE R118; EN6722

Electrical

Pattern
Omnidirectional
Uhf Elements
No
Wi-Fi Elements
2 x 2 MIMO
Wi-Fi Frequency
2.4 / 4.9–7.2 GHz (supports Wi-Fi 6)
Max Input Power
10 W
Frequency Range Gain
617–960 MHz: 5 dBi; 1710–3800 MHz: 8 dBi; 4900–6000 MHz: 9 dBi
Cellular LTE Elements
2 x 2 MIMO

Mechanical

Width
63 mm (2.48 in)
Height
90 mm (3.54 in)
Length
243 mm (9.57 in)
Operating Temperature
-40 °C to +80 °C (-40 °F to +176 °F)

Technology

Technology
GPS, 4G/5G, 5G, 2G/3G, 2G/3G/4G, Band 71 600 MHz ready, FirstNet, GNSS, Wi-Fi MIMO, Wi-Fi (family listing)

Termination

Connector GPS
SMA (m)
Connector LTE
SMA (m)
Connector Wi-Fi
Reverse Polarity SMA

Questions buyers ask

What connectors are on the SH-IN2617 cables?

The two cellular and one GNSS cable terminate in SMA (m); the two Wi-Fi cables terminate in reverse-polarity SMA. All cables are 5 m FR RG174 and come fitted.

Does the Wi-Fi section support Wi-Fi 6?

Yes. Panorama describes the 2x2 MIMO dual-band Wi-Fi elements, covering 2.4 and 4.9–7.2 GHz, as supporting Wi-Fi 6.

What cellular bands are covered?

617–960 MHz and 1710–6000 MHz on a 2x2 MIMO antenna, with up to 9 dBi gain in the 4900–6000 MHz range.

How is it installed?

It needs a single mounting hole on a metallic or non-metallic panel, fits between roof ribs on all major vehicle manufacturers and can replace a factory-fitted antenna.
