Panorama SHKG-6-60-TW Sharkee 4G/5G 2x2 MIMO Sharkfin Antenna with 3x3 Wi-Fi and GNSS, Black

5GMPN SHKG-6-60-TW
  • 2x2 MIMO
  • GNSS
  • Wi-Fi
  • 9 dBi and up
$210.50$292.16Save $81.66

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans
Compare all 2 configurations

Datasheets & documents

Overview

The Panorama SHKG-6-60-TW Sharkee is a discreet OEM-style sharkfin for routers with three-stream Wi-Fi. It carries 2x2 MIMO 4G/5G cellular across 617-960 and 1710-6000 MHz and 3x3 MIMO dual-band Wi-Fi supporting Wi-Fi 6. An active GPS/GLONASS/Galileo/BeiDou antenna adds a 26 dB LNA and filtering for LTE Band 13/14. The housing is IP69K rated for public safety, transit and utility vehicles.

  • 2x2 MIMO 4G/5G cellular: 617-960 MHz (5 dBi), 1710-3800 MHz (8 dBi), 4900-6000 MHz (9 dBi)
  • 3x3 MIMO dual-band Wi-Fi (2.4/4.9-7.2 GHz) supporting Wi-Fi 6
  • Active GPS/GLONASS/Galileo/BeiDou antenna with 26 dB LNA and LTE Band 13/14 filtering
  • Band 71 600 MHz ready; FirstNet listed among supported technologies
  • Single-hole mounting on metallic or non-metallic panels
  • IP69K rated, -40 °C to +80 °C operating temperature
  • 0.3 m pigtails: SMA (m) cellular, FME (f) GNSS, SMA (f) Wi-Fi
  • Three Wi-Fi elements match three-stream router Wi-Fi radios

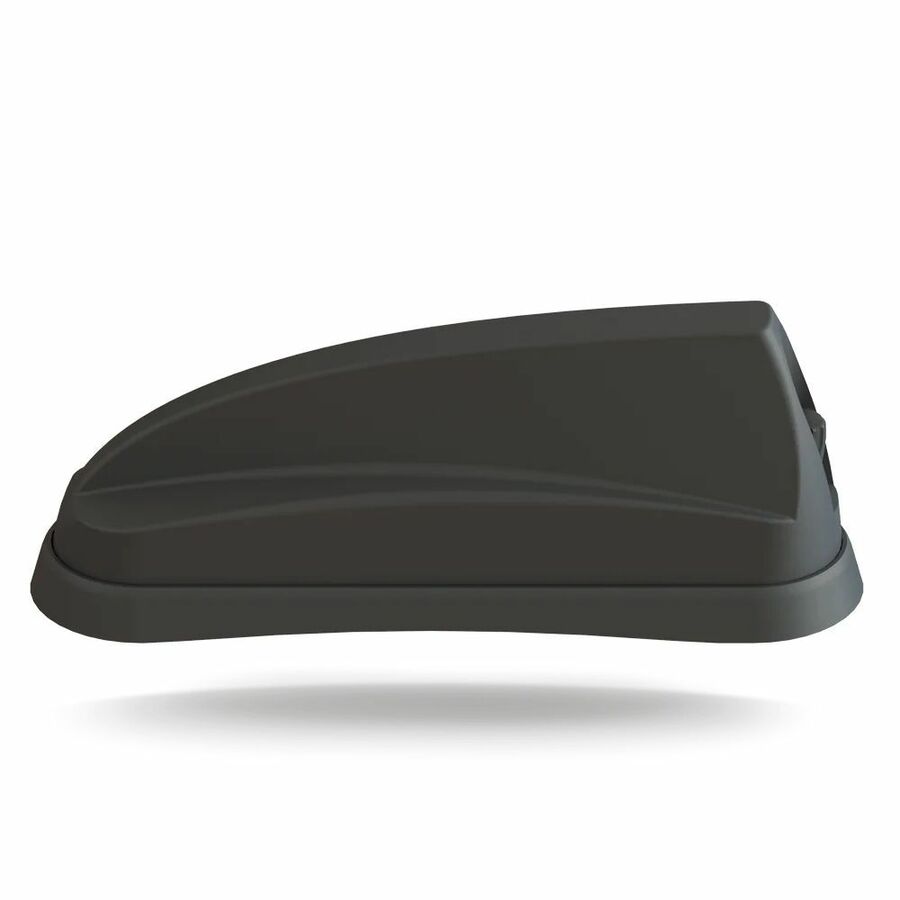

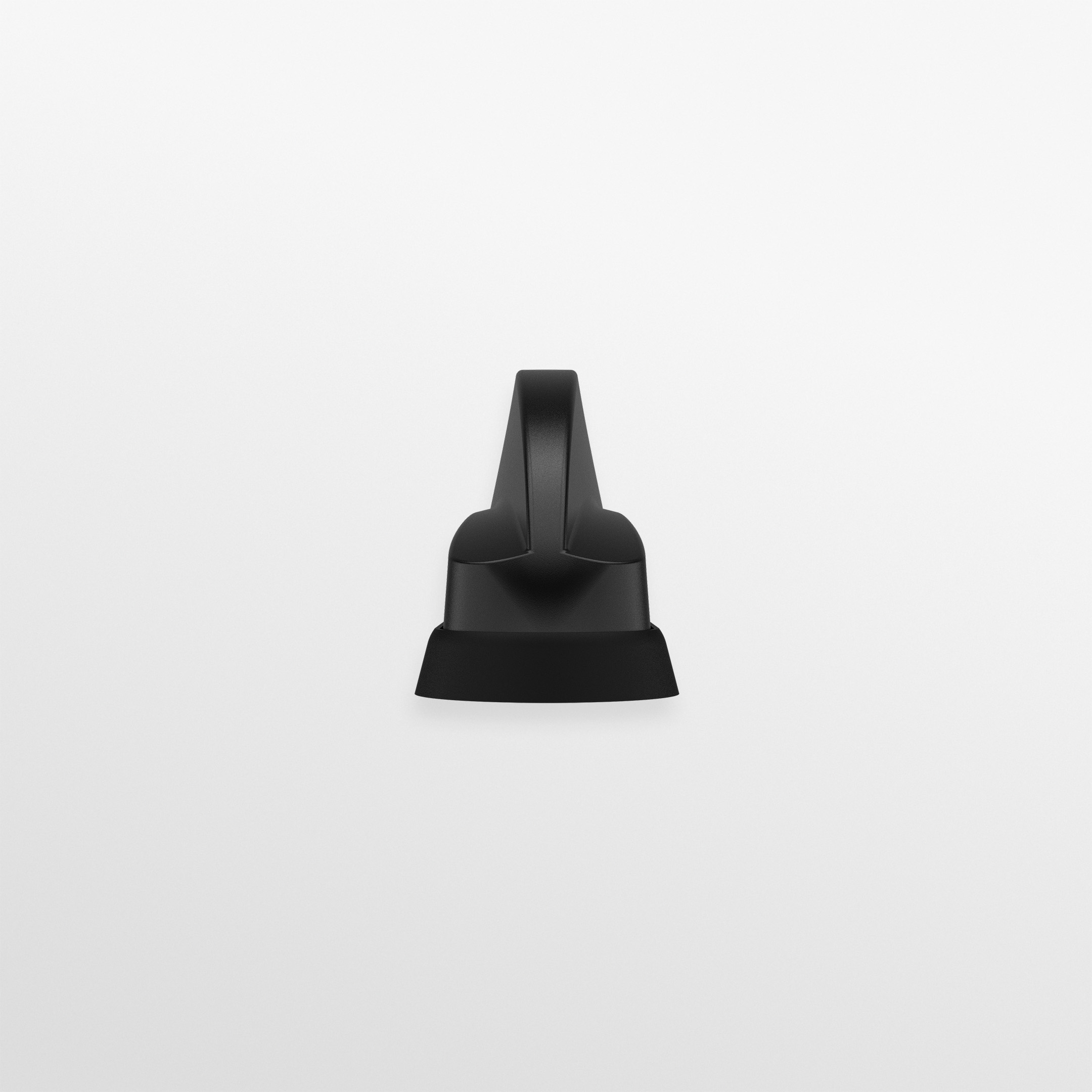

The Panorama SHKG-6-60-TW is a black Sharkee OEM-style sharkfin antenna. It combines 2x2 MIMO 4G/5G cellular, 3x3 MIMO dual-band Wi-Fi and an active GNSS antenna in a single housing. It is aimed at vehicle routers with three-stream Wi-Fi on police and law-enforcement, EMS and fire, mass-transit and utility vehicles.

The cellular elements have three gain ratings: - 5 dBi across 617-960 MHz - 8 dBi across 1710-3800 MHz - 9 dBi across 4900-6000 MHz

Band 71 600 MHz readiness and FirstNet are listed among supported technologies. The three Wi-Fi elements cover 2.4 and 4.9-7.2 GHz and support Wi-Fi 6. The GNSS module covers 1562-1612 MHz for GPS, GLONASS, Galileo and BeiDou. It has a 26 dB LNA and advanced filtering for LTE Band 13/14 operation. The pattern is omnidirectional and maximum input power is 10 W.

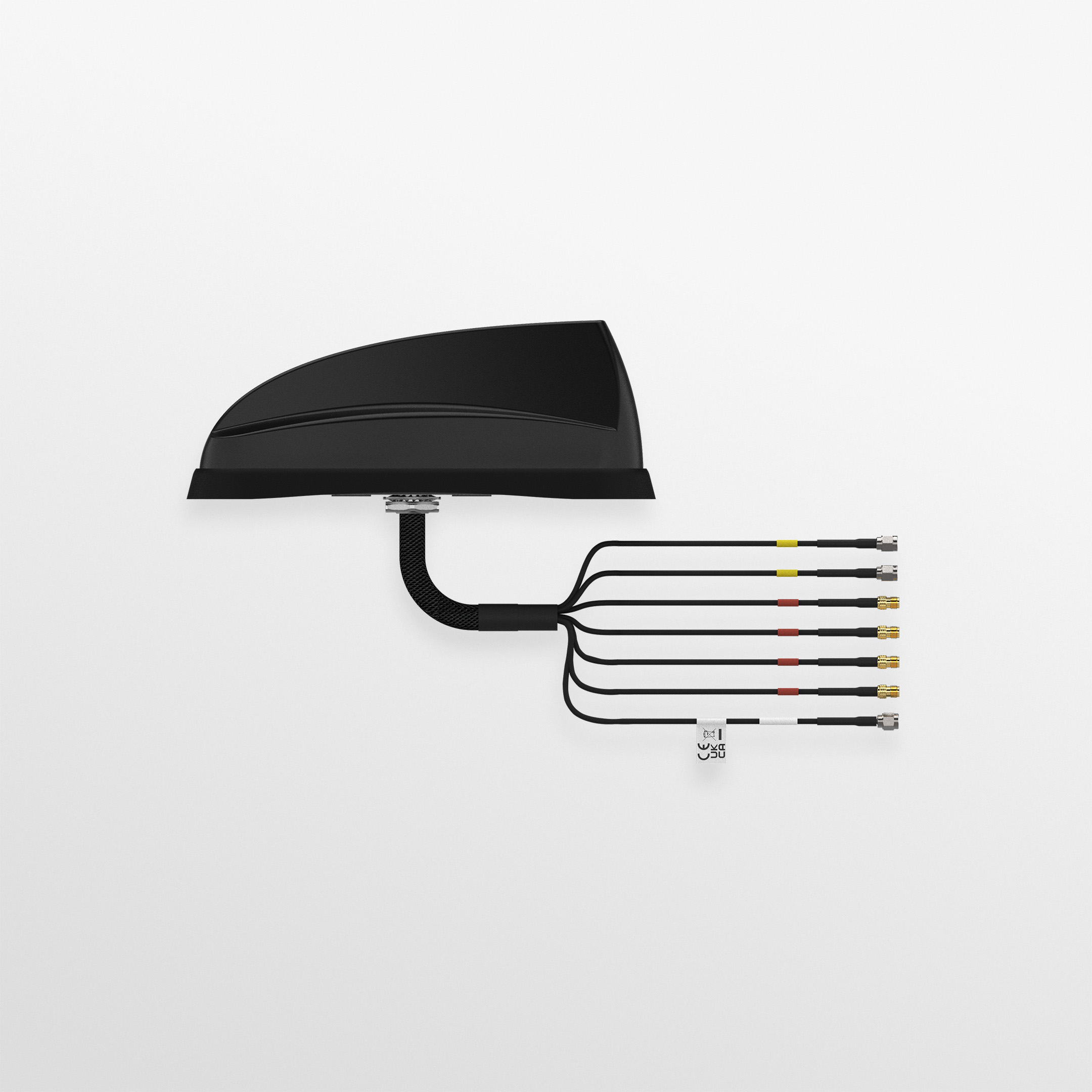

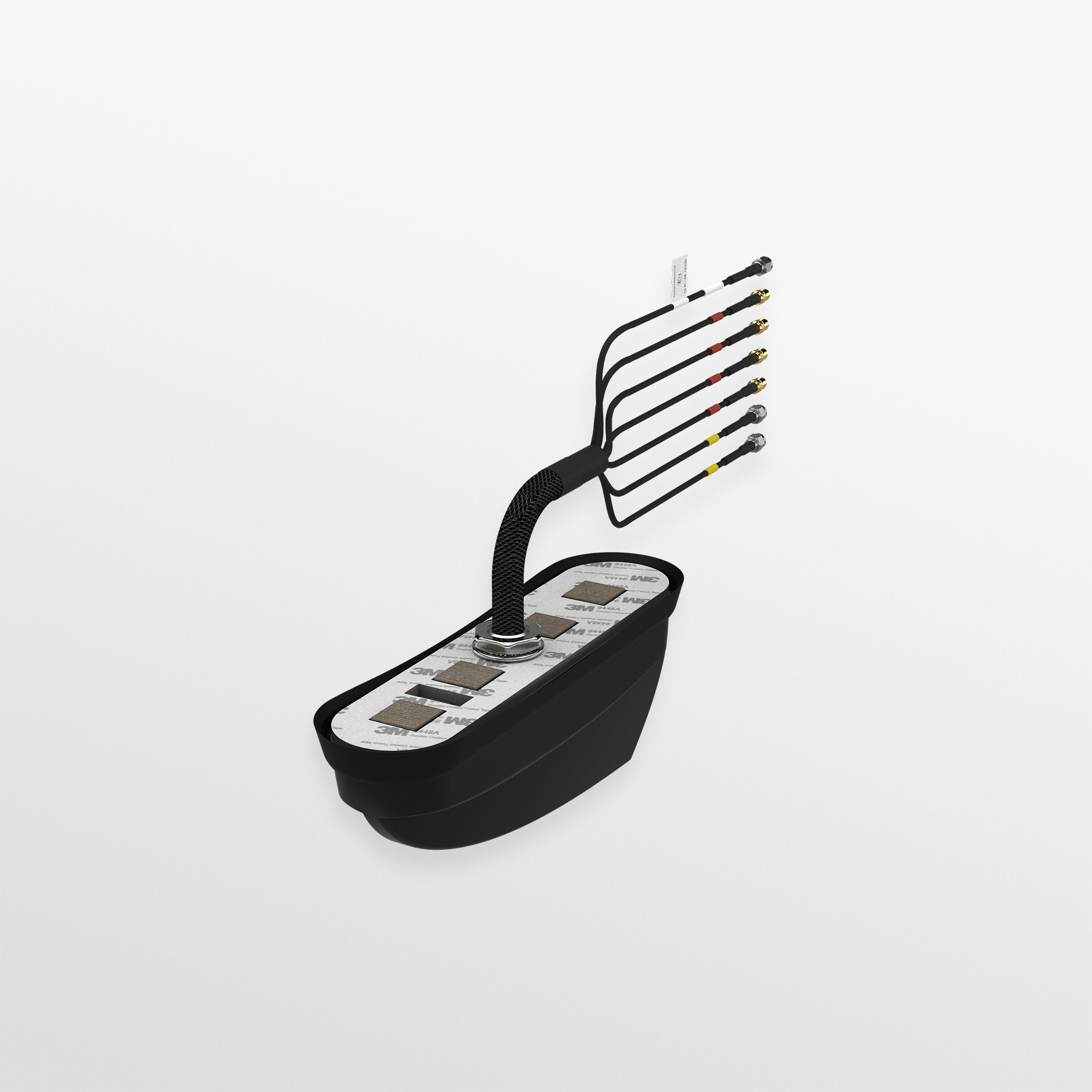

The housing measures 243 x 63 x 90 mm (9.57 x 2.48 x 3.54 in). It is IP69K rated and operates from -40 °C to +80 °C. It installs through a single hole on metallic or non-metallic panels, fits between roof ribs on all major vehicle manufacturers and can replace a factory-fitted antenna. All pigtails are 0.3 m of flame-retardant RG174, and the cable feeds are UN ECE R118 compliant. They terminate as follows: - Cellular: SMA (m) - GNSS: FME (f) - Wi-Fi: SMA (f)

Panorama publishes a datasheet, installation instructions and a flyer for the SHKG-6-60 family.

Ideal for

  • Vehicle routers with 3x3 Wi-Fi radios on police and law-enforcement fleets
  • EMS and fire vehicles combining 4G/5G, Wi-Fi and GNSS
  • Mass-transit buses and coaches with onboard Wi-Fi
  • Utility fleet vehicles needing cellular backhaul, Wi-Fi and location

Specifications

GPS

Lna Gain
26 dB
Constellations
GPS, GLONASS, Galileo, BeiDou
GPS Frequency Range
1562-1612 MHz
Number OF GPS Elements
1 Module

Cable

Cable Type GPS
FR RG174
Cable Type LTE
FR RG174
Pigtail Length
0.3 m (0.98 ft)
Cable Type Wi-Fi
FR RG174
Quantity OF Cell Cable
2
Cable Length Family Range
LTE/GPS/Wi-Fi: min 0.3 m (0.98 ft); max 5 m (16.4 ft)
Quantity OF Wi-Fi Extension
Family max 4
Quantity OF GPS GNSS Extension
1

General

MPN
SHKG-6-60-TW
UPC
5055416065865
Brand
Panorama Antennas
Product Family
Sharkee (SHKG-6-60[-VAR])

Package

Shipping Weight
3.00 lb

Mounting

Mounting Methods
Magnetic; Panel
Mounting Type Temp
Magnetic
Mounting Type Fixed
Panel

Approvals

IP Rating
IP69K
Cable Flammability
EN45545-2 HL3; UN ECE R118; EN6722

Electrical

Pattern
Omnidirectional
Uhf Elements
No
Wi-Fi Elements
3 x 3 MIMO
Wi-Fi Frequency
2.4 / 4.9-7.2 GHz (Wi-Fi 6)
Max Input Power
10 W
Frequency Gain Low
617-960 MHz | 5 dBi
Frequency Gain Mid
1710-3800 MHz | 8 dBi
Frequency Gain High
4900-6000 MHz | 9 dBi
Cellular LTE Elements
2 x 2 MIMO

Mechanical

Width
63 mm (2.48 in)
Colour
Black
Height
90 mm (3.54 in)
Length
243 mm (9.57 in)
Operating Temperature
-40 °C to +80 °C (-40 °F to +176 °F)

Technology

Technology
2G/3G/4G, 5G, Band 71 600 MHz ready, FirstNet, Wi-Fi MIMO, GPS/GNSS

Termination

Connector GPS
FME (f) (family: SMA (m); FME (f))
Connector LTE
SMA (m)
Connector Wi-Fi
SMA (f) (family: Reverse Polarity SMA; SMA (f))

Questions buyers ask

What does TW mean in SHKG-6-60-TW?

It is the triple Wi-Fi version, with 3x3 MIMO Wi-Fi elements alongside 2x2 MIMO cellular and GNSS.

Which GNSS systems does it receive?

The active GNSS antenna covers 1562-1612 MHz for GPS, GLONASS, Galileo and BeiDou. It has a 26 dB LNA and filtering for LTE Band 13/14.

What connectors does it use?

Cellular pigtails use SMA (m), the GNSS pigtail uses FME (f) and the Wi-Fi pigtails use SMA (f). All are 0.3 m long.

What is the operating temperature range?

It operates from -40 °C to +80 °C (-40 °F to +176 °F), and the housing is IP69K rated.
