Zebra TC501 5G Rugged Mobile Computer with Wi-Fi 7, SR500 Imager, 8GB/128GB (North America)

5GMPN TC501G-321A1A1A01-NA
  • 128 GB
  • Rugged
$2,567.81$3,735.00Save $1,167.19

In stockShips from the US

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

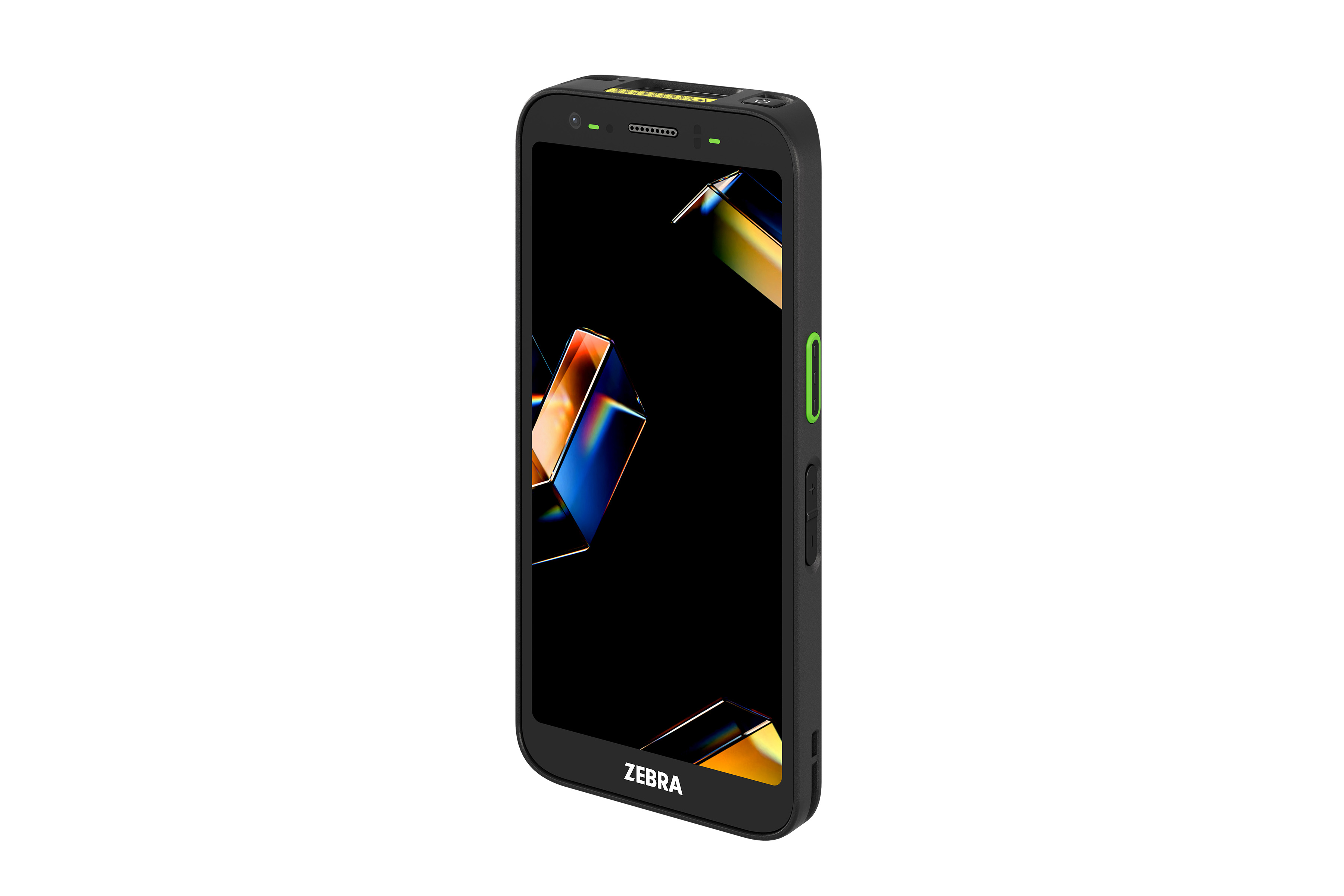

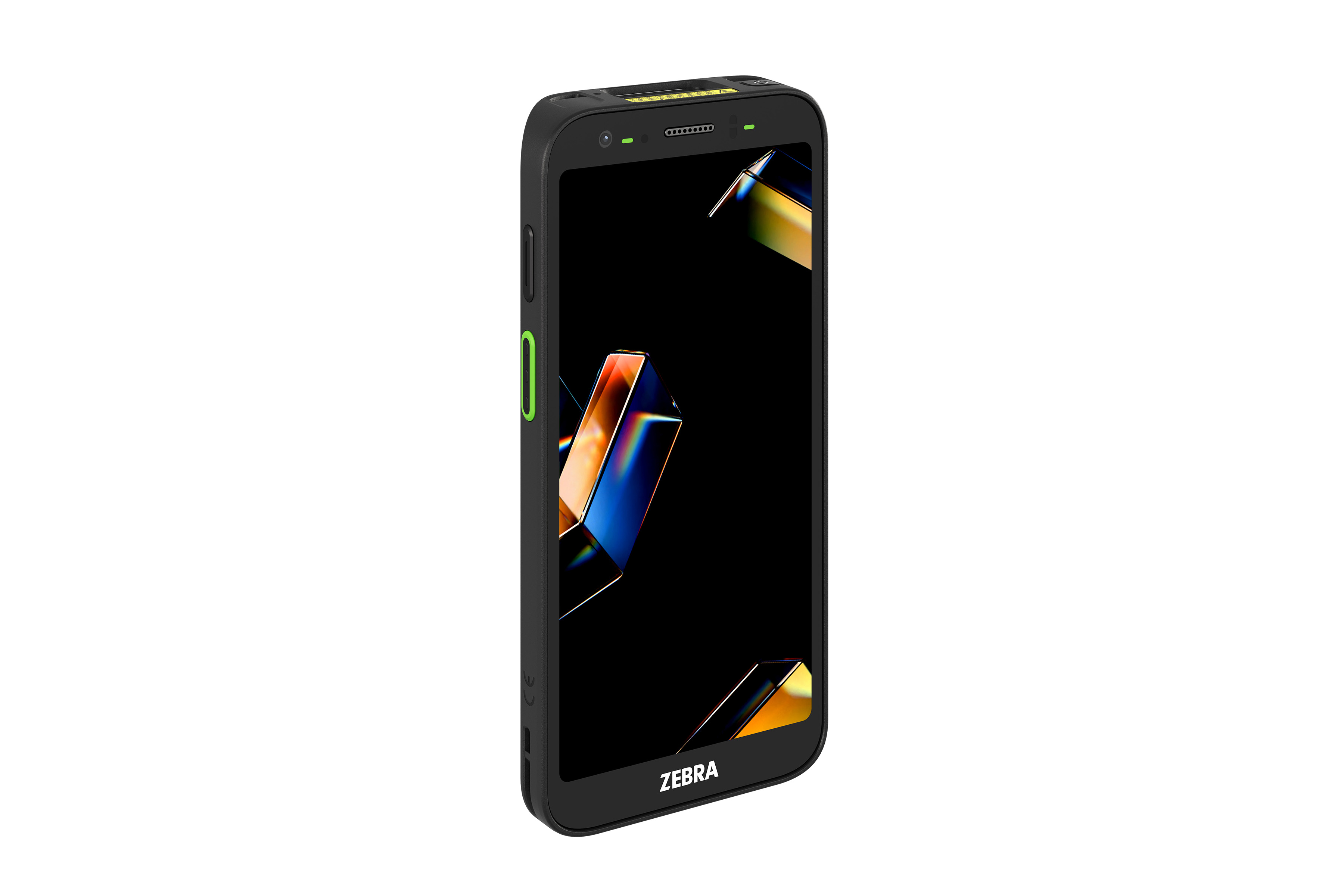

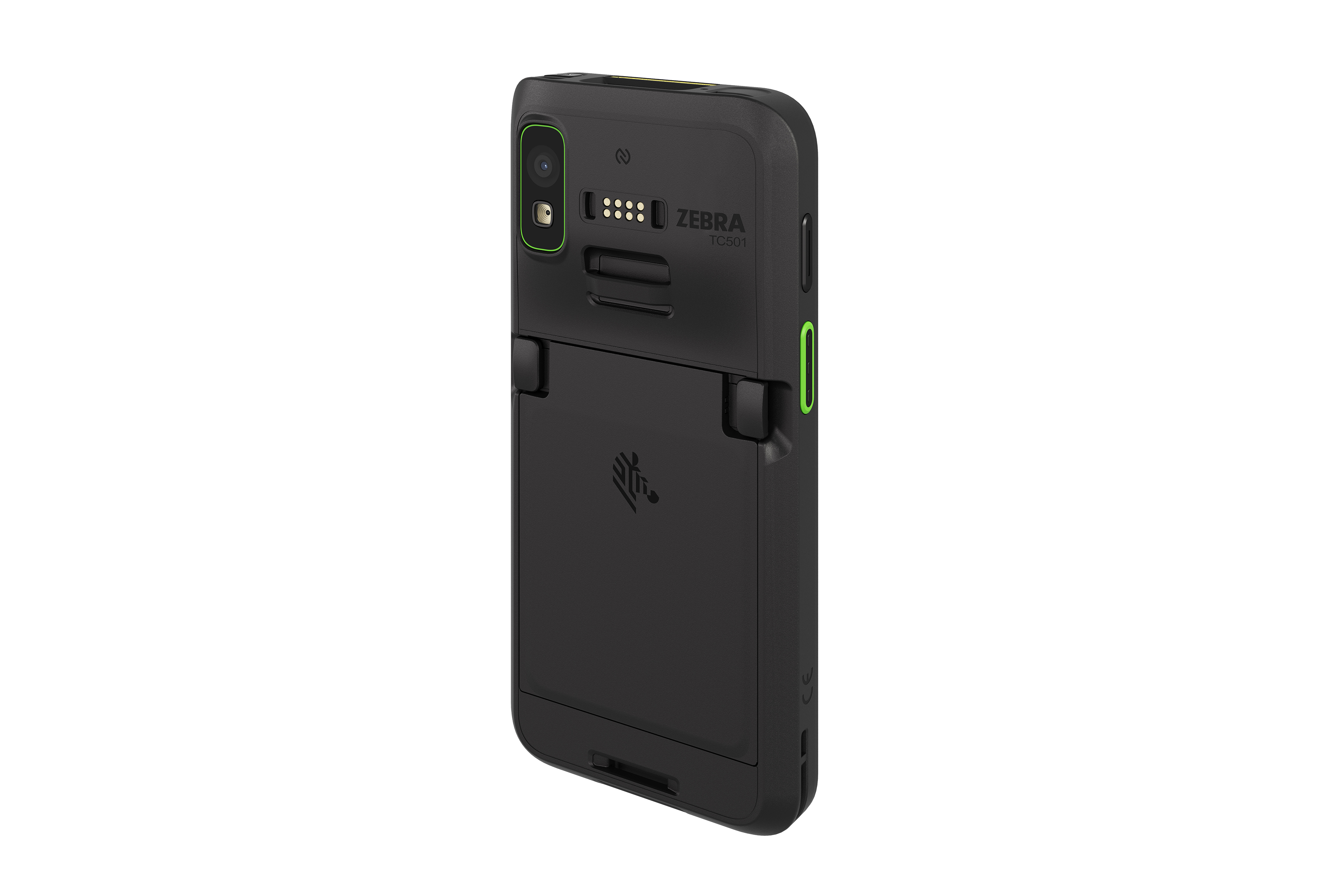

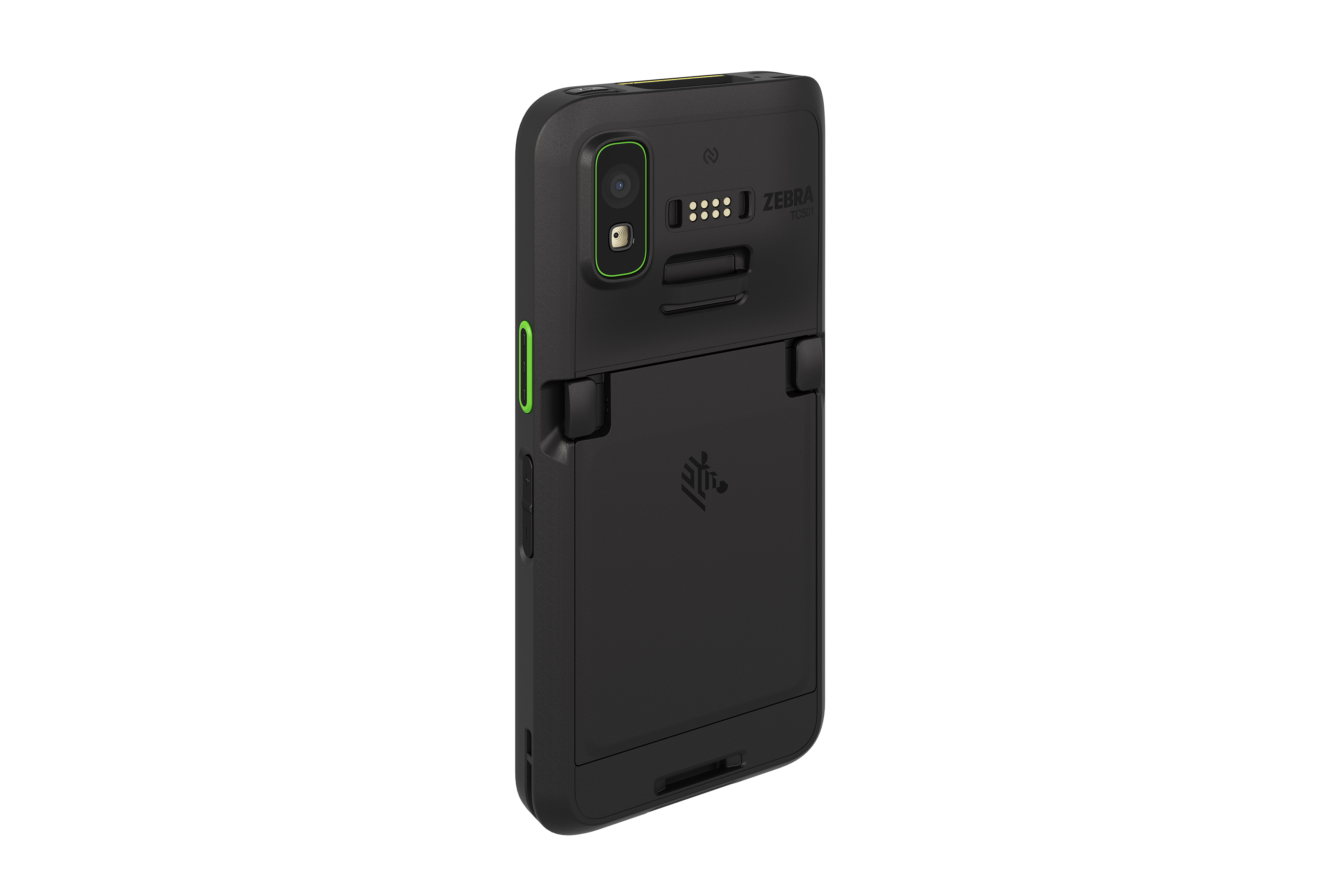

The Zebra TC501 (TC501G-321A1A1A01-NA) is a rugged 6-inch Android mobile computer for retail, field service and delivery teams. This North America configuration pairs 5G and Wi-Fi 7 with a Qualcomm Dragonwing Q-6690 processor at 2.0 GHz and 8 GB RAM with 128 GB flash. It also has an SR500 1D/2D scan engine, integrated short-range UHF RFID, a 50 MP rear camera and a hot-swappable 5000 mAh standard battery with Secure Element hardware security.

  • 5G NR Sub-6 (NSA/SA, Release 17) with one physical SIM plus Dual eSIM, CBRS (US only) and private cellular support
  • Wi-Fi 7 tri-band 2x2 MU-MIMO with MLO, plus Bluetooth 6.0
  • Qualcomm Dragonwing Q-6690 at 2.0 GHz, 8 GB LPDDR5 RAM, 128 GB UFS 3.1 flash, microSD up to 2 TB
  • SR500 1D/2D scan engine and integrated UHF RFID reading more than 200 tags per second up to 2 m
  • 6-inch 2160 x 1080 AMOLED, 1500 nits peak, Gorilla Glass Victus
  • IP68/IP65 sealing; 8 ft drops to concrete, 9 ft with rugged boot
  • Hot-swappable 5000 mAh standard battery with PowerPrecision+ and fast charging
  • Scan barcodes, read RFID tags, tap NFC and take high-resolution photos from one handheld, with no separate sled or reader to buy

The Zebra TC501 is the most rugged and most powerful device in Zebra's TC5 Series. It replaces the TC52x, TC57x and TC52ax. This SKU, TC501G-321A1A1A01-NA, is the North America WWAN configuration. It combines 5G NR Sub-6 (Release 17) and Wi-Fi 7 with a Qualcomm Dragonwing Q-6690 running at 2.0 GHz, 8 GB LPDDR5 RAM and 128 GB UFS 3.1 flash, which you can expand with a microSD card of up to 2 TB. Zebra rates the platform at up to 300% more performance than legacy TC5 devices, and it includes a dedicated on-device AI engine.

Data capture is built around the SR500 1D/2D scan engine, which uses a yellow LED aimer and red illumination. It is designed for moderate to intense scanning, with an improved 2D barcode finder for bright sunlight and high motion tolerance. Every TC501 includes short-range UHF RFID that reads more than 200 tags per second at up to 6.5 ft (2 m). There is also NFC with wallet and contactless payment support, a 50 MP autofocus rear camera and an 8 MP front camera.

The 6-inch Full HD+ AMOLED display reaches 1500 nits peak brightness and sits under Corning Gorilla Glass Victus. The touch panel works with bare fingers, gloves or a passive stylus. The device is sealed to IP68 and IP65 and survives 8 ft (2.44 m) drops to concrete at room temperature, or 9 ft with the rugged boot. It is also rated for 2000 tumbles at 1.6 ft (0.5 m).

The hot-swappable 5000 mAh (19.45 Wh) standard battery reports real-time health through PowerPrecision+, and Zebra's fast-charging options take it from 0 to 70% in 45 minutes. For security, the TC501 uses Android Strongbox with a Secure Element IC, FIPS 140-3 validation, Common Criteria certification, and Secure Boot and Verified Boot. The box contains the mobile computer, a Regulatory Guide and a Quick Start Guide.

Ideal for

  • Retail price and inventory checks, cycle counts and item location using barcode and RFID
  • Buy-online-pickup-in-store order fulfillment and mobile point of sale
  • Field service asset management, parts inventory and invoicing over 5G
  • Courier and postal proof of delivery with 50 MP photos and triple-band GNSS location
  • Merchandising, planogram and promotion compliance for store managers

Specifications

Audio

Voice And Audio
Stereo speakers; two microphones; headset via USB-C or Bluetooth; BLE Audio 5.3 compatible; VoIP with Fullband and SWB audio; PTT support

Power

Battery
Standard rechargeable Li-Ion, 5000 mAh (19.45 Wh)
Fast Charge
0 to 70% in 45 minutes with Zebra fast-charging options
Battery Options
Other TC501 batteries: extended 7240 mAh (28.16 Wh); wireless charge 5000 mAh (19.45 Wh)
Battery Features
Hot-swap capable; fast charging; PowerPrecision+ real-time battery metrics

Display

Brightness
600 nits typical, 1000 nits High Brightness Mode, 1500 nits peak
Panel Type
AMOLED, optically bonded to touch panel
Resolution
2160 x 1080
Cover Glass
Corning Gorilla Glass Victus
Screen Size
6.0 inch color Full High Definition+
Touch Panel
Multi-mode capacitive touch with bare or gloved fingertip or passive stylus (sold separately); water droplet rejection; fingerprint-resistant anti-smudge coating
Refresh Rate
Adaptive refresh rate
Imager Window
Corning Gorilla Glass imager window

General

MPN
TC501G-321A1A1A01-NA
Brand
Zebra Technologies
Model
TC501 Mobile Computer
Region
North America (NA) SKU
Replaces
Replaces TC52x, TC57x, TC52ax
Device Type
Rugged handheld mobile computer
Operating System
Android (supported versions listed at zebra.com/android-versions)

Package

IN The Box
Mobile Computer; Regulatory Guide; Quick Start Guide

Sensors

Light Sensor
Light sensor auto-adjusts display brightness
Magnetometer
eCompass for direction and orientation
Motion Sensor
3-axis gyroscope, 3-axis accelerometer
Pressure Sensor
Pressure sensor/barometer (WWAN SKU)
Proximity Sensor
Disables display and touch when held to the ear

Cellular

LTE
Gigabit LTE-A; LTE CA up to 3DL CA, 2UL CA
SIM
One physical SIM and Dual eSIM; Dual SIM/Dual Standby
GNSS
GPS, GLONASS, a-GLONASS, Galileo, BeiDou, QZSS; triple-band GNSS: concurrent L1/G1/E1/B1 + L5/E5a/BDS B2a + L2 (GPS + QZSS L2C); a-GPS; XTRA
Wwan
5G NR Sub-6 (NSA, SA), 3GPP Release 17
Voice
VoNR; VoLTE; cellular circuit switch voice; HD voice
Bands 3g
B1/2/4/5/6/8/19
Bands 4G
4G LTE: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/34/38/39/40/41/42/43/48/53/66/68/70/71/106
Bands 5G
5G FR1: n1/2/3/5/7/8/12/13/14/20/25/26/28/29/30/38/40/41/48/53/66/70/71/75/76/77/78/79
Private Cellular
B48/53/106/68; CBRS (US only)
MIMO 4x4 Downlink
4x4 DL MIMO on 5G FR1 n1/2/3/7/25/30/38/40/41/48/66/70/77/78/79 and LTE 1/2/3/4/7/25/30/38/40/41/42/43/48/66/70
NR Carrier Aggregation
LTE/NR carrier aggregation; NR CA up to 3DL, 2UL

Physical

Keypad
On-screen keypad
Weight
9.63 oz (273 g) with 5000 mAh battery
Buttons
Dual dedicated scan buttons, dedicated push-to-talk button, volume up/down
Dimensions
6.42 x 3.07 x 0.61 in (163.15 x 77.9 x 15.5 mm)
Notifications
Audible tone; multi-color LEDs; vibration
Interface Ports
Bottom USB Type-C USB 3.1 SuperSpeed (host and client); back I/O USB 2.0 (host only)

Security

Boot
Supports Secure Boot and Verified Boot
Certifications
FIPS 140-3 validated (ISO 19790); Common Criteria certified (ISO 15408)
Hardware Security
Android Strongbox with Secure Element IC

Services

Recommended Services
Zebra OneCare Essential and Select; Zebra VisibilityIQ Foresight

Warranty

Manufacturer Warranty
1 year from date of shipment, subject to Zebra's hardware warranty statement

Compliance

Environmental
RoHS 2011/65/EU and 2015/863; REACH SVHC 1907/2006; EPEAT Certified

Environment

Esd
±15 kV air discharge; ±8 kV direct; ±8 kV indirect
Drop
Exceeds MIL-STD-810H: 6 ft (1.83 m) to concrete at -20°C to 50°C; 8 ft (2.44 m) at room temperature; with rugged boot 7 ft (2.13 m) across temp range, 9 ft (2.74 m) at room temperature
Tumble
2000 x 1.6 ft (0.5 m) tumbles; 2000 x 3.3 ft (1.0 m) with rugged boot
Sealing
IP68 and IP65 per IEC 60529
Humidity
5%-95% non-condensing
Storage Temperature
-40°F to 158°F (-40°C to 70°C)
Operating Temperature
-4°F to 122°F (-20°C to 50°C)

Performance

RAM
8 GB LPDDR5 RAM
Storage
128 GB UFS 3.1 Flash
Processor
Qualcomm Dragonwing Q-6690 processor
Expansion Slot
User accessible microSD card, up to 2 TB
Processor Speed
2.0 GHz (this SKU; platform up to 2.9 GHz, SKU specific)

Data Capture

NFC
NFC ISO 14443 Type A and B; Mifare, FeliCa, ISO 15693; Mifare DESFire EV1/EV2/EV3; NFC Forum tags 2-5; EMVCo RR2 contactless payment; HCE; Apple ECP 1.0/2.0, Apple VAS and Google Smart Tap certified
Rfid
Short-range UHF RFID up to 6.5 ft (2 m); more than 200 tags/sec; EPC Class 1 Gen2, EPC Gen 2 V2; EU 865-868 MHz and US 902-928 MHz
Rear Camera
50 MP autofocus with PDAF; LED flash; Torch mode + HDR
Scan Engine
SR500 1D/2D scan engine (yellow LED aimer, red illumination)
Front Camera
8 MP fixed focus

Wireless LAN

Radio
Tri-band (2.4 GHz, 5 GHz, 6 GHz), 2x2 MU-MIMO; Dual Band Simultaneous; High Band Simultaneous; IPv4, IPv6; Wi-Fi Aware
Fast Roam
802.11r Fast BSS Transition; PMK caching; Cisco CCKM; OKC
Standards
IEEE 802.11 be/ax/ac/n/a/g/b/mc/az/d/h/i/r/k/u/v/w; Wi-Fi CERTIFIED 7
Multimedia
Wi-Fi Multimedia (WMM) and WMM-PS; TSPEC
Certifications
Wi-Fi CERTIFIED 7, Wi-Fi CERTIFIED 6 (Wi-Fi 6E), ac, n; WPA2/WPA3 Personal and Enterprise (192-bit); PMF; Enhanced Open; WMM, WMM-PS, WMM-AC; Voice-Enterprise; Wi-Fi Direct; Agile Multiband; QoS Management; Optimized Connectivity; Passpoint
Data Rate 5ghz
802.11a/n/ac/ax/be, 20/40/80/160 MHz, up to 2882 Mbps
Data Rate 6ghz
802.11ax/be, 20/40/80/160/320 MHz, up to 5764 Mbps
Data Rate 2 4ghz
802.11b/g/n/ax/be, 20 MHz, up to 344 Mbps
Operating Channels
Channels 1-13 (2401-2483 MHz); 36-165 (5150-5850 MHz); 1-233 (5925-7125 MHz); bandwidth 20/40/80/160/320 MHz, subject to regulatory rules
Security Encryption
WPA3 Enterprise 192-bit (GCMP-256, EAP-TLS); WPA3 Enterprise (AES-CCMP-128, GCMP-256; EAP-TTLS, EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, EAP-PWD); WPA3 Personal (SAE, SAE-EXT); WPA/WPA2 Enterprise and Personal (TKIP, AES-CCMP-128); Enhanced Open (OWE); WEP 40/104 bit; WAN only: EAP-SIM, EAP-AKA, EAP-AKA Prime
Multi Link Operation
MLO (Simultaneous Transmit and Receive MLMR): 2.4+5+6, 5+5+6, 5+6, 5+5, 2.4+5, 2.4+6

Wireless Pan

Bluetooth
Bluetooth 6.0, configurable Class 1 and 2, 2x2 Tx; chipset-enabled secondary BLE beaconing

Questions buyers ask

What is included in the TC501G-321A1A1A01-NA configuration?

This SKU has 5G WWAN, Wi-Fi 7, a Qualcomm Dragonwing Q-6690 at 2.0 GHz, 8 GB RAM, 128 GB flash, the SR500 imager, a 50 MP rear and 8 MP front camera, a hot-swappable standard battery and Secure Element security. The box contains the mobile computer, a Regulatory Guide and a Quick Start Guide.

Is this model intended for North American use?

Yes. The -NA suffix marks this as the North America SKU. CBRS support applies in the US only.

Can the battery be changed during a shift?

Yes. The 5000 mAh standard battery is hot-swappable, and Zebra's fast-charging options recharge it from 0 to 70% in 45 minutes.

Does the TC501 read RFID tags without an add-on sled?

Yes. Every TC501 includes short-range UHF RFID that reads more than 200 tags per second at up to 6.5 ft (2 m).

How rugged is the TC501?

It is sealed to IP68 and IP65 and handles 8 ft (2.44 m) drops to concrete at room temperature, or 9 ft (2.74 m) with the rugged boot. It is rated for 2000 tumbles at 1.6 ft (0.5 m).
