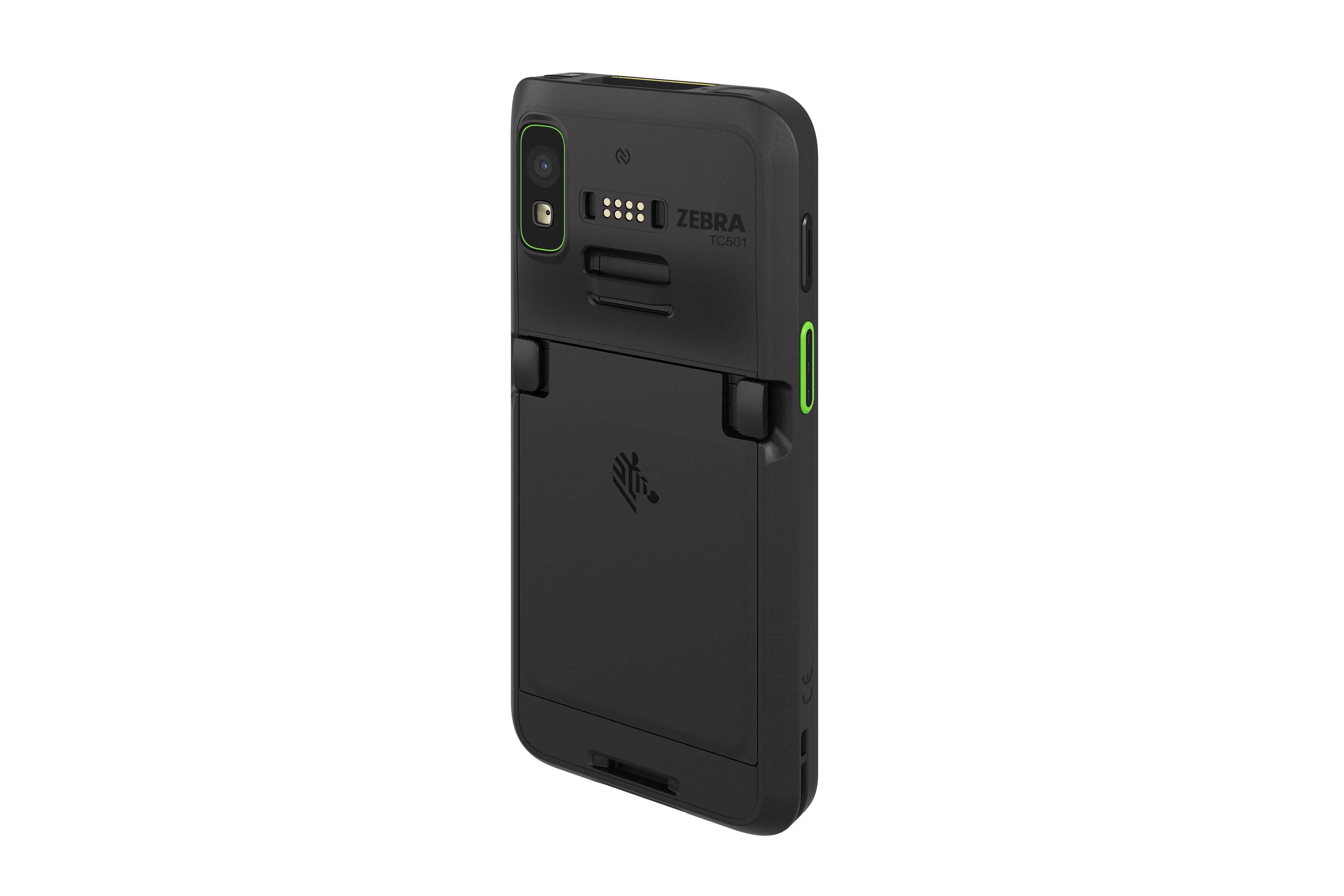

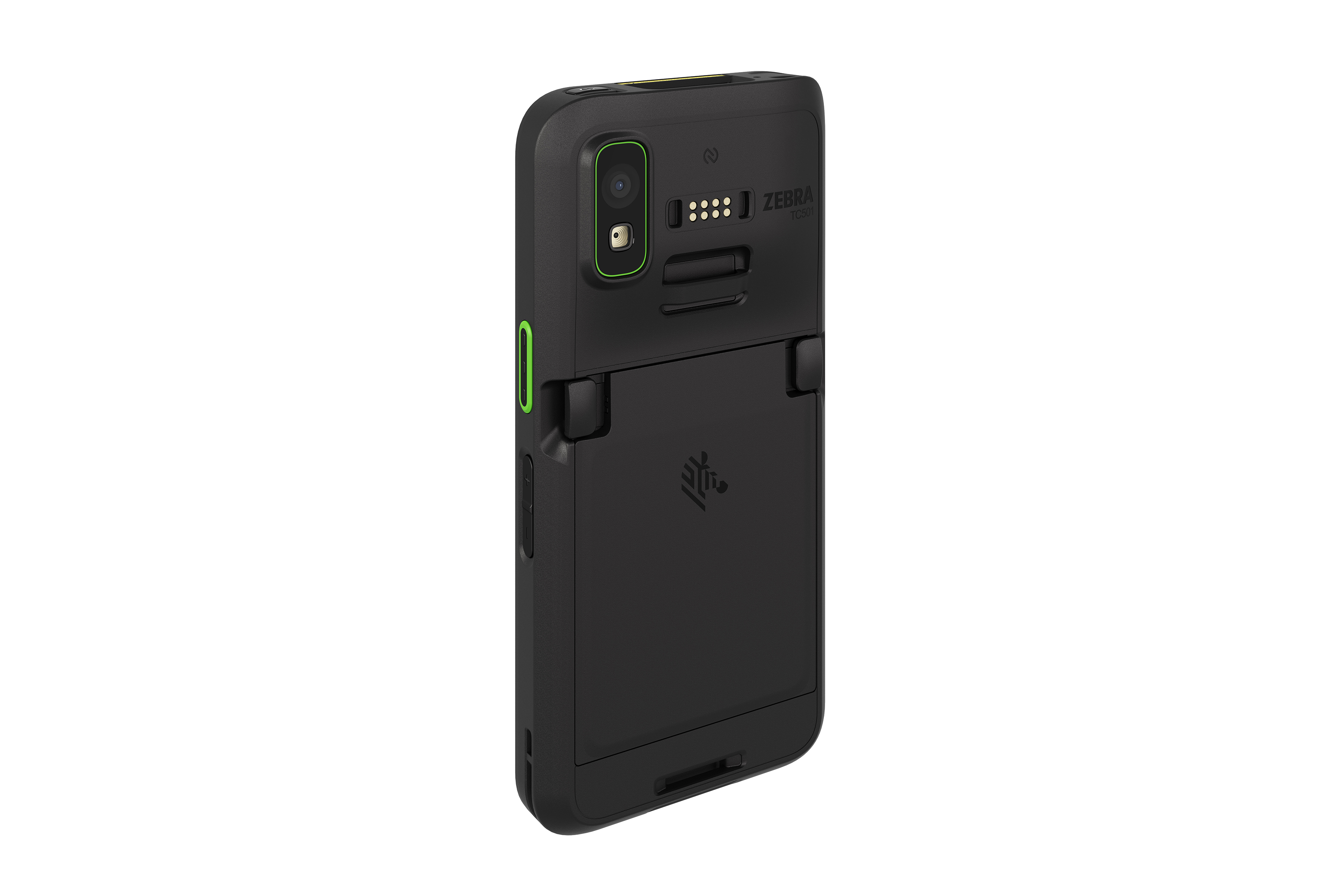

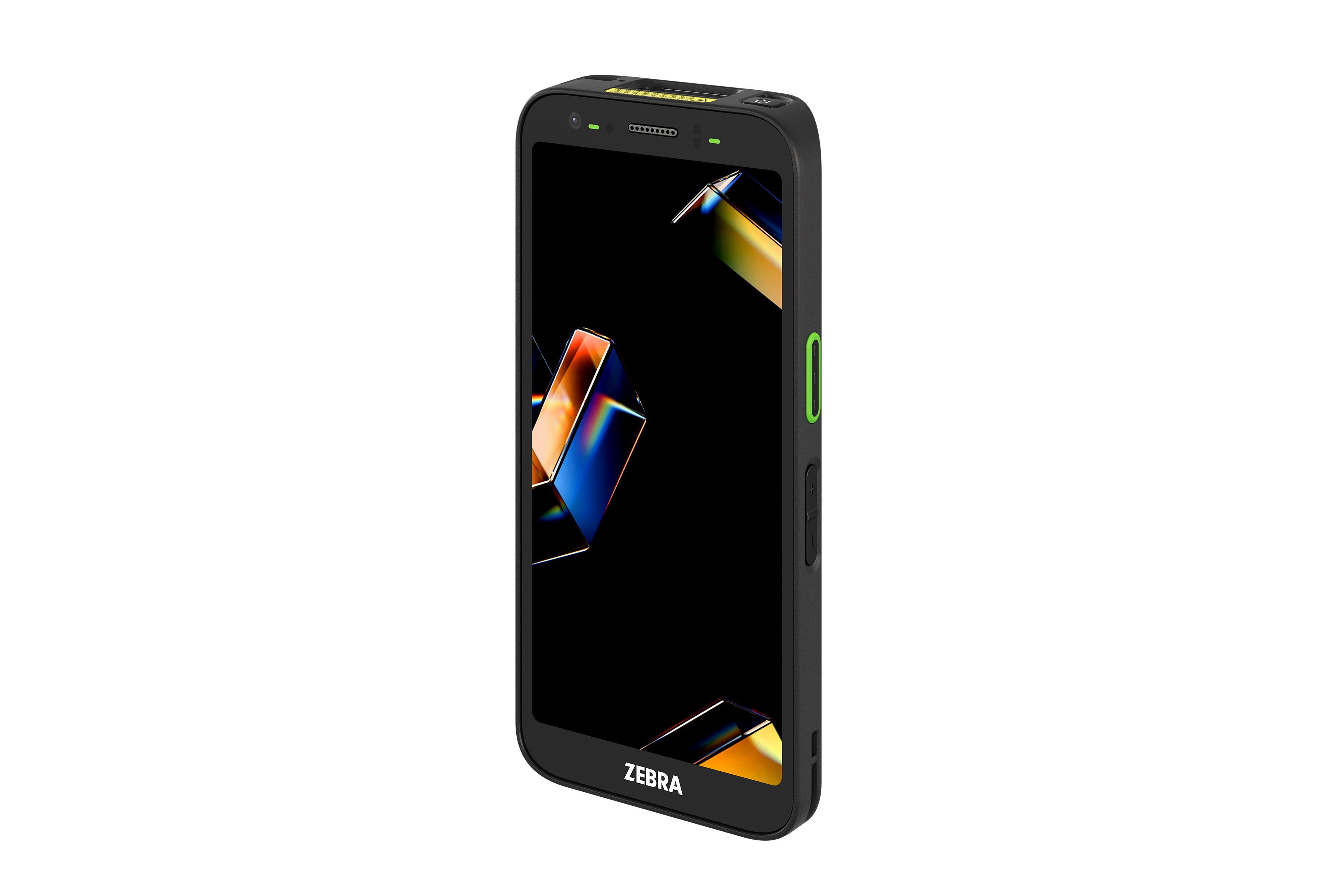

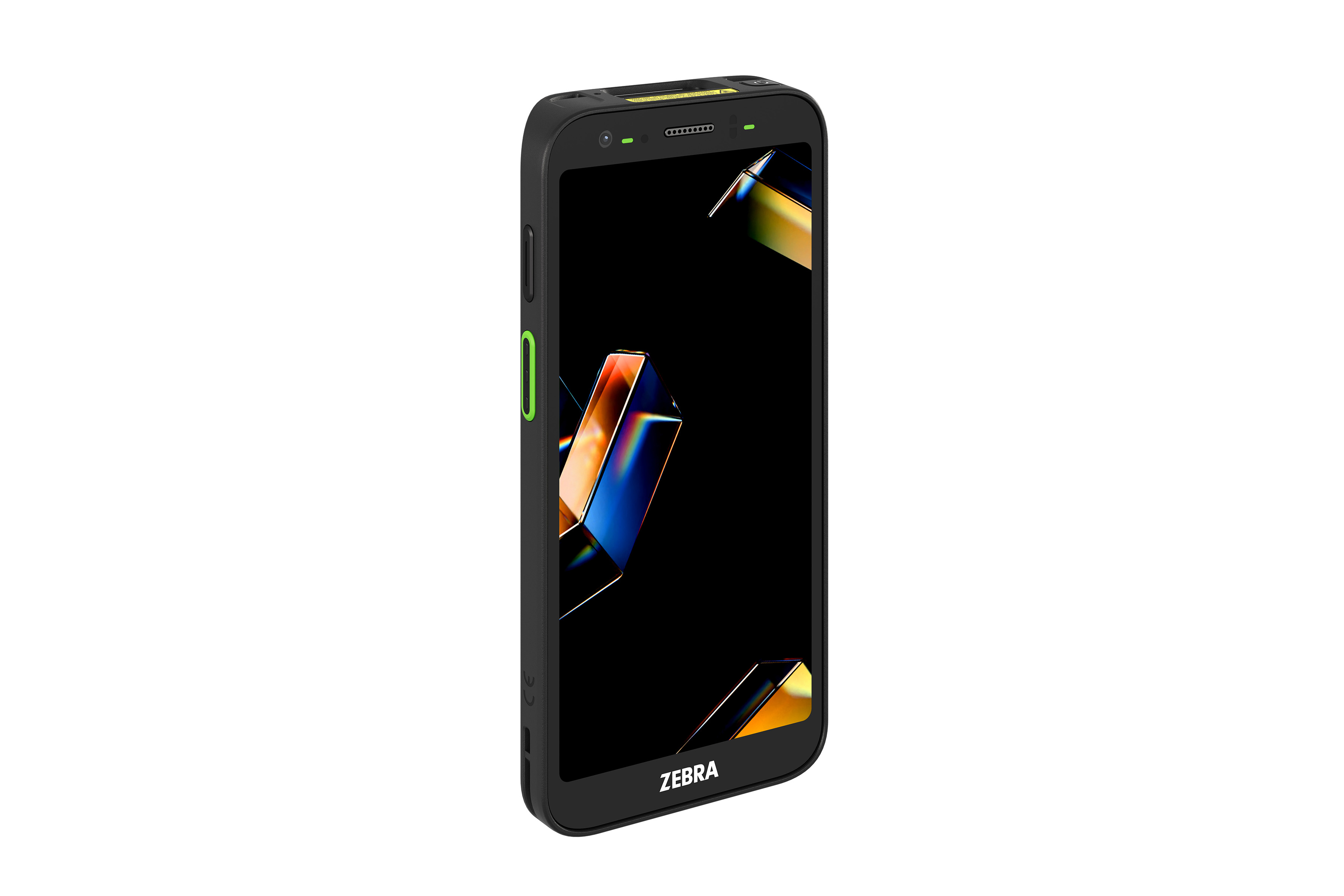

Zebra TC501 5G Rugged Mobile Computer with Wi-Fi 7, SR560 Imager, 8GB/128GB (North America)

5GMPN TC501G-321B1A1A01-NA
  • 128 GB
  • Rugged
$2,609.06$3,795.00Save $1,185.94

In stockShips from the US

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Zebra TC501 (TC501G-321B1A1A01-NA) is a rugged Android mobile computer configured for North America. It has 5G, Wi-Fi 7, a Qualcomm Dragonwing Q-6690 at 2.0 GHz, and 8 GB RAM with 128 GB flash. Its SR560 1D/2D scan engine uses a red laser cross-hair aimer with white illumination for precise targeting. The device adds integrated UHF RFID, a 6-inch 1500-nit AMOLED display, a 50 MP rear camera and a hot-swappable 5000 mAh standard battery.

  • SR560 1D/2D scan engine with red laser cross-hair aimer and white illumination
  • 5G NR Sub-6 Release 17 with one physical SIM, Dual eSIM, private cellular and CBRS (US only)
  • Tri-band Wi-Fi 7 2x2 MU-MIMO with MLO and Bluetooth 6.0
  • Qualcomm Dragonwing Q-6690 at 2.0 GHz with 8 GB RAM and 128 GB UFS 3.1 flash
  • Integrated short-range UHF RFID, NFC, 50 MP rear and 8 MP front cameras
  • 6-inch 1500-nit AMOLED with Gorilla Glass Victus; IP68/IP65 sealing
  • Hot-swappable 5000 mAh standard battery with fast charging
  • Aim precisely in busy aisles and crowded shelves with the SR560's laser cross-hair aimer

The TC501 is Zebra's most powerful and most rugged TC5 Series handheld, and it succeeds the TC52x, TC57x and TC52ax. Part number TC501G-321B1A1A01-NA is the North America WWAN build. It supports 5G NR Sub-6 (NSA and SA, Release 17) on one physical SIM plus Dual eSIM, with dual SIM/dual standby, private cellular bands and CBRS in the US. Tri-band Wi-Fi 7 with multi-link operation and Bluetooth 6.0 complete the wireless set. A Qualcomm Dragonwing Q-6690 at 2.0 GHz, with a dedicated AI engine, runs Android on 8 GB LPDDR5 RAM and 128 GB UFS 3.1 flash. The microSD slot accepts cards up to 2 TB.

This configuration uses the SR560 1D/2D scan engine. Its red laser cross-hair aimer and white illumination are designed for moderate to intense scanning. The improved 2D barcode finder works in bright sunlight and tolerates motion, so workers can scan on the move. Integrated UHF RFID reads more than 200 tags per second at up to 2 m. NFC supports contactless payments and wallet passes, and the device carries a 50 MP autofocus rear camera and an 8 MP front camera.

The 6-inch 2160 x 1080 AMOLED display reaches 1500 nits peak and is protected by Gorilla Glass Victus. It accepts glove and wet-finger input. The TC501 is sealed to IP68 and IP65, exceeds MIL-STD-810H with 8 ft drops to concrete at room temperature, and is rated for 2000 tumbles.

Power comes from a hot-swappable 5000 mAh (19.45 Wh) Li-Ion standard battery with PowerPrecision+ metrics. Zebra fast charging takes it from 0 to 70% in 45 minutes. For security, the device uses a Secure Element with Android Strongbox, carries FIPS 140-3 validation and Common Criteria certification, and supports Secure Boot and Verified Boot. The box contains the mobile computer, a Regulatory Guide and a Quick Start Guide.

Ideal for

  • High-volume retail scanning for replenishment, price management and inventory counts
  • Warehouse-style back-of-store picking where precise laser-guided aiming speeds targeting
  • Order fulfillment and line busting with mobile point of sale and NFC payments
  • Field service parts inventory and asset tracking over 5G or private cellular
  • Delivery proof of condition with high-resolution photos and triple-band GNSS

Specifications

Audio

Voice And Audio
Stereo speakers; two microphones; headset via USB-C or Bluetooth; BLE Audio 5.3 compatible; VoIP with Fullband and SWB audio; PTT support

Power

Battery
Standard rechargeable Li-Ion, 5000 mAh (19.45 Wh)
Fast Charge
0 to 70% in 45 minutes with Zebra fast-charging options
Battery Options
Other TC501 batteries: extended 7240 mAh (28.16 Wh); wireless charge 5000 mAh (19.45 Wh)
Battery Features
Hot-swap capable; fast charging; PowerPrecision+ real-time battery metrics

Display

Brightness
600 nits typical, 1000 nits High Brightness Mode, 1500 nits peak
Panel Type
AMOLED, optically bonded to touch panel
Resolution
2160 x 1080
Cover Glass
Corning Gorilla Glass Victus
Screen Size
6.0 inch color Full High Definition+
Touch Panel
Multi-mode capacitive touch with bare or gloved fingertip or passive stylus (sold separately); water droplet rejection; fingerprint-resistant anti-smudge coating
Refresh Rate
Adaptive refresh rate
Imager Window
Corning Gorilla Glass imager window

General

MPN
TC501G-321B1A1A01-NA
Brand
Zebra Technologies
Model
TC501 Mobile Computer
Region
North America (NA) SKU
Replaces
Replaces TC52x, TC57x, TC52ax
Device Type
Rugged handheld mobile computer
Operating System
Android (supported versions listed at zebra.com/android-versions)

Package

IN The Box
Mobile Computer; Regulatory Guide; Quick Start Guide

Sensors

Light Sensor
Light sensor auto-adjusts display brightness
Magnetometer
eCompass for direction and orientation
Motion Sensor
3-axis gyroscope, 3-axis accelerometer
Pressure Sensor
Pressure sensor/barometer (WWAN SKU)
Proximity Sensor
Disables display and touch when held to the ear

Cellular

LTE
Gigabit LTE-A; LTE CA up to 3DL CA, 2UL CA
SIM
One physical SIM and Dual eSIM; Dual SIM/Dual Standby
GNSS
GPS, GLONASS, a-GLONASS, Galileo, BeiDou, QZSS; triple-band GNSS: concurrent L1/G1/E1/B1 + L5/E5a/BDS B2a + L2 (GPS + QZSS L2C); a-GPS; XTRA
Wwan
5G NR Sub-6 (NSA, SA), 3GPP Release 17
Voice
VoNR; VoLTE; cellular circuit switch voice; HD voice
Bands 3g
B1/2/4/5/6/8/19
Bands 4G
4G LTE: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/34/38/39/40/41/42/43/48/53/66/68/70/71/106
Bands 5G
5G FR1: n1/2/3/5/7/8/12/13/14/20/25/26/28/29/30/38/40/41/48/53/66/70/71/75/76/77/78/79
Private Cellular
B48/53/106/68; CBRS (US only)
MIMO 4x4 Downlink
4x4 DL MIMO on 5G FR1 n1/2/3/7/25/30/38/40/41/48/66/70/77/78/79 and LTE 1/2/3/4/7/25/30/38/40/41/42/43/48/66/70
NR Carrier Aggregation
LTE/NR carrier aggregation; NR CA up to 3DL, 2UL

Physical

Keypad
On-screen keypad
Weight
9.63 oz (273 g) with 5000 mAh battery
Buttons
Dual dedicated scan buttons, dedicated push-to-talk button, volume up/down
Dimensions
6.42 x 3.07 x 0.61 in (163.15 x 77.9 x 15.5 mm)
Notifications
Audible tone; multi-color LEDs; vibration
Interface Ports
Bottom USB Type-C USB 3.1 SuperSpeed (host and client); back I/O USB 2.0 (host only)

Security

Boot
Supports Secure Boot and Verified Boot
Certifications
FIPS 140-3 validated (ISO 19790); Common Criteria certified (ISO 15408)
Hardware Security
Android Strongbox with Secure Element IC

Services

Recommended Services
Zebra OneCare Essential and Select; Zebra VisibilityIQ Foresight

Warranty

Manufacturer Warranty
1 year from date of shipment, subject to Zebra's hardware warranty statement

Compliance

Environmental
RoHS 2011/65/EU and 2015/863; REACH SVHC 1907/2006; EPEAT Certified

Environment

Esd
±15 kV air discharge; ±8 kV direct; ±8 kV indirect
Drop
Exceeds MIL-STD-810H: 6 ft (1.83 m) to concrete at -20°C to 50°C; 8 ft (2.44 m) at room temperature; with rugged boot 7 ft (2.13 m) across temp range, 9 ft (2.74 m) at room temperature
Tumble
2000 x 1.6 ft (0.5 m) tumbles; 2000 x 3.3 ft (1.0 m) with rugged boot
Sealing
IP68 and IP65 per IEC 60529
Humidity
5%-95% non-condensing
Storage Temperature
-40°F to 158°F (-40°C to 70°C)
Operating Temperature
-4°F to 122°F (-20°C to 50°C)

Performance

RAM
8 GB LPDDR5 RAM
Storage
128 GB UFS 3.1 Flash
Processor
Qualcomm Dragonwing Q-6690 processor
Expansion Slot
User accessible microSD card, up to 2 TB
Processor Speed
2.0 GHz (this SKU; platform up to 2.9 GHz, SKU specific)

Data Capture

NFC
NFC ISO 14443 Type A and B; Mifare, FeliCa, ISO 15693; Mifare DESFire EV1/EV2/EV3; NFC Forum tags 2-5; EMVCo RR2 contactless payment; HCE; Apple ECP 1.0/2.0, Apple VAS and Google Smart Tap certified
Rfid
Short-range UHF RFID up to 6.5 ft (2 m); more than 200 tags/sec; EPC Class 1 Gen2, EPC Gen 2 V2; EU 865-868 MHz and US 902-928 MHz
Rear Camera
50 MP autofocus with PDAF; LED flash; Torch mode + HDR
Scan Engine
SR560 1D/2D scan engine (red laser cross-hair aimer, white illumination)
Front Camera
8 MP fixed focus

Wireless LAN

Radio
Tri-band (2.4 GHz, 5 GHz, 6 GHz), 2x2 MU-MIMO; Dual Band Simultaneous; High Band Simultaneous; IPv4, IPv6; Wi-Fi Aware
Fast Roam
802.11r Fast BSS Transition; PMK caching; Cisco CCKM; OKC
Standards
IEEE 802.11 be/ax/ac/n/a/g/b/mc/az/d/h/i/r/k/u/v/w; Wi-Fi CERTIFIED 7
Multimedia
Wi-Fi Multimedia (WMM) and WMM-PS; TSPEC
Certifications
Wi-Fi CERTIFIED 7, Wi-Fi CERTIFIED 6 (Wi-Fi 6E), ac, n; WPA2/WPA3 Personal and Enterprise (192-bit); PMF; Enhanced Open; WMM, WMM-PS, WMM-AC; Voice-Enterprise; Wi-Fi Direct; Agile Multiband; QoS Management; Optimized Connectivity; Passpoint
Data Rate 5ghz
802.11a/n/ac/ax/be, 20/40/80/160 MHz, up to 2882 Mbps
Data Rate 6ghz
802.11ax/be, 20/40/80/160/320 MHz, up to 5764 Mbps
Data Rate 2 4ghz
802.11b/g/n/ax/be, 20 MHz, up to 344 Mbps
Operating Channels
Channels 1-13 (2401-2483 MHz); 36-165 (5150-5850 MHz); 1-233 (5925-7125 MHz); bandwidth 20/40/80/160/320 MHz, subject to regulatory rules
Security Encryption
WPA3 Enterprise 192-bit (GCMP-256, EAP-TLS); WPA3 Enterprise (AES-CCMP-128, GCMP-256; EAP-TTLS, EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, EAP-PWD); WPA3 Personal (SAE, SAE-EXT); WPA/WPA2 Enterprise and Personal (TKIP, AES-CCMP-128); Enhanced Open (OWE); WEP 40/104 bit; WAN only: EAP-SIM, EAP-AKA, EAP-AKA Prime
Multi Link Operation
MLO (Simultaneous Transmit and Receive MLMR): 2.4+5+6, 5+5+6, 5+6, 5+5, 2.4+5, 2.4+6

Wireless Pan

Bluetooth
Bluetooth 6.0, configurable Class 1 and 2, 2x2 Tx; chipset-enabled secondary BLE beaconing

Questions buyers ask

What makes the SR560 imager different from the SR500?

The SR560 uses a red laser cross-hair aimer with white illumination, while the SR500 uses a yellow LED aimer with red illumination. Both include Zebra's improved 2D barcode finder for bright sunlight and scanning on the move.

Which region is this TC501 SKU built for?

The -NA suffix designates the North America configuration. CBRS support applies in the US only.

How much memory does this configuration have?

It has 8 GB LPDDR5 RAM and 128 GB UFS 3.1 flash, plus a user-accessible microSD slot that supports cards up to 2 TB.

Can it run on two cellular networks?

Yes. It has one physical SIM and Dual eSIM with dual SIM/dual standby, and it supports private cellular bands B48/53/106/68.

What documentation is available?

Zebra publishes a TC501 spec sheet, a Quick Start Guide, a Product Reference Guide and an Accessory Guide. A printed Quick Start Guide and Regulatory Guide ship in the box.
